This afternoon at the slipway

Discussion in 'General Sailing Discussion' started by Mov-it!, May 1, 2007.

  1. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands

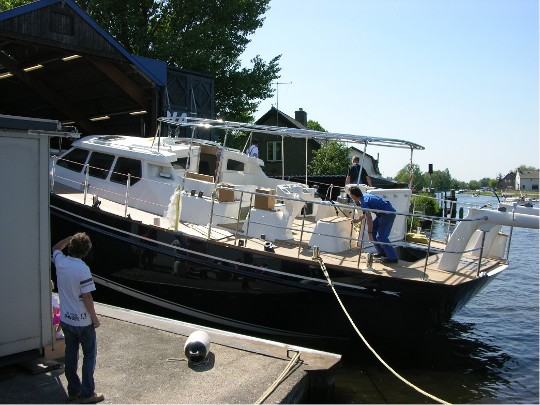

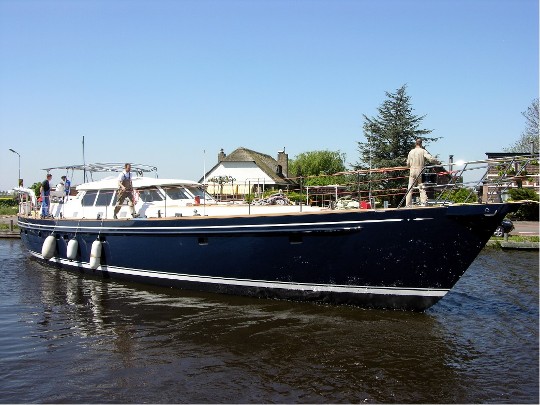

    Some images of a launch of the slipway and the towing to the landing stage.
    The rigging will be added next week. I may send some pictures of that as well.

    Attached Files:

    • yfb.jpg
      File size:
      74.5 KB
      Views:
      1,037
    • yfc.jpg
      File size:
      61.3 KB
      Views:
      1,017
    • yfd.jpg
      File size:
      74.1 KB
      Views:
      1,018
    • yfe.jpg
      File size:
      67.9 KB
      Views:
      1,014
    • yfa.jpg
      File size:
      69.7 KB
      Views:
      1,001
  2. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    22,844
    Location:
    Caribbean
    Nice Mov-it! Do you happen to have specs for this vessel? Nice pics though, thanks for posting then.
  3. Rene GER

    Rene GER Senior Member

    Joined:
    Sep 4, 2004
    Messages:
    742
    Location:
    Northern Germany, West Coast
    Is it your boat? It looks like a Nordia 100

    It's really really nice :)
  4. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    Length over all 25.00 m 82'
    Hull Lenght 24.45 m 80'2"
    Length waterline 20.35 m 66'8"
    Beam 6.55 m 21'5"
    Draft with BALLISTO® keel 3.00 m 9'8"
    Displacement 67 tons 147.700 lbs

    Type Ketch
    Sail Area 388 m² 4.176 sq.ft.
    Mainsail 111 m² 1.195 sq.ft.
    Genoa 175 m² 1.884 sq.ft.
    100% Fore triangel 114 m² 1.227 sq.ft.
    Stormjib 60 m² 646 sq.ft.
    MP-S 420 m² 4.521 sq.ft.
    Mizzen 57 m² 614 sq.ft.
    Fuel: 3.300 L; 725 Imp. gallon
    Water: 2.500 L; 550 Imp. gallon
    Grey: 550 L; 121 Imp. gallon
    Black: 400 L; 88 Imp. gallon
    Main engine: Perkins Sabre M300Ti
    HP: 300 HP (221 kW)
    Generator(s): Onan 17.5 kW

    Regret to say she's not mine:(

    It's actually Nordia's 100 little sister the 78.
  5. Rene GER

    Rene GER Senior Member

    Joined:
    Sep 4, 2004
    Messages:
    742
    Location:
    Northern Germany, West Coast
    Ahh...ok...Thanks for sharing the photos :)
  6. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    Additional images

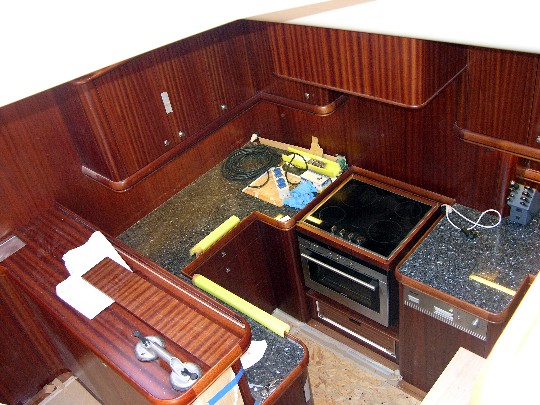

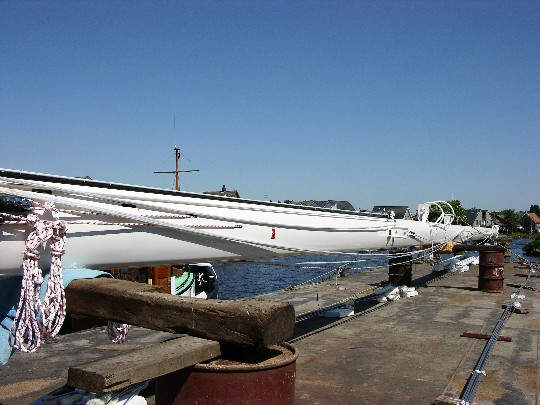

    Made some extra images of the main mast, pilot house and galley.
    As you can see; still a lot of work to do.

    Attached Files:

    • yff.jpg
      File size:
      69.5 KB
      Views:
      937
    • yfg.jpg
      File size:
      56 KB
      Views:
      959
    • yfh.jpg
      File size:
      89.3 KB
      Views:
      942
  7. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    22,844
    Location:
    Caribbean
    Lovely, thanks for the stats. Looks good so far on the interior as well.
  8. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    Masts fitted

    Hi Guys and dolls,

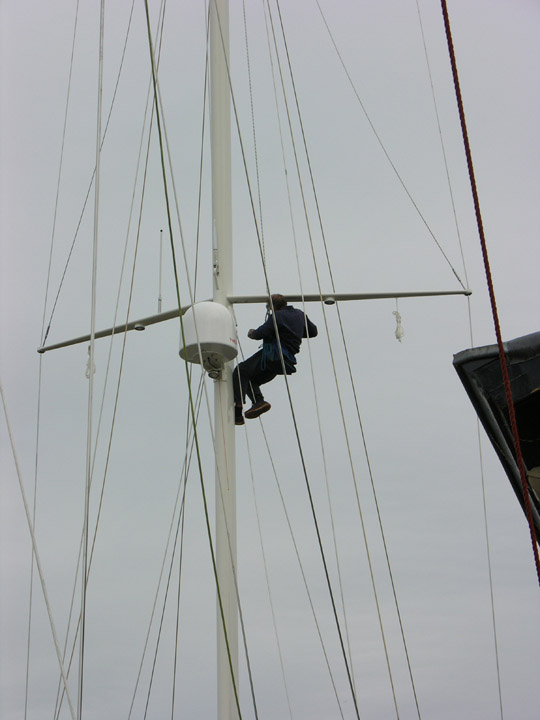

    Finally the masts have been placed and the yacht now actually looks like a sailingyacht (thank god):D

    Attached Files:

  9. blazeboss

    blazeboss New Member

    Joined:
    Mar 17, 2006
    Messages:
    56
    Location:
    paris texas
    what craftmenship!!

    hello bjorn great weird lens shots!did the 100 foot nordia ever sell? the one that became available due to the demise of the owner.Oh do you or anyone else at yf know wheather the owner of Air recovered from his car wreck?
  10. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    Fianally; The sea-trials

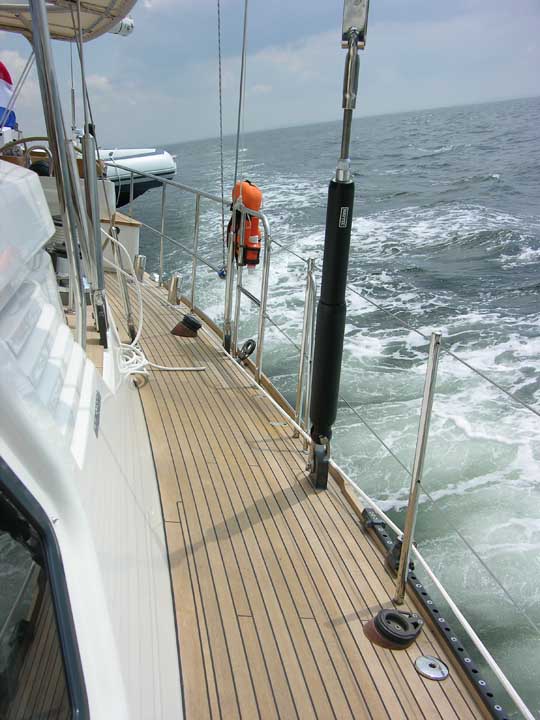

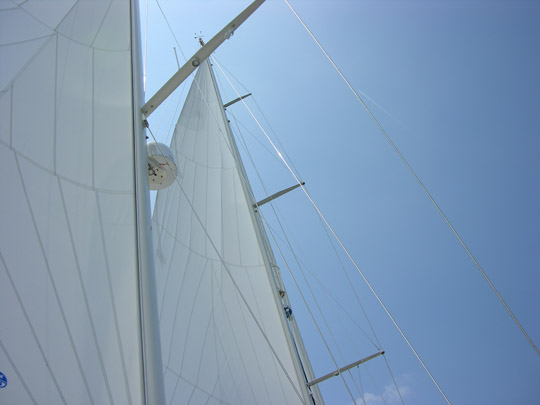

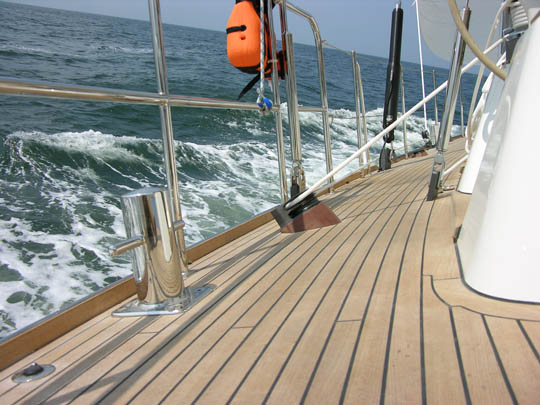

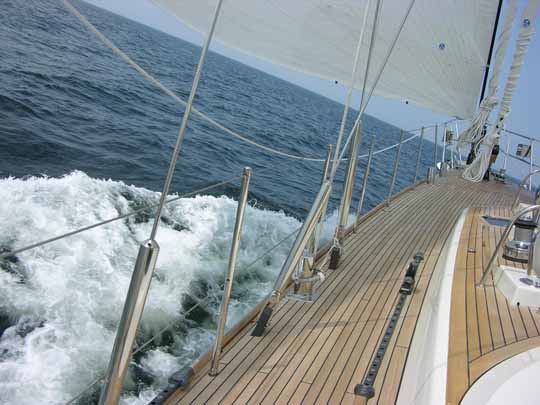

    Some images from yesterday at the sea trails on the ever thrilling north sea.

    Attached Files:

  11. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    22,844
    Location:
    Caribbean
    Thanks as usual Mov-It! good pictures from the trials. I would like to see some more interior pics if possible.
  12. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    last badge

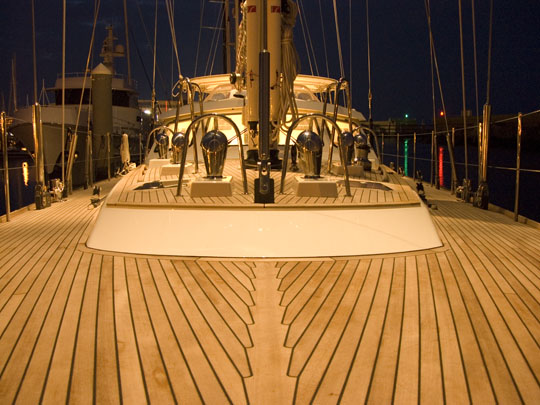

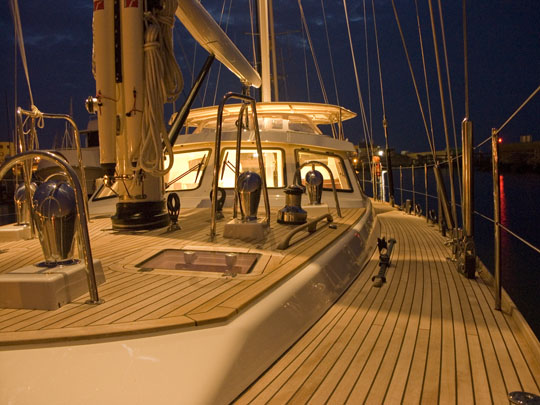

    Since you seem to like the images, I have found some more ambience impressions made at night at the marina. I was messing around with my camera´s shutterspeed.

    Attached Files:

  13. Mov-it!

    Mov-it! New Member

    Joined:
    Nov 8, 2005
    Messages:
    194
    Location:
    Katwijk Netherlands
    Done!

    Finally on her way...

    Attached Files:

  14. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    22,844
    Location:
