Discussion in 'Perini Navi Yacht' started by hufloas, Jan 10, 2005.

You need to be registered and signed in to view this content.
  1. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Quiet from Maltese??, & new Dynarig Vessel

    Lets see its been about 2.5 months since we've heard from Maltese on this forum ?? Seems strange.

    I even sent a private message to Jed about my new DynaRig MotorSailer, only to receive no response

    So I thought a posting here was in order.

    http://www.yachtforums.com/forums/g...n/6590-motor-sailing-vessels-motorsailer.html

    http://www.yachtforums.com/forums/g...re-sportfishing-innovations-alternatives.html

    Website presentation:
    http://www.runningtideyachts.com/dynarig/

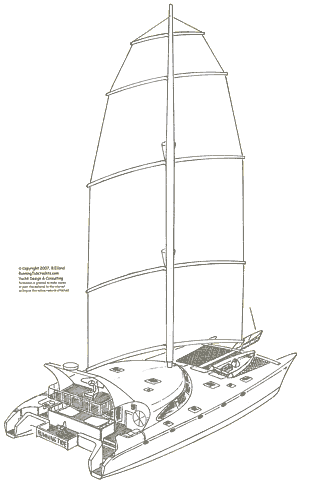

    ...and finally one dwg

    Attached Files:

  2. jediwhite

    jediwhite Senior Member

    Joined:
    Apr 9, 2005
    Messages:
    45
    Location:
    Viareggio, Italy
    Holiday is GOOOOD

    Sorry to all for the lack of Falcon news but I've been on a long awaited holiday and still away from the sea now!!
    I've left the full time employ of the 'Falcon' and now relief and refit help only so very little news will be forthcoming from me in the future just comments like everyone else.
    Thanks for all your interest in the last three years and hopefully we can keep this thread running for a while yet.
  3. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Thanks for your update Jed, it has been awfully quite from that camp.

    Correct me if I'm wrong, but I've not even seen an update on their own website??
  4. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    26,868
    Location:
    Caribbean
    No, you are correct, Brian, there has been no update to the Falcon's website in months...i have been checking that website nearly every week for that last couple months and seen nothing! It is almost becoming like the old Perini Navi website.
  5. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Falcon's wake

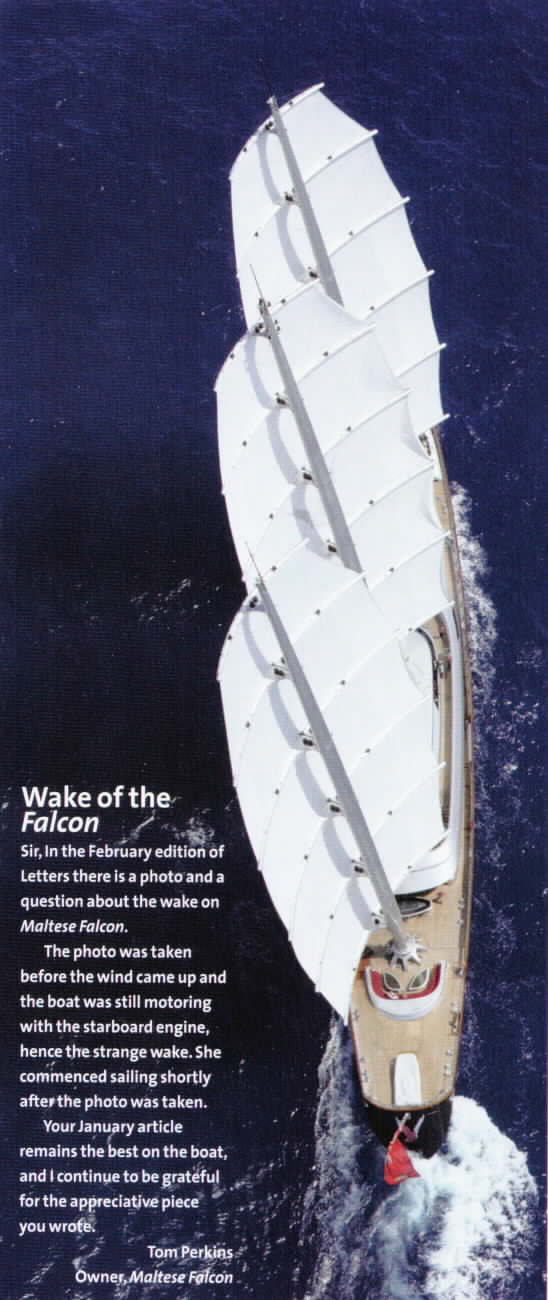

    In the Feb issue of Yachting World, a gentleman wrote in this observation,
    "I read with interest the extraordinary description of Maltese Falcon and was intrigued by the the aerial picture of the yacht. The author suggest the yacht sails very well, but judging by the turbulence on her starboard quarter I wonder whether this is indeed the case. It would appear that there's quite a lot of starboard rudder creating all of that 'lemonade'....perhaps the yacht is about to be put through a tack, but if not I wonder what is going on?

    This past April issue brought a responce from the owner, Tom Perkins. "This photo was taken before the wind came up and the boat was still motoring with the starboard engine, hence the strange wake. She commenced sailing shortly after the photo was taken. (BTW) Your January article remains the best on the boat....

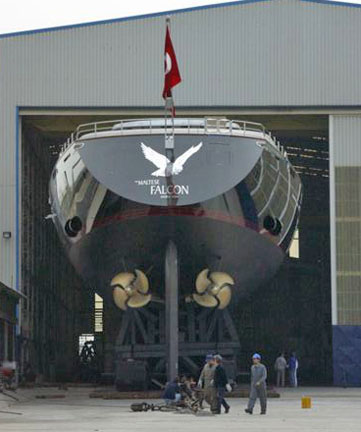

    Brian added: Check out the size of those props, but they are CP units that should minimize drag when adjusted properly

    Attached Files:

  6. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Falcon Breaks Cutty Sark's Record

    Maltese Falcon Breaks Cutty Sark's Record
    May 2 - Azores

    We received the following email yesterday from our good friend Tom Perkins aboard his amazing 287-ft yacht Maltese Falcon:

    "Just a quick note from East of the Azores. I'm happy to report that the Falcon has just broken the Cutty Sark's best 24-hour run. The Cutty did 362 nautical miles and we've done 380. I believe the Cutty's record has never been broken by a square rigger . . . until today. The wind's averaged about 27 knots and the forecast is for slightly stronger winds into Gibraltar, so we'll be shooting to break 400 miles tomorrow."

    It's an interesting contrast that the Cutty required a crew of nearly 30 men while Falcon can be sailed at the push of a few buttons by just one man.

    - latitude / ld
  7. Norseman

    Norseman Senior Member

    Joined:
    Feb 24, 2005
    Messages:
    3,102
    Location:
    Ft. Lauderdale
    Wonder if the record run by Cutty Sark was in ballast, or with a full load of Tea?

    If memory serves right, she could do 19. 5 knots in steady winds.
  8. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    26,868
    Location:
    Caribbean
    19.5 knots is good for the Cutty Sark. The MFsails at 18 to 19 knots pretty easilly with the right kind of winds in her sheets but did you realise that the Falcon has done 24.8 knots sailing. No engine power. That Dynarig is amazing. It has so much potential and has proven itself. I would like to see it employed more. I know that Perini Navi has a project in the pipeline that calls for this rig but on a slightly smaller scale.
  9. Norseman

    Norseman Senior Member

    Joined:
    Feb 24, 2005
    Messages:
    3,102
    Location:
    Ft. Lauderdale
    No...Thats pretty fast for a mono-hull.

    How many engine HP would it take to get 24.8 on the speedo?

    (The biggest sailing ship ever was a German full rigger, some engineers estiated her sails generated 5000 HP.):eek:
  10. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    26,868
    Location:
    Caribbean
    Why bother calculating engine HP when tou could harness the wind. Renewable energy instead of polluting with exhaust but yes MF is quick undersail. I seen video clips of the Mirabella V sailing doing about 17-18 knots and it is a blistering pace to see a 240 foot yacht blitzing through the ocean like that. I would love to see the Falcon doing 24 knots in person, would be an awesome sight.
  11. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    DynaRig development for smaller vessel

    Here is one of my thoughts on reducing the cost and complexity of the Maltese arrangement as expressed to a recent client inquiry:

    In reference to our phone conversation last week about a 40-ish multihull for your charter business, and your inquiry about my Dynarig catamaran, I offer a few quick observations.

    Unlike my 'single-masted ketch' design that I feel is not necessarily appropriate for a vessel of less than 45 feet, the DynaRig is appropriate for this smaller size vessel. In fact a '3-panel' dynarig might be considered rather than the 4 panels of my new 63 foot DynaRig cat design, or the 5 panels of Falcon. However, I would still favor the 4 panel configuration, as it offers more variation in reef-able sail areas. And with my simplified sail furling mechanisms, it doesn't add that much weight or complication to the overall rig.

    Falcon's dynarig was complicated by requiring the sails to be furled up inside the mast thru a hollow slot on one side;

    1) the mast itself needed a slot in itself all the way down one side of the already weaker side of an elliptical cross-section. This necessitated an internal structure be built into the carbon mast section to reinforce it at the slot area

    2) the furling mechanism then needed to be built inside the mast section, and a complicated track mechanism was required to guide the edges of the sails out onto the bridges to the yardarms & the yardarms themselves



    I am proposing a much simpler furling and track mechanism for this modern square-rigger concept:

    1) The mast will not have internal stowage of the sails, so no slot is required, nor internal support structure. It will be a simple elliptical section that will taper at either end to a smaller section at the top and a circular section at the bottom...not that much more complicated than an ordinary carbon mast for a sloop rigged vessel with a mainsail attached. It might also be a 'sealed unit' for ultimate flotation purposes.

    2) Each rectangular sail will furl around a 'wire' (PBO, Kevlar, Spectra, carbon, etc) sewn across its mid-girth, and having eyes at both ends that clevis pin into 'continuous line furling drums' as you might find on Code' type reaching sails. The sails are constructed of low-tech, light-weight ordinary Dacron, and are of such relatively small dimensions that when furled around a very small diameter 'wire', they present a very small diameter package to the elements when 'stowed away'. Each individual sail panel can be quickly and easily replaced, and inexpensively as well.

    3) The furling drums are incorporated into the leading edges of the yardarms/bridges so as to present less windage, and they are 'stacked' up vertically end to end in a line such that they 'share' bearings at either end. One small electric motor drives each panel for furling. For each panel of sail there are two (top & bottom) additional motors to unfurl the sail.

    4) The yardarm 'bridges' can be shorter in length than Falcon's with many inherent advantages including the more readily usable 'forestay arrangement' with or without a 'code' type reaching sail. Shorter lever arms requires less power to rotate the rig as a whole.

    5) Three of the yardarms are of equal length thus less production cost...in fact probably these three would be only slightly more expensive than the elaborate furling/stowing booms now found on many 'ordinary', modern, short-handed sloop rigs.

    6) The low-tech, Dacron sails of this rig should present some considerable savings over those modern sails for Bermudan rigs, and help offset the other initial extra cost of the Dynarig.

    7) The sealed mast and yardarms could offer the flotation for the ultimate non-capsizing protection.

    These proposed changes to the original Falcon's interpretation of the DynaRig concept should result in a less expensive version, which is just as viable in sailing characteristics as the Maltese Falcon is proving to be.
  12. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    ShowBoats Winner++++

    The June/July 07 issue of ShowBoats is out and Maltese falcon certainly picked up her share of the accolades:

    MOST INNOVATIVE SAILING YACHT

    BEST SAILING YACHT OVER 40 METERS

    BEST SAILING YACHT INTERIOR

    HIGHEST TECHNICAL ACHIEVEMENT IN A SAILING YACHT
  13. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Video Reference of Maltese Falcon

    A few shots of Maltese Falcon in motion.
    SuperYachts at Antique
    http://www.youtube.com/watch?v=xtRwnVIKf0M&NR=1

    It's quite surprising there are not more of these video sightings considering the press this vessel has garnered??
  14. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    26,868
    Location:
    Caribbean
    I know this clip, I watched it on youtube already. I just can't get over it.. when i see a rig that huge just harnessing the power of the wind.. its a beautiful thing.
  15. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    26,868
    Location:
    Caribbean
  16. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Mirabella & The Maltese Falcon Meet Again In Antigua

    MIRABELLA & THE MALTESE FALCON MEET AGAIN IN ANTIGUA
    The world’s biggest sloop and the world’s biggest clipper met up again in Antigua.The Mirabella V wasn’t racing, of course, just doing a bit of sail testing, but everyone wanted to know who won.

    This is how the Superyacht Cup organizers saw it.
    The first day’s sailing was a spectacular sight for all, with a stunning display by two of the world´s largest sailing yachts, as the three masted Maltese Falcon (88m) and the sloop Mirabella V (75m) sailed away from the start area outside English Harbour.

    The two yachts started together one hour after the first boat, in the pursuit style race for superyachts. Maltese Falcon and Mirabella V are two radically different yachts, but they both performed impressive speeds of over 22 knots in the 18 – 20 knot trade winds. The course took the fleet on a close reach, south of Antigua, followed by a bear away, towards Curtain
    Bluff, and a beat back up the coast.

    There was little doubt that on the broad reach Maltese Falcon was the fastest boat, flying full sail, but after rounding the bottom mark for the beat back up the coast Mirabella V showed she was willing to put up a fight. Although officially not competing, boat for boat, the two yachts were clearly displaying their credentials.

    This is how Mirabella V’s captain saw it.
    We were sitting at anchor, in Antigua, minding our own business. I got talking to Chris, captain of Maltese Falcon and told him I was taking Mirabella V out, as I needed to do some work on the sails while underway. He told me how happy it would make Tom Perkins if we would go and “play” with them in the Superyacht Cup the next day, off Antigua.

    When I called Mr Vittoria, to ask if I could take her for a spin, he said he had received an email from Tom, not an hour before, asking him to let us sail. He cautioned me that insurance doesn’t let me race, so to just cruise along, but that it was a great opportunity for the two boats to have a great sail together.

    We’d had some work done on the bottom section of the mainsail, in Genoa, by Doyles, and I had yet to re-attach it to the top section of the main, not an easy job to line up the batten pockets so the batten can lace them together, but I decided I could sail with a reef in, because I didn’t have the bottom section attached. I can hear the keyboards typing away already at that comment “still not sailing at full hoist, yadda yadda yadda........”. In retrospect, it was a fine sail selection; I had ample power and all the speed I needed. After the hoist, I gingerly bore away and sheeted in. When I settled onto the course to the leeward and a little ahead on a beam reach. Maltese Falcon was piling on sail all over the place and I thought that it was all over the way she looked to be passing me. I killed the engines, feathered the props and rolled out a jib.

    In the 18-22 knots of wind, I found we were only just being overhauled by Maltese Falcon. Because of my concern for the mainsail foot, I didn’t want to vang on, or sheet on, to what I would normally like, so the main was not doing
    its best, but I figured Mr Vittoria might not like it if my next phone call was about a ripped mainsail, especially with charter season starting, as I don’t have another in the container!

    Anyway, that’s my excuse for the reach, at first; being gentle on the main.
    The staysail is the equaliser
    I unfurled the staysail and found that we were now pretty even on the reach, both doing around 17 knots. The staysail was the equalizer.

    Maltese Falcon looked magnificent; waterline length rules, on a reach, and Maltese Falcon has plenty of that over us, so I was surprised we could hang on.

    Remembering that Maltese Falcon was competing and we were not, I had to confront my next problem. Maltese Falcon was above me and had to bear away and gybe at the turning mark. I don’t gybe and now had the problem of letting Maltese Falcon roll me and gybe in front of me. I furled the staysail and she creamed along in front and gybed; it looked pretty good from where I was driving. I then, despondently watched Chris take off down the run. He was sailing very high of the mark, because I assumed he needed to run square to reduce sails before the next beat, so he put distance on us very quickly, before slowing down as he ran square to the mark.

    I rolled the jib and tacked under main. We came out of the tack at
    about 3 knots, set the jib and bore away. Next thing we are still doing 15-16 knots on the run, which amazed me. Once I was up and running I don’t think we lost distance down the run/broad reach.

    I closely watched Maltese Falcon round the bottom mark and saw her come out of it at very slow speed and then tack. I realized she was being squeezed for water beyond the mark. My plotter showed her as being in less than 10
    metres of water, so I avoided the mark and stayed in deep water (draft being 10 something metres).

    I then waited until she was well to windward of me again and then came on the wind. This was Mirabella V country moderate seas and 20 knots. I was getting more confident in the mainsail, so sheeted and vanged a little more. I never was trimmed on as tightly as I wanted, though, and thus was carrying a little lee helm up the beat. We saw 33 knots AWS up that leg, with 35 AWS being the jib’s theoretical limit. I found that 30 degrees AWA worked well with the main undertrimmed. The alarm went off for the jib sheet tension, set at around
    20 tons, so it was near its limit. I am glad we had just end-for-ended all the running rigging, because we were maxing stuff out. We also had the cap shroud 200 ton limit alarm going off, but it felt very comfortable.

    We put a mile on Maltese Falcon
    Curtain Bluff to the finish, off English Harbor is about 5 miles and I don’t think I am exaggerating if I say we put a mile on Maltese Falcon up that beat. I so severely overbaked the layline that I reached into it, but this is what Mirabella V is supposed to do and I can’t take much credit for it. No shame for Maltese Falcon on this leg, it’s just not her point of sail.

    At this point we’d had a chance to compare the boats on different courses and I had work to do to the mainsail, so I bailed out and left them to it. The original start time for Maltese Falcon was 1400. Tom Perkins requested it be brought forward an hour, but I don’t think anyone told the chopper pilot, so that cameraman missed some great footage of the two boats barreling along at 17 knots.

    That night we all had a beer together in Nelson’s Dockyard. Maltese
    Falcon stole the show by going stern to all lit up. I saw Chris and we were both pretty happy to have had a blast together.
    There just aren’t that many sailing boats over 200 feet that can actually get out of their own way and we had just had two of them, only a couple of boat lengths apart at 17+ knots. It all makes it more fun for owners and spectators and that is the name of the game.

    The tortoise & the hare
    Mirabella V and Maltese Falcon are apples and oranges; you can’t compare them. I, personally, think Mirabella V is faster on all legs in moderate wind, as she should be, but Maltese Falcon eats me on the corners, as they just brace the yards around and steer. It is the Tortoise and Hare scenario.

    I commend Chris on the way he runs and drives Maltese Falcon. His skill complements a very fine craft; she is a really handy vessel. Mirabella V sat out the rest of the races, so I could keep prepping for charter. Sadly, I watched Maltese Falcon through my porthole as she tore up the Caribbean Sea.
    As the race organizers have adjusted the handicaps, the racing has become closer and closer, with Maltese Falcon finishing mid fleet today, in the final race, I think. Good job Chris, I was jealous every day.

    The best thing to come from the day is that Maltese Falcon is toying with some underwater mods to improve upwind performance. I say “bring it on, Chris”, then she will draw too much water to be able to use my favorit berth at Antigua Yacht Club. See what our priorities really are now?

    Guess I’m ready for a “flaming” from Sailing Anarchy readers. Bring it on, guys.

    Everyone who saw the boats sailing that day loved it and I just had way too much fun to worry about it.
    David Dawes, Master.

    The Magazine from BYM News Issue 1 - January 2007
    http://www.bymnews.com/magazine/January2006.pdf
  17. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    26,868
    Location:
    Caribbean
    That surely made good reading. Stuff like that keeps you nailed to the pc, going to bed at late hours all the time.
  18. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    Superyacht Cup 2007

    Every day of the regatta the vast 88m (288ft) three masted Maltese Falcon built by Perini Navi left everybody in awe including experienced yachtsmen. The remotely controlled free-standing carbon fibre rotating rigs, complete with 18 yards are a technological masterpiece, setting 15 in-mast fuling square sails operated by 75 electric winches aloft. The detailed design, testing, planning and engineering for such a vast and untried project is difficult to comprehend and the execution is an outstanding testament to all invloved.

    For the final day of The Superyacht Cup it was possible to see the awsome offwind power of Maltese Falcon in action. Rather than the typical offwind problems of large sailing superyachts where exrtra crew are required to handle gennakers to give any reliable offwind performance, on Maltese Falcon the helmsman just bears away and the square sails instantly offer maximum projected area.

    On the final reach to the finish Maltese Falcon was sailing close to 20 knots pushing a large bow wave in front of her.
  19. brian eiland

    brian eiland Senior Member

    Joined:
    Jul 28, 2004
    Messages:
    2,981
    Location:
    St Augustine, Fl and Thailand
    New Book on Tom Perkin's quest to build Maltese Falcon

    On July 3 David A. Kaplan's new book, "Mine's Bigger": 'Tom Perkins and the Making of the Greatest Sailing Machine Ever Built' was due to be released.

    "Tom Perkins had a dream. It wasn’t to get rich, acquire power, or marry fame. As the man most responsible for creating Silicon Valley, he had done all that. His venture-capital firm, Kleiner Perkins Caufield & Byers remains the most celebrated money machine since the Medicis. He’d helped found Genentech and fund Google. And in 2006, his resignation from the Hewlett-Packard board of directors triggered the revelation of a spying scandal that dominated the front pages. Along the way, he also managed to get himself convicted of manslaughter in France and to become Danielle Steel’s Ex-Husband No. 5.

    No, as hit his 70s, Perkins wanted to create the biggest, fastest, riskiest, highest-tech, most self-indulgent sailboat ever–the “perfect yacht.” His fantasy would be a modern clipper ship–as long as a football field, 42 feet wide, with three masts each rising 20 stories toward the heavens. This $130 million square-rigger–the Maltese Falcon–would evoke the era of magnificent vessels that raced across the oceans in the 19th century.

    With keen storytelling and biting wit, Newsweek’s David A. Kaplan takes us behind the scenes of an extraordinary project and inside the mind of a larger-than-life character. We discover why any sane man would gamble a sizeable chunk of his net worth on a boat. We meet the cast of engineers who conspired with him. And we learn about the other two monumental yachts just built by gazillionaires that Perkins is ever eyeing. In a battle of egos on the high seas, Perkins loves to preen, “Mine’s better! Mine’s bigger!” On the Falcon’s climactic voyage across the Mediterranean–1,600 nautical miles from Istanbul through the Dardanelles, to the Greek Islands and Malta, by Sicily and Sardinia, and on to the French Riviera–we revel with Perkins as his creation surges along at record-breaking speeds.

    This is the biography of a remarkable boat and the man who built it. More than a tale of technology, Mine’s Bigger is a profile of ambition, hubris and the imagination of a legendary entrepreneur. And in the end, too, it is a story of love and loss
    .".....Kaplan

    Buy the book, see more photos, watch a video...at Kaplan's website:
    http://www.davidakaplan.com/
  20. kalmeran

    kalmeran Senior Member

    Joined:
    Oct 29, 2005
    Messages:
    99
    Location:
    netherlands
