| Nobiskrug | 142.1M | S/Y "A" | 2015/17 |

Discussion in 'Nobiskrug Yacht' started by German Yachting, Sep 1, 2015.

  1. Tim Bransford

    Tim Bransford New Member

    Joined:
    Mar 20, 2018
    Messages:
    12
    Location:
    Virginia
    Why does she have retractable stabilizers? Some explorers have these (e.g., Ulysses), but seems unnecessary on a boat intended for Med and Caribbean.
  2. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    630
    Location:
    Dublin
    Because they are huge and you don't want to crash them against the pier when you dock.
    Eclipse, Octopus, Rising Sun, Solaris, Reverie, Azzam have retractable fins, it depends on the system you choose.
    Last edited: Mar 13, 2022
  3. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,672
    Location:
    Germany
    They can be much larger than those, that have to stay within the ships beam. And they are much more effective, because of their longer wingspan in relation to their cord lenght (aspect ratio). Because of their longer span, they do not have to deflect that much for the same stabilizing force, which in turn means, they do not produce as much induced drag and therefore cost less fuel. And if not needed due to calm sea or in harbour, they retract completely into their hull pockets, which means, no penalty and no danger of being damaged. They even come with trailing edge flaps and wing tip drag reducing hydronamical gymics.

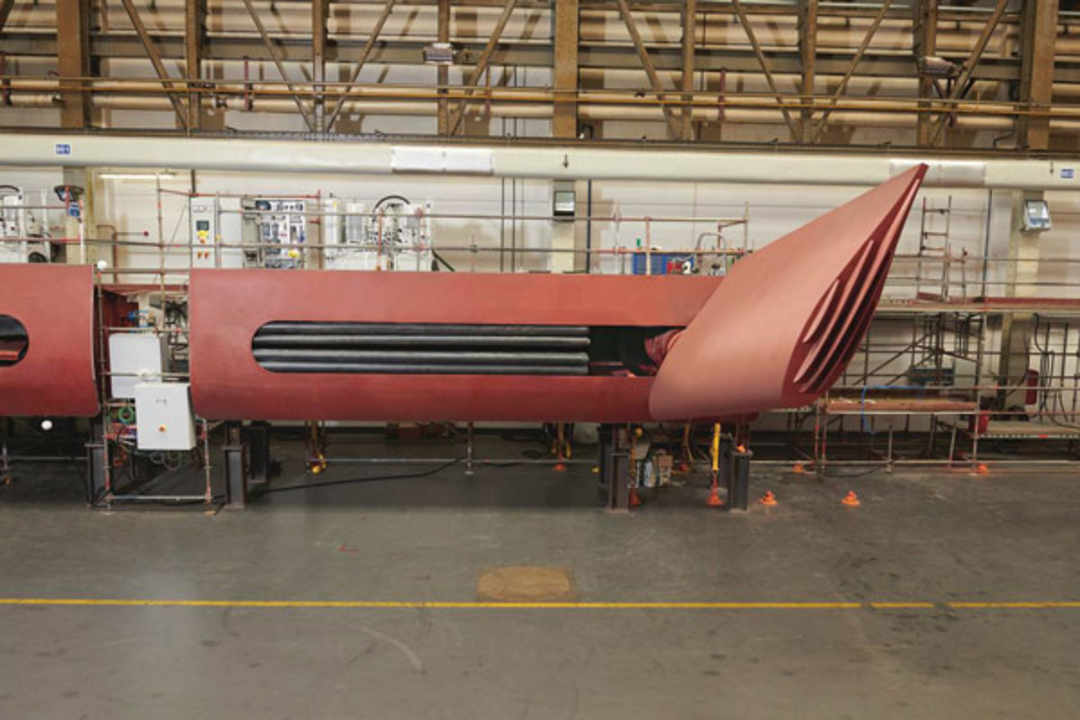

    I have the SKF (former B&V) retractable stabilizers on my present full displacement yacht. With the trailing edge flettner flaps and the pocket curtains, they are higly efficient, even at zero speed.

  4. Tim Bransford

    Tim Bransford New Member

    Joined:
    Mar 20, 2018
    Messages:
    12
    Location:
    Virginia
    Makes perfect sense. Thanks, Maritina.
  5. Tim Bransford

    Tim Bransford New Member

    Joined:
    Mar 20, 2018
    Messages:
    12
    Location:
    Virginia
    Thanks, HTMO9. Love the pic.
  6. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,672
    Location:
    Germany

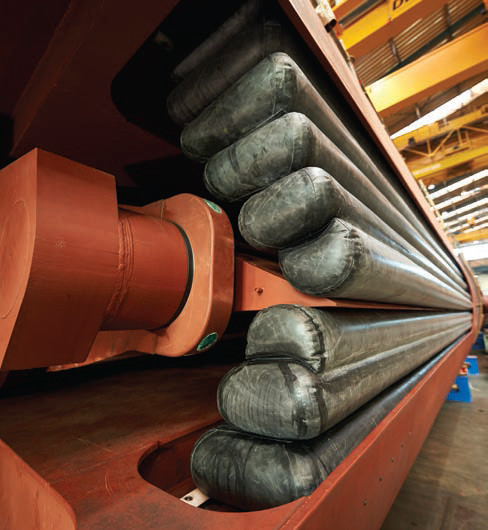

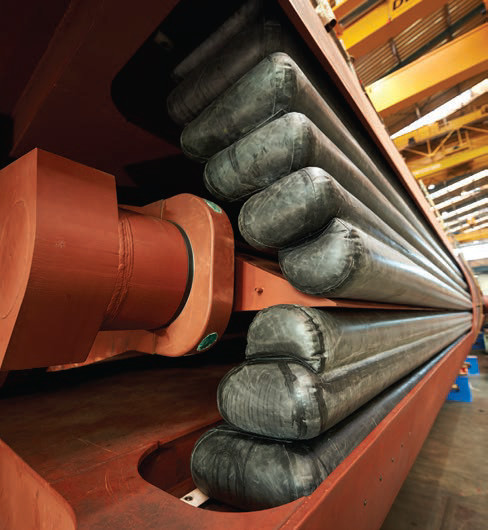

    I was surprised very much, when I got the new SKF typ S stabilizer with the inflatable pocket curtains on my present boat, how effective and most of all how reliable they were. Even at 15 to 16 Kts, the flow noise, both when the Stabs are extended or retracted are down almost down to zero, as soon as the curtains are inflated. Plus growth in the pockets is minimized, because there is no light entering the pockets. An investment that pays of.

    Pinstripe and Maritna_ra like this.
  7. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    630
    Location:
    Dublin
    that's cool!!! the curtain is brilliant, it minimizes vortex and drag!
  8. Natuzzi

    Natuzzi Member

    Joined:
    Jan 3, 2011
    Messages:
    90
    Location:
    Portoro┼ż
    How reliable are those inflatable pockets? Prone to puncture?
  9. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,672
    Location:
    Germany
    My present inflatable curtains are now in their third season. No failures jet. They get normal service, when the boat is out of the water for the anual underwater cleaning. The bigger versions for cruise ships take much more stress, because these stabis are uge. My boat is much smaller, only 210 ft long. And I have only a pair of two stabilizers midships. The big boys use 4 of them. I will change them on condition.

    Btw. they can easily changed by a diver within half an hour per side. For the big ones, one would need a crane and the ship to be in drydock. The inflatable curtains work fully automatic. If the extention of the stabis is selected, the curtains deflate, the stabilizers extend and the curtains inflate again, when the stabilizer is fully extended.

    There is also a version from a different company with a solid pocket doors but this version needs much more maintenance and is causing more trouble. It is basically the same material, inflatable Zodiac MILPRO military commando boats are build from, just a little bit thicker.

    But they definately will not survive an deliberate attack from a big swortfish or the mad Mr. P from R with his Bowie knife between his tees :).
    Natuzzi likes this.
  10. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    630
    Location:
    Dublin
    Now there is also a steel cover. It closes the fins up to 98%!

  11. HTMO9

    HTMO9 Senior Member

    Joined:
    Jan 13, 2009
    Messages:
    1,672
    Location:
    Germany
    That is exactly the type of stabilizer, I was talking about. To complicated, to many moving metal parts, to many joints and bearings which need to be greased and serviced. Altogether much more sensitive to rust and growth. And the improvement in laminar flow along the pocket doors is negligible for a full displacement ship at hull speed.
  12. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,840
    Location:
    Caribbean
    The last part of what you said is important. Any 'efficiency' gains from the smoother flow around that area isn't going to be that high because the vessel isn't a high-speed vessel. You add these doors and then eventually add more maintenance and headaches to your regime.
  13. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    630
    Location:
    Dublin
    I wonder why they have chosen two 'doors' instead of just one, you really don't need two. It's just...complicate things.
    So...go back to the drawing board and do it right.
  14. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    630
    Location:
    Dublin
  15. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,840
    Location:
    Caribbean
    Sailing Yacht "A" has been reflagged as well to a place definitely we have never seen major superyachts having registry. She has been reflagged in Africa to the country of Sierra Leone.
  16. Gage Rowden

    Gage Rowden Active Member

    Joined:
    Jun 9, 2015
    Messages:
    378
    Location:
    Florida
    Why are all these major yachts being reflagged all of a sudden? I thought they couldn't be reflagged while seized.
  17. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,840
    Location:
    Caribbean
    That would be the sensible understanding. Maybe they tried to reflag before they were officially seized. Who knows.
  18. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,840
    Location:
    Caribbean
    Back when she initially had the forward boom taken off.

  19. Urbsey

    Urbsey Member

    Joined:
    Sep 19, 2022
    Messages:
    70
    Location:
    Europe

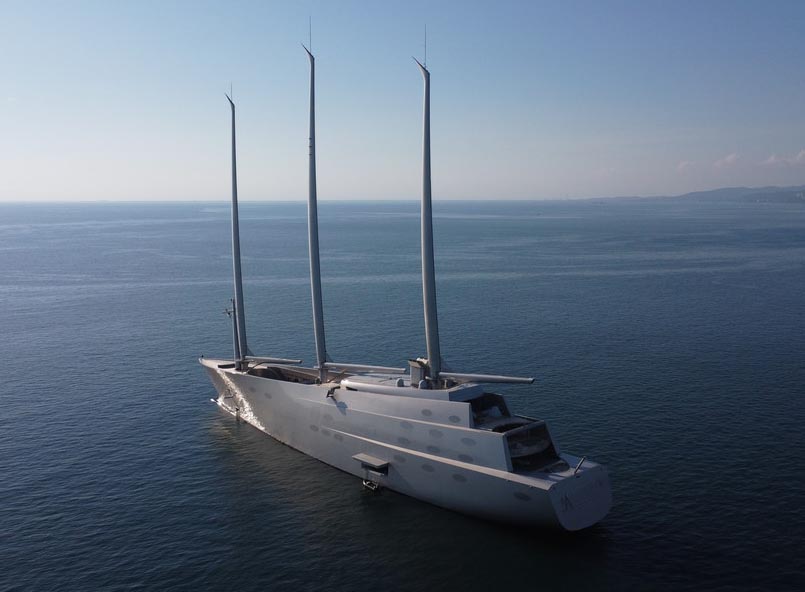

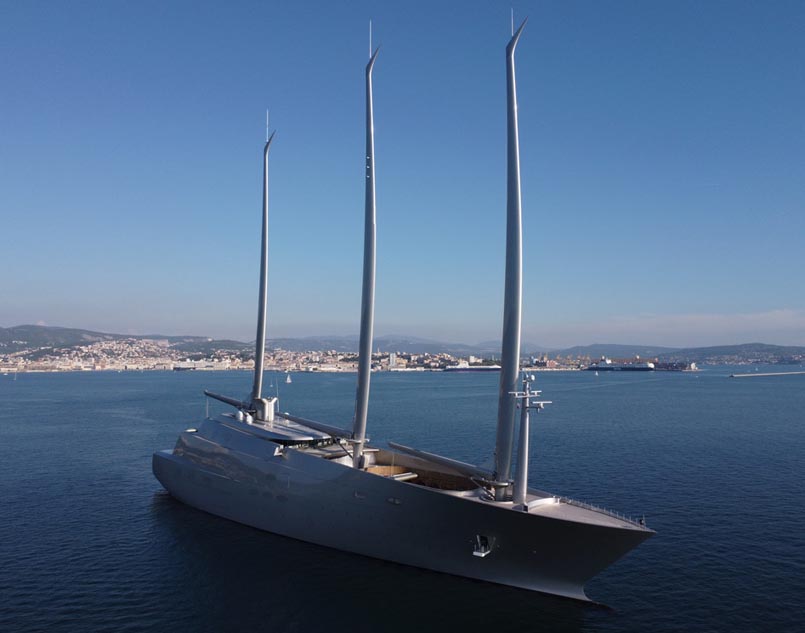

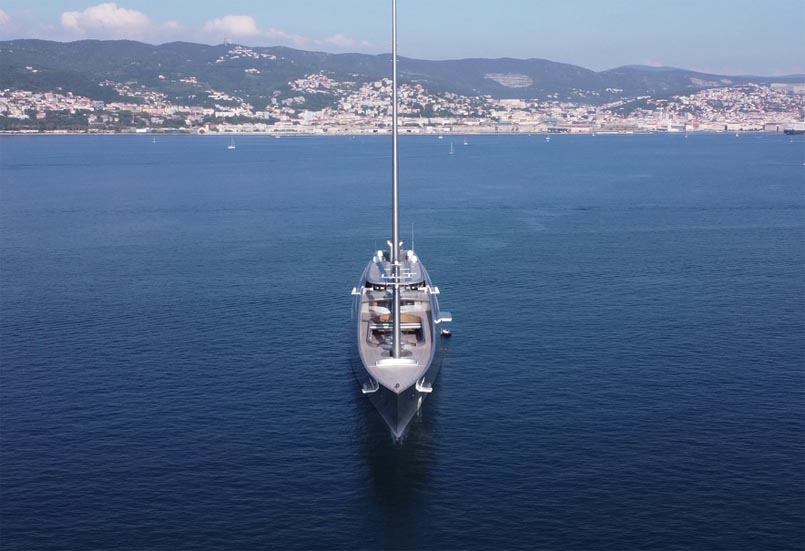

    Done a few snaps of S/Y A about a week ago at Trieste anchorage. :)

    Admin edit: Pics Attached

    Attached Files:

    Last edited by a moderator: Sep 9, 2023
  20. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,556
    Location:
    South Florida
    Nice shots Urbsey! Would you mind if we attach these pics to the thread so they are on YF's server? We don't like to use image hosting sites because the host can change the image, or leave an empty placeholder.
