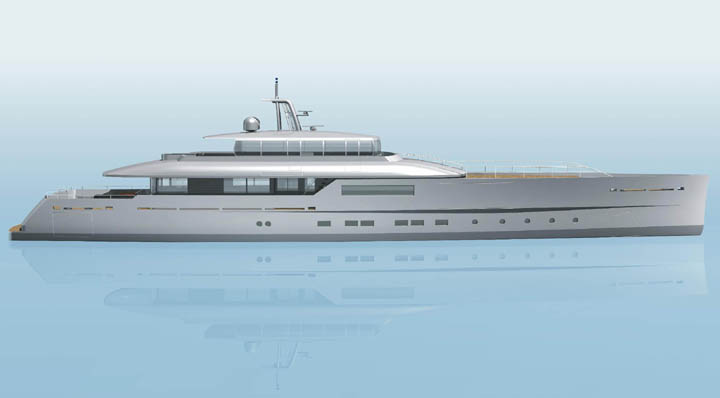

  1. Perini Navi 50-meter "Vitruvius" Concept


    Perini Navi announces the sale of a 50 metre motor yacht. Designed by Vitruvius Ltd., this new project combines the characteristics of the Vitruvius Concept – a new type of yacht created by the French naval architect Philippe Briand – with the features of an Explorer vessel, following the owner’s requirements.​

    The Vitruvius Explorer 50m will be the first yacht to be built with the Vitruvius Concept and the first motor yacht by Perini Navi under the Picchiotti brand. In the words of Giancarlo Ragnetti, Perini Navi CEO: “The name of Picchiotti is part of the Italian shipbuilding tradition of which it was one of the founders. Since the 1990s Picchiotti is part of the Perini Navi Group which absorbed its experience and valuable traditions. Today we are re-launching the Picchiotti brand on a class of motor yachts different from any other product present on the market. This project shows great affinities with the sailing universe and attests a true innovative spirit, aspects that well match the Perini Navi Group philosophy”. The construction of the 50m will be completed in Spring 2010.

    Specifications:

    LOA: 49.50 m
    Beam: 9.50 m
    Draft: 2.40 m
    Displacement: 430 tons
    Accommodations: 2 Owners / 8 Guests / 7 Crew
    Classification: ABS A1 Yachting Service – AMS MCA LY2 compliant
    Material: Aluminium hull and superstructure
    Maximum speed: 16 knots
    Cruising speed: 12 knots
    Main Engines: 2x 970kW Caterpillar C32dita
    Propellers: Fixed pitch 5-blade
    Generators: 2x 85kW + 1x 50kW Caterpillar
    Bow Thruster: Van der Velden EPS800
    Stabilizers: Quantum ZeroSpeed
    Fuel capacity: 75000 litres
    Range: 4500 nm @ 12 knots
    Fresh water capacity: 17000 litres
    Watermakers: 2x Idromar 12000 l/24h
    Builder: Picchiotti - Perini Navi Group
    Design :Vitruvius Ltd.
    Naval Architecture: Briand Yachts Design
    Interior design: Perini Navi

    For more information contact:

    Perini Navi S.p.a.
    Via Coppino 114
    55049
    Viareggio, Italy
    +39-0584-4241
    www.perininavi.it
