MTU 16V2000 M91 full rebuild; in vessel

Discussion in 'Engines' started by Pascal, Oct 31, 2022.

Page 4 of 6
  1. bayoubud, Nov 12, 2022
    #61
    bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    1,149
    Location:
    Florida
    I've heard of that before, forklifting out the hull sides. Easier than repairing interior decks and aft bulkheads. Had a 1979 Jim Smith that had double salon doors with large engine hatchs the size of the 12 cyl Mann's. We would roll back the carpet and remove hatches which exposed the entire engines for maintenace and cleaning. Seldom see that setup anymore. Engines could be lifted thru the salon doors.
    Great pics by Pascal.
    Last edited: Nov 12, 2022
  2. wiredup, Nov 14, 2022
    #62
    wiredup

    wiredup Member

    Joined:
    Jul 20, 2016
    Messages:
    108
    Location:
    va beach
    Great photos! I am having this done now on my 62 Viking with 12V2000M96L's. Turns out my pressure on one engine was running just high enough to pop the dipstick out. Tech said it is not the crankcase, so most likely a cracked liner. There was some type of recall on the ones I have, so MTU is covering the replacement of all liners, pistons, etc. I have 2800 hrs on them, also did just purchase the 3 year EW. Luckily, MTU stepped up here, or would have been major cost.
  3. Capt Ralph, Nov 14, 2022
    #63
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL
    Please, Please send in lots, lots of your photos on a new thread.
    Your ship is of great design change from Pascals project. Different hurdles to over come and make work.
    It is also good to hear that MTU is stepping up on a warranty issue. More notes on that in your new thread would be great also.
    wiredup likes this.
  4. Pascal, Nov 14, 2022
    #64
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,610
    Location:
    Miami, FL

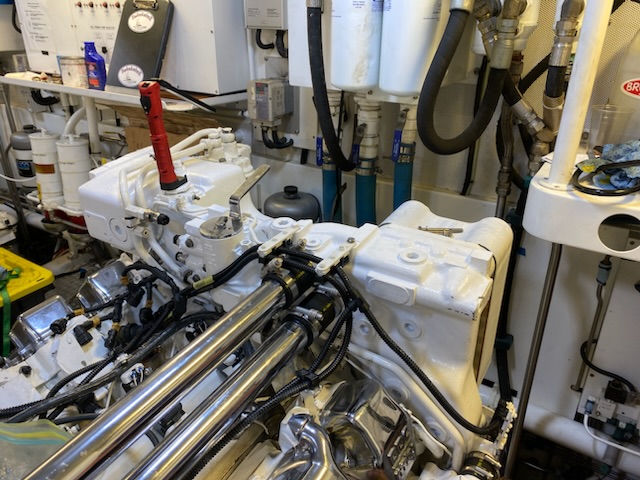

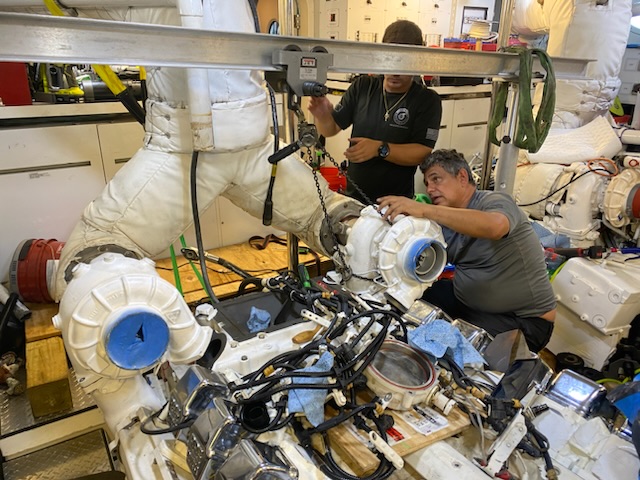

    Turbos are on

    Attached Files:

  5. cleanslate, Nov 15, 2022
    #65
    cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,661
    Location:
    Cherry Hill, NJ
    Glad they have another one next to them to look at so they can remember how it goes together ! Lol!
    I might of done that one or twice with my old twin screw vessels...:oops:
  6. SkyDriver, Nov 15, 2022
    #66
    SkyDriver

    SkyDriver Member

    Joined:
    Jul 16, 2016
    Messages:
    36
    Location:
    SRQ
    74" Hatteras @ Orange Beach

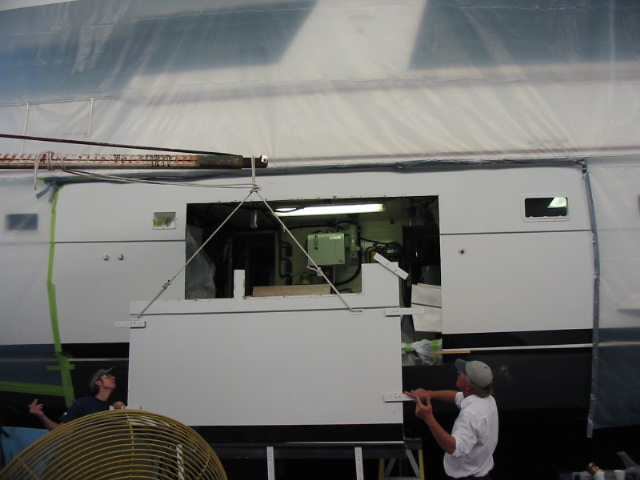

    Attached Files:

    bayoubud and cleanslate like this.
  7. Capt Ralph, Nov 15, 2022
    #67
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL

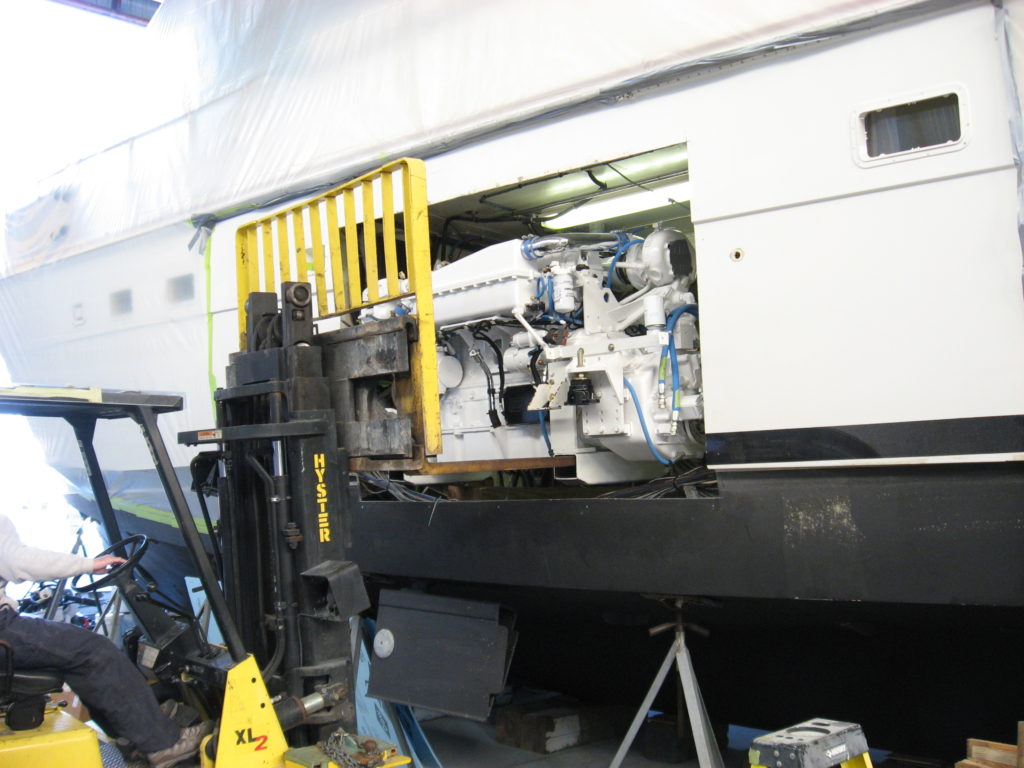

    Series 60 on da forks.

    Nothing else is this easy.
    It's that initial crunch the mind goes thru thinking about a big hole in your hull side.
    After that, it's smooth pudding.

    If your pulling both engines, most of the time, one hole works for both.
  8. Pascal, Nov 15, 2022
    #68
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,610
    Location:
    Miami, FL

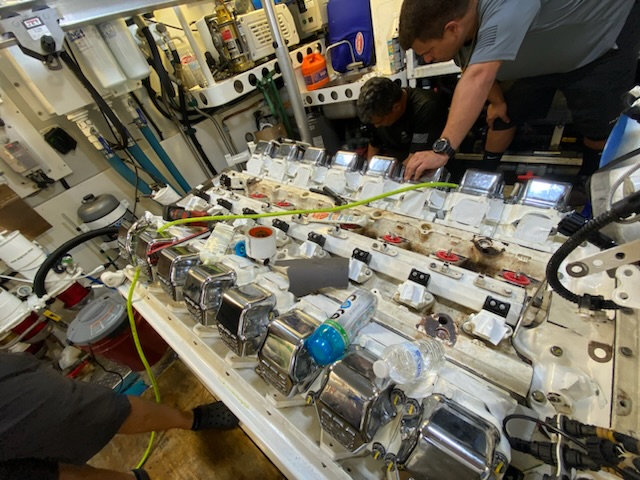

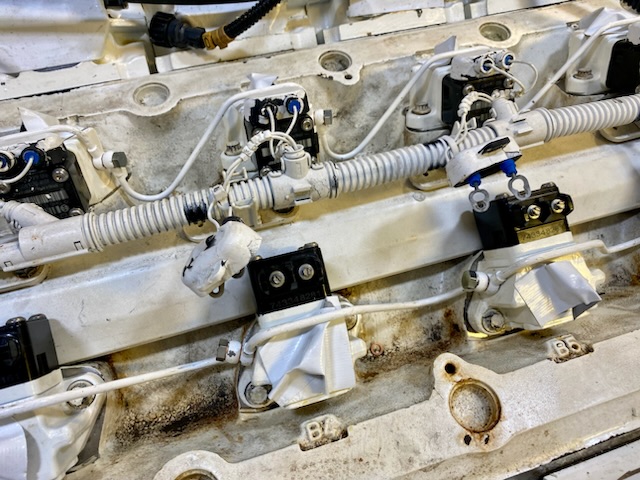

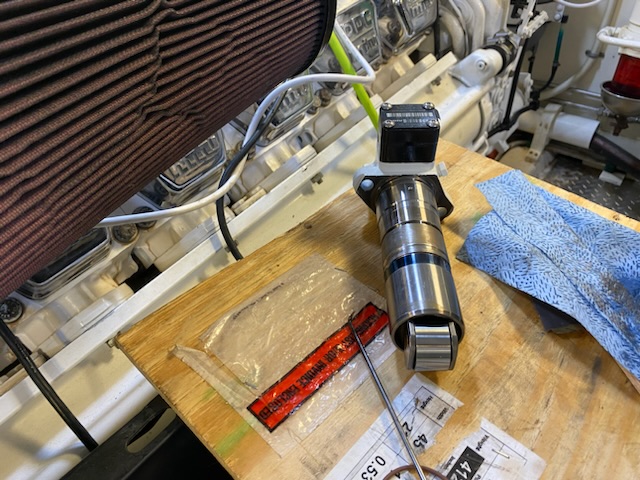

    Injection pumps going in and connected.

    Attached Files:

  9. chesapeake46, Nov 16, 2022
    #69
    chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,838
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Great Thread.
    Did you tell your techs that there are over 71,000 subscribers scrutinizing their every move from your pictures ?
    No pressure.
  10. bayoubud, Nov 17, 2022
    #70
    bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    1,149
    Location:
    Florida
    Great ER/ shop to rebuild engines. Doesn't get any better, we had some major engine work done in the typical crowded Sportfish/ER, slow and difficult work.
  11. Capt Ralph, Nov 17, 2022
    #71
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL
    I load and blow up some of the pictures. Yep,, Scrutinizing every engine part.
    chesapeake46 likes this.
  12. Pascal, Nov 19, 2022
    #72
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,610
    Location:
    Miami, FL

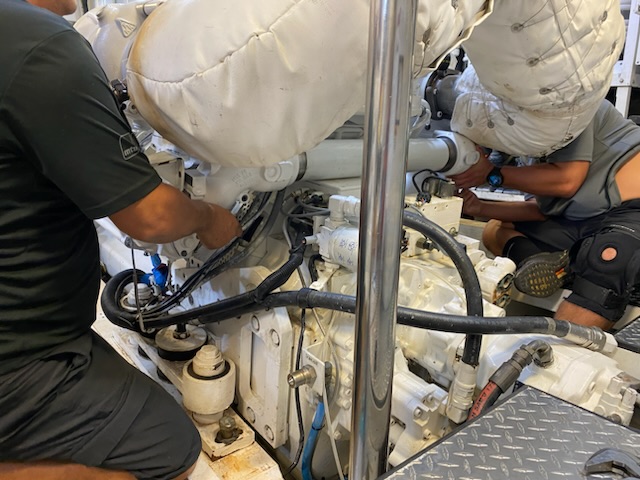

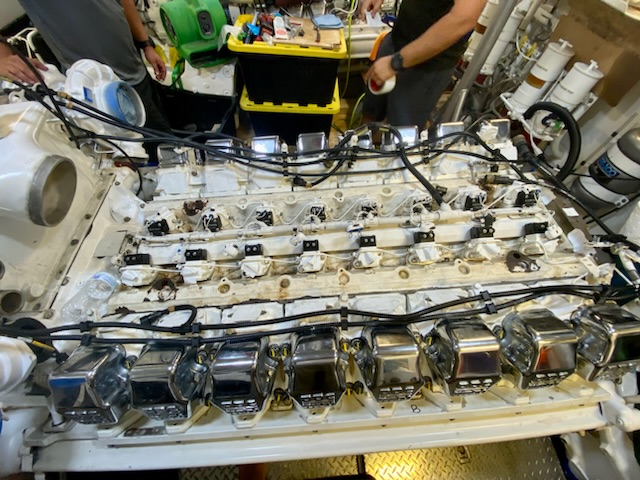

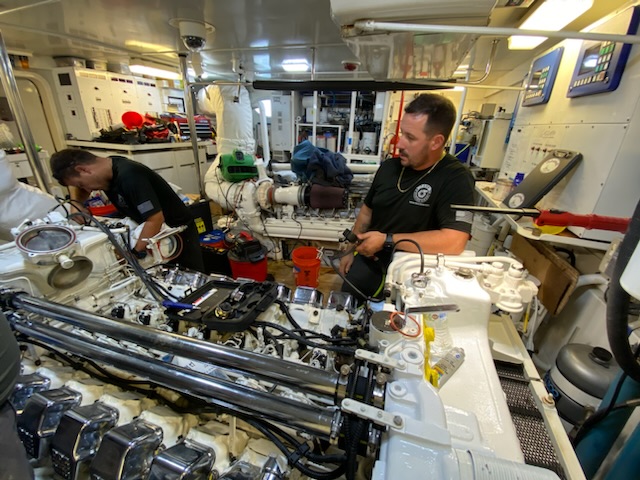

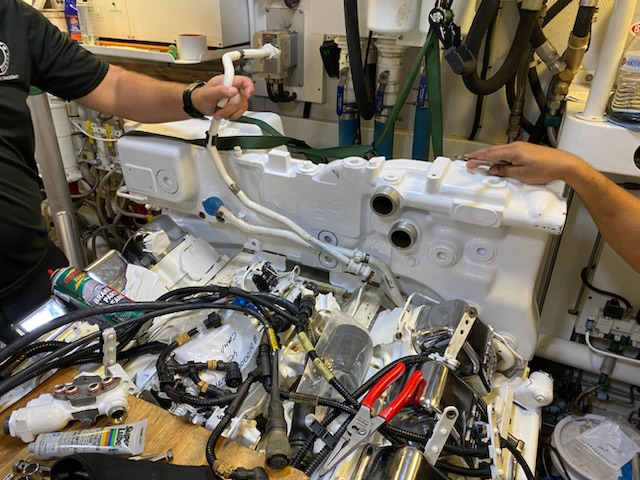

    More bits and pieces going in…

    Attached Files:

  13. Pascal, Nov 19, 2022
    #73
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,610
    Location:
    Miami, FL

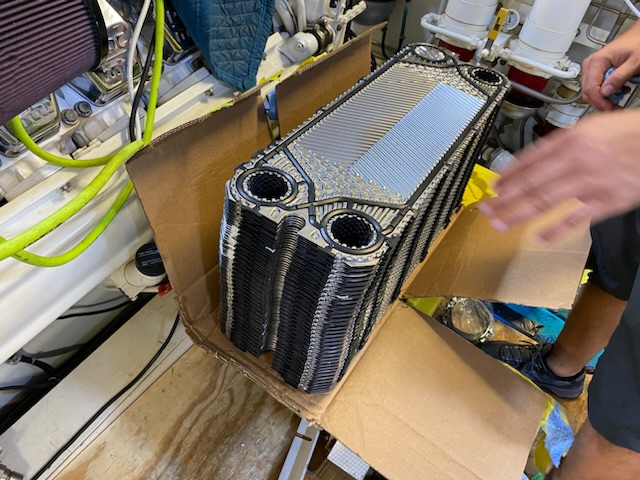

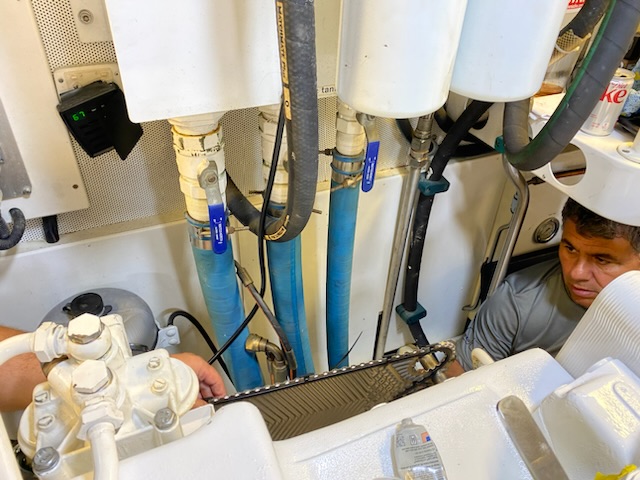

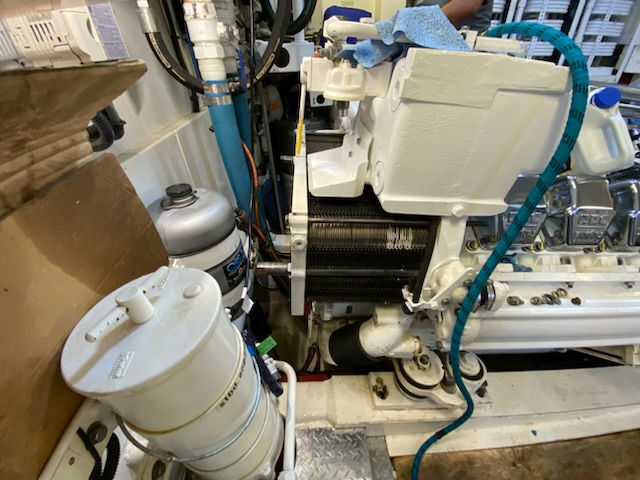

    Titanium heat exchanger plates going in today. Plates were cleaned and fitted with new seals. Cooling system was filled today and pressure tested (Last picture)

    hoping to finish the fuel plumbing, intake manifold etc on Monday along with alignment. Maybe able to fire it up on Tuesday and sea trial on Wednesday. Fingers crossed !

    I have a lot of video which I m putting together and will upload when it s finished.

    Attached Files:

  14. Capt Ralph, Nov 19, 2022
    #74
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL
    Were going to need a tour of the whole engine room also.
    I try to look at lots of other items and your not getting them in the pictures.
    :):)
    chesapeake46 likes this.
  15. Pascal, Nov 19, 2022
    #75
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,610
    Location:
    Miami, FL
    It s been a disaster zone with parts and stuff everywhere. I can’t wait till we can finally clean and organize everything ‘
  16. mapism, Nov 20, 2022
    #76
    mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,189
    Location:
    Sardinia

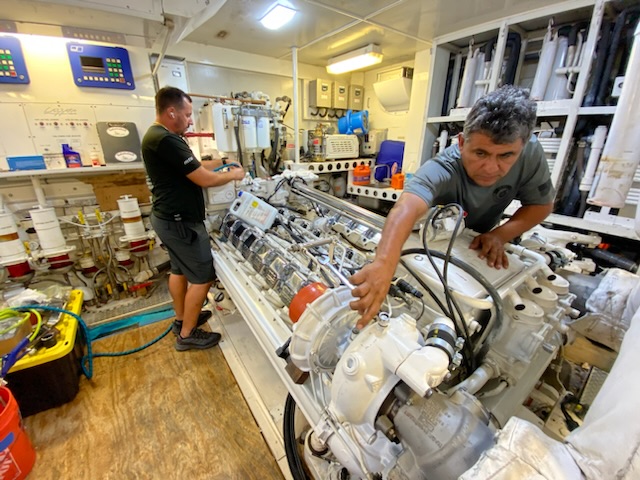

    Pascal, what's the orange bowl (sort of) behind the turbo, near the right hand of the chap in foreground?
    Just curious.
  17. mike Hartley, Nov 20, 2022
    #77
    mike Hartley

    mike Hartley Member

    Joined:
    Jul 22, 2016
    Messages:
    52
    Location:
    nj
    Looks like a hose connector on turbo?
    Wow...alot of work.
    Looks like these guys are very good...did they do both engines Pascal?
  18. Pascal, Nov 20, 2022
    #78
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,610
    Location:
    Miami, FL
    That’s the hose which connects to the filter.

    they did the port engine last year, but that was just an inframe. Kits, heads, bearings etc. Didn’t have to replace the crank, and pull the ends. This one is a full rebuild
  19. Capt Ralph, Nov 20, 2022
    #79
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL

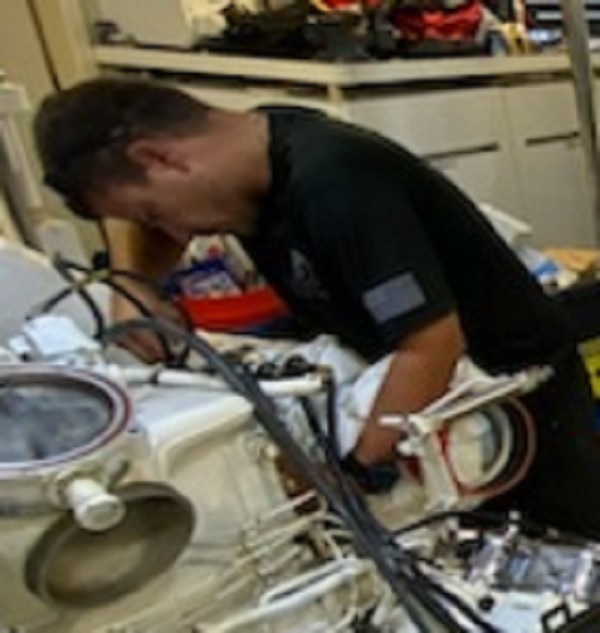

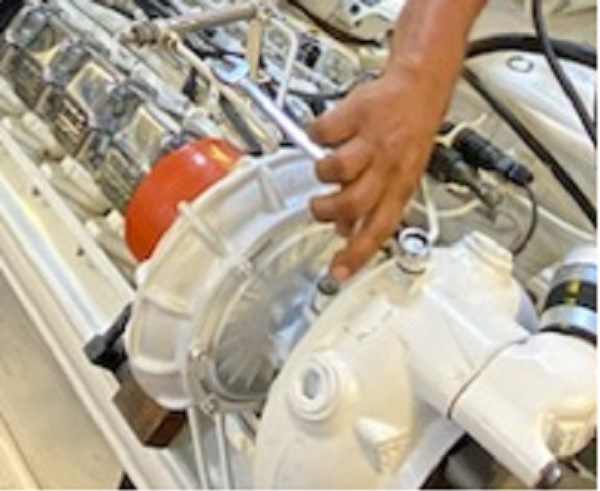

    Orange Silicone air filter adapter.
    1.jpg 2.jpg
  20. mapism, Nov 21, 2022
    #80
    mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,189
    Location:
    Sardinia
    Gotcha, thanks.
