  1. 84far, Jul 22, 2010
    #181
    84far

    84far Senior Member

    Joined:
    Dec 15, 2008
    Messages:
    794
    Location:
    Brisbane, AUS
    sunray09, check out Alfa Nero, it has a helipad that lowers down and becomes a pool, but when up it could also be used for extra deck space for parties etc.
    Also Ilona has a helipad that folds down into the hull... I think it even seconds for a hanger as well....?
    That's about as close as you'll get I think. Cheers

    Far
  2. Kajan, Sep 2, 2010
    #182
    Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    331
    Location:
    Stockholm
    57m

    "BlueTip"

    Attached Files:

  3. Kajan, Sep 2, 2010
    #183
    Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    331
    Location:
    Stockholm
    Something like this? This extending deck is 40ft. Maybe not so pleasing to the eye but for temporary landings and takeoffs, why not...

    Attached Files:

  4. AMG, Sep 2, 2010
    #184
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    This is about the same kind of platform as the old Mystére has today.
  5. Kajan, Sep 3, 2010
    #185
    Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    331
    Location:
    Stockholm
    Interesting Lars, got any pictures ;) ;) ?
  6. AMG, Sep 3, 2010
    #186
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    No, not extended. I guess it is more as an emergency platform when at sea. They don´t carry a helicopter.
  7. Kajan, Sep 4, 2010
    #187
    Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    331
    Location:
    Stockholm
    90 ft. Power Cruiser

    "Origami"

    Attached Files:

  8. Kajan, Sep 14, 2010
    #188
    Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    331
    Location:
    Stockholm

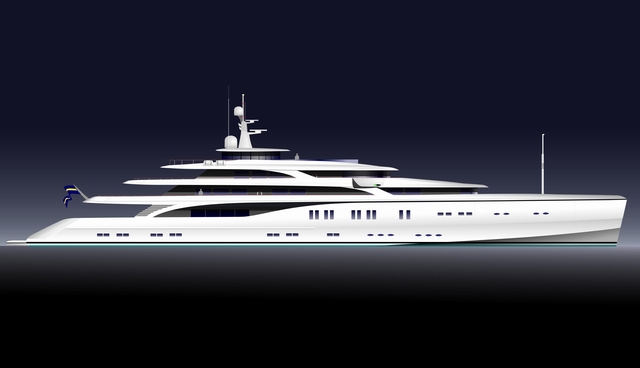

    84m

    Silhouette II

    Attached Files:

  9. catmando, Sep 17, 2010
    #189
    catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    Any banker who knows about 50' turbine catamarans, much less wants one as a yacht tender :eek: gets my vote. I'll take 'Origami' as a high speed trimaran with triple turbines built like Ermis2.

    Mike you are the MAN.
  10. Kajan, Sep 18, 2010
    #190
    Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    331
    Location:
    Stockholm
    I feel the need, the need for speed

    Thanks, Catmando! The ’Origami’ concept is actually a monohull. At the rear there are some steps in the hull sides but at the bow its fancy paint work adding to the origami feel.

    On this up scaled 130ft. origami concept I went for a more traditional looking bow but kept the steps at the rear.

    I’ve always liked the old Patrol and Torpedo boats from the 40’s and 50’s so the idea behind the 90/130ft. origami concepts was to use the powerful lines of the PT hull and combine it with a simple superstructure and not to go with the arched lines found on many other power cruisers in this size. A power cruiser like this should of course be equipped with surface drives and why not connected to a couple of turbines.

    Attached Files:

  11. Kajan, Sep 20, 2010
    #191
    Kajan

    Kajan Senior Member

    Joined:
    Nov 28, 2009
    Messages:
    331
    Location:
    Stockholm
    Picnic anyone?

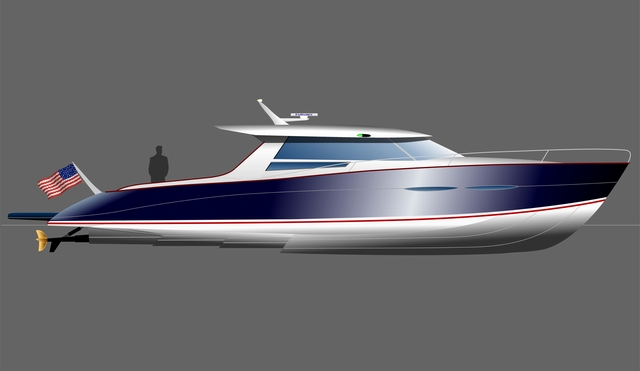

    The PT/Origami concept with some minor modifications and down scaled to 55ft. could perhaps pass as a Down-Easter?

    Attached Files:

  12. catmando, Oct 3, 2010
    #192
    catmando

    catmando Senior Member

    Joined:
    Mar 3, 2005
    Messages:
    471
    Location:
    Arlington Tx
    Yes these renderings look very good, but then almost all your drawings look good. Turbines can be problematic with fuel use, so I think they are not good for off-plane and docking such big boats. I think twin diesels with a central turbine would be the best power package, plus a small electric motor for docking. I like jet drives for safety and acceleration, but they may give up too much speed against the surface prop drives.

    You can't beat Ermis2 for lightness. The layup schedule, titanium deck hardware and interior appointments all make for a superstrong superlight boat that runs 60knots. Your 90 would be at least as fast...
  13. YachtForums, Oct 11, 2010
    #193
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,610
    Location:
    South Florida
