Megayacht Tenders

Discussion in 'Tenders & Dinghies' started by orion, Apr 6, 2005.

  1. Ken Bracewell

    Ken Bracewell Senior Member

    Joined:
    Feb 9, 2006
    Messages:
    1,721
    Location:
    Somewhere Sunny
    I would like my shirts starched lightly please. :D
  2. Seafarer

    Seafarer Senior Member

    Joined:
    Sep 3, 2007
    Messages:
    721
    Location:
    Hudson River
    Heh. :D

    There may be such a thing as too minimal in design, and we might have just encountered it.
  3. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    minivan?:confused:
  4. cwhitedesign

    cwhitedesign New Member

    Joined:
    Mar 13, 2009
    Messages:
    8
    Location:
    Germany

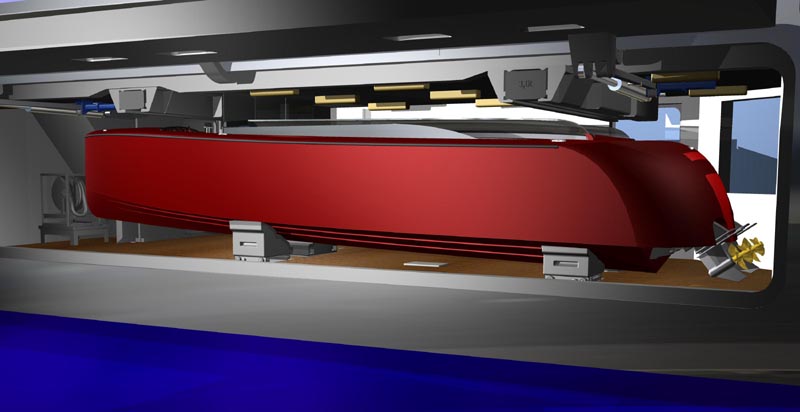

    Its not so easy to bring 12 guests on a boat with 9,7m length if there is a requirement not to crawl into the cabin!
    If there is enough headroom in a limousine tender you don't feel packed like sardines in a can ;) but then you have to make a compromise about design linies

    Attached Files:

  5. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Hi,

    Has the boat shown above actually been built or is it just the concept stage?

    The chocks where you show them would be a real pain for the deck crew to deal with when launching and retrieving, because obviously they would have to be removable.

    Why don't you look at incorporating some hydraulic rams that can come down out of the hull like feet and do away with the chocks?
  6. cwhitedesign

    cwhitedesign New Member

    Joined:
    Mar 13, 2009
    Messages:
    8
    Location:
    Germany
    Hey!
    Actually it's just a design concept.

    Yes you are right that will be hard work for the crew to deal with them. In my concept I don't pay attention on these chocks, I only use them for the renderings.
    But I think it will be easier the integrate the chocks into the deck of the mother ship.

    More pictures and specifications you can find on the webpage of the chameleon 3200
  7. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Hi,

    Over the years I have worked on boats with fixed chocks on open decks thru to Removable ones in Tender Garages.

    The Fixed ones were the easiest thing for the crew to cope with, the removable ones were a real pain.

    I saw the Hyd Ram idea on a tender a couple of years ago and have had this idea incorporated into two 9.85m boats we are building as Tenders now.

    The shipyard building the mothership is providing us with some insert plates in the deck with sockets to locate the legs machined into them.

    I am sure the first few times the boats are retrieved there will be a bit of back and forth to get everything lined up which should give the deck crew opportunity to make some marks on the cars and crane beams to make future movements to a more precise position fairly straight forward.
  8. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    633
    Location:
    earth
    that makes me think about those chocks...
    why don't integrate them so they just flip down? i mean - there should be plenty of space to just flip them and then you got nothing in you way...

    lift the boat - hit a button - they flip around and you have a flat floor
  9. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Hi,

    Try selling that to the shipyard- especially one not far from where you are located.

    I was at FSG last week myself- nothing to do with a yacht though.
  10. brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    633
    Location:
    earth
    hey :)
    next time tell me and i invite you on a cup of coffee ;)

    isn't there anything like a flip-chock? i couldn't believe that...
  11. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

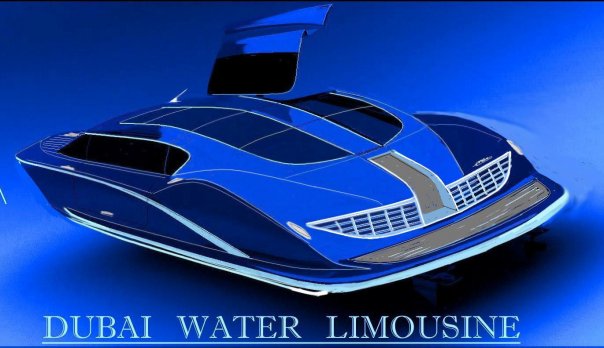

    Water Limo

    12 meter, Gull Wing doors, retractable glass roof, IPS drives, seats 10.

    Attached Files:

  12. cwhitedesign

    cwhitedesign New Member

    Joined:
    Mar 13, 2009
    Messages:
    8
    Location:
    Germany
    Did you have further information of this concept? Other pictures or an web address?
  13. orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    It´s my design, can´t show more so far...:rolleyes:
  14. trawler

    trawler New Member

    Joined:
    Dec 11, 2008
    Messages:
    12
    Location:
    USA
  15. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    25,384
    Location:
    Caribbean
    I just saw one of "Octopus's" tenders speeding back to her from the port. Any body know the make of the crew RIBS?
  16. Adad

    Adad New Member

    Joined:
    Dec 22, 2009
    Messages:
    63
    Location:
    Toms River/ Bergen Cty
  17. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    11-02-2005, 07:12 PM #35
    Garry Hartshorn
    Senior Member




    Join Date: Jun 2005
    Location: I have an old homestead about 3 hours drive west of Sydney but I am hardly ever there
    Posts: 411 Other amphibious cars

    --------------------------------------------------------------------------------

    Some of these are pretty cool, some just out there.

    http://www.terrawind.com/spyder.htm
    http://www.amphibiousvehicle.net/frame.html
    http://www.amphijeep.biz/home.html
    http://www.argoatv.com/
    http://www.watercar.com/
    http://www.camillc.com/terrawind.htm
    __________________
    www.pro-yacht-captain.com
  18. Adad

    Adad New Member

    Joined:
    Dec 22, 2009
    Messages:
    63
    Location:
    Toms River/ Bergen Cty
    I like the first one although it only has 2 seats. The motor home kinda scares me :eek:
  19. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    I'm waiting for a Harley with water wings.:D
  20. Adad

    Adad New Member

    Joined:
    Dec 22, 2009
    Messages:
    63
    Location:
    Toms River/ Bergen Cty
