| Lurssen | 142M | "DRAGONFLY" ex. Project 'Alibaba' | 2023 |

Discussion in 'Lurssen Yacht' started by Yacht News, May 9, 2022.

You need to be registered and signed in to view this content.
  1. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    27,010
    Location:
    Caribbean
    That is a very interesting beach club transom door. I take it is a bi-fold door to be able to cover the top section?
  2. volfkan

    volfkan Senior Member

    Joined:
    Oct 12, 2020
    Messages:
    586
    Location:
    türkiye
    yes very innovative, public info write no possible but soon testing make and videos see. (im onbord 2 week and %99 fınısh this yacht)
    Gage Rowden likes this.
  3. NZ_217

    NZ_217 New Member

    Joined:
    Dec 16, 2023
    Messages:
    12
    Location:
    Germany
    It seems likely. If you look at Drduu’s drone footage of the Alibaba returning to Lemwerder after sea trials, you can spot two greyish-white circles on the rear of the aft deck. These likely resemble the two circles on the top part of the model’s transom door, suggesting that when closed, the top section covers the beach club, and when open, it forms the floor of the transom door.


    Another interesting feature is the platform for the two L-shaped sofas, which can slide forward to cover the pool. (However, on the model, the space between the pool and the bar appears surprisingly narrow, considering the yacht’s substantial beam.) Additionally, there seem to be two windows in the deck floor (or is it something else?), positioned near the round table and another sofa arrangement, which I think is interesting.
  4. Ocean

    Ocean Member

    Joined:
    Aug 18, 2010
    Messages:
    90
    Location:
    Tallinn
    This VERY INNOVATIVE beach club transom door was designed by Jon Bannenberg and appeared first in 1997 in Limitless. Then repeated in 2003 in Pelorus.
  5. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    27,010
    Location:
    Caribbean
    I don't think Pelorus has the same system. The transom door swings down to the waterline and it has these appendages that serve as steps for guests to access the water and those articulate to either be down vertically or at an angle for a more shallower entry. The beach area inside has a separate door that flips upwards. According to the model...it would appear project Alibaba is likely fully bi-folding.
    Maritna_ra likes this.
  6. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    688
    Location:
    Dublin
    Last edited: Oct 8, 2024
    Gage Rowden likes this.
  7. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    688
    Location:
    Dublin
    Talking about the beach club transom door... SY A has an interesting one I'd like to see in a video.
    I still can't wrap my head around how it works.

    There's a shell door that flips upwards, and what it seems to be some kind of bi-folding sliding platform.
    I think it's a sliding one because it doesn't seem to fit in the space. In my opinion, when it opens it's semi-folded and tilted inward. Then it slides out horizontally for a meter or more and unfolds into two configurations: terrace or stepladder.
    Once it's in position, it slides back to reach its final setup.
    I have come to this conclusion because even when the section close to the water is folded, the whole thing still appears too large.

    To support my thoughts...I recently found something that might work the same way...
    Here what I found: https://www.opacmare.com/en/product/transformerr-with-slide
  8. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    27,010
    Location:
    Caribbean

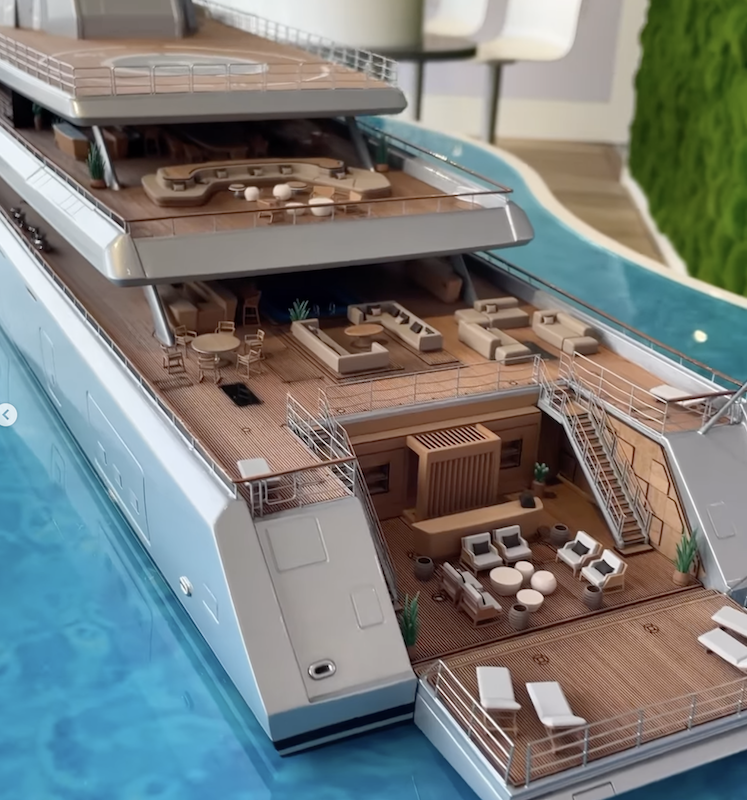

    Now that I have seen the model closer there I also wonder if those steps that lead into the beach club from the aft main deck are passerelles. Because for the bi-fold transom door to close with those steps being there some clearance issues might arise. So it is either the railings have to be removed each time the transom closes or they are automatic folding and the 'passerelles' articulate up and horizontal then retract into the yacht.
    Semblance7x likes this.
  9. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    688
    Location:
    Dublin
    I wondered the same thing, then I noticed the gangway hatch on the left.
    Semblance7x likes this.
  10. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    27,010
    Location:
    Caribbean

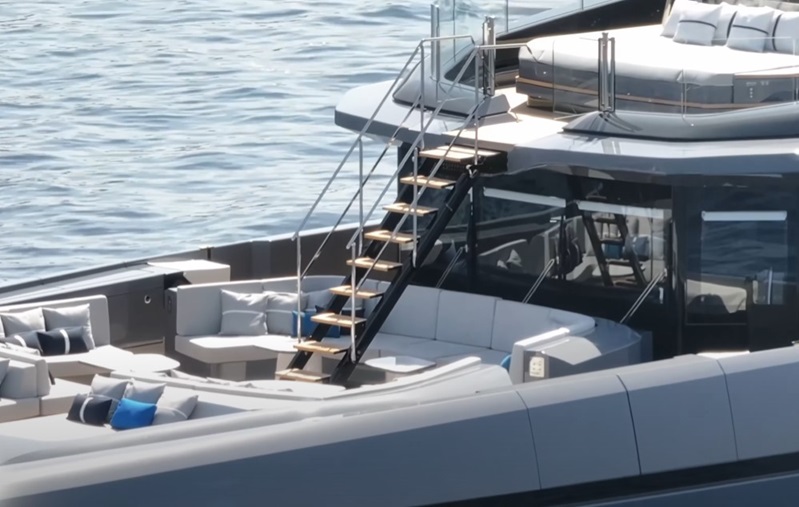

    Yes..the yacht will have the main passerelle at the back as depicted on the port side but there is no reason why the beach club stairs can't be passerelles too. We have seen this application on yachts to permit guests to reach areas with greater ease. The Baglietto T52 has this allowing guests to move from the forward sundeck down to the foredeck as seen here on the brand new "AKULA".

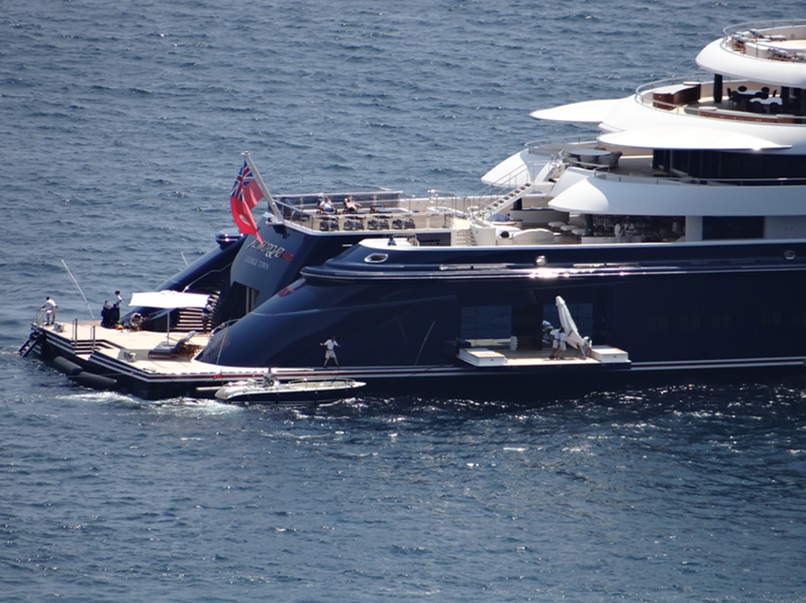

    "Al Mirqab" also has a passerelle linking one of the upper aft decks to the aft main deck sunning platform.

    When not in use they just pocket away out of sight.

    Attached Files:

  11. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    688
    Location:
    Dublin
    Oh I see what you mean, that does make sense.
    It's is a costly solution in terms of space, but it could be very useful.

    They did a great job by creating at least something new, but I think it could have gone further. I like the concept of the sliding seating area that doubles as a cover for the pool, but I would have reversed everything to create an infinity pool effect once the bi-folding platform was open.
    Do you know what I mean?

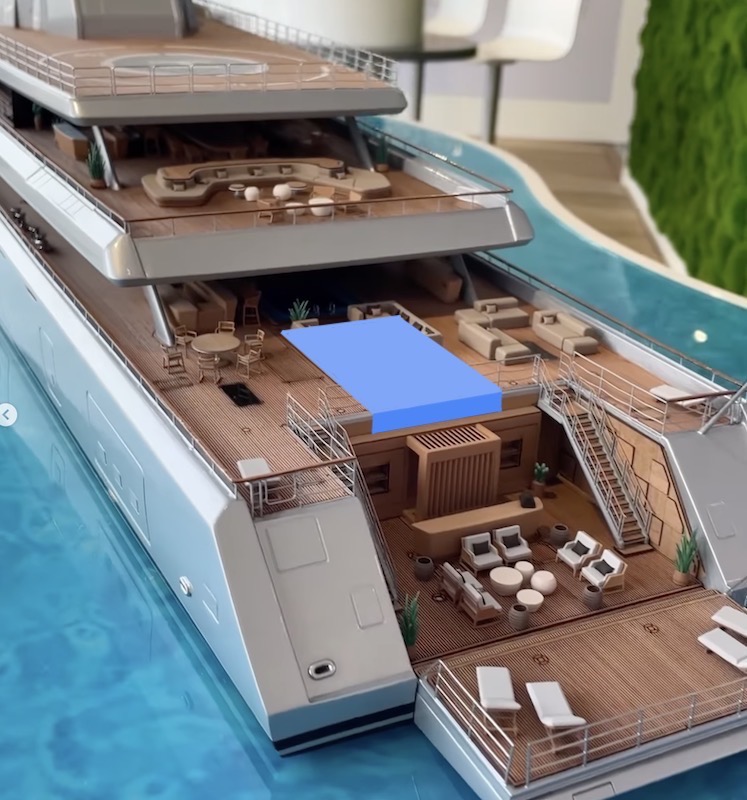

    To make it simple, here’s what I mean (oh..I would keep the sliding sitting area):
  12. volfkan

    volfkan Senior Member

    Joined:
    Oct 12, 2020
    Messages:
    586
    Location:
    türkiye
    new owner found. (sergey brin)
  13. Gugallo

    Gugallo New Member

    Joined:
    Aug 10, 2024
    Messages:
    7
    Location:
    Brazil
    Oh wow! I did not see it coming. Was it bought in a similar way as Lauchpad (russian owner forced to sell)?
  14. volfkan

    volfkan Senior Member

    Joined:
    Oct 12, 2020
    Messages:
    586
    Location:
    türkiye
    yes
  15. Gage Rowden

    Gage Rowden Active Member

    Joined:
    Jun 9, 2015
    Messages:
    432
    Location:
    Florida
    Wow. Wasn’t expecting that. Im guessing it should be leaving Lurssen soon.
    Semblance7x likes this.
  16. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    688
    Location:
    Dublin
    Semblance7x and Gage Rowden like this.
  17. Ocean

    Ocean Member

    Joined:
    Aug 18, 2010
    Messages:
    90
    Location:
    Tallinn
    Was very surprised by officially declared top speed of 14 knots. With such streamlined sleeky hull and ONLY 14 KNOTS? It's impossible!
    I suppose her top speed minimum 20 knots and cruising 18.-
  18. Maritna_ra

    Maritna_ra Active Member

    Joined:
    Oct 16, 2019
    Messages:
    688
    Location:
    Dublin
    Yeah...I don't think the data is correct...we have to wait the official ones from Lurssen.
  19. Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    27,010
    Location:
    Caribbean
    Given, the rumoured owner's history of yacht naming can we figure project Alibaba will have a name ending in 'FLY'?
    Gage Rowden likes this.
  20. Ocean

    Ocean Member

    Joined:
    Aug 18, 2010
    Messages:
    90
    Location:
    Tallinn
    DRAGONFLY
