Lars Modin Design IV

Discussion in 'Yacht Renderings & Plans' started by AMG, Jan 4, 2008.

Thread Status:
Not open for further replies.
Page 8 of 14
  1. OutMyWindow, Jun 11, 2008
    #141
    OutMyWindow

    OutMyWindow Senior Member

    Joined:
    Jul 5, 2006
    Messages:
    905
    Location:
    ...............
    This may not be a good comparison but I can’t think of a similar purpose yacht right now, and personally I like your masculine design better.
    But out of curiosity, how is the Mochi 74 accepted in the Euro market, and is it enjoying a successful production run.
  2. AMG, Jun 12, 2008
    #142
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    I think you can compare the Dolphin 74 with this boat. But I have no idea how it is selling, just that people seems to like it.

    Like most boats however, they are very heavy compared to ours, probably almost twice the weight and consuming at least 50 percent more fuel. This year is the first where we have noticed that people are very concerned about fuel efficiency. It is probably due to a combination of the climate hype and the rocketing fuel prices.

    Luckily we have foreseen this and are building very light and hightech boats with outstanding speed and mileage. But to handle a fast and light boat you need a little more experience than with a heavy built boat. You can not just put on the autopilot and relax in speeds around 40 knots...
  3. OutMyWindow, Jun 13, 2008
    #143
    OutMyWindow

    OutMyWindow Senior Member

    Joined:
    Jul 5, 2006
    Messages:
    905
    Location:
    ...............
    That sounds very promising with an instant "edge" over the competition, that is if there is any.
    But one must wonder if such a weight saving (on the D75) will have a negative effect on the boat's seaworthiness in heavy seas and stability.

    *just rambling, as I'm not a naval architect.
  4. AMG, Jun 13, 2008
    #144
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Not at all, but as I said it is a little more challenging driving on top of the seas at high speed, compared to going through the waves at lower speeds. But the idea with the D75 design is to be able to do both, the narrow bow will split the waves in lower speeds and should be lifted above in higher speeds. Remains to be seen of course, but you get a hint of it if you look at the modern fast sailing boats.
  5. AMG, Jul 19, 2008
    #145
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden

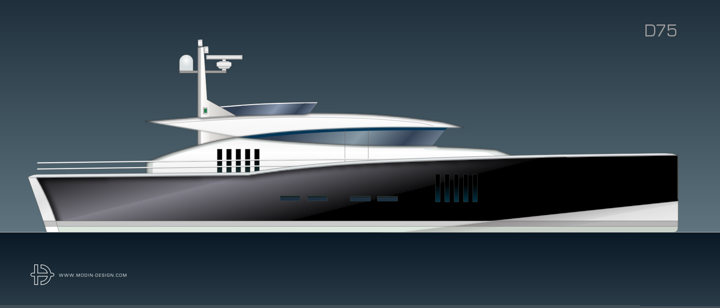

    It is good to leave a design for a while and see if it can be improved. This version has now been tweaked almost everywhere, but still retains most of the original idea. I will try to make it as a 55 foot version as well before deciding on the 50-footer I have started with. It makes more sense to have a similar design style on both of the coming boats I think...

    Attached Files:

  6. brunick, Jul 19, 2008
    #146
    brunick

    brunick Senior Member

    Joined:
    Jul 15, 2005
    Messages:
    634
    Location:
    earth
    :O stunning

    i take 2 of 'em :)

    no really that one'll sell like the new iPhone ;)
  7. AMG, Jul 19, 2008
    #147
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Thanks Jannick, perhaps if I do like I was told once, sell my designs as posters...;)
  8. KCook, Jul 19, 2008
    #148
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    I do like the bold look of the front half. Not so settled on the back half. Though this may be one of those cases where a perspective view would give a better presentation?

    Kelly
  9. AMG, Jul 19, 2008
    #149
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Kelly, if it isn´t good in 2D, no 3D rendering can make it better...:eek:
  10. KCook, Jul 19, 2008
    #150
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Sorry, I cannot agree on that. A profile gives no hint as to the beam. And a wide beam can give breathing room to a design that may be out of tune on a narrow beam.

    yer Novice
  11. AMG, Jul 19, 2008
    #151
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    You are right in a way, another view can make it worse, but not better....
  12. CODOG, Jul 27, 2008
    #152
    CODOG

    CODOG Senior Member

    Joined:
    Jan 25, 2007
    Messages:
    397
    Location:
    Bournemouth, southern England
    I'd like to tattoo this on the foreheads of a few people I know:) I hope you dont get buried under tonnes of marble, glass and gyroscopic stabilisers.
  13. AMG, Aug 4, 2008
    #153
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    D52

    Here is a first rendering on a modified D50, now reminding of the D75. It had to be extended to 52 feet as this hull is more narrow forward. Perhaps the interior volume will be like a normal 48-footer and seakeeping like a 60´...:)

    Attached Files:

    • D52.png
      File size:
      45.9 KB
      Views:
      2,210
  14. Yacht News, Aug 4, 2008
    #154
    Yacht News

    Yacht News YF News Editor

    Joined:
    Mar 29, 2006
    Messages:
    26,987
    Location:
    Caribbean
    Do I see Penta Drives Lars?:)
  15. AMG, Aug 4, 2008
    #155
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Yes, I will adapt the hull to the IPS II/900 if nothing better comes up...
  16. toppsy, Aug 4, 2008
    #156
    toppsy

    toppsy New Member

    Joined:
    Jul 15, 2005
    Messages:
    9
    Location:
    Mill Bay
    I really like the look of this one Lars. nice and clean but with character
  17. AMG, Aug 5, 2008
    #157
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    I agree, among the more classic this is the best. Then I have a bunch of more modern, but of them I like the one in post #153 best so far. If I get a better I´ll post it, but for now I have to work with other designs...
  18. atomare, Aug 11, 2008
    #158
    atomare

    atomare New Member

    Joined:
    Jul 25, 2008
    Messages:
    58
    Location:
    Duisburg, Germany
    Hi Lars, if I may call you so? ...
    First of all, I really enjoy your designs,... from a styling point of view, your style of presentation and the fact, that you share your process with us.
    As for your D52 concept´s hard top, I would like a combination of what you show in post #153 and the third concept of post #157, a roof that seems to be floating above the windows, but visually interlocks with the hull structure, that is moving up. It gives a nice, dynamic look to the profile... What I would do is use the shape of the roof of #153 and interlock it with the hull like #157, but in the reverse direction to generate a more dynamic expression to the front and a relation to the bow line that is coming out of the water.... I also think you might have to adjust the proportion of the portholes more to the actual size of the yacht. I would expect a proportion like that on a 60m yacht, but here this ends up in portholes like 20cm wide and 80cm high? ... It might give a slight impression of prison bars from the inside? ... Don´t get me wrong, I love your designs and also this one, I´m just trying to give some constructive criticism. ;)
    keep designing... best of luck, David.
  19. AMG, Sep 8, 2008
    #159
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Hi, and sorry I have been away from this thread for some time. It is very busy with the 34-footer that should be on the boatshow in two months from now...

    Here is a chance to see last years new model in a Norwegian News Flash;

    http://www.dn.no/dntv/nyheter/article1484550.ece
  20. Castlerock, Sep 8, 2008
    #160
    Castlerock

    Castlerock Senior Member

    Joined:
    Aug 30, 2006
    Messages:
    215
    Location:
    New England
    Looks nice Lars, interesting "pilot berth" in the salon. I am a little confused about the helm position, how do you drive inside and out the hatch? Also with your head out the hatch remember to power down the radar. :)
