Hynautic Hydrauliс Controls

Discussion in 'Technical Discussion' started by SplashFl, Oct 9, 2024.

You need to be registered and signed in to view this content.
  1. SplashFl

    SplashFl Senior Member

    Joined:
    Feb 2, 2021
    Messages:
    629
    Location:
    S. Florida _ Bertram 46
    The mechanic also told me the hydraulic system was actually very basic and he had access to parts at a local hydraulic supply. He also preferred hydraulic vs. electronic.
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,948
    Location:
    Satsuma, FL
    Albeit a bit slow, they do still work and are still reliable.
    If anybody was to ever document an O ring size list, The hynautic stuff could last forever.

    Years ago I purchased up a pile of kits for my best customers. The next time I pull out a kit, I'll match them up and document the sizes,,, If I remember,,, Those slow brain cells are catching up some how..
    SplashFl likes this.
  3. mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,250
    Location:
    Sardinia
    I sympathize with him. Actually, I prefer anything but electronic! :D
    In fact, I just LOVE my very basic cable levers, because they are even simpler than the Hynautic system, which needs to convert hydraulic movements into push/pull cables anyway - albeit much shorter obviously, being inside the e/r.
    I believe the main reason why some builders back in the days preferred those to cable levers was that with the latter it's practically impossible to fit a third station.
    But also the nicer/smoother movement played a role, particularly on bigger boats.
    Regardless, in your boots I'd stick to the system you've got for as long as possible - i.e., probably for a helluva lot of time! :)
    SplashFl likes this.
  4. SplashFl

    SplashFl Senior Member

    Joined:
    Feb 2, 2021
    Messages:
    629
    Location:
    S. Florida _ Bertram 46
    UPDATE. Will not know 100% until mechanic is all finished but he sounded very confident the problem are some old O rings and dirt in the fluid. Port side one in the actuator on about a 2" piston was sticking and some small ones in the charging valve below the fluid/air tank. Local supply only had one of the size needed for the piston but was available overnight.

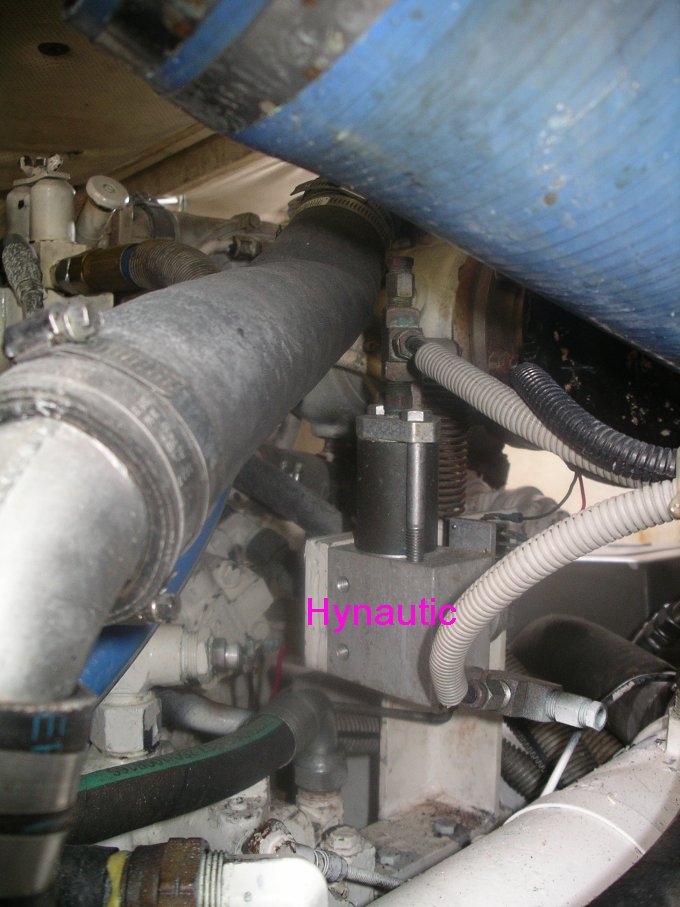

    Hynautic Port.jpg

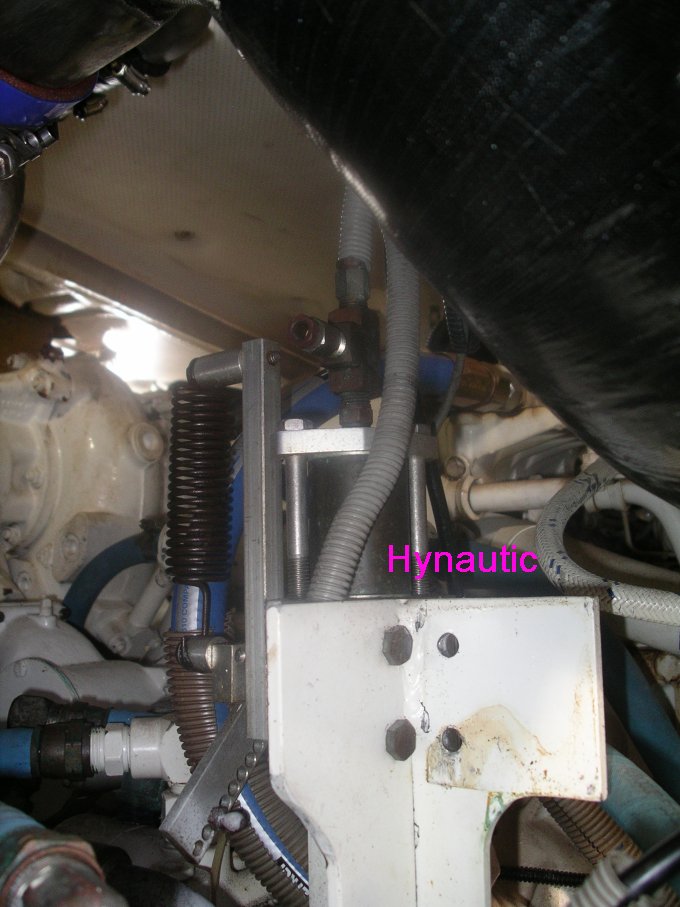

    Hynautic Starboard.jpg
    mapism likes this.
  5. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,675
    Location:
    Fort Lauderdale
    It could but Hynautic doesn't support anything anymore and it's incredibly hard to find stuff, it is a reliable system.
