Hampton 60

Discussion in 'Yacht Renderings & Plans' started by orion, Aug 10, 2006.

Page 2 of 2
  1. KCook, Aug 14, 2006
    #21
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    That is better I think. Next adjustment I would make is to locate the hull portholes further aft. Too close to the bow as they are.

    Kelly
  2. orion, Aug 14, 2006
    #22
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

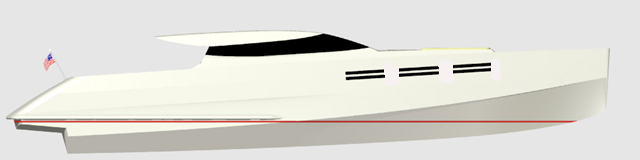

    From side it looks pretty ok I think?

    Attached Files:

  3. KCook, Aug 14, 2006
    #23
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Right. Really does look different in that view. Of course now I will natter about the slope of the deck (and portholes). Seems extreme. I wonder in general how realistic that waterline location is for this hull shape. (Which is why I cheat and use existing hulls for my sketches) My guess is that the boat would really float with the bow lower. If so that would soften the present extreme slope of the gunnel/sheer. And I would have nothing to natter about :D

    Kelly
  4. orion, Aug 14, 2006
    #24
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Maybe little high in at fore but with 3 x CAT C12 Acert (3 x 705bhp)
    coupled to Kamewa jets + some toys she will be pretty heavy in aft;)
  5. orion, Aug 17, 2006
    #25
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

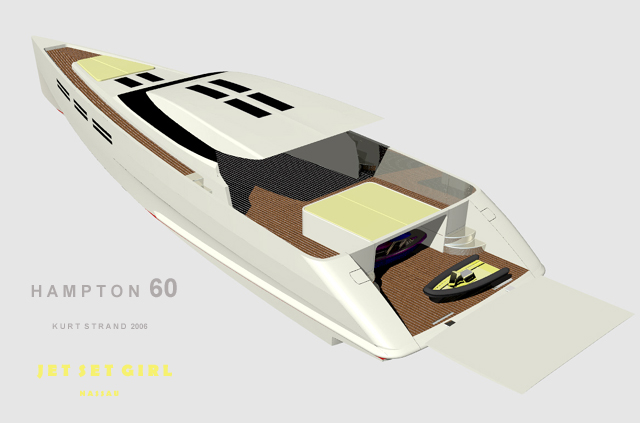

    Transome door cover an tender garage and transforms to a huge swimplatform:)

    Attached Files:

  6. KCook, Aug 17, 2006
    #26
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Very cool. But some slips may not leave room for the door to be open. And when that door is closed the crew has no way to access the rear extremity of the boat for handling fenders, lines, and such.

    too practical Kelly
  7. orion, Aug 17, 2006
    #27
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Transome door should normally be closed when moored. There are two retractable and turnable gangways on each side of transome door.;)

    Fenders, lines ao be handled from maindeck...
  8. orion, Aug 19, 2006
    #28
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

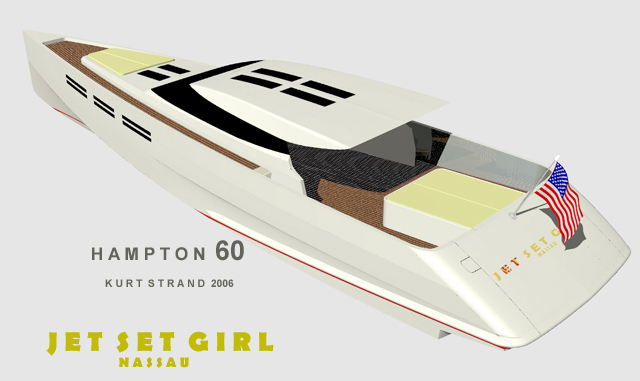

    J E T S E T G I R L

    Design concept of Hampton 60 pretty close to go further into construction process. HI-TECH Down East Style.:cool:
    Any final opinons?
    Next be Hampton 110´.

    Attached Files:

  9. orion, Jul 3, 2007
    #29
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

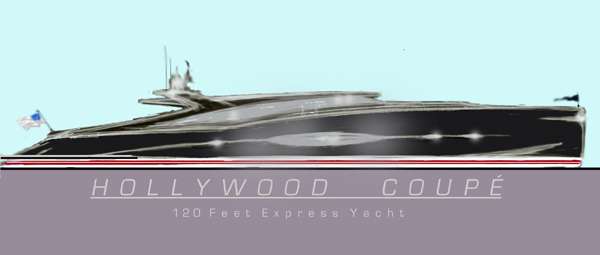

    Hollywood Coupé

    Next in the Hampton serie:
    The retro avantgarde 120ft Hollywood Coupé
    What do you think about this styling?

    Attached Files:
