Eng Fuel Filters Man CR900

Discussion in 'Engines' started by CSkipR, Mar 18, 2012.

You need to be registered and signed in to view this content.
Page 2 of 4
  1. Capt Ralph, Oct 19, 2015
    #21
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,427
    Location:
    Satsuma, FL
    What original filters are you not using?
    Did you at least use new O rings and gaskets (oiled)?
  2. Nicol, Oct 19, 2015
    #22
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Am using fleegard filters and yes am using new O rings
  3. Capt J, Oct 19, 2015
    #23
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,524
    Location:
    Fort Lauderdale
    Check the crush washer on the secondary bleed screws. Did you lubricate the new gaskets with oil before installing the filter and are you sure the old gaskets came out?
  4. Capt Ralph, Oct 19, 2015
    #24
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,427
    Location:
    Satsuma, FL
    Interesting. Fleetguard is good stuff. Should not be an issue.
    If this is a new problem since your filter service, then there is a leak somewhere.

    I know I always have to wrestle with the secondarys to get the plastic caps back on. I remember cracking a cap getting one off. On SeaRays there is not much vertical room to even reach an arm to the far filter.

    If your E/R is like these, it could be easy to damage an O ring or crack a plastic cap. You may never see a fuel leak if your tanks are low.

    Also, look down into the valley between the heads. You may have to remove the cover and tilt up the computer. All those tubes and hoses and pumps are down there. Your looking for a fuel puddle.

    I worked on a leak in there once, never again.
  5. Nicol, Oct 19, 2015
    #25
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Yes I've done all of this no problem. Anyways I'll have another look again , perhaps one of them got stuck somewhere
  6. Nicol, Oct 19, 2015
    #26
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Sorry what
    Sorry, what do you mean by E/R?
    Tomorrow I'll have a look regarding the puddle and let you know what I find.
  7. Capt J, Oct 19, 2015
    #27
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,524
    Location:
    Fort Lauderdale
    I don't remember any plastic caps of any sort on MAN 900 secondaries. The Man Hummel primaries have the plastic bowl and yeah, they need a lot of torque to tighten. Also sometimes the water sensor will crack where it goes into the plastic bowl and allow air to get sucked up when the motor is running.

    Are both motors airlocking or just one? If it's both, are you sure the Fleetguard filters you got are the correct ones?
  8. Nicol, Oct 19, 2015
    #28
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Both are air locking. There's two liters on the engine. It's in a plastic canister. You need to unscrew the top to remove the filters. The make is Hangst. Could this be the problem?
  9. Capt J, Oct 19, 2015
    #29
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,524
    Location:
    Fort Lauderdale
    I was under the impression the MAN secondaries that are in the canister, that the canister was aluminum or metal, not plastic.
  10. Nicol, Oct 19, 2015
    #30
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Yeah the screw cap is plastic so I need to tighten them more
  11. Nicol, Oct 19, 2015
    #31
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Another thing, I've been getting air pressure after filter sensor alarm. The boat has two turbo on one engine as the sensor is on only one side of the turbo. Do you think the sensor is faulty?
  12. Capt Ralph, Oct 19, 2015
    #32
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,427
    Location:
    Satsuma, FL

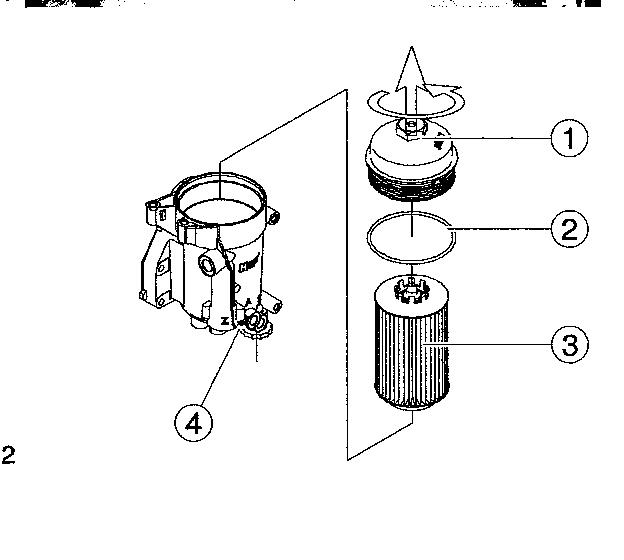

    Item #1 is the black plastic cap.

    man filter.jpg
  13. Capt Ralph, Oct 19, 2015
    #33
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,427
    Location:
    Satsuma, FL
    If I remember, this sensor is mounted on the outside of the right turbo plumbing. sticking straight out.
    If on your port engine, it's a real pain in the ribs and hip when passing between the engines.
    Usually the connect and real small gauge wires get damages or loose.

    We made up a banjo fitting that turned the sensor 90 degrees. Saved my left hip.

    BTW; ER or E/R = Engine Room.

    If the connect and wires look good, swap the sensor between the engines and see where the problem goes or stays.
    DanFoss Sensors fail regularly and are expensive from MAN.
    Wish I could get a cross reference and buy them straight from DanFoss.
    Last edited: Oct 19, 2015
  14. K1W1, Oct 19, 2015
    #34
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    That should be possible if you had a new or known good one and worked out its values then found a matching one in the Danfoss range
  15. Nicol, Oct 19, 2015
    #35
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Yeah that's the one so what shall I do
  16. Capt Ralph, Oct 19, 2015
    #36
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,427
    Location:
    Satsuma, FL
    If your sure there are no other leaks, turn your tanks off, remove the tops again. Inspect for cracks around the hex pattern on the top and nicks in the O ring. If all looks good, grease up a fresh O ring and reassemble.
    Your not looking for tight, but ensure the cap is all the way on; lip of cap down to filter case body.
    Over torquing may cause a crack between the course threads to the lip of the cap.

    The O ring makes the seal, not the cap lip. When the cap lip is just down to the filter case, the O ring is in place.
  17. Nicol, Oct 19, 2015
    #37
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Ok thanks I will try it tomorrow and I will give you a feed back
  18. Capt Ralph, Oct 19, 2015
    #38
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,427
    Location:
    Satsuma, FL
    Finally had to look up Seychelles.
    Sounds like a beautiful place.
  19. Nicol, Oct 19, 2015
    #39
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Yeah it's a beautiful place and if you love fishing this is the place , you should come and visit
  20. Nicol, Oct 28, 2015
    #40
    Nicol

    Nicol New Member

    Joined:
    Oct 18, 2015
    Messages:
    32
    Location:
    Seychelles
    Hi again do you know if a sensor needs to be programmed after installing it on the man cr900
