Detroit Diesel Starter set-up

Discussion in 'Engines' started by RVinMICH, May 16, 2016.

Page 2 of 4
  1. Capt Ralph, May 19, 2016
    #21
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL
    There is that static again. Not contributing to the OP but questioning the people trying to contribute.
    Need to adjust my squelch some more.
  2. new old guy, May 19, 2016
    #22
    new old guy

    new old guy New Member

    Joined:
    May 26, 2014
    Messages:
    7
    Location:
    tacoma
    Hey RCRAPPS you need to turn up the gain on your bullshit filter to get rid of the static
  3. Capt J, May 20, 2016
    #23
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,593
    Location:
    Fort Lauderdale
    6 postings compared to rcrapps 3666 postings and you're coming on here to talk about a BS filter, really???
  4. K1W1, May 20, 2016
    #24
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,433
    Location:
    My Office
    If someone can say with as much certainty that what the OP has and they have never seen is exactly how it left the factory 48 yrs ago and someone else who claims to be a mechanic and doesn't fully understand how a starter solenoid operates then it is probably time for a few of the YF KB Warriors filters to be cleaned as there is obviously a problem with the dissemination of falsehoods.
  5. new old guy, May 20, 2016
    #25
    new old guy

    new old guy New Member

    Joined:
    May 26, 2014
    Messages:
    7
    Location:
    tacoma
    capt j according to your comment nobody should post a reply unless they have already posted several thousand times or are your remarks just meant for comments you personally do not care for
  6. Capt J, May 20, 2016
    #26
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,593
    Location:
    Fort Lauderdale
    Not at all. What I am saying is nobody should call out a member who is a mechanic and has a long standing relationship on this board, especially with words like BS, if they have nothing to back it up, just a very broad, blanket statement.

    The reason RCRAPPS is saying what he is saying is because what the OP described is the standard D.D. starter solenoid setup that we've both seen a thousand times.

    As for how a starter solenoid works. It's a very rudamentary switch (basically) It has a low amperage circuit that goes usually to the start button or key switch that simply remotely closes the solenoid which joins or connects the high amperage wires together to send power to the starter itself. If it usually mounted on or very near the starter.
  7. Bill106, May 20, 2016
    #27
    Bill106

    Bill106 Senior Member

    Joined:
    Jan 9, 2010
    Messages:
    390
    Location:
    Beaufort NC
    Did you just call K1W1 a mechanic??? :eek:

    Those old Detroit solenoids do pull a lot of inrush current, especially when they get a little age on them. I've replaced a lot of fried dinky push buttons with the HD Cole Hersee ones and have seen many cases where the builder did install a secondary solenoid to energize the solenoid on the starter itself, probably because their standard wiring harness used 14 gauge and snaked a long roundabout way to the helm.
  8. Capt J, May 21, 2016
    #28
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,593
    Location:
    Fort Lauderdale
    No I called Rcrapps a mechanic which he is. Kiwi would best be described as an engineer, although similar roles, but different
  9. Capt Ralph, May 21, 2016
    #29
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL
    Very Kind, Thank you.
    ,Ralph
  10. RVinMICH, Aug 31, 2016
    #30
    RVinMICH

    RVinMICH New Member

    Joined:
    May 16, 2016
    Messages:
    2
    Location:
    Great Lakes

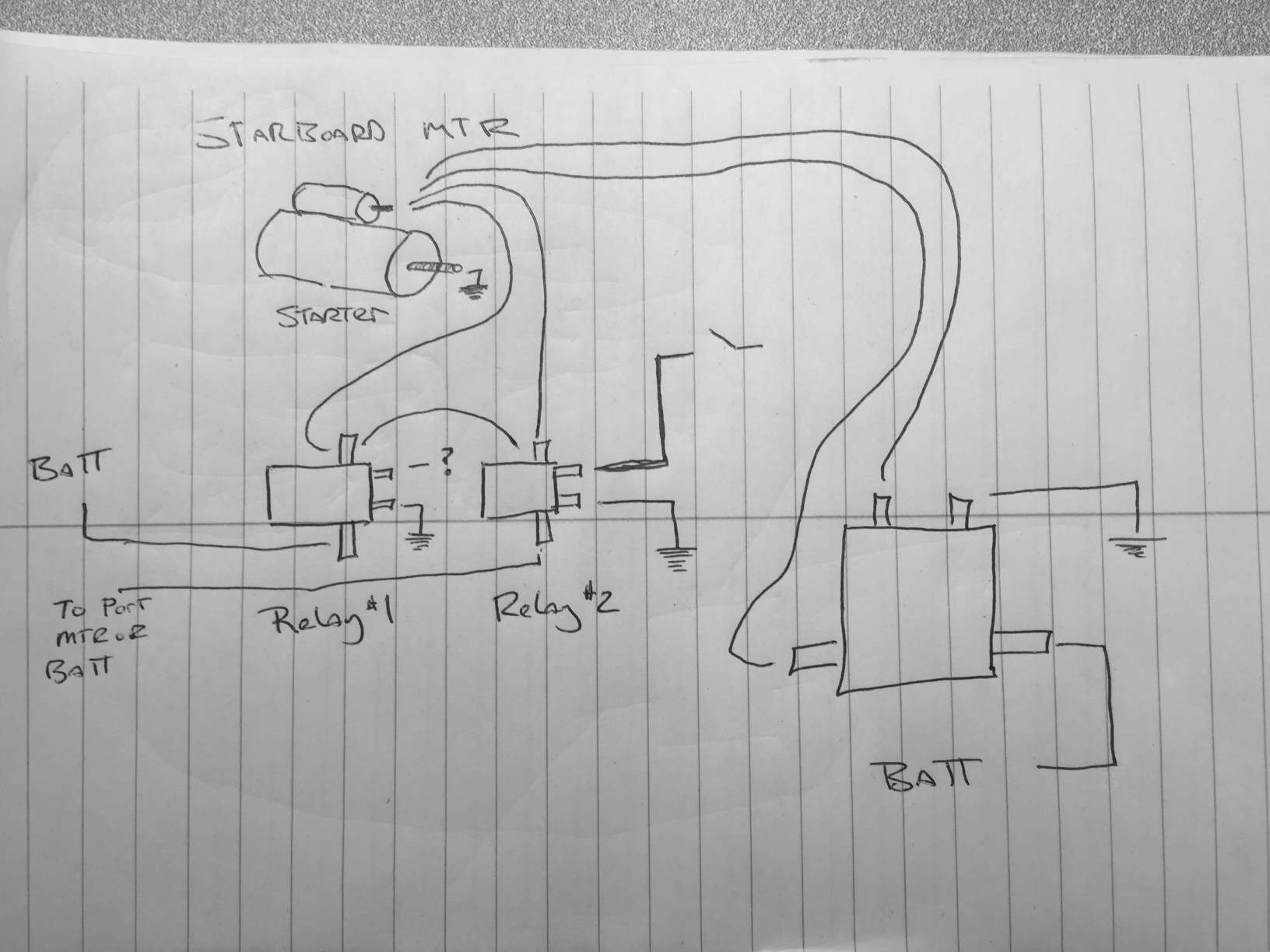

    UPDATE: I have created a schematic showing the wiring Starter2.jpg
  11. K1W1, Aug 31, 2016
    #31
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,433
    Location:
    My Office
    As rough as it is I would guess that the terminal with the ? will be arranged the same as the same one on the other relay as it will be for the coil that closes the solenoid.

    Your battery drawing does not make much sense to me at all.
  12. Capt Ralph, Aug 31, 2016
    #32
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL
    Hang on, I've seen something like this before. Your drawing is not quite rite.

    I remember a dual heavy starter solenoid system on one boat, both driven by the same single remote drive solenoid.
    The theory was to make sure the starter did not stay engaged if either heavy starter solenoid stuck in the closed position.
    So, including the one on the starter, 3 solenoids to start the motor,,

    These are separate from the battery (stb& port) parallel switch or another heavy solenoid.

    I'll draw it up and submit a pic tonight.
  13. Bamboo, Aug 31, 2016
    #33
    Bamboo

    Bamboo Senior Member

    Joined:
    Dec 19, 2008
    Messages:
    934
    Location:
    Palm Beach, FL
    On my older 16V92's I had a audible alarm ring at the helm when the starter was spinning. It allowed me to know when the starter stayed engaged after the engine was already up and running as in the past we had the starter continue to spin due to solenoid failure stuck closed. Just an idea to ponder...
  14. Capt Ralph, Sep 4, 2016
    #34
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,602
    Location:
    Satsuma, FL
    Sorry late. Finally had to get off the dock last night to get away from work.
    Later, I'll try to copy your sketch and edit it to match mine to help. I'm sure you have something like this. PhotoScan.jpg
  15. Mjkrawczy, Aug 20, 2023
    #35
    Mjkrawczy

    Mjkrawczy New Member

    Joined:
    May 26, 2023
    Messages:
    28
    Location:
    Muskegon Michigan
    Good Morning,
    Funny I ran across this article.
    I’m the current Owner of above mentioned Boat.
    Been haven fun restoring her and cleaning up the wiring. Boats on Blocks currently. Looking to Launch soon. Went to Turn the Engines over yesterday. I hear just a Click. 1st solenoid engages passing 12v to starter but nothing else happens.
    Been all over the web looking for a Diagram of the Start / Stop Solenoid wiring. Anyone have one?

    thanks
  16. boatpoor, Aug 20, 2023
    #36
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    256
    Location:
    32407
    There is a disc inside the starter solonoid that is probably corroded from sitting all these years. The current has to pass through this disc to a set of contacts which feed the starter motor. The stop solonoid is a simple spring return solonoid mounted on the governor.
  17. Mjkrawczy, Aug 20, 2023
    #37
    Mjkrawczy

    Mjkrawczy New Member

    Joined:
    May 26, 2023
    Messages:
    28
    Location:
    Muskegon Michigan
    Thanks for the advice.
    Will check that out Monday afternoon when I return.
    Will keep you posted on what I find.

    thanks again
    Mike K
  18. boatpoor, Aug 20, 2023
    #38
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    256
    Location:
    32407
    Take some Emory cloth and a fine flat file with you.
  19. Mjkrawczy, Aug 21, 2023
    #39
    Mjkrawczy

    Mjkrawczy New Member

    Joined:
    May 26, 2023
    Messages:
    28
    Location:
    Muskegon Michigan
    My current Solenoid Setup.
    After I get these running I will make a Wiring diagram
    Up and post
    Thanks for the Tip.
  20. Mjkrawczy, Aug 26, 2023
    #40
    Mjkrawczy

    Mjkrawczy New Member

    Joined:
    May 26, 2023
    Messages:
    28
    Location:
    Muskegon Michigan
    Issue resolved. ..
    Disconnected and verified all the wiring on the Starter and Solenoids. Appears the Solenoids were not properly grounded to the metal bracket that supported them. Wiring cleaned up, Engines Turn over.
    Hopefully Fire them up early this coming week prior to launch Sept 1st.
