CAT 3116; Oil Pressure signalb switch

Discussion in 'Engines' started by DarLoughRee, Apr 3, 2023.

You need to be registered and signed in to view this content.
  1. DarLoughRee

    DarLoughRee New Member

    Joined:
    Apr 3, 2023
    Messages:
    1
    Location:
    IReland
    Hello everyone Breaking Out Another Thousand :)

    I will introduce myself by posting another problem :) I have Princess 380 with twin CAT3116 engines :)

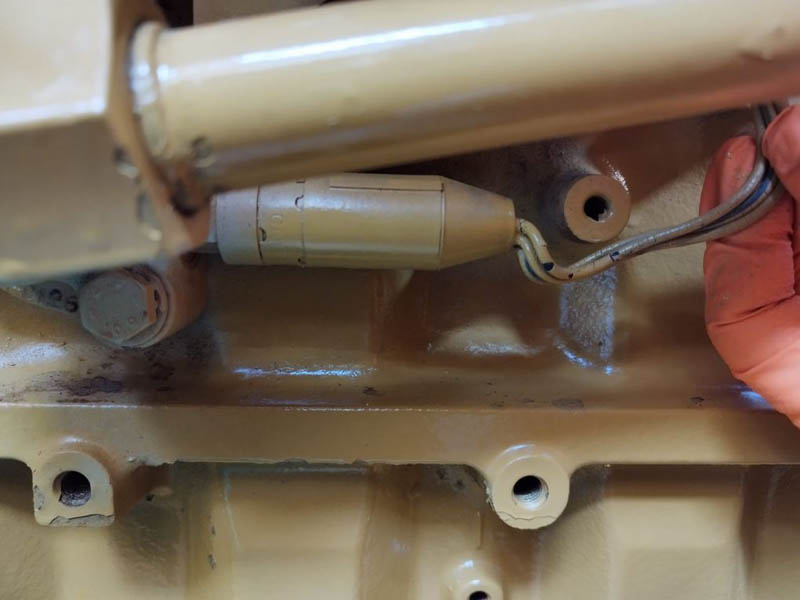

    the low oil pressure alarm and the dash warning light doesn't go off when I start one of the engines (let's call it engine1). I know that oil pressure is ok because the oil pressure gauge is working and showing a good pressure. The warning light and the warning sounder is operated by oil pressure switch ( photo attached) and the oil pressure gauge is operated by oil sender.
    I thought that the problem is in the oil pressure switch, but If I disconnect the oil pressure switch on the good engine ( let's call it engine2) - the alarm stops immediately without even starting the engine.. It doesn't happen the same on the engine1. I am not sure if there is another component like a relay involved in this...
    Any help how to find a fault or diagram hugely appreciated :)

    Attached Files:
