Anyone re-do their helm? Pictures?

Discussion in 'Luhrs Yacht' started by Josh Keeran, Feb 16, 2020.

You need to be registered and signed in to view this content.
Page 2 of 3
  1. Capt Ralph, Feb 21, 2020
    #21
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    Ya know; Every time I really want to limp over to help, they are a thousand miles aweigh.
    I still have no range. Working on my fix.

    Mean while;
    Do we have a YF member up there in WI with a hammer?
    Lets fix this console for our new friend..
  2. Rich Plukas, Feb 25, 2020
    #22
    Rich Plukas

    Rich Plukas New Member

    Joined:
    Feb 10, 2020
    Messages:
    28
    Location:
    Rochester, NY

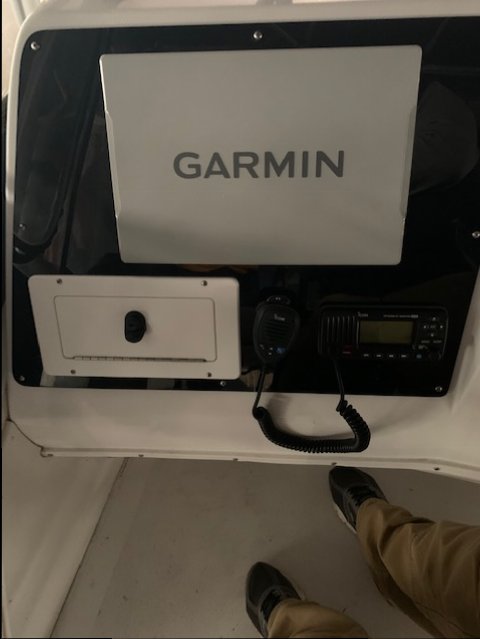

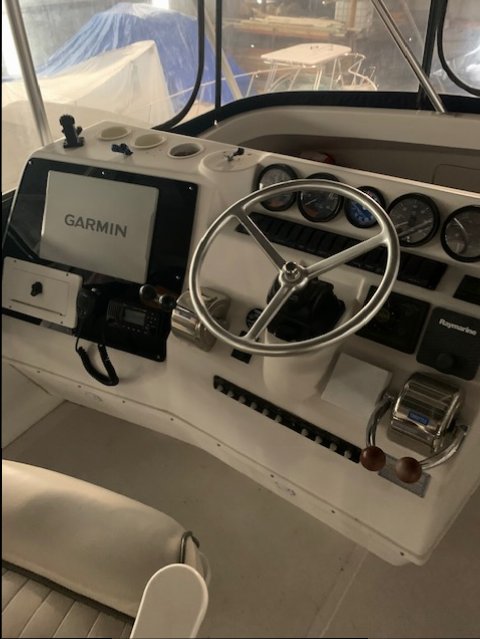

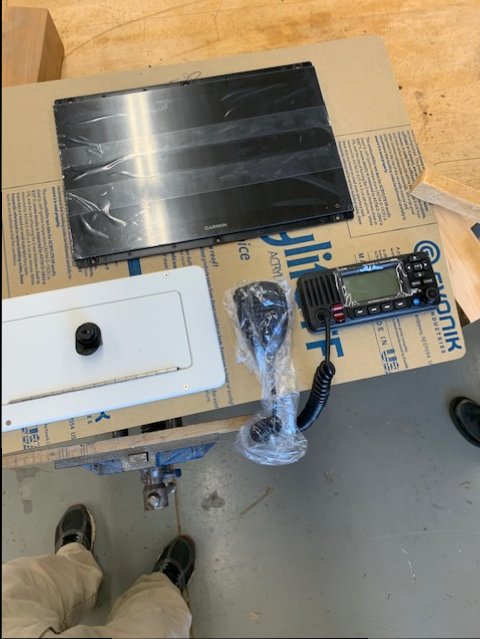

    Cut my acrylic on Saturday. I will post when its done. Putting in 16" Garmin, Icom radio and a glovebox to make up for the zero storage the helm has.
  3. Josh Keeran, Mar 13, 2020
    #23
    Josh Keeran

    Josh Keeran Member

    Joined:
    Feb 10, 2020
    Messages:
    62
    Location:
    Chicago/Racine,WI
    Progress report!

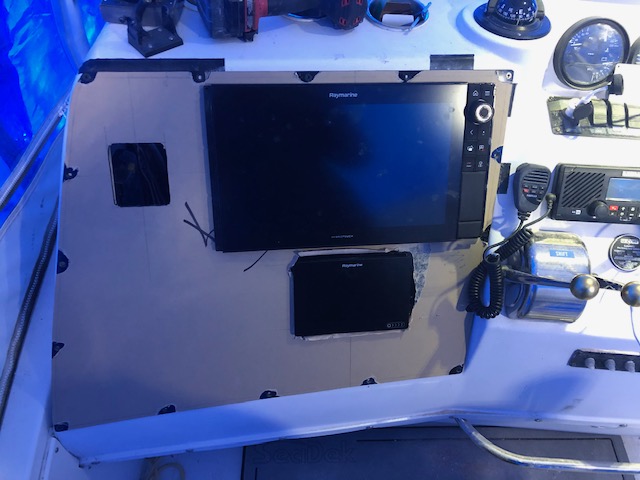

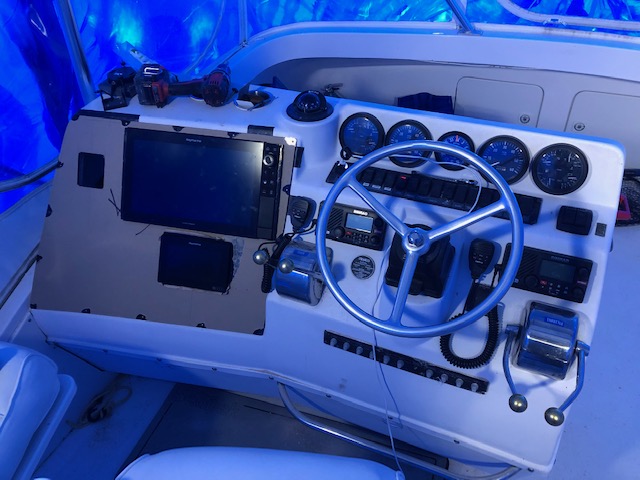

    still working on it but started dry fitting the panel and electronics. Now that I’m happy with the end result I need to re-enforce the original helm behind the acrylic panel.

    Attached Files:

  4. Bucksh0t, Mar 14, 2020
    #24
    Bucksh0t

    Bucksh0t Member

    Joined:
    Mar 18, 2018
    Messages:
    76
    Location:
    Morehead City NC
    pretty work capt, keep the pics coming
  5. Rich Plukas, Mar 25, 2020
    #25
    Rich Plukas

    Rich Plukas New Member

    Joined:
    Feb 10, 2020
    Messages:
    28
    Location:
    Rochester, NY

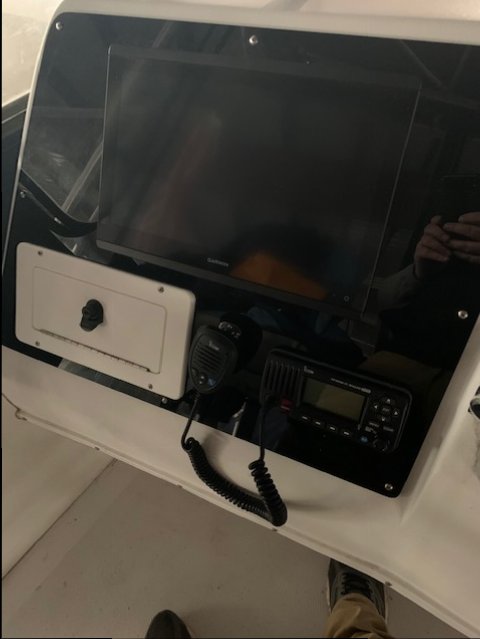

    Laid out and cut my 1/2" black acrylic for left side of helm. Added a small glovebox for sunscreen, sunglasses odds and ends you always have.

    Attached Files:

  6. Josh Keeran, Mar 25, 2020
    #26
    Josh Keeran

    Josh Keeran Member

    Joined:
    Feb 10, 2020
    Messages:
    62
    Location:
    Chicago/Racine,WI
    looks great Rich!
  7. DOCKMASTER, Mar 25, 2020
    #27
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,498
    Location:
    Ketchikan, Alaska
    Awesome glove box idea! I keep trying to use those suction cup holders for little stuff and cups . Maybe if I end up wearing my coffee in the morning with soaked tide books and broken sunglasses a few more times I'll do something like you have done here.
  8. electro, Apr 13, 2020
    #28
    electro

    electro New Member

    Joined:
    Jun 12, 2016
    Messages:
    4
    Location:
    ft lauderdale

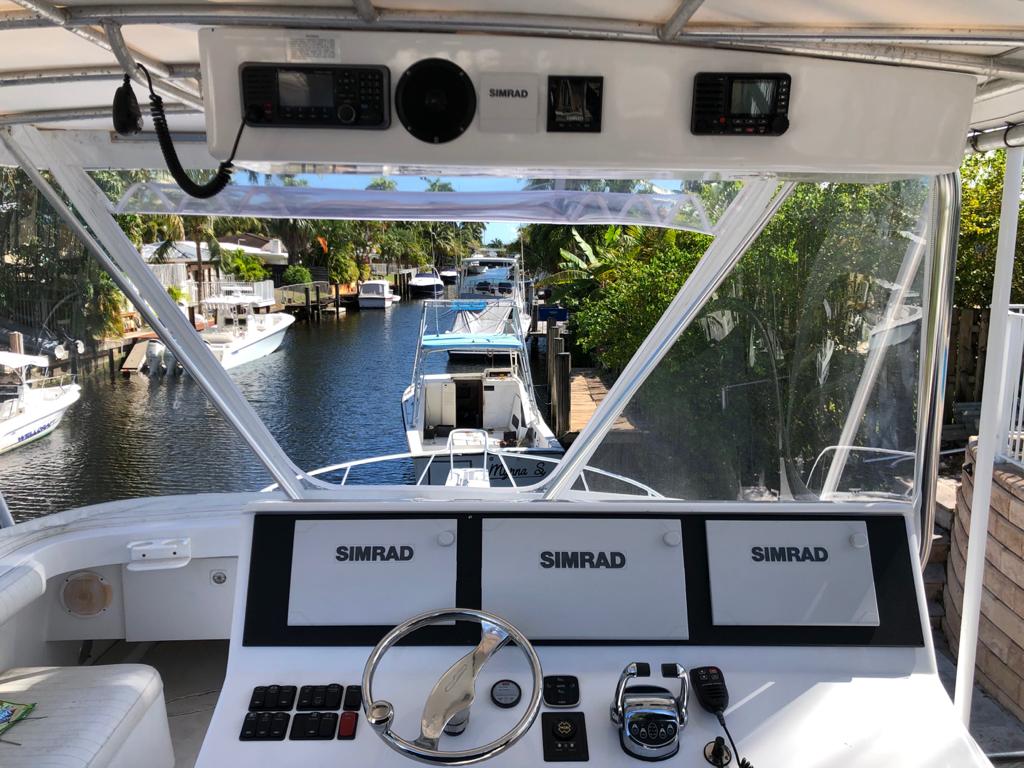

    This is what I've done on my 1999 40 convertible.

    Attached Files:

  9. electro, Apr 13, 2020
    #29
    electro

    electro New Member

    Joined:
    Jun 12, 2016
    Messages:
    4
    Location:
    ft lauderdale
    This is another pic before I added a third MFD and a black insert and rearranged things a bit

    Attached Files:

  10. Bucksh0t, Apr 13, 2020
    #30
    Bucksh0t

    Bucksh0t Member

    Joined:
    Mar 18, 2018
    Messages:
    76
    Location:
    Morehead City NC
    looks great, Electro!
  11. Rich Plukas, Apr 13, 2020
    #31
    Rich Plukas

    Rich Plukas New Member

    Joined:
    Feb 10, 2020
    Messages:
    28
    Location:
    Rochester, NY
    Wow! Looks very clean Electro. Nice job.
  12. Josh Keeran, Apr 14, 2020
    #32
    Josh Keeran

    Josh Keeran Member

    Joined:
    Feb 10, 2020
    Messages:
    62
    Location:
    Chicago/Racine,WI
    I love it! That would be my end game to re-do the entire helm pod. I imagine quite a few man hours are in that project
  13. electro, Apr 15, 2020
    #33
    electro

    electro New Member

    Joined:
    Jun 12, 2016
    Messages:
    4
    Location:
    ft lauderdale
    Quite a few, but most spent on trying to figure out the dimensions. I had to fit it without taking the soft top frame off the boat. I used google sketch up program, the free edition and did a rough mock up from cardboard. Other than that it’s straightforward 3/4 inch plywood covered with 10oz and epoxy. Had to take it to a paint shop to have it sprayed.
  14. electro, Apr 15, 2020
    #34
    electro

    electro New Member

    Joined:
    Jun 12, 2016
    Messages:
    4
    Location:
    ft lauderdale
    If I had to do it again I would use 1/2 inch ply instead
  15. Rich Plukas, Apr 27, 2020
    #35
    Rich Plukas

    Rich Plukas New Member

    Joined:
    Feb 10, 2020
    Messages:
    28
    Location:
    Rochester, NY
    Finished the helm work this weekend in the cold, damp barn. Fishhawk will go on the top left. other cords will be removed and holes filled. Hoping launch this week.

    Attached Files:

  16. Beau, Apr 27, 2020
    #36
    Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,261
    Location:
    Beaufort, NC
    Excellent work! Looks so much better
  17. Josh Keeran, Apr 30, 2020
    #37
    Josh Keeran

    Josh Keeran Member

    Joined:
    Feb 10, 2020
    Messages:
    62
    Location:
    Chicago/Racine,WI
    Finally finished up my dash! Funny thing ya Richard and I talked a few months ago and just happen to be doing the same thing without knowing it! I like his idea of the glove box. I plan on replacing my 7” Raymarine unit with a 12” unit down the road so I’m going to leave mine as is for now. I also did decide to remove the electronic compass from the middle above my wheel and replaced it with my autopilot head unit.

    Attached Files:

  18. Josh Keeran, Apr 30, 2020
    #38
    Josh Keeran

    Josh Keeran Member

    Joined:
    Feb 10, 2020
    Messages:
    62
    Location:
    Chicago/Racine,WI

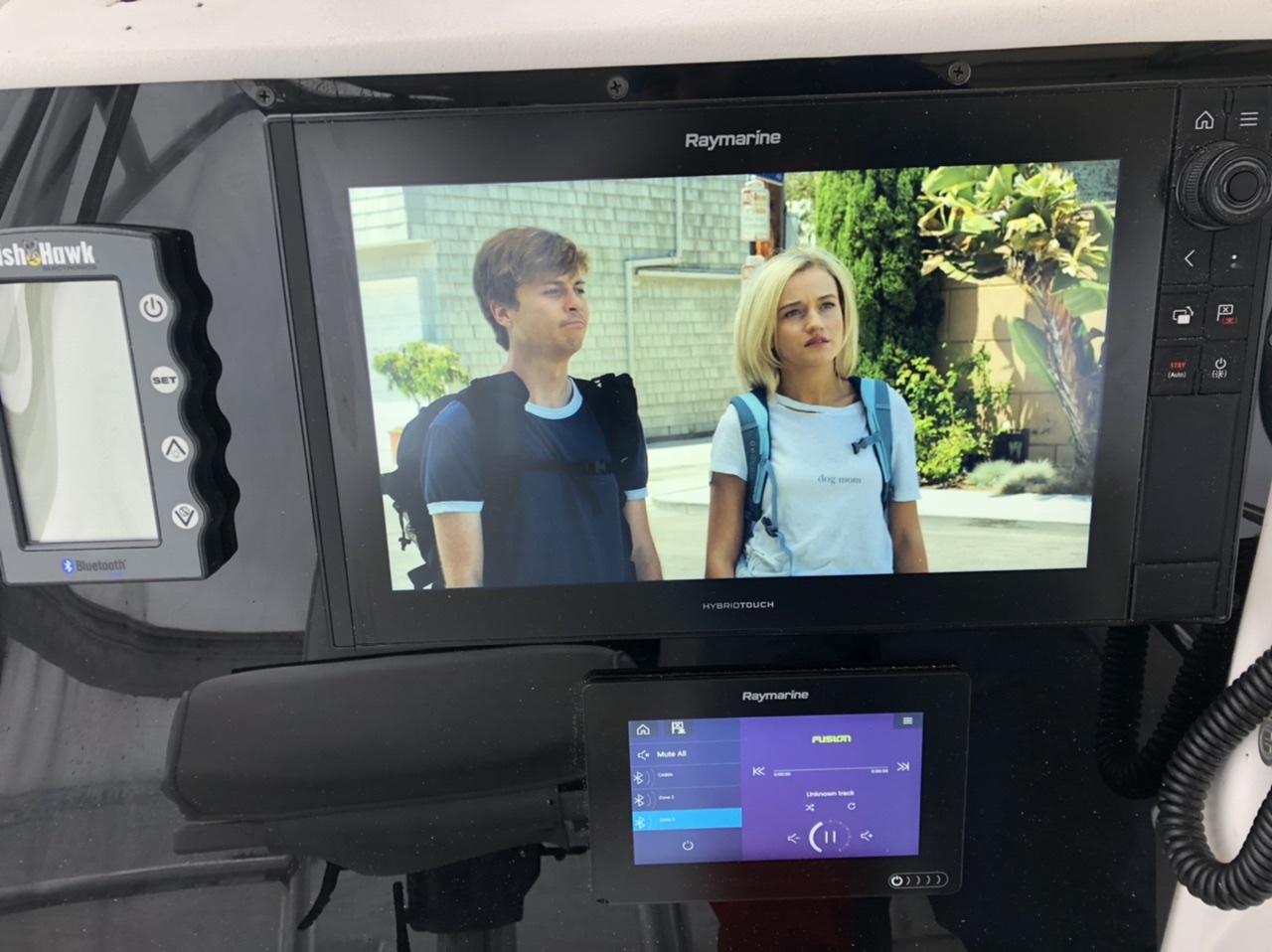

    Couple more pics......Also Raymarine now has an app for Netflix! No more “back dooring” the software!

    Attached Files:

  19. Rich Plukas, May 1, 2020
    #39
    Rich Plukas

    Rich Plukas New Member

    Joined:
    Feb 10, 2020
    Messages:
    28
    Location:
    Rochester, NY
    Looks awesome Josh! What is the 7" screen for?

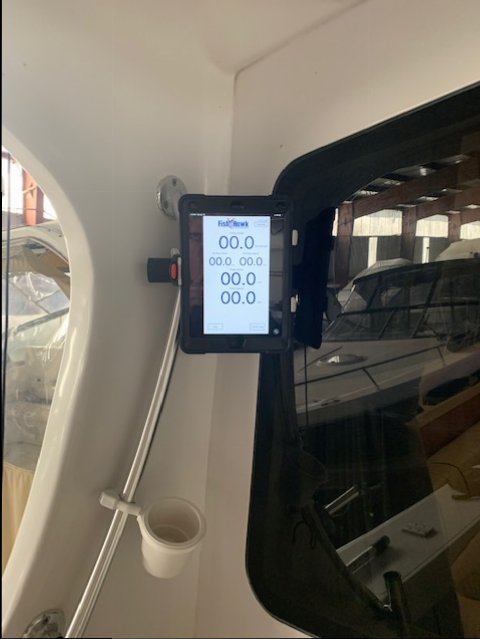

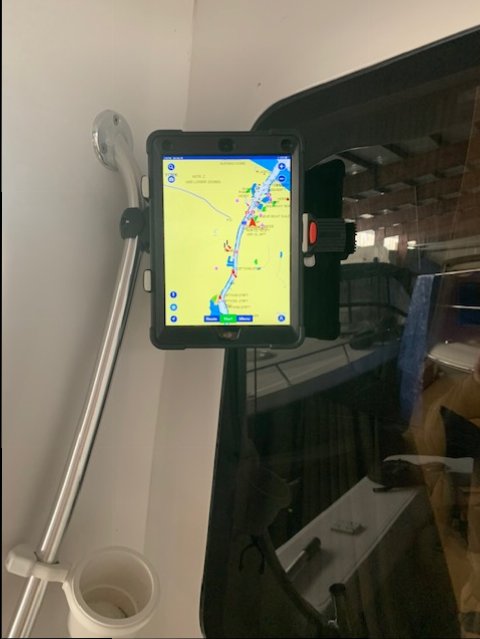

    I have also bought a removable mount to send my screen down to the fish deck. Can either mirror the Garmin or get my Fishhawk numbers via Bluetooth.

    Attached Files:

  20. Josh Keeran, May 1, 2020
    #40
    Josh Keeran

    Josh Keeran Member

    Joined:
    Feb 10, 2020
    Messages:
    62
    Location:
    Chicago/Racine,WI

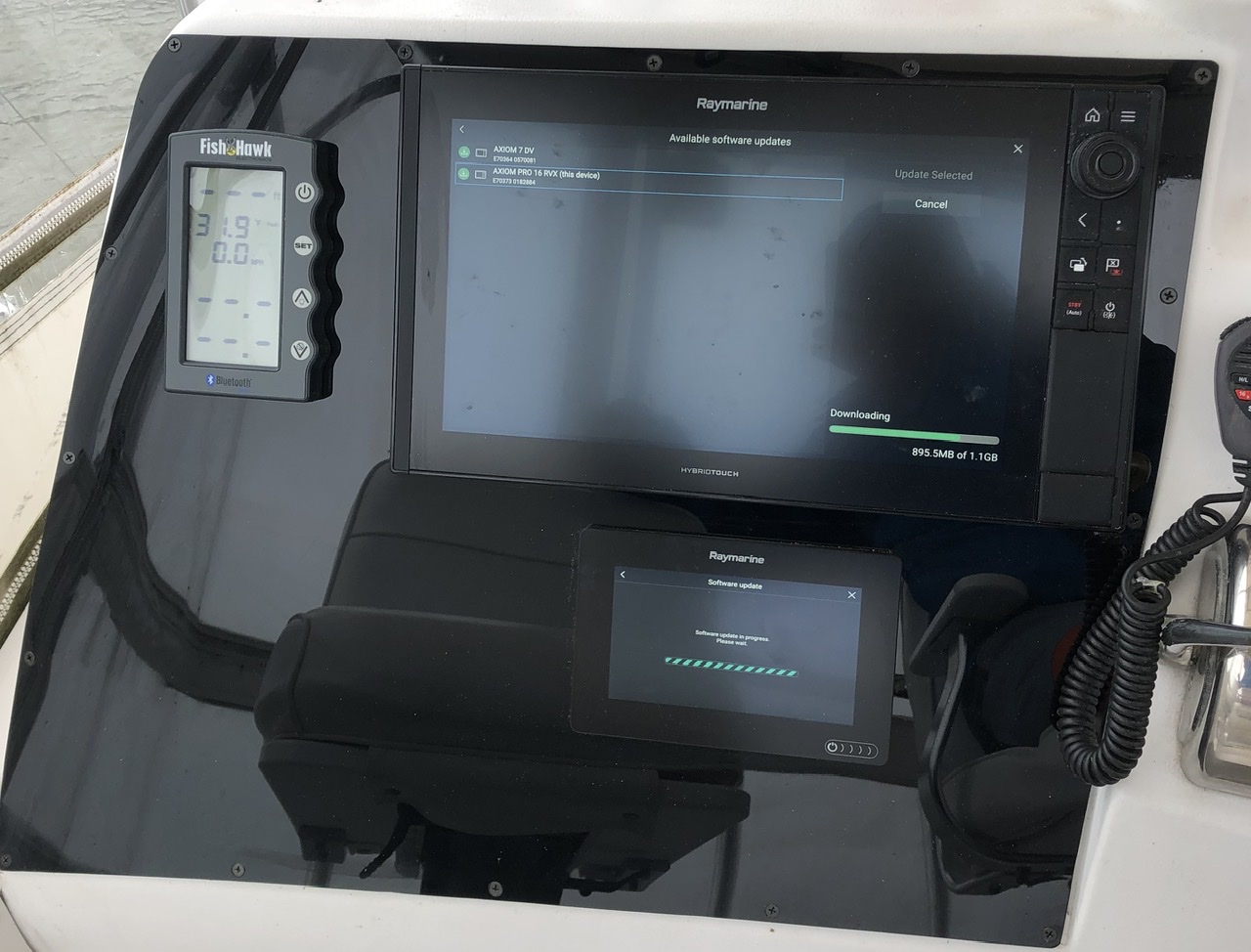

    Well, after not believing Raymarine and finding out the hard way by blowing up the sounder board of the 16” Axiom Pro unit.....the particular Raymarine thruhull transducer that was on the boat is compatible with an Axiom unit but not an Axiom Pro unit. Either needed a CP370 sounder module or a regular axiom unit. Instead of using a separate sounder module I found a used 7” Axiom unit relatively inexpensive. It works great as a remote for the Fusion stereo mounted in the cabin as well as second display.

    what mount did you use for your tablet? I have the exact same plan for my fish hawk! I like the Seasucker mount but not sure about $100 just for a mount
