6-71TIB's adding Maretron Flow meters

Discussion in 'Post Yacht' started by My Affair, Jan 21, 2018.

You need to be registered and signed in to view this content.
Page 3 of 3
  1. Capt J, Apr 29, 2018
    #41
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,540
    Location:
    Fort Lauderdale
    I'm pretty sure Floscan went out of business at the end of last year.
  2. Davidoc, Apr 29, 2018
    #42
    Davidoc

    Davidoc Senior Member

    Joined:
    Aug 29, 2005
    Messages:
    261
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    I assume that all this analysis concludes that the most reliable and accurate is the old fashioned Flow Scan solution for 71's AND 92's?
  3. My Affair, Apr 30, 2018
    #43
    My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT
    I am still going forward with the Maretron install, but I just got into the water. Once systems are all up, plan to baseline the new 4 blade props RPMS before I make changes to my fuel system which I’ll do as time allows.
  4. MBevins, Apr 30, 2018
    #44
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,227
    Location:
    Windsor On. Canada
    That's where I'm at as well. Launching next week, once I get the spring stuff done ilI' move on to the maretron install. Realistically imI mid season before completion.
  5. Davidoc, Aug 12, 2018
    #45
    Davidoc

    Davidoc Senior Member

    Joined:
    Aug 29, 2005
    Messages:
    261
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    They have them with bigger ports but i'm not sure they will read at low speeds. I'm starting to work on this project for 6v92's. I hope your system works. Anxious to see your outcome. Did you change out the tank sensors to their pressure sensors?
  6. My Affair, Jun 27, 2020
    #46
    My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT

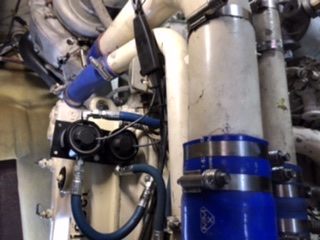

    System installed and running, I spent $2800 with all components, hoses and nema 2k cables and so far impressive running off my Garmin 7212’s. The system sees 1.3 to 1.5 gallons per hour At idle and increases higher as tested ran at dock so far. Overall, it was an easy install...just lengthy because of the preparations needed for where to locate the devices, how to route hoses and running the cabling for the systems. 47D6F7CA-E237-4BFC-9EE4-6522C0497CC8.jpeg
  7. MBevins, Jun 27, 2020
    #47
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,227
    Location:
    Windsor On. Canada
    That's great news.
    I still haven't gotten back to mine.
    Perhaps your success will be what I needed to move forward with this.
  8. Jeremyvmd, Nov 17, 2020
    #48
    Jeremyvmd

    Jeremyvmd Member

    Joined:
    Oct 22, 2020
    Messages:
    63
    Location:
    Williamstown Nj
    Did you guys get these up and running this season? How did they work?
  9. My Affair, Nov 17, 2020
    #49
    My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT
    They work great, once they were set up I've not had any issues. Customer service at Maretron was awesome!
  10. RT46, Nov 17, 2020
    #50
    RT46

    RT46 Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    1,059
    Location:
    Long Island, NY
    Thats awesome, i am very tempted
    Even though my fuel burn estimates based on the DD fuel burn graphs seem to be very accurate
    This system will take any guess work out of the equation
  11. rtrafford, Nov 17, 2020
    #51
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,753
    Location:
    Vero Beach
    FloScan is in business. Good folks to work with...
  12. RT46, Nov 17, 2020
    #52
    RT46

    RT46 Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    1,059
    Location:
    Long Island, NY
    Really? Thought they shut down?
  13. rtrafford, Nov 17, 2020
    #53
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,753
    Location:
    Vero Beach
    Open and operating. I just bought a complete set of parts to rebuild my units.
  14. MBevins, Nov 17, 2020
    #54
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,227
    Location:
    Windsor On. Canada
    I believe they were purchased at closing.
  15. rtrafford, Nov 17, 2020
    #55
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,753
    Location:
    Vero Beach
  16. rtrafford, Nov 17, 2020
    #56
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,753
    Location:
    Vero Beach
    Must have clean flow of fuel without air bubbles or air locks in the fuel route. Grit, grime, air can throw off the readings. After my rebuild the system needed to run for about an hour before the readings dialed back into logic. Like anything you need to learn the error percentage for any vessel. Best way, stuff the fuel, make a long run, stuff the fuel, compare. Keep the logs. Pretty reliable.
  17. Jeremyvmd, Nov 18, 2020
    #57
    Jeremyvmd

    Jeremyvmd Member

    Joined:
    Oct 22, 2020
    Messages:
    63
    Location:
    Williamstown Nj
    No issues with fuel supply at wot?
  18. My Affair, Nov 18, 2020
    #58
    My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT
    No issues at WOT...the orifice of the JIC connectors lines used on the return side was similar to the stock discharge elbow with the restriction.

    The Maretron parts I used was 2 m2ar flow sensors with fm100 monitor per engine and used j2k200 gateway to program it all with their techs help.
  19. My Affair, Nov 18, 2020
    #59
    My Affair

    My Affair Member

    Joined:
    May 23, 2006
    Messages:
    115
    Location:
    Mystic, CT
    On last boat I installed flow scans- very reliable, but older technology. They need careful calibration vs these maretron once set up for the engine, (they come already calibrated from the factory) are very accurate-
