54' Bertram Tranny Removal

Discussion in 'Bertram Yacht' started by CaptOz, May 9, 2013.

You need to be registered and signed in to view this content.
Page 3 of 3
  1. Capt Ralph, May 18, 2013
    #41
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,498
    Location:
    Satsuma, FL
    Outstanding pictures. Glad things are working your way.
    My 12v71 / TD 514 gear slid straight back (on made-up wood rails) so I could remove the flywheel and replace the rear oil seal. Long threaded rod pulled the gear back into place (slowly). Been 7 years now and it's still pulling strong.
    ,rc
  2. CaptOz, May 19, 2013
    #42
    CaptOz

    CaptOz Member

    Joined:
    Apr 13, 2009
    Messages:
    100
    Location:
    Miami, Fl
    We put in a full day today. We slapped on the tranny, aligned the engine to the coupler, put on the air boxes, Turbos and exhaust. It wasn't easy but everything looks good. Turned her on a little while ago and she started up within 1 second of given here fuel and starter motor. All pressures and temps looked good. We didn't run her because it was already dark, but Im sure she is fine.

    I think the culprit was definitely that 6 inch rope we caught 4 years ago in the Abacos..

    Thanks again for everyone's input. Will post a few more pictures..
  3. CaptOz, May 19, 2013
    #43
    CaptOz

    CaptOz Member

    Joined:
    Apr 13, 2009
    Messages:
    100
    Location:
    Miami, Fl

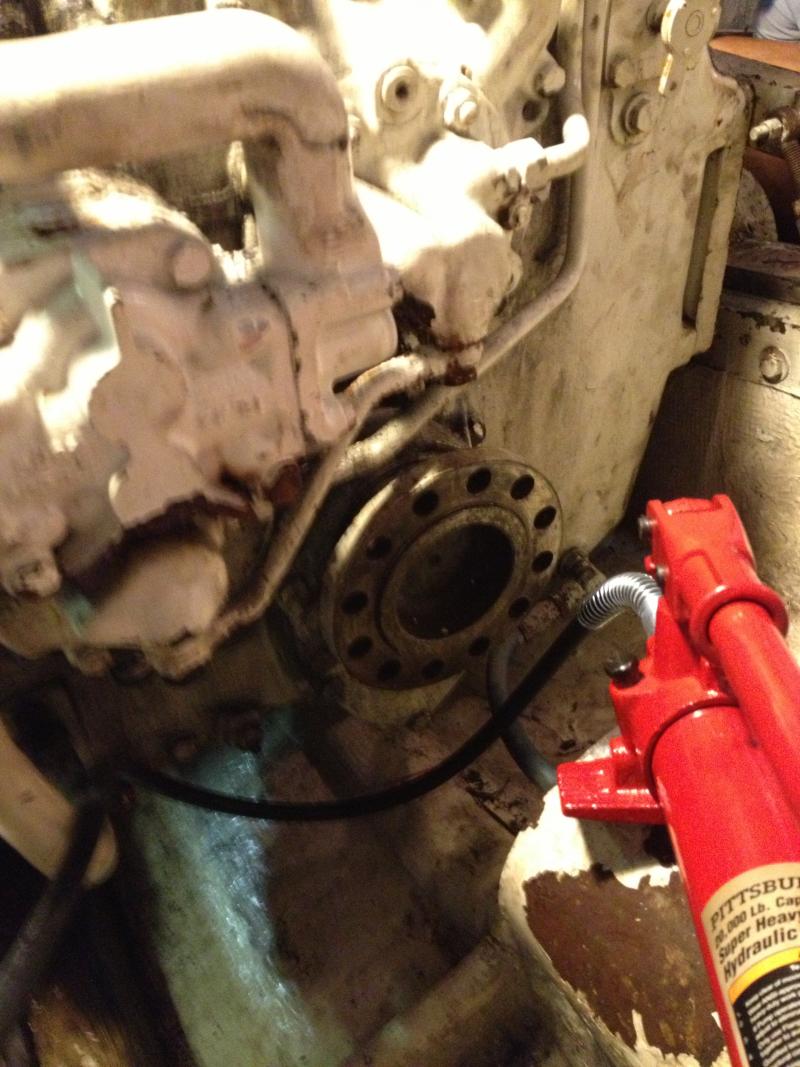

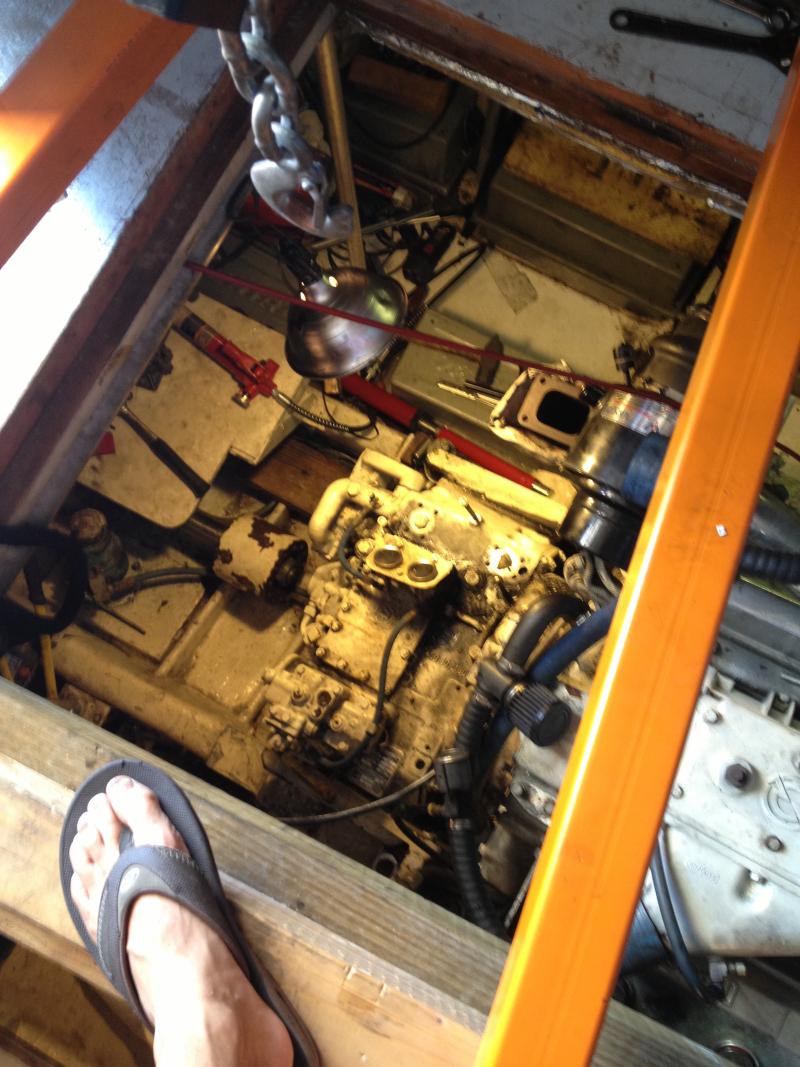

    Some more pics.

    Attached Files:

  4. CaptOz, May 21, 2013
    #44
    CaptOz

    CaptOz Member

    Joined:
    Apr 13, 2009
    Messages:
    100
    Location:
    Miami, Fl
    Well, Think this thread is pretty much over. I did a sea-trial yesterday and everything looked, felt and sounded good. Did not take her to WOT, but went to 1925 rpms. I usually operated around 1850 doing about 18-20knots depending on how much fuel I am carrying.

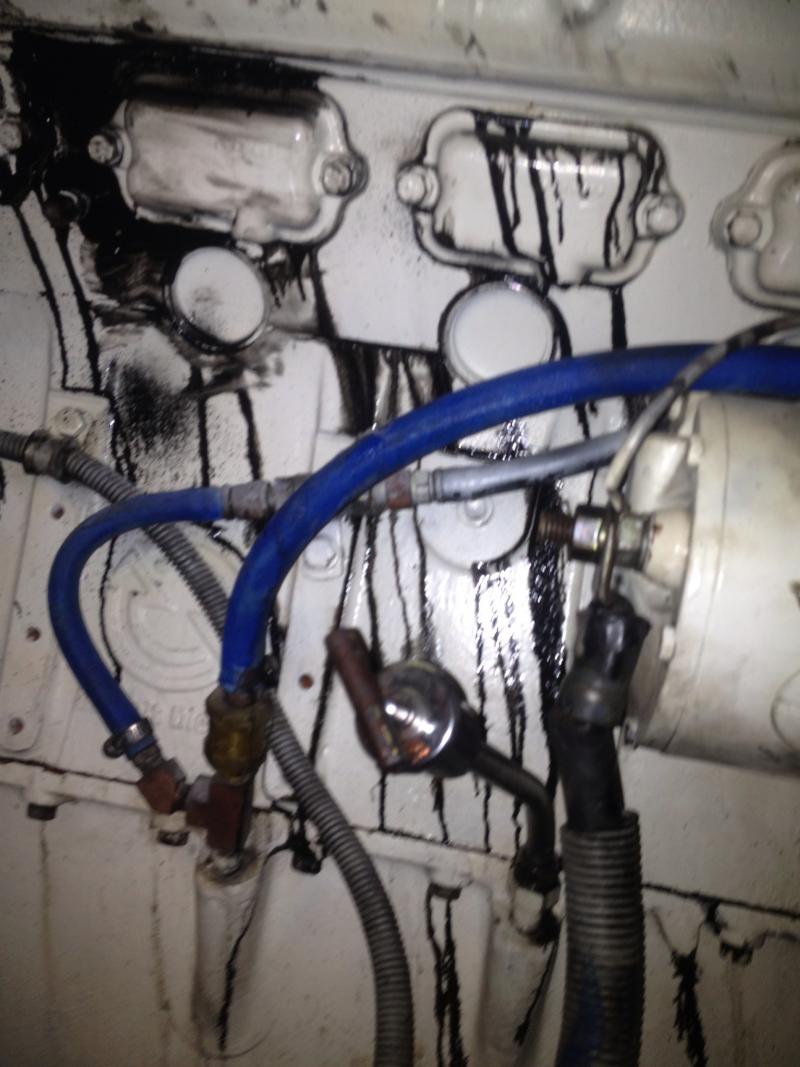

    I did have some oil leak out of the cylinder site windows. When I removed them to see the pistons all went up and down, I probably did not seat them right, or tightend them right. I have order a new set for that side.

    See you all later!

    Attached Files:

  5. K1W1, May 21, 2013
    #45
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,430
    Location:
    My Office
    Hi,

    Thanks for keeping the thread updated with your photos and text.

    It is a complete story and adds to the knowledge base that is YF.
  6. CaptOz, May 22, 2013
    #46
    CaptOz

    CaptOz Member

    Joined:
    Apr 13, 2009
    Messages:
    100
    Location:
    Miami, Fl
    It was a pleasure.

    Thanks for everyone's input.
  7. Capt Ralph, May 22, 2013
    #47
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,498
    Location:
    Satsuma, FL
    Of interest, When you peeked at your pistons, did you get any quality viewing of the liners and rings? How they look?
    I have learned the hard way, those old gaskets will leak when re-used. There is 20+ psi on those air boxes and any micro leak of slobber will find it's way out. New gaskets with just a wipe of grease on clean surface areas will fix ya rite up. Common gaskets, any good D/D shop should have them on hand.
    ,rc
  8. CaptOz, May 22, 2013
    #48
    CaptOz

    CaptOz Member

    Joined:
    Apr 13, 2009
    Messages:
    100
    Location:
    Miami, Fl
    I was able to see all the cylinder walls on that side and all but one had the crosshairs on them. The Last one had a small vertical wear.
  9. Capt Ralph, May 22, 2013
    #49
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,498
    Location:
    Satsuma, FL
    Cool. Just keep that in the back of your mind or in a personal log. In a couple of years, take another peek at that last one. Maybe next oil change, pop a few more.
    It took me about a year, a few at a time, before I finished inspecting all of mine.
    ,rc
  10. CaptOz, May 22, 2013
    #50
    CaptOz

    CaptOz Member

    Joined:
    Apr 13, 2009
    Messages:
    100
    Location:
    Miami, Fl
    Yeah.. absolutely.

    The easy part is popping them off, the hardpart is tourning the engine by hand. I guess I can use the starter and turn of the rack.
  11. K1W1, May 22, 2013
    #51
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,430
    Location:
    My Office
    Hi,

    It is a good practice to have the rack at the stop possie even when turning by hand.

    Is there anywhere on the bell housing where you can get in with a screwdriver on the ring gear or can you get a 3/4 Drive socket on the front pulley bolt - always turn it to the right when facing the engine from the front or you might loosen it.
  12. CaptOz, May 22, 2013
    #52
    CaptOz

    CaptOz Member

    Joined:
    Apr 13, 2009
    Messages:
    100
    Location:
    Miami, Fl
    Yes, I used at 3/4 Driver and 1 1/2 socket.

    Where is the stop position on the rack?
  13. K1W1, May 22, 2013
    #53
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,430
    Location:
    My Office
    Hi,

    You used the term turn off the rack which assume means the same

    The last Detroit I worked on had mechanical injectors and a cable to pull to stop it via a small lever on top of the Governor hsg.
  14. Capt J, May 22, 2013
    #54
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,540
    Location:
    Fort Lauderdale
    You can also snap off the part that turns the raw water pump as well if you turn it backwards.

    As for the OP. I would yank and check the injector on the 1 cylinder that's showing the strange wear.
