1975 42' Post Restore

Discussion in 'Post Yacht' started by Daniel Walker, Dec 15, 2015.

You need to be registered and signed in to view this content.
Page 2 of 7
  1. Lepke, Dec 26, 2015
    #21
    Lepke

    Lepke Member

    Joined:
    Dec 26, 2015
    Messages:
    123
    Location:
    US West Coast. Cruise NW Passage to Alaska.
    I have a different boat, similar engines. The 671 is the most reliable engine of that size I have seen. No injector pump, no electronics to fail. I'm 67 and have been running them since I was 13. If you stay out of the upper power range, you can double the time between overhauls. Excessive heat wears ring & sleeves.
  2. baltimore bob, Dec 26, 2015
    #22
    baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    314
    Location:
    Baltimore, Maryland
    These should be the same engines I have, 310 horsepower J&T naturals. At that horsepower rating, the 6-71 should still be running when we are all dead!
  3. chesapeake46, Dec 26, 2015
    #23
    chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,831
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    I spoke to a Captain on a sightseeing boat in Wildwood New Jersey that used to lay up near the Route 47 bridge near the Beach Creek restaurant ( good food ). I heard him come into the slip and heard the unmistakable sound of Detroits. When I asked him how many hrs. and what engines etc. etc, he told me they were 671-N's with over 20,000 hrs on them. I thought I heard him wrong but he insisted that they were never rebuilt.
    He told me they never exceeded 1800 RPM because the boat would only go so fast and anything over 1800 was just wasting fuel.
  4. Capt Ralph, Dec 26, 2015
    #24
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,486
    Location:
    Satsuma, FL

    The early 6-71, less than 180 hp (N55s), did not spin over 1800 rpm. Later naturals (N70s up) to 260 hp would turn 2300 rpm but the sweet spot was still 1800 for factory rated continuous operation.
    I believe you found an other perfect example of less h p = longer life.
    F M
  5. shawn, Dec 28, 2015
    #25
    shawn

    shawn New Member

    Joined:
    Feb 13, 2006
    Messages:
    126
    Location:
    old saybrook ct
    Hey Dan: What I did was cut PVC pipe in half and used the elbo for the round ends. I laid glass into the cut pipe,use wax paper on the bottom. Once you do that I used West-Epoxy and poured it into the pipe. When the Epoxy starts to dry I laid Stainless bolts facing up. I made a fiberglass box for the inside of the hull and cut four big holes in the top. I made the grill big enough so I can get my hand through it. I drilled the holes in the hull where I mounted the bolts in the grill. I was able to reach into the hull and put the nuts on and bolts and lock it down. I came out really nice it looks like the newer models.
  6. Daniel Walker, Jan 8, 2016
    #26
    Daniel Walker

    Daniel Walker Member

    Joined:
    Nov 16, 2015
    Messages:
    65
    Location:
    New Orleans, La
    I ended up glassing the new engine vents into the hull and using insulation board to make my form. We ended up getting bad weather for several day and low temps (under 50 degrees), so i couldn't finish up. Hopefully I can resume next week. Here is some pictures in the meantime!

    Removing Starboard side existing vents:

    [​IMG]

    Removed panel inside to glass new airbox to hull (panel had some water damage from leaking widows and needed replacing anyway):

    [​IMG]

    Area cleaned back for new glass:

    [​IMG]

    New airbox mould:

    [​IMG]

    Glass in and starting fairing:

    [​IMG]

    This was the middle vent, now a strong clean part of the hull:

    [​IMG]

    Last coat of filler, just need to feather out and prime when we return:

    [​IMG]

    Close up of the new airbox/vent. Temp starting dropping under 50 degrees so I had to stop adding the glass. Need to add a few more layers and shape up a bit more before we start the filling and fairing:

    [​IMG]
  7. shawn, Jan 8, 2016
    #27
    shawn

    shawn New Member

    Joined:
    Feb 13, 2006
    Messages:
    126
    Location:
    old saybrook ct
    Boy do I remember doing all that, I like your design. Keep the pics coming I know someone that is looking for the old vents if you want to get rid of them.

    Shawn
  8. Beau, Jan 9, 2016
    #28
    Beau

    Beau Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    2,261
    Location:
    Beaufort, NC
    Big job. keep the pics coming. That change will really "modernize" her look. I think there was someone on this forum looking for those vent covers a while back, I'll try to locate that thread.
  9. Daniel Walker, Jan 9, 2016
    #29
    Daniel Walker

    Daniel Walker Member

    Joined:
    Nov 16, 2015
    Messages:
    65
    Location:
    New Orleans, La
    It is a big job, but i know the results will be worth it. Plus I have some good help! Just need some good weather, or I need to build a bigger tent! If anyone one needs the vents, let me know. I have 2 from the starboard side, one was cracked pretty good in a few places and is in very poor shape and canned it . I haven't removed the port side vents yet. First come, first serve!
  10. Tommy68, Jan 11, 2016
    #30
    Tommy68

    Tommy68 Member

    Joined:
    Apr 13, 2015
    Messages:
    39
    Location:
    Connecticut
    Hi Dan,

    I would be interested in the Vent or Vents you have. I have a 42' 79 which needs one vent for sure, but a second would be good if you have it.

    I posted a couple times over the past year looking for some.

    Hope to hear from you soon!
  11. Daniel Walker, Jan 19, 2016
    #31
    Daniel Walker

    Daniel Walker Member

    Joined:
    Nov 16, 2015
    Messages:
    65
    Location:
    New Orleans, La
    Tommy, will have them sent to you tomorrow. I ended up bringing the boat over the weekend from Pensacola, FL to a dry dock here in New Orleans.
  12. Tommy68, Jan 19, 2016
    #32
    Tommy68

    Tommy68 Member

    Joined:
    Apr 13, 2015
    Messages:
    39
    Location:
    Connecticut
    Great Thanks!
  13. YachtForums, Jan 19, 2016
    #33
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,623
    Location:
    South Florida
    Daniel,

    We don't allow hot-linked images because the host can change the image to something less-than benign or cancel the account which leaves placeholders in a thread. Please 'attach' your images. This way the pics will always be viewable because they reside on our server.

    Thanks!
  14. Daniel Walker, Jan 19, 2016
    #34
    Daniel Walker

    Daniel Walker Member

    Joined:
    Nov 16, 2015
    Messages:
    65
    Location:
    New Orleans, La
    Will, do!
  15. Daniel Walker, Jan 19, 2016
    #35
    Daniel Walker

    Daniel Walker Member

    Joined:
    Nov 16, 2015
    Messages:
    65
    Location:
    New Orleans, La
    As much as I hated to put her back into the water before I had the hull finished, I brought her back to New Orleans so that it will be easier and more convenient to get to. We (father-in law and I) primed up what we had done and set her in for the 158 mile trip.



    Except for a dead battery after splash the trip went very well and she ran surprisingly well. We ran the Gulf ICWW and it was a beautiful day on Saturday. We made our way Pensacola Bay in a 1' chop running the 671Ns @ 1850 RPM with a 16 knt cruise.

    Perdido Key:


    We ended up stopping in Orange Beach, Alabama for a quick top off of fuel and a bite to eat at a dock side restaurant. We then made our way over to Biloxi, Mississippi where we decided to stay over night at the Point Cadet Marina where the dock master was friendly and very accommodating. The marina is right behind one of the many beach based casinos. So we hit a sports bar inside to watch the playoff games. After some good food and drinks we made our way back to the marina for a night cap and a movie on board. A strong front moved through around 10 pm that night and between the sound of the rain hitting the deck and the gentle rocking of the boat I sleeped extremely well!

    We woke up the next morning to the rising of the sun and checked the oil and noticed that the port engine "spit" about a gallon of oil after about 4 hours of running. The starboard engine didn't even leak a drop.

    Leaving Point Cadet Marina:


    We made our way thru the Mississippi Sound in 15 mph winds with 20+ mph gust and the temp was a chilly 45 degrees (cold for us southerners). This netted 4-6ft seas once we got out to deeper waters. We found a quartering sea, but the boat ran the same at cruise a steady 16 Knots with a little more work at the helm to keep us on course. I was please to find how dry the ride was with only once did I notice spray over the bow. With that said, I still wish I had curtains on the fly bridge....it was cold!

    Out of the rougher water into the protected waterway of Lake Borgne:


    Inside the Intercoastal waterway approaching New Orleans:

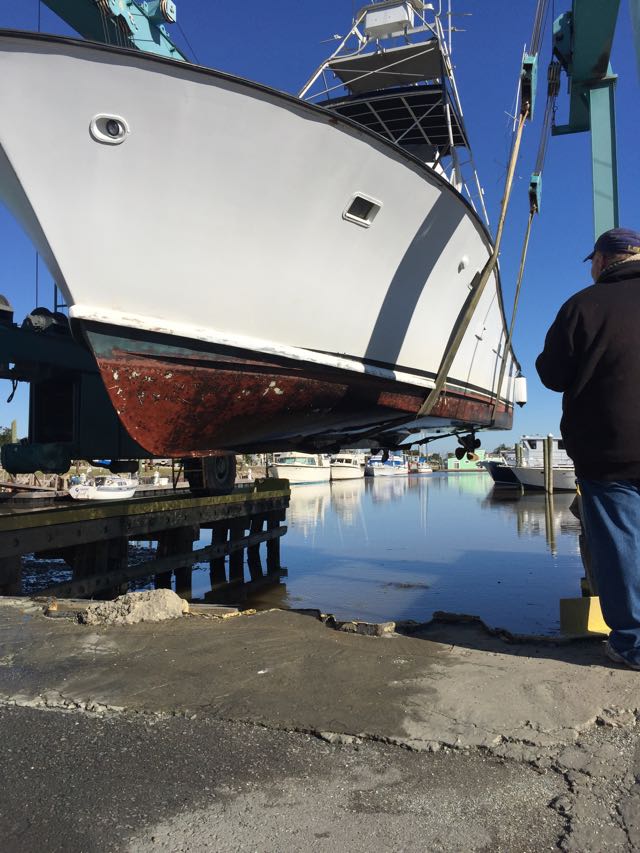

    And finally getting put back on dry dock:


    Now Back to work!
  16. Daniel Walker, Jan 19, 2016
    #36
    Daniel Walker

    Daniel Walker Member

    Joined:
    Nov 16, 2015
    Messages:
    65
    Location:
    New Orleans, La

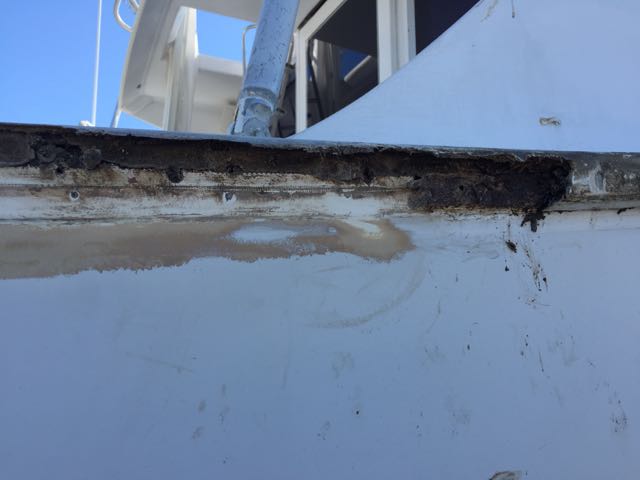

    I had a chance to pull off the old rub rails and found some rot on the starboard side. Most likely due to whoever installed the rub rails didn't properly seal the fasteners. I also found a few drywall screws were used for fasteners. Here is a pic after removing some of the mush/rotted wood:

    Will clean this up and will have to glass in new wood!
  17. Daniel Walker, Jan 22, 2016
    #37
    Daniel Walker

    Daniel Walker Member

    Joined:
    Nov 16, 2015
    Messages:
    65
    Location:
    New Orleans, La

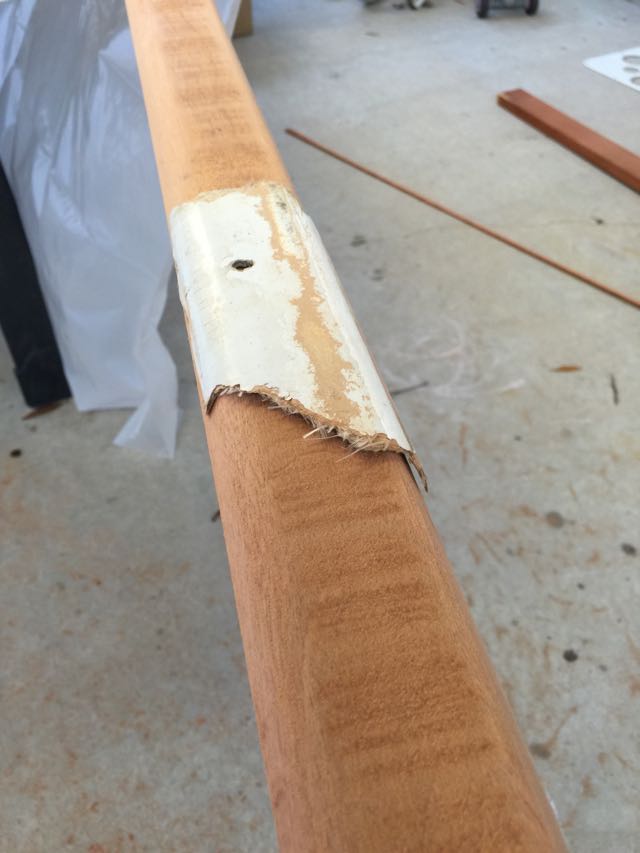

    New mahogany "core" to replace whats rotted. I'm having to shape by hand to get a perfect match of the original wood: IMG_1168.jpg
  18. Rick sceery, Jan 27, 2016
    #38
    Rick sceery

    Rick sceery New Member

    Joined:
    Jan 27, 2016
    Messages:
    10
    Location:
    RI
  19. Rick sceery, Jan 27, 2016
    #39
    Rick sceery

    Rick sceery New Member

    Joined:
    Jan 27, 2016
    Messages:
    10
    Location:
    RI

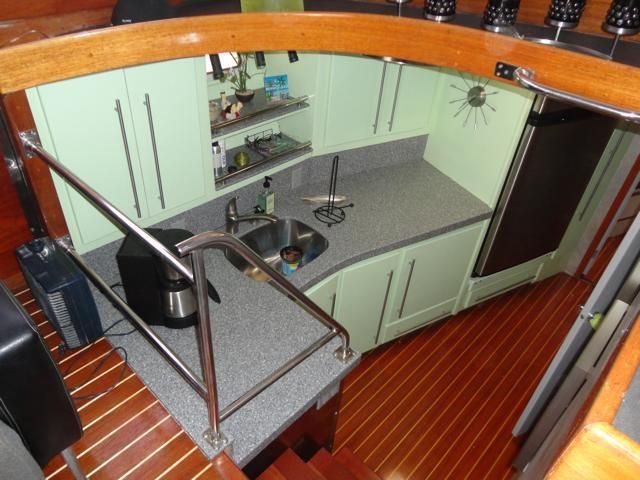

    I'm new to Post as well. Ran a 48 Golden Egg in the early 80's but owned a Mako 25 since. Moved up to a 1979 Sport Fish. Reworked throughout but making a few changes. Taking paint down to wood in galley and adding a stove. Anyone know where I can find a good used 2 or 3 burner?

    Thank you.

    RS

    Attached Files:

  20. Rick sceery, Jan 27, 2016
    #40
    Rick sceery

    Rick sceery New Member

    Joined:
    Jan 27, 2016
    Messages:
    10
    Location:
    RI
    Hey Dan, I would like to do the same. Can you tell me how you did it and send pictures?
