12 V92 Ta's and DDEC, no throttle in gear on one engine..

Discussion in 'Engines' started by captsam54, May 27, 2012.

You need to be registered and signed in to view this content.
Page 4 of 6
  1. captsam54, Jun 23, 2012
    #61
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    Yes.. If you look at the schematic, you will see that there 3 12 v batteries on each engine.. 2 are in series for the 24 volt system.. and the other is for the 12 DDEC system.. The "House" batteries are the 2 located in the fwd/center...

    From what I can gather. the constavolt sends the power thru to the 12's in series... and the 12 constavolt sends power to the 12's for the engines and the "House" batteries...

    Also tied into the system are the 2 "Load Equalizers" on the hull above each set of batteries. This with the constavolts power the 24 and 12 volt batteries for the DDEC system....

    Kinda of like going around your assh*le to get to your elbow.. But it did work good at one time.. I would love to upgrade my 12 DDEC to 24.. as I understood they did later on because of that 12 power drain problem for running the DDEC..

    Someone correct me if I am wrong...:)

    Attached Files:

  2. Pascal, Jun 23, 2012
    #62
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,563
    Location:
    Miami, FL
    So if I get this right...you are relying on the generator and a battery charger to charge the 12v battery needed to run the DDEC?

    If so, this is just plain stupid... There should be a 12 v alternator on the engine to charge the DDEC battery.
  3. Capt J, Jun 23, 2012
    #63
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,540
    Location:
    Fort Lauderdale
    I've seen worse, but I agree totally.

    I used to run a 58' Striker that had shraeder bellows electronic air controls. It had 2 motorcycle batteries to power the controls, that needed a battery charger which plugged into a GFI outlet in the engine room, and generator to charge them. It also needed an air compressor to power the solenoids and of course a generator to run that as well...... talk about a nightmare and a myriad of ways to lose your controls. Ohhhh, but it did have a backup hynautic controls that were located underneath the chart table, the problem was you had to go into the engine room and remove the linkages from the air solenoids and then install different linkages to go to the hydraulic actuaters.
  4. captsam54, Jun 23, 2012
    #64
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    LOL. no sorry.. The alternators take over (well they are supposed to, If I can ever get her to run up under load) and start charging at 1000 rpm.. The constavolts are only supposed to come on line if it detects low voltage in the 24 and 12 volt system.. They don't do that now... (at least the 24 does not do it correctly)
  5. Pascal, Jun 23, 2012
    #65
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,563
    Location:
    Miami, FL
    Ok So the 12v batteries which power the DDEC are charged by alternators? Good!!

    I did a quick delivery this week on a 70 with Kobelt pneumatic controls. Great system except that on this boat they were powered by an 120v compressor. Loose the compressor which we did because on a leak in an actuator and you are left with no engine controls! Had to run 8 hours with trannies and rpm set using nylon ties.... Apparently nobody thought having engine driven compressors would be a good idea...
  6. kelpy, Jun 25, 2012
    #66
    kelpy

    kelpy New Member

    Joined:
    Jun 4, 2007
    Messages:
    12
    Location:
    Fort Lauderdale
    I have a red set just like those. Where are your emergency shutdown solenoids?
    Mine have a 12 V alternator on the stb. engine so it gets started first. The port engine has a 24 V alternator.
  7. captsam54, Jun 26, 2012
    #67
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    Update

    Hello, all.. Update... I swapped the TRS and trans oil pressure and temp sensors from port to stdb on the owners recommendation and found the TRS and pressure sensors to be bad... I also suspect my low coolant level and fuel pressure sensor to be bad also...

    Where is the best place to buy replacement sensors??

    Still working on the constavolt replacement issue...
  8. captsam54, Jun 26, 2012
    #68
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    16V92 TA's..??? What year?? w/ DDEC 3 ??, I have not looked at the alternators yet but will today.. (sorry to say.. bad on my part)

    And I will check out where my emergency shutdown solenoids are...
  9. kelpy, Jun 26, 2012
    #69
    kelpy

    kelpy New Member

    Joined:
    Jun 4, 2007
    Messages:
    12
    Location:
    Fort Lauderdale
    Mine are 1996 with DDEC 3.

    My alternators are turned on by a fuel pressure senderr. The sender is on the secondary fuel filter housing. I had one of those go bad not long ago and the 12V alternator wouldn't charge.
  10. captsam54, Jul 24, 2012
    #70
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean

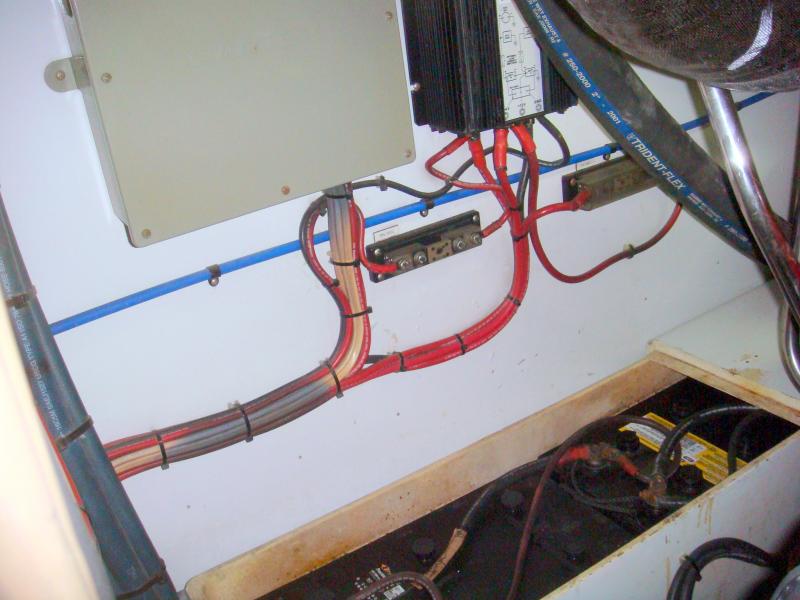

    Have not been able to see where my alternators kick in .. Have not been able to run them at that high of RPM yet... Here is my emergency shutoff solenoid.. It is the old style w/ the rack rod to connect the 8+8 cylinders.. Newer style has 2 solenoids...

    Attached Files:

  11. SHAZAM, Jul 24, 2012
    #71
    SHAZAM

    SHAZAM Senior Member

    Joined:
    Jan 26, 2008
    Messages:
    601
    Location:
    The Ghetto

    Get rid of this battery equalizer asap. I know of at least two instances where they've gone bad and burned the boats they were in, most recently in a 2000 54 Bertram that I had.
  12. captsam54, Jul 24, 2012
    #72
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    WOW.. I will have to do some serious research into this.. I wonder if I can just disconnect the leads without disrupting the DDEC system....
  13. captsam54, May 14, 2013
    #73
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    Is this thread worth revitilazing, or should I start a new one??

    Working, back w/ the old boss on the Boomer here and again and still has DDEC issues... Both engines have since been rebuilt, the stdb runs fine but the port will not fire sense sea trials.... LOL.. White smoke so getting fuel but no bang...

    16V92 w/ DDEC lll's....
  14. K1W1, May 14, 2013
    #74
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,429
    Location:
    My Office
    Hi,

    Hows the coolant level in the one that wont start?
  15. Capt Ralph, May 14, 2013
    #75
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,486
    Location:
    Satsuma, FL
    With your long history of fun & troubles, I have to ask??? Rebuilds?? What did they find?? (not much?) and when your port failed, did you call back the builders??
    If your having DDEC issues (??) Why was there a rebuild??
    I think it's time for you to book two seats down from Jax FL to fix your problems. If your throwing money at it, I want to be the solution and the fix (and paid).
    ,Ralph
  16. kelpy, May 14, 2013
    #76
    kelpy

    kelpy New Member

    Joined:
    Jun 4, 2007
    Messages:
    12
    Location:
    Fort Lauderdale
    Emergency stop air shutters closed?
  17. captsam54, May 15, 2013
    #77
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    Just fine.. It has not run long enough from the rebuild to bother turning on the recharge canister valve....
  18. captsam54, May 15, 2013
    #78
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    Nope... Checked, and manually shut down and reset....
  19. captsam54, May 15, 2013
    #79
    captsam54

    captsam54 Member

    Joined:
    Sep 30, 2008
    Messages:
    63
    Location:
    Somewhere in the Caribbean
    Update on the DDEC problem

    There have been many suggestions.... I have not been on the boat since last October when the stdb engine started blowing white smoke while on the sea trials on the port rebuild...

    Since I was there, the stdb has been rebuilt... All neww cilinder liners etc.
    SEALS were the main thing... (92 series) from the boat sitting so long...

    Anyway, the stdb engine runs great now w/ no codes.. The port engine waited patiently for the stdb to get rebuilt, and then started throwing codes.. The owner had people w/ computers down and they tested everything and did sea trials.... It was decided the the harness was bad.... They laid the new harness over the old one and plugged everything in... Great.. The engine started and ran w/ no codes..... SO, they take the old harness off and bolt the new one in.... IT won't start.... (white smoke showing fuel at the exhaust)...

    Then they take and lay the old harness over the new one and plug that in.. Same thing....

    So the new one is reconnected.... I have been back to the boat w/ the owner and have checked everything I can think of... It shown no codes on turning over.. (unless I have the TRS and SRS pulled then it will show a code).. Checked battery voltage on the 12 volt side and see no drop at the batts, and see a 12.7 to 10.9 drop while turning over... (The stdb does that and fires immediately).....

    So now I am stumped and back here asking questions....
  20. Pascal, May 15, 2013
    #80
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,563
    Location:
    Miami, FL
    Damaged connector, not in the new harness but on the motor side? Flaky ground causing the ecu to loose its mind?
