Post 42 hull #3. The return

Discussion in 'Post Yacht' started by baltimore bob, May 27, 2014.

You need to be registered and signed in to view this content.
  1. shawn

    shawn New Member

    Joined:
    Feb 13, 2006
    Messages:
    111
    Location:
    old saybrook ct
    As I always said, you are never done with a boat and there is always something to fix!!! My dads 75 did the same thing , we West Epoxied the side and bulk head area, after fixing the rot. Never ran into that problem again.
  2. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland

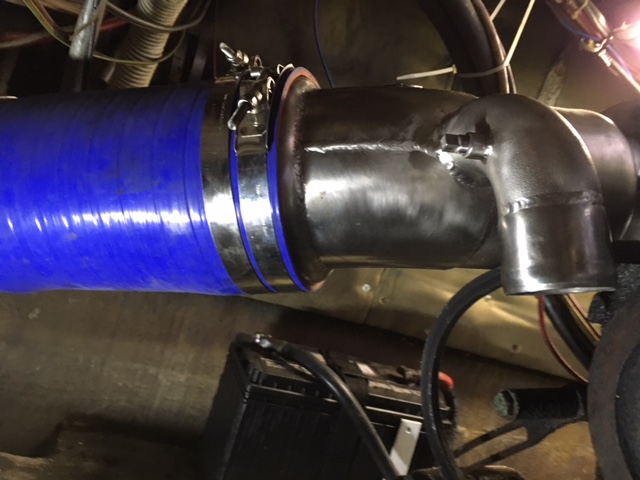

    Port elbow on. Fits nice EXCEPT to get the exhaust host to line up it had to be rotated until the water input is now right in front of the alternator drive pulley. Why oh why couldn't they have just put a straight nipple on it?

  3. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland
    If the inlet would have been on top it would have been MUCH better!

  4. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    41
    Location:
    Jersey Shore
    Mine were straight.
    Any chance it is for the other side ?
    Doesn't make sense that it would leave a low spot for water to collect.
  5. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland

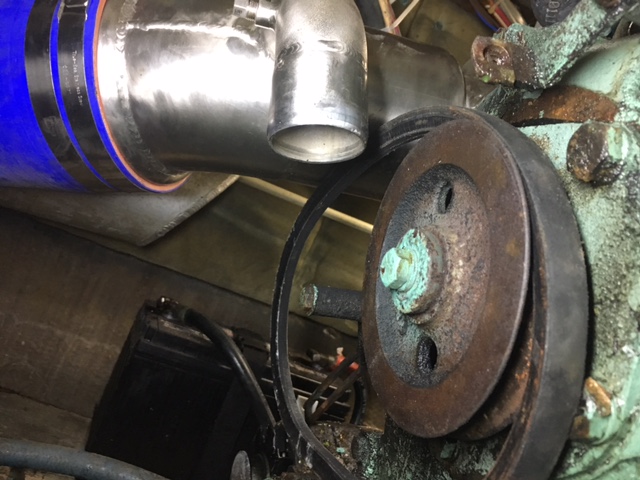

    The water will drain OK, it's the water inlet which is the problem. As this was supposed to be an exact equivalent to the old one I'm a little unhappy. Same J&T part number. Some 2 inch copper pipe and a couple silicone elbows will remedy it, just a pain. This picture shows the problem a little better. Yeah, I know, engine needs cleaned and painted and the nasty (I don't call it crappy anymore;)) wiring needs to come out.

  6. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    41
    Location:
    Jersey Shore
  7. rcrapps

    rcrapps Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    4,449
    Location:
    Jax FL
    (I don't call it crappy anymore;))

    If it's a 71, I would be honored.
  8. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland
    71s rule! Actually I was talking about the wiring mostly. I went to the boat today and checked to see what would happen if I swapped sides. It would be more of a problem and I'd have to add a J turn to the water line and adding more restriction that I don't want and the plumping would still have a significant low spot. What I really should have done was check out the installation as soon as I received the elbows last fall. So yes, there will be water not draining from about 2 feet of 2 inch line. I have e mailed J&T about this, suggesting they spec this part with a straight connection, the customer can add a 90 if needed.
  9. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland
    I have 6 71 naturals, so no turbo and a different cooling arrangement than you. I have a front mounted belt driven raw water pump (why they did that I'll never know) with heated raw water exiting the exchanger on the inboard side. It then converts to a 2 inch copper tube, runs back above the blower and turns outboard at the rear of the engine. With the original cast iron elbow that last run was a straight shot and everything drained.
  10. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland

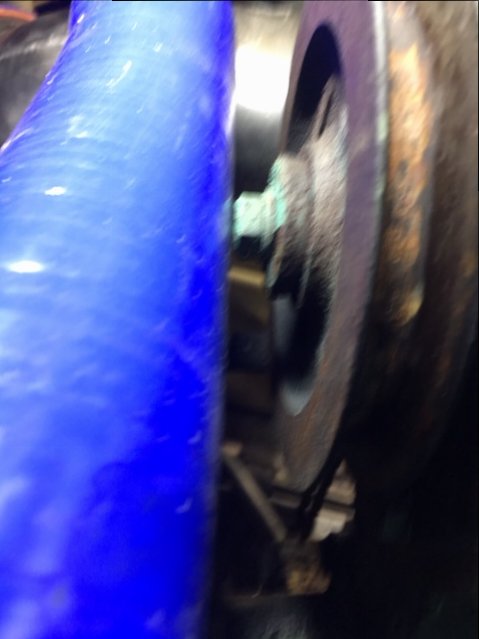

    This isn't going to cut it. Elbow is coming back off and sent to weld shop. J&T is back on my $&#@ list.

    elbow clearance.JPG
  11. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    41
    Location:
    Jersey Shore
  12. post46

    post46 New Member

    Joined:
    Feb 22, 2014
    Messages:
    21
    Location:
    port st lucie
    Baltimore Bob I noticed you had a spray rail on of your boat does that help knock the water down
  13. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland
    She's not what I would call a wet boat. I used to skipper an Egg Harbor 46 that was worse. I don't know if the factory installed it or if it was an owner add on. She's a REAL early hull.
  14. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland
  15. porthole

    porthole Member

    Joined:
    Mar 15, 2016
    Messages:
    41
    Location:
    Jersey Shore
    OK, for some reason I thought you had turbos. Your naturals are J&T's?
  16. post46

    post46 New Member

    Joined:
    Feb 22, 2014
    Messages:
    21
    Location:
    port st lucie
    Thanks for the comeback I was just curious so I have a 46 and a lot of times had spray comes up over the bow
  17. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland
    Yup, 310s. They do pretty good, 23 knots light.
  18. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland

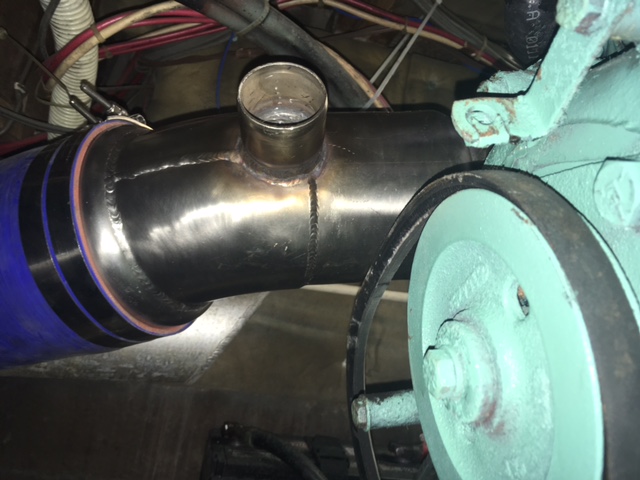

    A hundred bucks spent at the weld shop (did both) and the problem is solved.

    elbow port2.JPG
  19. rcrapps

    rcrapps Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    4,449
    Location:
    Jax FL
    Outstanding.
  20. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    265
    Location:
    Baltimore, Maryland

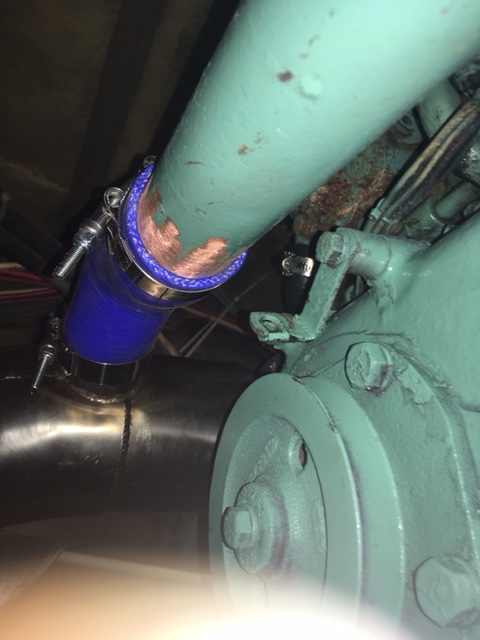

    Ahhhh, much better. Original feed pipe fits as it should!
