2 piece bow on Ferretti Group Yachts

Discussion in 'Yacht Designers Discussion' started by CptnMaxwell, Feb 16, 2017.

  1. CptnMaxwell

    CptnMaxwell New Member

    Joined:
    Feb 15, 2016
    Messages:
    17
    Location:
    Auckland, NZ
    Hi all - After seeing this in person at FLIBS 2016 I still am not sure of why it is done and it is bugging me.

    Does anyone have an explanation why some of the newer designs from the Ferretti group have the foremost bow section in a separate piece? Examples below

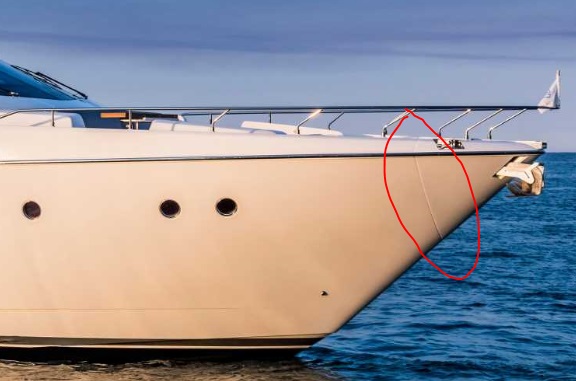

    Ferretti 850 Bow 2.jpg
    Ferretti 850

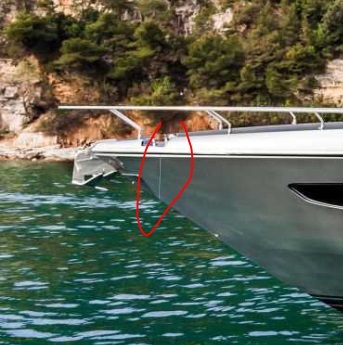

    Riva Florida 88 Bow.jpg
    Riva Florida 88

    There appears to be sealant in the join, with some attempt to colour match. Why it is not faired in and made invisible is part of the puzzle.

    My thoughts are along the lines of the design aiding infusion of the hull (no point to fill) while at the same time creating an integrated crash bulkhead.

    I will be interested to hear what others think.
  2. Fishtigua

    Fishtigua Senior Member

    Joined:
    Jul 20, 2007
    Messages:
    2,288
    Location:
    Guernsey/Antigua
    I think Ferretti know their market well.

    Ever seen the standard of parking in a tight-packed Med marina in summer? The crashing and banging is unbelievable, all with a latin flavour of arm-waving and shouting. :cool:

    I like to think of those bows like a NY cab driver thought his fender was a disposable item!;)

  3. Dj239

    Dj239 New Member

    Joined:
    Nov 2, 2016
    Messages:
    14
    Location:
    Ft myers
    I have heard that there was an issue with ferretti in the past with the structural integrity of there bows. As far as my understanding this feature stems from that to correct this. I have seen it on other manufactures such as on the larger azimuts as well.
  4. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    625
    Location:
    In The Bilge
    Cheaper to ship on Dock Wise when you can remove the bow for less LOA... or, it'll fit in the boathouse easier with the pointy end removed.
  5. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    625
    Location:
    In The Bilge
    All kidding aside , perhaps this design has something to do with RINA tonnage certificates or gaming the system for coming in
    at a more advantageous net vs gross for registry savings? Structurally it doesn't make sense strength wise in FRP.
  6. Dj239

    Dj239 New Member

    Joined:
    Nov 2, 2016
    Messages:
    14
    Location:
    Ft myers
    That could quite possibly be it
  7. rcrapps

    rcrapps Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    4,877
    Location:
    Jax FL
    Are there different bow options with the same hull tooling? Or getting ready for different bow options and the original hull is ready?
    Pull pit vs blunt bow? Dual anchors?
    Fountain pointy bow option?(3 feet more LOA)

    Or is it really an FRP bow section. With all that fancy hardware for the anchor system, is it a welded windlass system? AND future bolt on anchor options?
    Last edited: Feb 18, 2017
  8. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    625
    Location:
    In The Bilge
    So this turns out to be a situation for the 24 meter cut off measurement for pleasure vs commercial registration per MGN-280 MCA code. You can have an Azimut or similar vessel of 26 meters or so but with a removable bow section it will fall below the 24 meter length measurement on the vessels certificate of measurement thus reducing the manning requirements and other regulations. I believe that Foster Marine, Ft. Lauderdale has a video on their site showing a vessel in the yard with the bow cap off and the exposed two internal flanges to be bolted together in the bow section..
  9. Liam

    Liam Senior Member

    Joined:
    Jan 13, 2010
    Messages:
    384
    Location:
    Malta
    That the reason.
  10. Danvilletim

    Danvilletim Member

    Joined:
    Oct 30, 2011
    Messages:
    319
    Location:
    isleton, ca
    I thought the 24m rule was measured at the waterline? I've boarded several 86-92' boats that are documented at or under 24m
  11. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    625
    Location:
    In The Bilge
    Exactly why this abhorrent procedure is being done to the bows of vessels in that size range ,

    Attached Files:

  12. CptnMaxwell

    CptnMaxwell New Member

    Joined:
    Feb 15, 2016
    Messages:
    17
    Location:
    Auckland, NZ
    Thanks very much for the replies and I am glad there was some conjecture on why it was done.
    Interesting that it is to keep the vessel under 24m for Pleasure Craft Rules. I never thought of that as a reason, but don't have much to do with this scale of vessel.
  13. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,037
    Location:
    Vancouver BC
    So, can we assume that the anchor can still be deployed without the bow section installed ?
  14. Liam

    Liam Senior Member

    Joined:
    Jan 13, 2010
    Messages:
    384
    Location:
    Malta
    It is not exactly waterline length. It is in some legislation on hull length, or from rudder to tip of the bow minus something, that is why they make it removable.
    I am surprised in this case that they are made on Ferretti 870 or a Riva 88 because, Ferretti produces the 960 which can be registered as a pleasure yacht (hull length of 23.9).
  15. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    625
    Location:
    In The Bilge

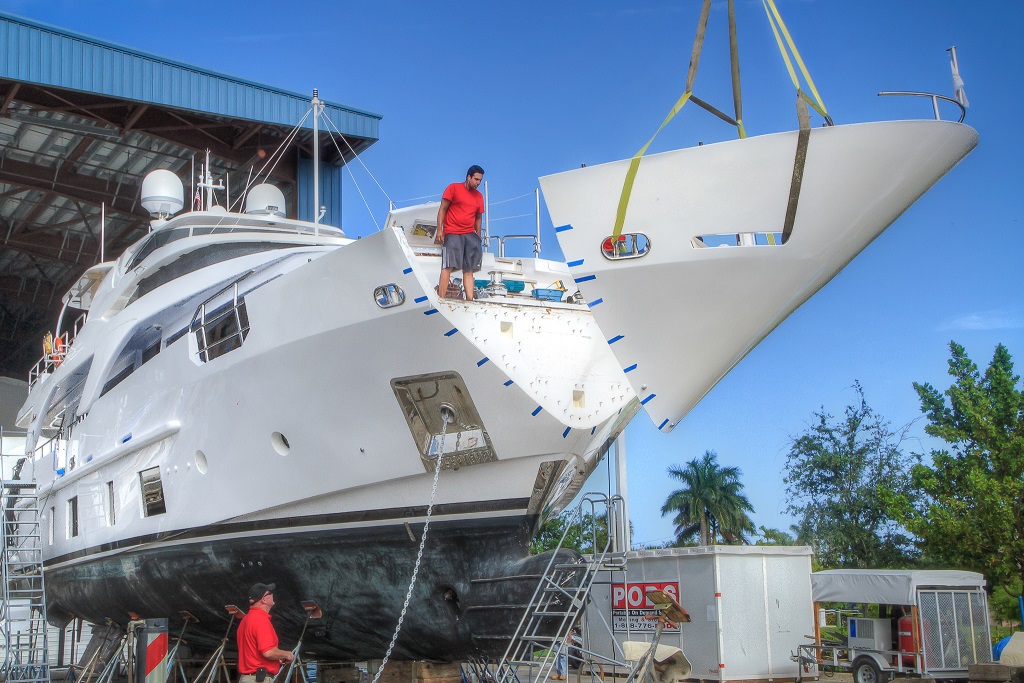

    I came across a relevant photo to go with this thread . Enjoy and scratch your head at the same time as to the lengths builders will go to sell units or game the system. The same can be said for the 500 ton rule but just not that aggressively ugly nor drastic as this abomination. 24 meter & under rule.jpg
    Last edited: Feb 28, 2017
  16. captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    625
    Location:
    In The Bilge
    The victim in the photo appears to be a Benetti Delfino model @ 93 ft. or 28 meters but "snub nose" it has a certificate admeasure below 24 meters for recreational registration vs commercial and all of the cumbersome & costly items that go with that designation.
  17. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    9,658
    Location:
    Fort Lauderdale
    That is just outright ridiculous.
  18. Danvilletim

    Danvilletim Member

    Joined:
    Oct 30, 2011
    Messages:
    319
    Location:
    isleton, ca
    Well once you jump past 24m, often the enigneer that has the right ticket may be making more than his boss the captain.

    And again is you never charter, none of this matters.
  19. Liam

    Liam Senior Member

    Joined:
    Jan 13, 2010
    Messages:
    384
    Location:
    Malta
    Nothing ridiculous, if an owner wants to save money he has the option. It is not really affecting the boat and its seaworthiness.
    I have seen much worse things done to make a hull perform decently.

    Technically speaking the Delfino above is not offered on brochure as 23.9 meters but I am sure it is a sales pitch used by the salesman to entice buyers.
    Last edited: Mar 4, 2017
