What is this hose?

Discussion in 'Technical Discussion' started by BoulderGT3, Feb 13, 2017.

You need to be registered and signed in to view this content.
  1. BoulderGT3, Feb 13, 2017
    #1
    BoulderGT3

    BoulderGT3 Senior Member

    Joined:
    Jun 19, 2014
    Messages:
    168
    Location:
    Ftl

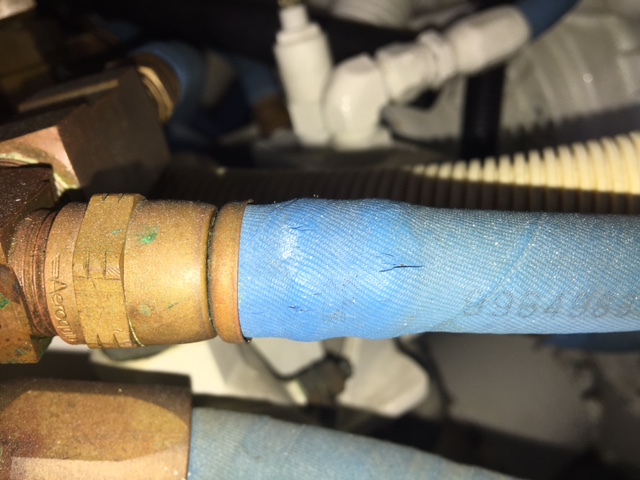

    I want to keep ahead of the engine room. These are about 1"OD hoses that run from the steering cooler to the dripless. They are starting to age at the ends. At first, I thought they were high pressure line and fittings but as I look at them I think they are a press on barbed fitting. There is a reinforced hose under the blue exterior. One way or another, I want to replace 4 of them from 1' to 4'.

    Insights on what the construction is and best place to have them made in FTL? thanks.
    Last edited: Feb 13, 2017
  2. BoulderGT3, Feb 13, 2017
    #2
    BoulderGT3

    BoulderGT3 Senior Member

    Joined:
    Jun 19, 2014
    Messages:
    168
    Location:
    Ftl
    I just answered my own question. It's Aeroquip socketless hose. I've used many 100's of feet of their racing hose and reusable fittings but I haven't used these barbed connectors before.
  3. CaptPKilbride, Feb 13, 2017
    #3
    CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    587
    Location:
    On the water
    You can make them yourself, I think those end fittings are good to 150 psi if I remember correctly?
  4. captholli, Feb 13, 2017
    #4
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,184
    Location:
    In The Bilge
    Many choices in Ft. Laud for Aeroquip hose and fittings, one of the oldest and best in business is Hydraulic Supply on 2nd Ave behind Lester's diner.
  5. K1W1, Feb 14, 2017
    #5
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    If the fittings have no damage to the sealing surfaces there is no reason that they cannot be resued
  6. wdrzal, Feb 14, 2017
    #6
    wdrzal

    wdrzal Senior Member

    Joined:
    Feb 6, 2006
    Messages:
    414
    Location:
    Allegheny Mountains of Western Pa
    The notches on hex part of the nut usually are there to indicate a left hand thread. (ASME)
  7. K1W1, Feb 15, 2017
    #7
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    I do not think this applies to Aeroquip brand fittings.
  8. wdrzal, Feb 16, 2017
    #8
    wdrzal

    wdrzal Senior Member

    Joined:
    Feb 6, 2006
    Messages:
    414
    Location:
    Allegheny Mountains of Western Pa
  9. Capt J, Feb 17, 2017
    #9
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,531
    Location:
    Fort Lauderdale
    Being that they're push lock fittings, and it looks like they're attached to solid things, if you're going to re-use the old fittings, it might be easier to leave them attached, cut off the old hose, and push on the new hose. I prefer swaged on fittings over push lock, but push lock works in most instances. I've had issues with push lock fittings on the suction side of diesel engines before (fittings sucking air).
  10. CSkipR, Feb 17, 2017
    #10
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    My transmission coolers have hose barb fittings on them as well as the dripless seals. Really no pressure. I now remove the hose once a year to make sure no corrosion in elbow and that water is flowing well. Learned a good lesson on that when burnt up a seal because of no water.
  11. BoulderGT3, Feb 17, 2017
    #11
    BoulderGT3

    BoulderGT3 Senior Member

    Joined:
    Jun 19, 2014
    Messages:
    168
    Location:
    Ftl
    Good tip. Thanks.
  12. wdrzal, Feb 18, 2017
    #12
    wdrzal

    wdrzal Senior Member

    Joined:
    Feb 6, 2006
    Messages:
    414
    Location:
    Allegheny Mountains of Western Pa
    Just FYI; The blurry fitting in the background with the blue hose in the op picture is a high pressure hydraulic make-up fitting, no hydraulic crimp machine required (2 wrenches is all that's needed). I would go with that style. If they handle high pressure hydraulics using in lower pressure applications is ok as long the hose has the correct ID & OD.
  13. BoulderGT3, Feb 18, 2017
    #13
    BoulderGT3

    BoulderGT3 Senior Member

    Joined:
    Jun 19, 2014
    Messages:
    168
    Location:
    Ftl
    I have not worked with these push on socket less aeorquip hoses before. These are -10 size but the larger ones I've used before I had to have a unique press to get them on the barbed male fitting. I would rather just cut the hose off and not remove the fittings but I don't know that I can get the compression tool on it to push the hose back on. If I use their lubricant, can I push these hoses on by hand? Much bigger job if I have to pull and disturb the fittings. Thanks.
  14. Capt J, Feb 18, 2017
    #14
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,531
    Location:
    Fort Lauderdale
    Yes, you can just push them on by hand, but push hard and twist a little and try to get the hose on in one shot
  15. Capt Ralph, Feb 18, 2017
    #15
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,440
    Location:
    Satsuma, FL
    A fresh hose usually goes on with one good push. Older hoses may need a hot water dip and some lube.
    The picture shows some outer chafe jacket cracks. This does not mean the hose has any performance issues.
    looks smaller than a 1" hose. Please offer any numbers on the fittings or hose.
    IE; size 16 is a 1" hose.
