Volvo D12 715/ZF325-1: Filter and Maintenance Questions

Discussion in 'Engines' started by Woolard, May 13, 2024.

You need to be registered and signed in to view this content.
  1. Woolard

    Woolard New Member

    Joined:
    Apr 19, 2021
    Messages:
    7
    Location:
    CT
    I purchased a Cranchi 50 last year with D12s, very happy with how they run for sure. The motors had fresh fluids, but the transmissions weren't done. I've been going through things and have already replaced the air filters and Racors. Late last season the port side motor tripped a "maintenance required" message on diagnostic display. The turbo pressure guage reads .2-.3 bar lower as well. It seemed to build revs much slower than the starboard, but eventually would reach max rpm. My sense is the secondary fuel filters that mount directly on the motor, need to be changed.
    1. Can you just unscrew the old ones and put the new ones on, or does the system need to be bled?

    2. Late last season when we were going to bring the boat to its winter storage location, the starboard motor didn't want to engage in gear. Did a little research and understand the issue can be caused by a clogged screen in the hydraulic gear actuator. A couple days later, it engaged in gear no problem, but I suspect it might happen again when its more of a big deal. Has anyone done this maintenance on their own, and how difficult was it?

    I profess to not be a longtime boater, but longtime like to maintain my own equipment when ever possible. Thanks in advance.
    Last edited: May 13, 2024
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,444
    Location:
    Satsuma, FL
    1
    Replace the filter, there is a manual fuel primer plunger on the fuel pump, Pump on that until firm. Crank her up...
    2

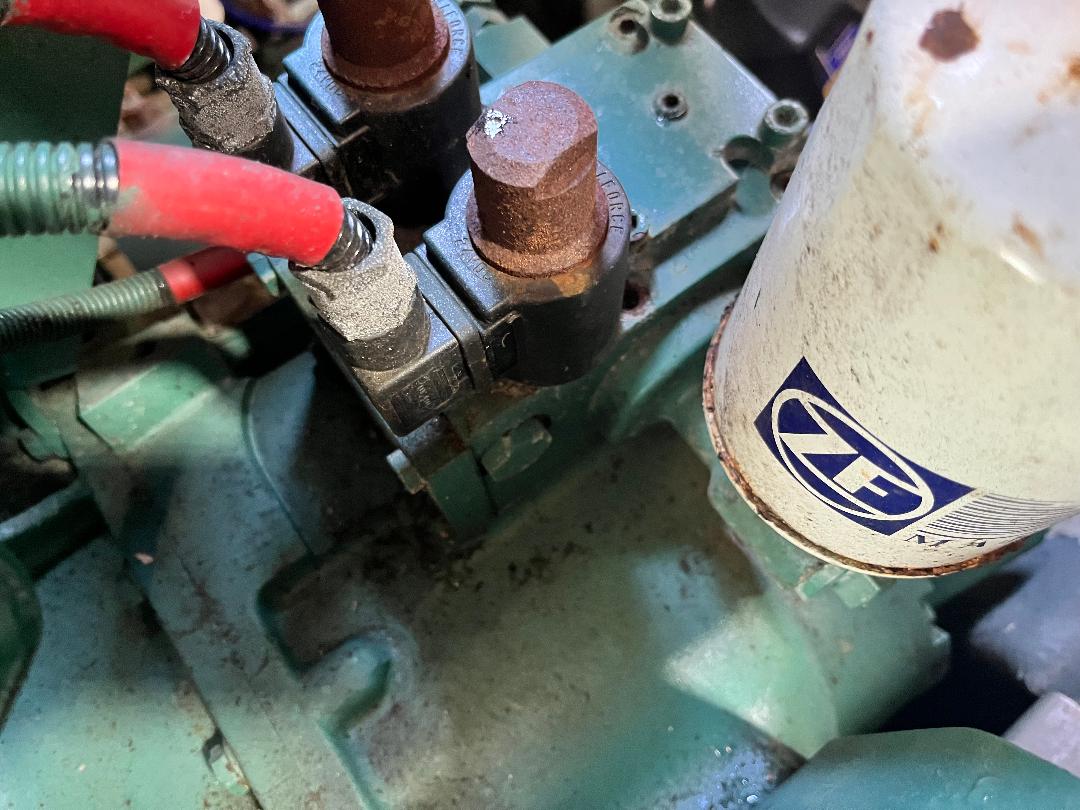

    Basic hydraulic fittings. I don't think this is your problem but if you insist on opening Pandora's box, start here.
    Your local VP or ZF shop can provide new screens and seals as needed. Maybe some better support.

    All above can be supported better by getting tight with a better VP shop.
    Woolard likes this.
  3. Woolard

    Woolard New Member

    Joined:
    Apr 19, 2021
    Messages:
    7
    Location:
    CT
    Thanks again for the input. We had quite a bit of work done in the off season, and most of the boat yards here in CT are months out, so I'm both trying to learn more and not get killed on service calls.
  4. Sea Gull

    Sea Gull Member

    Joined:
    Aug 3, 2010
    Messages:
    167
    Location:
    CT
    In Connecticut contact Dan at McDonnell Marine. He’s knowledgeable and responsive.
  5. Woolard

    Woolard New Member

    Joined:
    Apr 19, 2021
    Messages:
    7
    Location:
    CT
    I was at McDonnell Marine yesterday, I think it was Dan I might have spoken with. I guess they only have 3 techs and they're all booked out for a couple weeks. I picked up about 600 bucks worth of various transmission, crankcase and fuel filters, which will keep me busy for a bit. Thanks for all the great info.
  6. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,444
    Location:
    Satsuma, FL
    I hope Dan was able to offer some support and help with your questions.
