Trolling value used for docking?

Discussion in 'Technical Discussion' started by Danvilletim, Jul 12, 2014.

You need to be registered and signed in to view this content.
  1. Danvilletim, Jul 12, 2014
    #1
    Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    Our 62 sportfish w 3412,s does 6.2knot at its slowest speed with on engine in gear. 7 knots with both... Cruising down the fairway is a pain and docking can be challenging since there is such a lurch when you bump it in gear.

    Boat has trolling values that we have not played with much. Are trolling values ok with switching in and out of gear?
  2. Capt Ralph, Jul 12, 2014
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,439
    Location:
    Satsuma, FL
    Depending on the clutch and controls. Get off the dock and experiment. Again not all clutches and controls work the same. Sometimes they engage fully and you have to go into trolling mode, Sometimes they can go right into trolling mode. You will not hurt the clutch if you keep your hands off the throttles.

    Downloading & studying the manuals for the clutches and controls may save some hunt & pecking time.

    BTW, do you have an extra slow idle switch somewhere on the helm's dash? Some 3412's had this also.

    The end if the dock, closest to the channel would be prefered also.
  3. Capt J, Jul 12, 2014
    #3
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,530
    Location:
    Fort Lauderdale
    No, trolling valves are never meant for docking and going in and out of gear a lot. They will go into gear with variable delays and never ever be predictable. If you have the cat controls, get used to the delay (about 2 seconds) and pull it out of gear before you hear it go into gear and you'll get a little bump in gear.....but not lurch.
  4. Danvilletim, Jul 13, 2014
    #4
    Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    They are 3412 PEEC engines. 1350hp first gen electronic and I dont see a low rpm option. Which would be awesome if it could be added ( or discovered)
  5. Capt Ralph, Jul 13, 2014
    #5
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,439
    Location:
    Satsuma, FL
    Without the manuals and schematic you're not going to find it or even know if it's there. If there is a Cat marine shop close, go to them with serial numbers. Service managers (writers) usually can look some things up and help with a Go / No-Go plan.
  6. Capt J, Jul 13, 2014
    #6
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,530
    Location:
    Fort Lauderdale
    On your engines, it would either be on the plate that you access the controls with. Or, a seperate switch, usually a rocker switch that you can press and the rpms will go down when the switch is pressed. It would be a good question to ask the selling broker/owner. What RPM do they currently idle at?
  7. Pascal, Jul 13, 2014
    #7
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    The boat I run has 1400hp 3412Es (2003) Normal idle is 700 giving about 6.5 kts. Low idle is 550 and 5.2 kts. Low idle is engaged with an pair of simple toggle switch at the helm
  8. Danvilletim, Jul 13, 2014
    #8
    Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    No rockerswitch but boat is a repower so some stuff is funky. It idles at 600rpm.

    I does sound like the trolling valve will be good for no wake zones. We haven't figured out how to work them. There is a start, stop, and troll budget. Is this usual? What's the sequence.

  9. Capt Ralph, Jul 13, 2014
    #9
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,439
    Location:
    Satsuma, FL

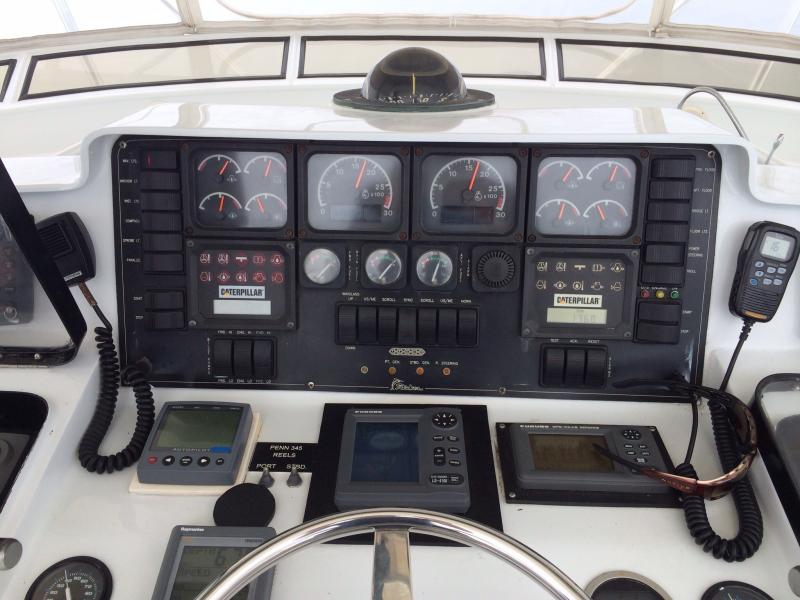

    Those are the the Cat panels I remember. With the schematic, an extra switch could be added to your existing harness. Again, you need the prints and manuals.
  10. Kafue, Jul 14, 2014
    #10
    Kafue

    Kafue Senior Member

    Joined:
    Nov 29, 2006
    Messages:
    1,166
    Location:
    Gold Coast Australia
    How many hours have you spent running the boat?
    Getting used to delay, torque and the feel of the throttles makes the difference. Time on the boat makes it easy and satisfying.
    If you aware of the reactions to your throttles then it is only a matter of time before you coast out at 5 knots and moor at ease.
    Just my 2c. and yes I have been in similar situation.
  11. ranger58sb, Jul 14, 2014
    #11
    ranger58sb

    ranger58sb Senior member

    Joined:
    Aug 20, 2013
    Messages:
    897
    Location:
    Chesapeake Bay, USA


    Instructions for our trolling valves discourage shifting when engaged.

    We coast a lot, when entering the marina fairway and slipways.

    When we're docking and I'm shifting gears to jockey into the slip, I usually use each gear 2 seconds or less (usually closer to 1 second in gear)... i.e., I take it back out of gear as soon as I can feel the props start to respond. No lurch.

    -Chris
  12. Pascal, Jul 14, 2014
    #12
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    600rpm is low and pretty close to the 550 we have at low idle which is probably why you don't have a low idle switch. I can really imagine a significant lurch when engaging at 600 even though obviously props and gearing will have an impact.

    When going thru a fairway, since th boat is moving there should not be be much lurching when getting in and out of gear to reduce speed and wake. When maneuvering, with engines and props that size you indeed rarely keep them in gear for more than a second or so as otherwise the boat will gain too much momentum.

    I hate having a delay on engine controls... We have the morse electronic controls not those 3412s and there is virtually no delay in engaging the ZF gears.

    As to the trolling valves, I have never had any... but you could use them to slow down in fairway then disengage them when you're about to dock.
  13. CSkipR, Jul 14, 2014
    #13
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    My Mans idle at 600rpm and both eng in gear 7 knots. When docking I am bumping in and out of gear very quickly. It takes awhile to get use to it but practice will make it easy.
    Definitely don't use the trolling valves for docking. You have no control and getting in an out of forward/reverse quickly would be very tricky.
