Throttle disengaging

Discussion in 'Engines' started by R Spencer, Jun 27, 2023.

You need to be registered and signed in to view this content.
  1. R Spencer

    R Spencer New Member

    Joined:
    Jun 27, 2023
    Messages:
    6
    Location:
    Alaska
    We have a 2001 97’ Broward. The fly bridge port side throttle went out. A partner attempted to change it himself. It worked for 10 hours or so, but while cruising, the throttle suddenly disengaged from the port side engine. The engine kept running. Now, we can’t get the throttle and the engine to communicate again. Any suggestions would surely be appreciated. We have spent a lot of time with engineers from the throttle company who haven’t been able to help.
  2. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    Would help knowing what engine and what engine control you have.
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,436
    Location:
    Satsuma, FL
    Your crystal ball off line also??
  4. RER

    RER Senior Member

    Joined:
    Jan 20, 2009
    Messages:
    1,584
    Location:
    Newport Beach CA
    Okay I’ll take a shot. I say kobelt electronic controls with caterpillar power.
  5. R Spencer

    R Spencer New Member

    Joined:
    Jun 27, 2023
    Messages:
    6
    Location:
    Alaska
    Our engines are CAT 3410’s and the throttles are manufactured by Kobelt.
  6. Kevin

    Kevin YF Moderator

    Joined:
    Nov 25, 2004
    Messages:
    3,082
    Location:
    Montreal, Qc, Canada
    Nailed it.
    Capt Ralph and RER like this.
  7. R Spencer

    R Spencer New Member

    Joined:
    Jun 27, 2023
    Messages:
    6
    Location:
    Alaska

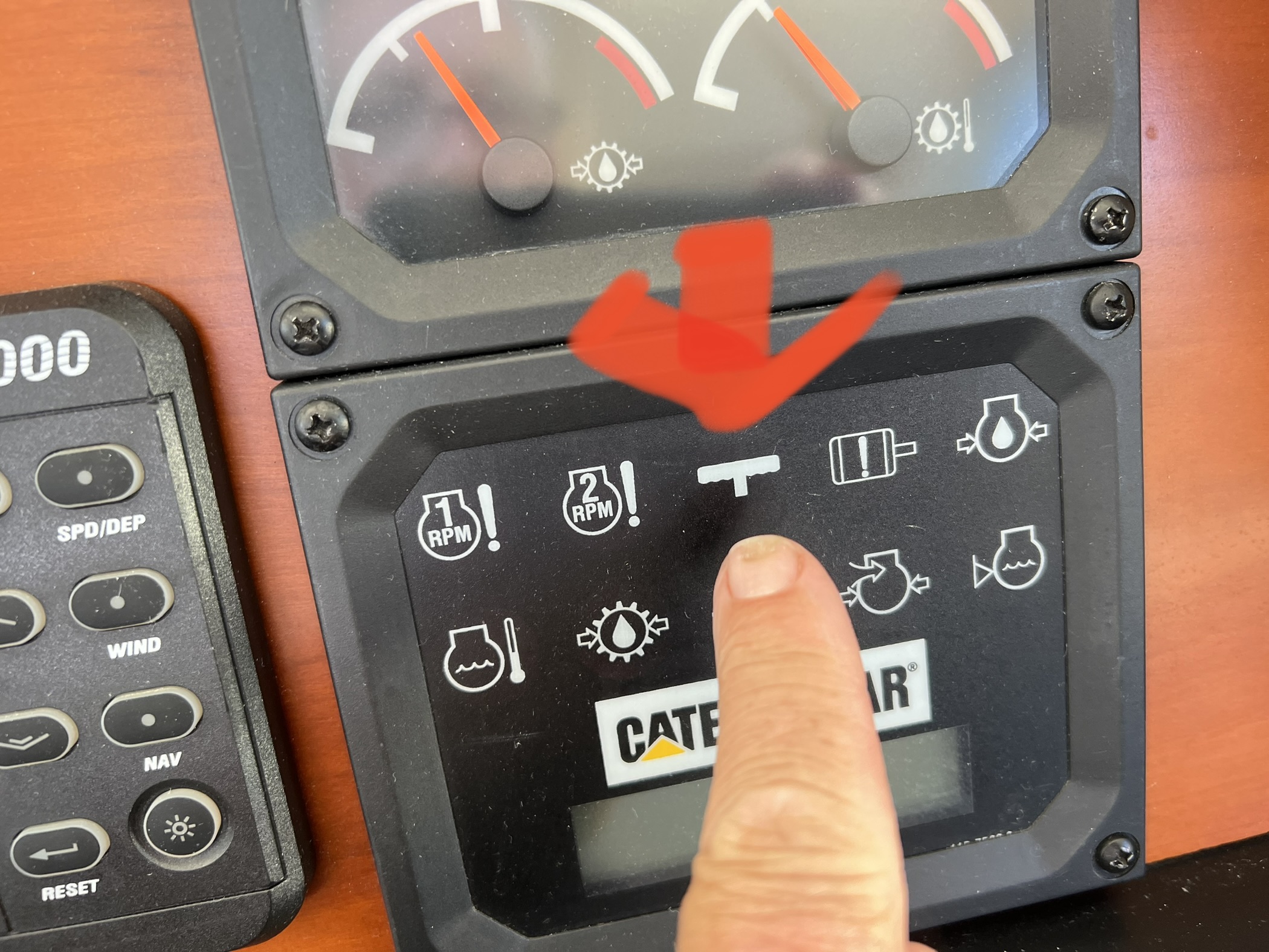

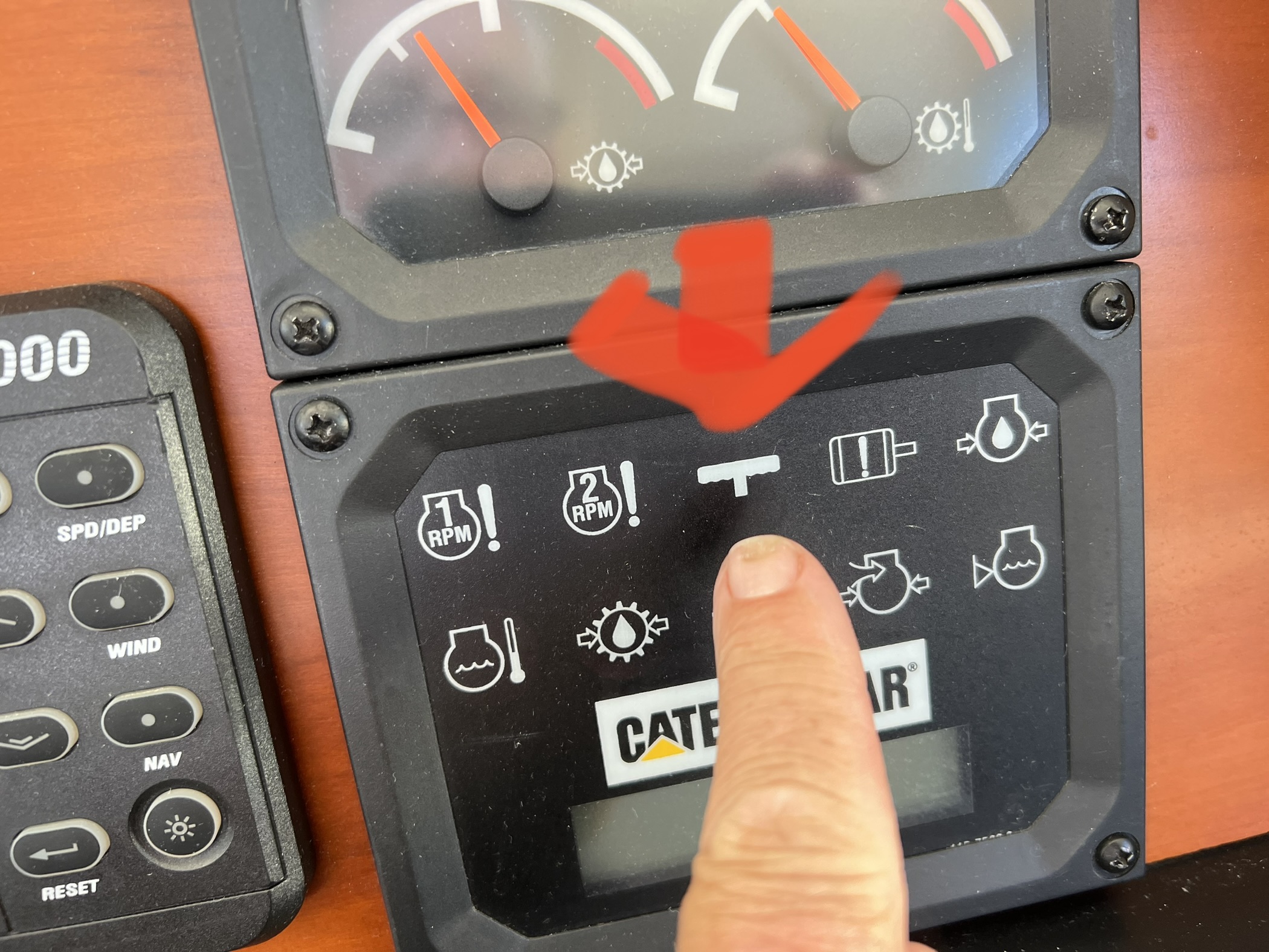

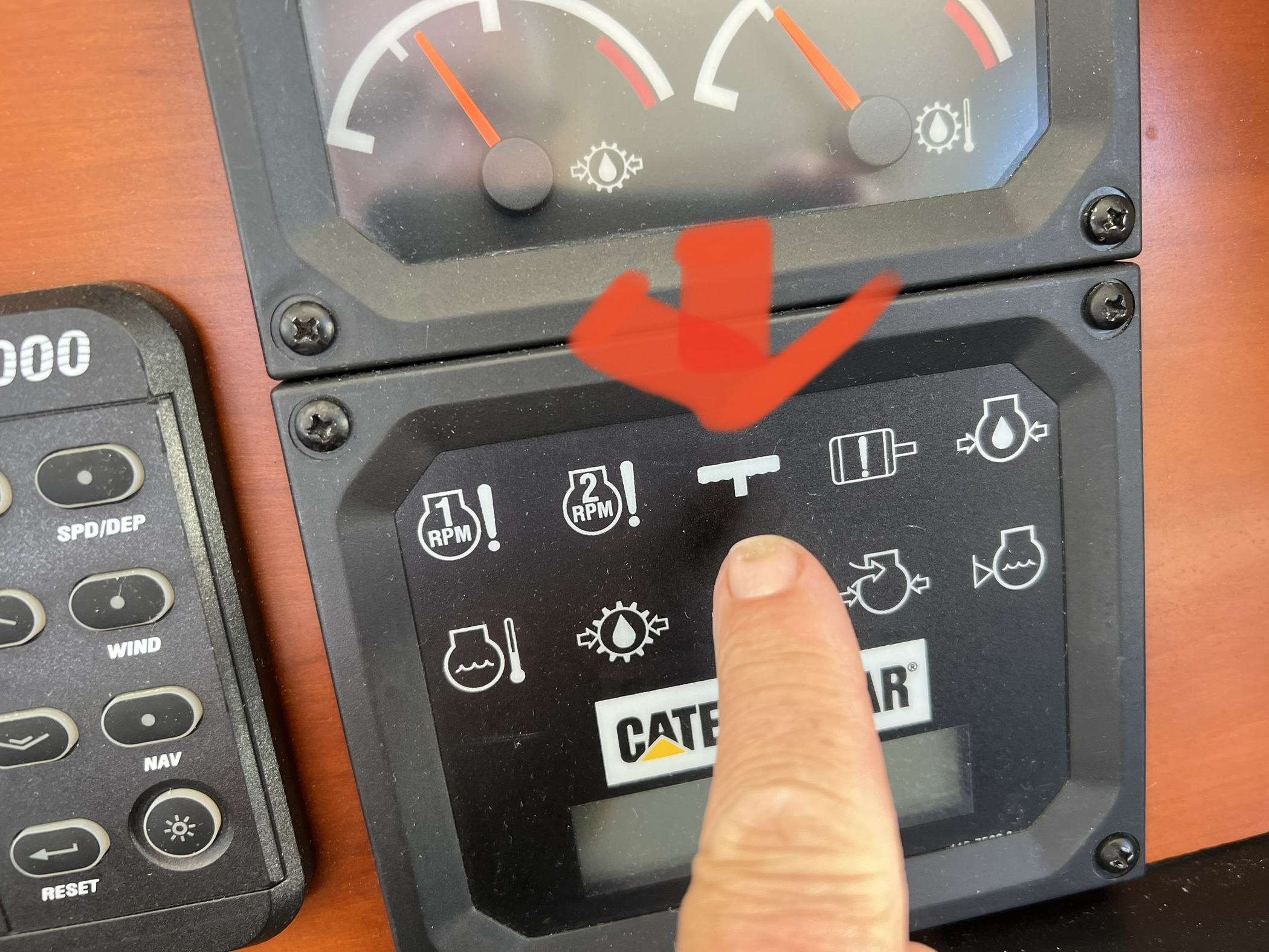

    We replaced all three Kobelt throttle controls including the main board. Started the engines and everything seemed ok except the we got a red light on the alarm code box on the “T” like light depicted in the picture. We can’t find any reference in the manuals as to what the T alarm code means. After shutting the engines off and later attempting to restart, the engines are dead. Batteries are fine. Any ideas what that code means or suggestions on what to do?

    Attached Files:

  8. RER

    RER Senior Member

    Joined:
    Jan 20, 2009
    Messages:
    1,584
    Location:
    Newport Beach CA

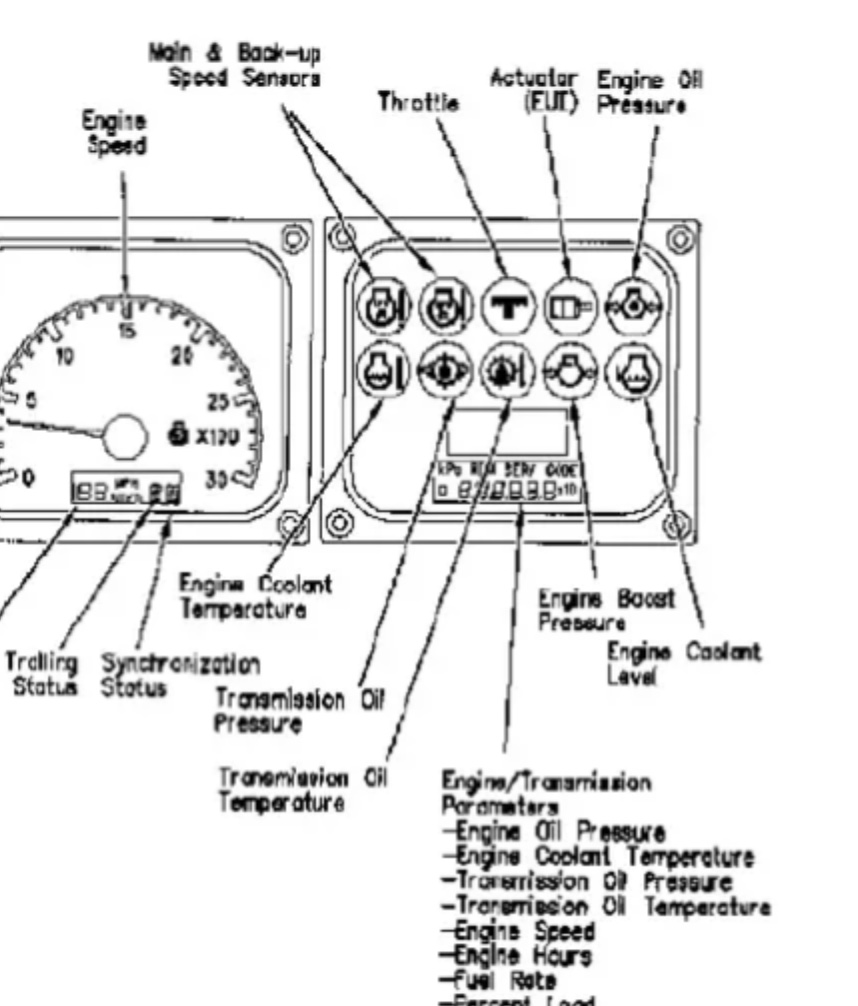

    The T alarm icon means throttle. That may not help you much, but that’s what it means.
  9. R Spencer

    R Spencer New Member

    Joined:
    Jun 27, 2023
    Messages:
    6
    Location:
    Alaska
    That is helpful. Thank you.
  10. R Spencer

    R Spencer New Member

    Joined:
    Jun 27, 2023
    Messages:
    6
    Location:
    Alaska
    We have a 97’ Broward. Some have told us we need to find the “reset” switch. We have searched our boat from tip to stern and can’t find a reset. Kobelt obviously doesn’t know and Broward is no longer building boats. Any idea where a reset may be?
  11. RER

    RER Senior Member

    Joined:
    Jan 20, 2009
    Messages:
    1,584
    Location:
    Newport Beach CA
    FWIW…

  12. RER

    RER Senior Member

    Joined:
    Jan 20, 2009
    Messages:
    1,584
    Location:
    Newport Beach CA
    Throttle position sensor?
