Sliding doors on my 33 Viking

Discussion in 'Viking Yacht' started by Angelo, Jul 6, 2013.

You need to be registered and signed in to view this content.
Page 1 of 2
  1. Angelo, Jul 6, 2013
    #1
    Angelo

    Angelo New Member

    Joined:
    May 10, 2013
    Messages:
    10
    Location:
    Port Clinton,OH
    I'm having trouble locating rollers for the sliding entry door to the salon on my 1974 33' Viking. I've scoured the internet but no luck . Any help would be appreciated
  2. NYCAP123, Jul 6, 2013
    #2
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,208
    Location:
    Long Island, NY
    Can you post a pic or do you have a manufacturer.
  3. Angelo, Jul 6, 2013
    #3
    Angelo

    Angelo New Member

    Joined:
    May 10, 2013
    Messages:
    10
    Location:
    Port Clinton,OH
    Negative on the manufacturer. I have pictures, but am having trouble posting them
  4. Angelo, Jul 6, 2013
    #4
    Angelo

    Angelo New Member

    Joined:
    May 10, 2013
    Messages:
    10
    Location:
    Port Clinton,OH
    I'll try to post a photo again!!!
  5. Angelo, Jul 6, 2013
    #5
    Angelo

    Angelo New Member

    Joined:
    May 10, 2013
    Messages:
    10
    Location:
    Port Clinton,OH

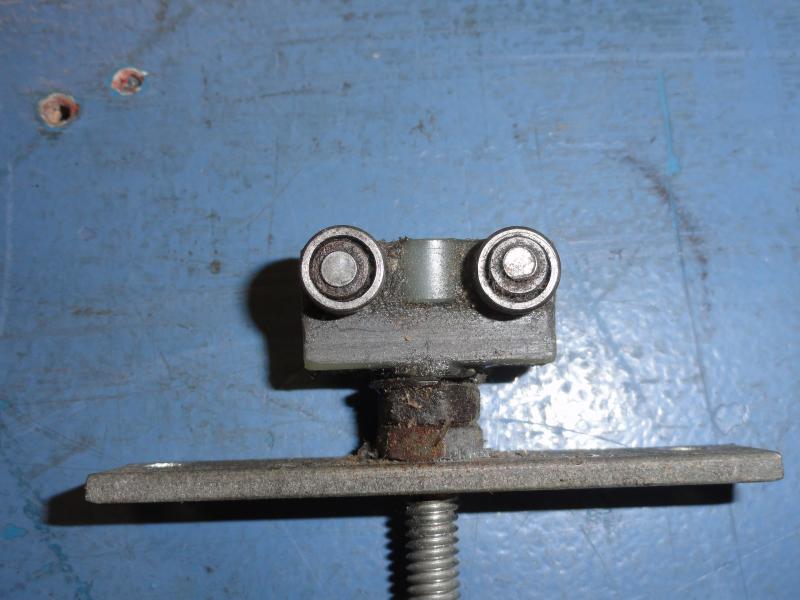

    Sliding Door roller

    This is what the roller looks like. I need four of them. Any help would be appreciated.

    Attached Files:

    • 003.jpg
      File size:
      52.8 KB
      Views:
      1,962
  6. Angelo, Jul 6, 2013
    #6
    Angelo

    Angelo New Member

    Joined:
    May 10, 2013
    Messages:
    10
    Location:
    Port Clinton,OH

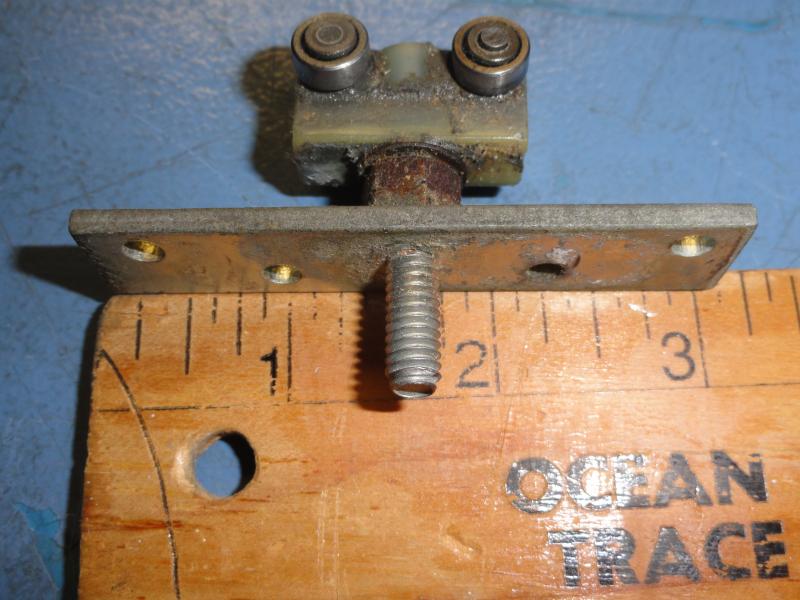

    Here is another photo

    Hope this is a better shot. Thanks

    Attached Files:

    • 006.jpg
      File size:
      64.6 KB
      Views:
      1,970
  7. NYCAP123, Jul 6, 2013
    #7
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,208
    Location:
    Long Island, NY
  8. K1W1, Jul 7, 2013
    #8
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    Hi,

    Are the rollers just on the one side lor both like shown in the link by NYCAP?

    Those rollers look like smaller cage roller bearings, can't you just get more to match from a bearing shop and put them on?

    I realise this might involve a bit of re engineering if these were never designed to be removed but if you do it once they will be easy to replace next time.
  9. ryanp, Jul 25, 2013
    #9
    ryanp

    ryanp New Member

    Joined:
    Sep 30, 2012
    Messages:
    1
    Location:
    Trinidad
    I need these rollers as well, did you ever locate any or come up with a solution ?
  10. Viking 35, Aug 21, 2013
    #10
    Viking 35

    Viking 35 New Member

    Joined:
    Aug 21, 2013
    Messages:
    4
    Location:
    Catawba Island, Ohio
    When I purchased my 35 Convertible, I also had problems with the salon doors. I contacted Viking in New Jersey and they were able to sell me the rollers and track to repair my doors. This was in 2001 so I am not sure that they still have them in stock. The rollers were sold individually and the track came in 6' lengths. Hope this helps.
  11. Angelo, Aug 21, 2013
    #11
    Angelo

    Angelo New Member

    Joined:
    May 10, 2013
    Messages:
    10
    Location:
    Port Clinton,OH
    thanks for your information. Yes, I did contact Viking regarding these rollers and was advised that the manufacturer has discontinued them . They are mane by the Hettich-Grant Co. The part is called a #1532 swivel carrier. I've been in touch with the maker with no success. I've also been tracking down the product distributors with the hope of location them. NO Luck. I'' keep trying.
  12. MBevins, Aug 21, 2013
    #12
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,225
    Location:
    Windsor On. Canada
    As NYCAP has already said this is an easy fix. Take the ass'y to an industrial bearing house. They will cross reference the actual bearing, and supply you with shoulder bolts to reattach the new bearings.
    Cost about $7 a bearing.
  13. vmm, Apr 13, 2014
    #13
    vmm

    vmm New Member

    Joined:
    Mar 21, 2014
    Messages:
    3
    Location:
    Menasha, WI
    solution to door rollers

    I know that this an older post but we just found a solution to the rollers for the sliding door on our 35. Let me know if you still need help with them.
  14. Angelo, Apr 13, 2014
    #14
    Angelo

    Angelo New Member

    Joined:
    May 10, 2013
    Messages:
    10
    Location:
    Port Clinton,OH
    Any info. would be appreciated.
  15. Robertoman, Apr 13, 2014
    #15
    Robertoman

    Robertoman Member

    Joined:
    Dec 15, 2010
    Messages:
    75
    Location:
    San Diego
    I would appreciate info as well. Thanks
  16. themotordoctor, Apr 16, 2014
    #16
    themotordoctor

    themotordoctor New Member

    Joined:
    Apr 15, 2014
    Messages:
    2
    Location:
    st augustine
    what solution did u find for your sliding door my rollers are worn out
  17. vmm, Apr 16, 2014
    #17
    vmm

    vmm New Member

    Joined:
    Mar 21, 2014
    Messages:
    3
    Location:
    Menasha, WI
    This is what we found.

    Teak Isle - Boat Sliding Door Truck B - .975" Tall #016-1038 This is the truck. 2 needed per door.

    Teak Isle - Boat Sliding Door Black Upper Track #148-1164 This is the track
    Needed to take old track out and filler piece that was on top to make room for new track. Then drilled and tapped right into door frame. 10/24 machine screws.

    They really slide now so when underway you will want to make sure the floor lock is in place:)

    Let us know if you need any help with this. We looked for 2 years for a solution.

    Sharon
  18. Robertoman, Apr 16, 2014
    #18
    Robertoman

    Robertoman Member

    Joined:
    Dec 15, 2010
    Messages:
    75
    Location:
    San Diego
    Thanks for the reply. My boat is a 35' but I'm thinking that it's the same basic design as a 33. Our boat has plastic? blocks instead of rollers. I will see if these rollers will work.
  19. vmm, Apr 17, 2014
    #19
    vmm

    vmm New Member

    Joined:
    Mar 21, 2014
    Messages:
    3
    Location:
    Menasha, WI
    door rollers

    Our's is a 35 also. Not a 33.
  20. themotordoctor, Apr 18, 2014
    #20
    themotordoctor

    themotordoctor New Member

    Joined:
    Apr 15, 2014
    Messages:
    2
    Location:
    st augustine
    sliding salon door viking

    thanks for the info. couldn't believe but I found the last 5 of the 1532 rollers in the whole u.s.
