Restriction plate between the thermostat housing and the head?

Discussion in 'Ocean Yacht' started by praetorian47, Aug 15, 2019.

You need to be registered and signed in to view this content.
  1. praetorian47, Aug 15, 2019
    #1
    praetorian47

    praetorian47 Senior Member

    Joined:
    Aug 22, 2011
    Messages:
    258
    Location:
    Bayport, Midland, Ontario

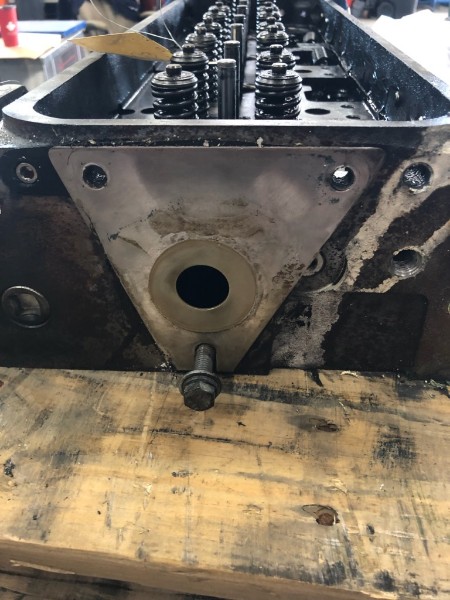

    I cracked a head recently and my DD expert has never seen anything like this before. Is this normal? Do we need it or should it be removed?

    It's the second cracked head I've had on this engine.

    Attached Files:

  2. Capt Ralph, Aug 15, 2019
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    Run your serial number for the part breakdown for your engine. Determine if this plate is in that part list.

    Does your other engine have this plate?

    What HP tune?
  3. praetorian47, Aug 15, 2019
    #3
    praetorian47

    praetorian47 Senior Member

    Joined:
    Aug 22, 2011
    Messages:
    258
    Location:
    Bayport, Midland, Ontario
    750hp. I can't tell if the other has it without pulling things apart. It wouldn't be on the DD parts list. My DD expert buddy was a DD mechanic and ran service for Harper Detroit up here for years. He's spoken with other old experts and nobody ever heard of them used. Our plan is to keep them but remove them.
  4. Capt Ralph, Aug 15, 2019
    #4
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    Tell more about the crack; Between the valves or water jacket over the exhaust?
    Heat or fatigue issue?
    First replacement head was used?
  5. praetorian47, Aug 15, 2019
    #5
    praetorian47

    praetorian47 Senior Member

    Joined:
    Aug 22, 2011
    Messages:
    258
    Location:
    Bayport, Midland, Ontario
    2 cracks on this one, between the valves.
    I believe it's a heat issue - but I'm certain it never exceeded 200 on the gauges. I've got a murphy gauge on that engine, so when I check that it was even lower (I've never seen that hit 180 - but that doesn't mean it doesn't, it just means that by the time I run down there, it's not).
    Last year I replaced the inboard (port side head) with a new one. The one I've got to replace the other is new also. They were moving parts from the old head to the new one when they saw this restrictor and can't figure out why it's there.
  6. Capt Ralph, Aug 15, 2019
    #6
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    Between the valves IMO is fatigue.
    Mostly 4 valve heads on 92s. I have witnessed it often.
    Early this year on a 53.
    Ship Happens.
  7. Capt Ralph, Aug 15, 2019
    #7
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    What config or model is your DD engine?
    Last edited: Aug 15, 2019
  8. praetorian47, Aug 15, 2019
    #8
    praetorian47

    praetorian47 Senior Member

    Joined:
    Aug 22, 2011
    Messages:
    258
    Location:
    Bayport, Midland, Ontario
    both heads, 1 last year, 1 this year? If that's the reason, I'm good with it, just don't want to ignore a potential bigger issues.
  9. praetorian47, Aug 15, 2019
    #9
    praetorian47

    praetorian47 Senior Member

    Joined:
    Aug 22, 2011
    Messages:
    258
    Location:
    Bayport, Midland, Ontario
    8v92
  10. Capt Ralph, Aug 15, 2019
    #10
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    It is a 92 head. Just making sure.
    At 750HP in a TA config,,
    Yep; fatigue..
    Not overheating.

    Your also J&T or SS?
    I'd leave that plate in then. Slows the coolant flow down just a bit, ensures the after-cooler gets max cool coolant from it's own HE.
  11. praetorian47, Aug 15, 2019
    #11
    praetorian47

    praetorian47 Senior Member

    Joined:
    Aug 22, 2011
    Messages:
    258
    Location:
    Bayport, Midland, Ontario
    Thanks! so I should leave the restrictor plates in there?
  12. Capt Ralph, Aug 15, 2019
    #12
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    Yep.
  13. Capt J, Aug 15, 2019
    #13
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,534
    Location:
    Fort Lauderdale
    What EGT's are you running?
  14. boatpoor, Aug 15, 2019
    #14
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    247
    Location:
    32407
    Anything over 180 degrees on a Detroit and you're subject to cracked heads.
  15. Capt Ralph, Aug 15, 2019
    #15
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    From experience or some readings in the cruisers nest?
  16. rtrafford, Aug 16, 2019
    #16
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,732
    Location:
    Vero Beach
    Yes, this. Keep em cool, folks.
  17. praetorian47, Aug 16, 2019
    #17
    praetorian47

    praetorian47 Senior Member

    Joined:
    Aug 22, 2011
    Messages:
    258
    Location:
    Bayport, Midland, Ontario
    I don't have EGT - but I'll put it in when we replace the head!
  18. boatpoor, Aug 17, 2019
    #18
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    247
    Location:
    32407
    From experience. I can't start to count how many we've had to replace because of dirty or busted radiators on construction sites.
  19. Capt Ralph, Aug 17, 2019
    #19
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,443
    Location:
    Satsuma, FL
    I found an IPB on another web site. The plate is original.
    The picture I found is copy righted and can not be posted here.
    Yep, Keep the plate.
  20. Capt J, Aug 17, 2019
    #20
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,534
    Location:
    Fort Lauderdale
    In that case make sure they see around 2350 RPM's WOT. High EGT's (overloaded) can cause cracked heads in that area over the long term with the 92 series.
