Remove Refrigerator

Discussion in 'Post Yacht' started by Greg Page, Aug 12, 2021.

You need to be registered and signed in to view this content.
  1. Greg Page, Aug 12, 2021
    #1
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    433
    Location:
    Annapolis MD
    Has anyone taken the refrigerator out themselves? Want to remove the existing "home" unit and replace with a counter height marine unit. It looks like can remove the doors, turn it back side down and slide out over the breaker panel cabinet?

    If you've removed yours I would be interested in how you did it, and how many people it took. The yards I've been able to get to reply so far (Annapolis MD) are talking 8-10 weeks out, I really want to get it out in the next couple weeks so I can do the cabinetry work and get the new one in before our Labor Day trip.

    Thanks - Greg
  2. OutPost, Aug 12, 2021
    #2
    OutPost

    OutPost Member

    Joined:
    Jul 26, 2016
    Messages:
    73
    Location:
    Long Island, New York
    I replaced mine - 76 42, lower galley on the port. I found a unit that would fit (ish) from a local appliance store. Basic, stainless, non marine 110v. Gave them address where boat was docked as delivery address. When guys got there they immediately said no way .. after we had a 20 minute back and forth and after arriving at a pretty generous tip amount they came aboard and lifted the old unit out over their heads / up the stairs and off the boat. Brought old one down and got it sort of in the fridge hole. Next few days was me moving it out (it’s much lighter than tje one that was there) and cutting into random parts of the boat construction in the back of the fridge hole with a sawzall to make enough space to get it to sit flush. Had to make a base for it to sit on to get enough depth as higher it sits the deeper the hole. Put trim piece in front.across bottom. End of day it fits perfect looks great and was a bargain.
  3. Greg Page, Aug 13, 2021
    #3
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    433
    Location:
    Annapolis MD
    New one is coming motor freight. I don't think the driver is going to be up for that.

    So they were able to slip it between the breaker panel cabinet and the overhead ones to get out of the galley? Ours is too wide (both width and depth) to gup up the stairwell from the galley.

    Thanks
  4. alvareza, Aug 13, 2021
    #4
    alvareza

    alvareza Senior Member

    Joined:
    Aug 20, 2010
    Messages:
    145
    Location:
    Scituate MA
    Maybe it will fit if you take the door off
  5. Matt46post, Aug 13, 2021
    #5
    Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california

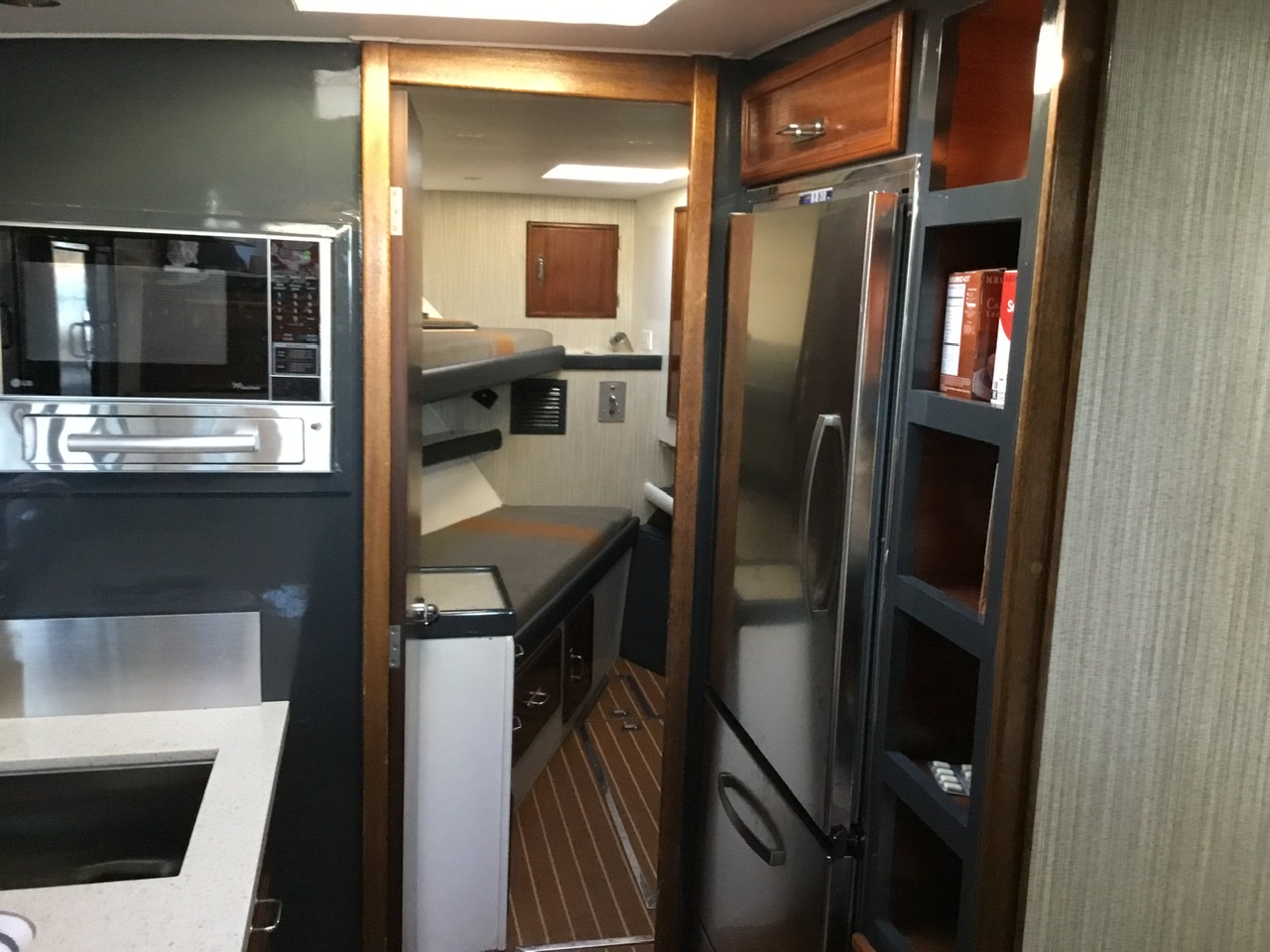

    Not sure which year boat you have but I put in this vitrifrigo drawer combo and it worked great

    Attached Files:

  6. Matt46post, Aug 13, 2021
    #6
    Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california
    Ooops

    Attached Files:

  7. Matt46post, Aug 13, 2021
    #7
    Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california
    Oops, something not working right here

    Attached Files:

  8. Matt46post, Aug 13, 2021
    #8
    Matt46post

    Matt46post Senior Member

    Joined:
    Apr 27, 2015
    Messages:
    226
    Location:
    El dorado hills california

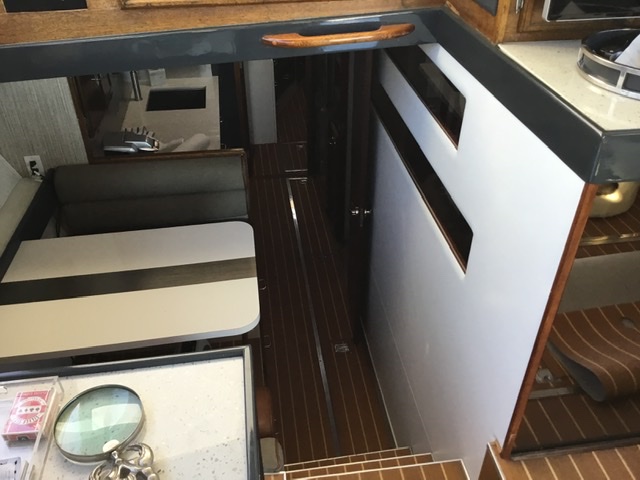

    Cutting windows in this wall really lets the light in the stateroom and makes the galley feel much less closed in

    Attached Files:

  9. chesapeake46, Aug 13, 2021
    #9
    chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,829
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    1980, galley down, fridge in the center of the companionable, opposite the galley.

    It was as wide as a standard unit but about 3 inches shorter.

    Removed the doors. Covered the end cabinet with movers blanket and one of the dock hands and I carried it out. Very carefully.

    Hardest part is getting a good grip
  10. Greg Page, Aug 15, 2021
    #10
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    433
    Location:
    Annapolis MD
    Thanks for the pics. Ours is similar except the fridge is on the galley side of the hallway. It should be 26" x 28" with the doors off, so I think will slip between the breaker panel cabinet and the overhead, but is more than I can lift (even with my nephew helping). We are going to put in a Cruise 200 and use the extra vertical space for more storage and counter space.

    -Greg

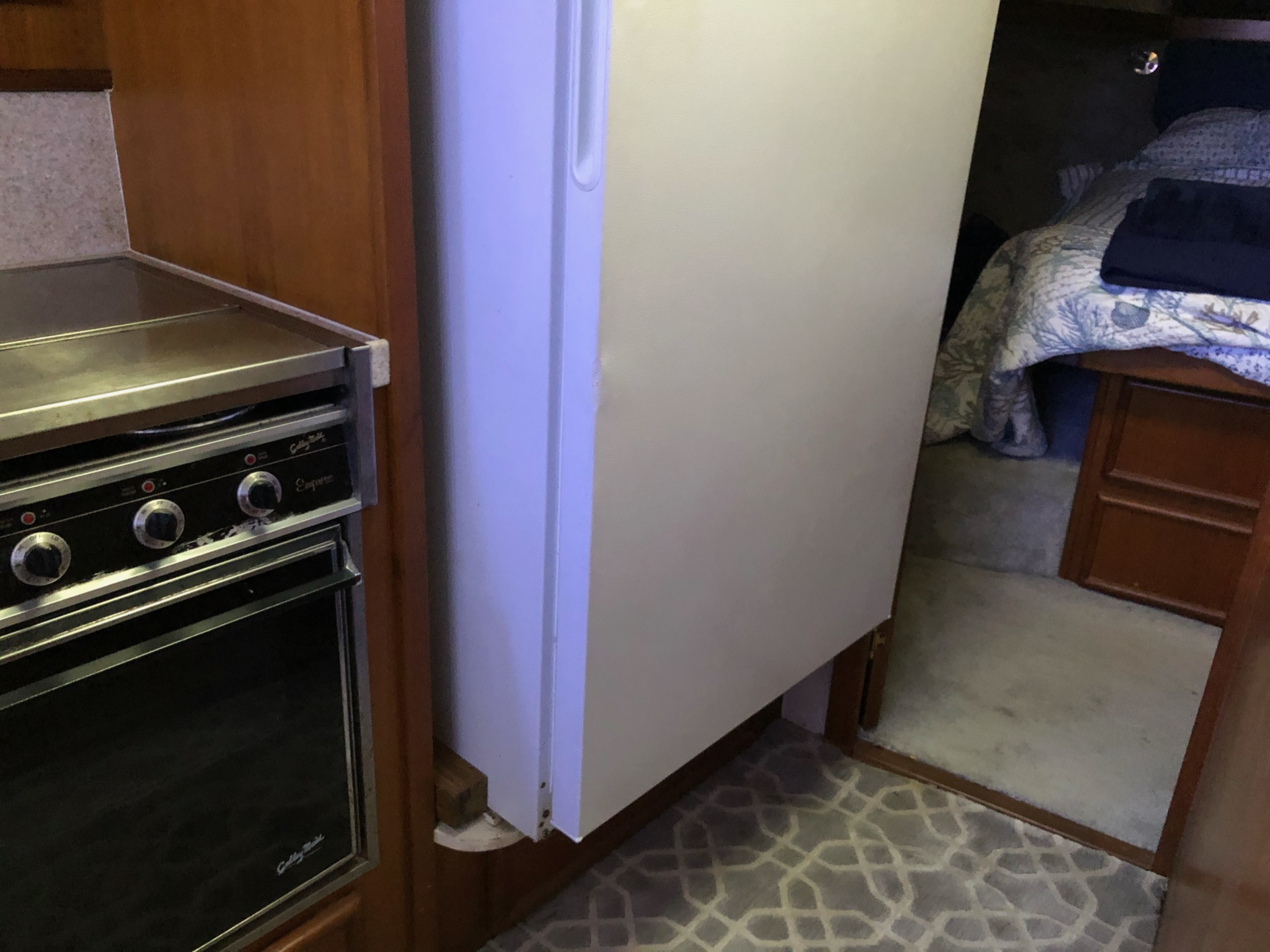

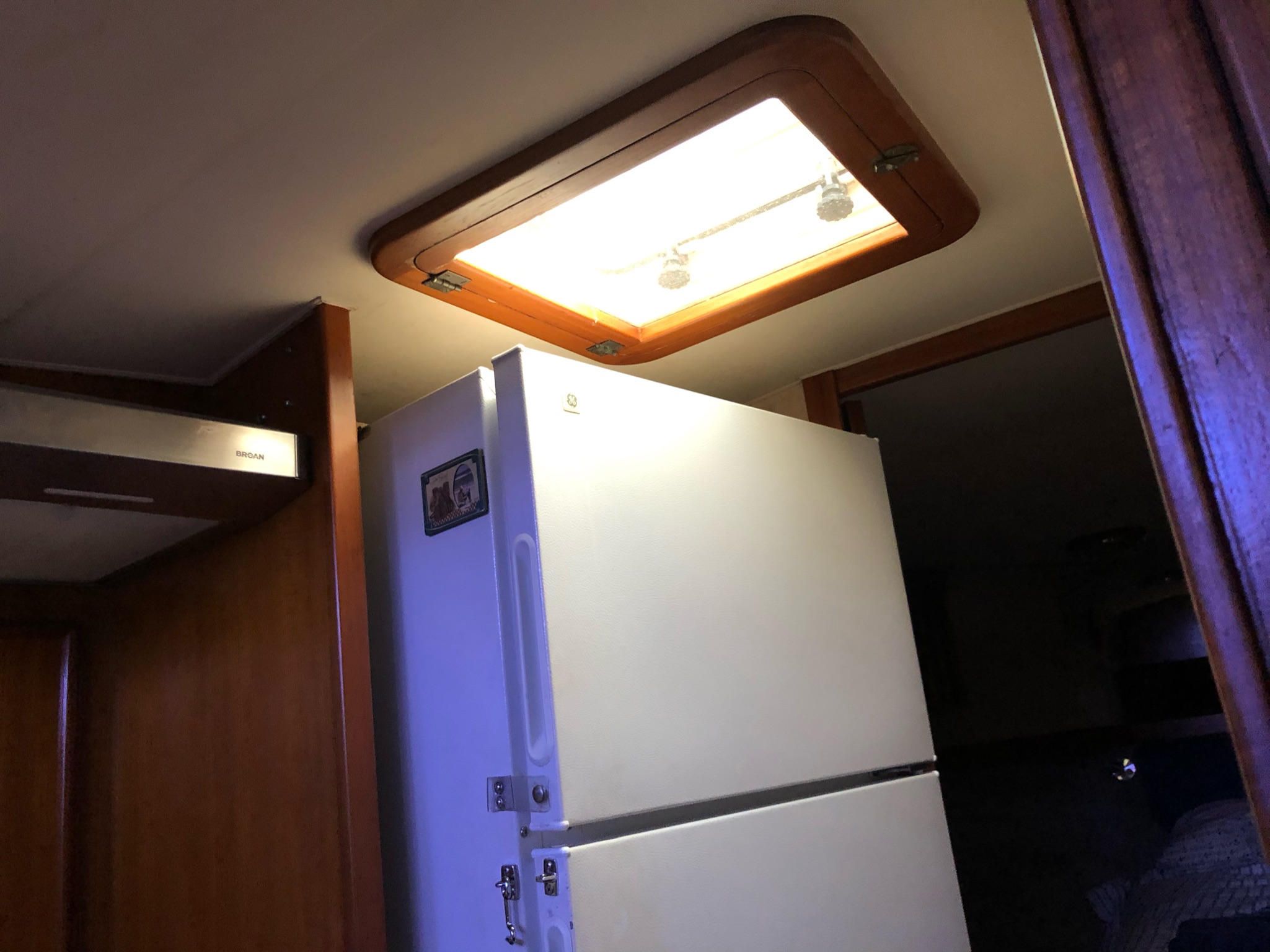

    Post Refrigerator-2.JPG Post Refrigerator.JPG
  11. OutPost, Aug 17, 2021
    #11
    OutPost

    OutPost Member

    Joined:
    Jul 26, 2016
    Messages:
    73
    Location:
    Long Island, New York
    Here’s mine a few extra inches deeper after raising it up and chopping out some stuff in the hole.

    Reel Antsy likes this.
  12. Greg Page, Aug 26, 2021
    #12
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    433
    Location:
    Annapolis MD

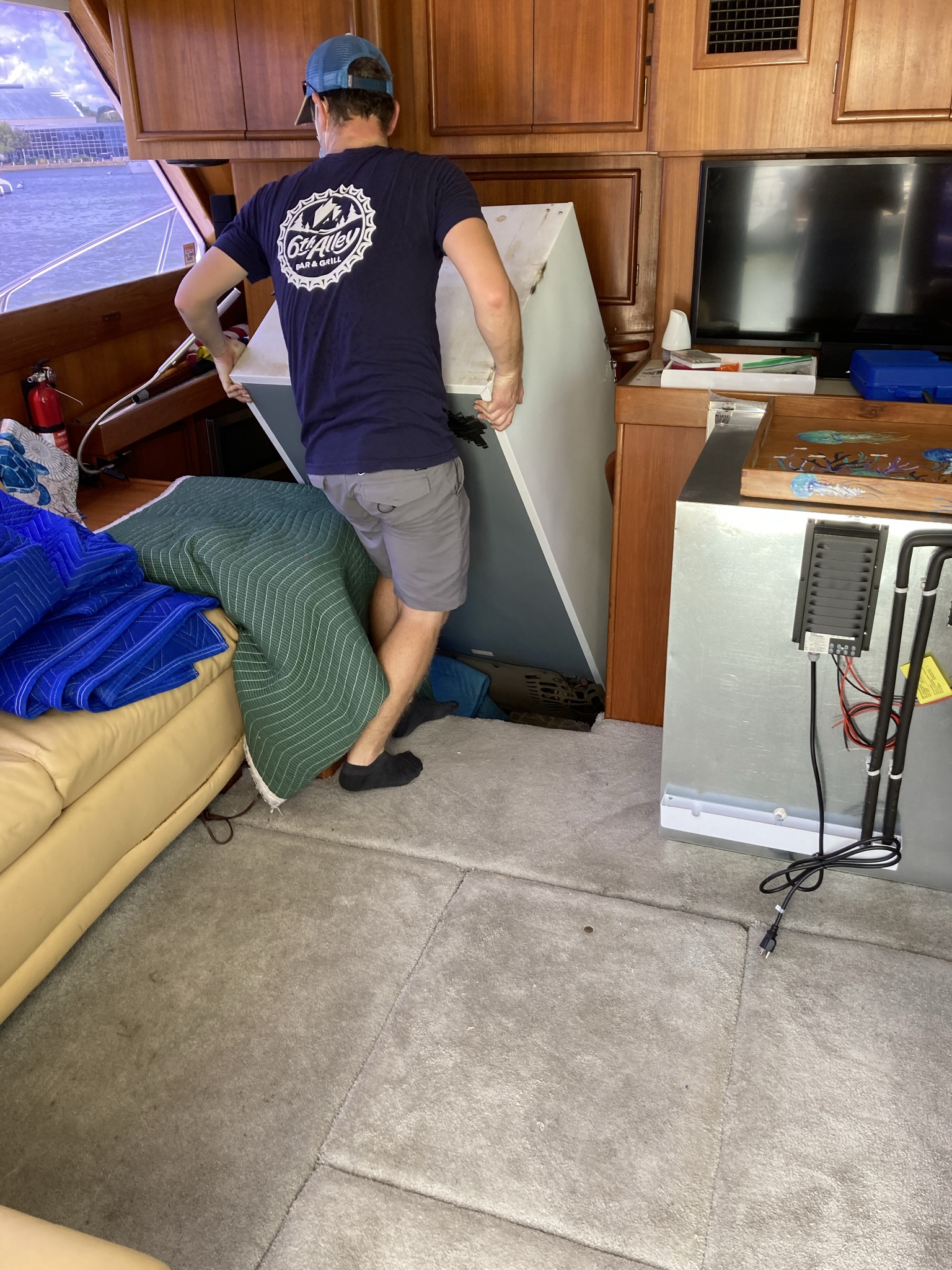

    Old fridge was out in 20 minutes with two strong yard workers. New fridge is in, still working finish moldings (finding teak moldings in stock has been a challange). Also need to add new false back wall to line up with the wall in the rest of the galley, and provide the ventilation duct for the refrigerator cooling air to exit at the ceiling.

    IMG_3558.JPEG IMG_3573.JPEG
    Reel Antsy likes this.
  13. RT46, Sep 20, 2021
    #13
    RT46

    RT46 Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    1,059
    Location:
    Long Island, NY
    i have the galley up 46 Post
    we had to get a few guys to lift the fridge out over the galley peninsula
    not easy
