"Portuguese bridge design" means WHAT?

Discussion in 'Technical Discussion' started by BenSeattle, Aug 23, 2006.

You need to be registered and signed in to view this content.
Page 1 of 2
  1. BenSeattle, Aug 23, 2006
    #1
    BenSeattle

    BenSeattle New Member

    Joined:
    Sep 28, 2005
    Messages:
    33
    Location:
    Seattle/Kirkland
    I see this over and over: Portuguese bridge but I yet to see anywhere how this style of bridge differs from any other. Help a brother out? :)

    Thanks and happy cruising
  2. Garry Hartshorn, Aug 23, 2006
    #2
    Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    It's the walkway in front of the bridge windows
  3. Loren Schweizer, Aug 23, 2006
    #3
    Loren Schweizer

    Loren Schweizer YF Associate Writer

    Joined:
    Apr 20, 2004
    Messages:
    1,352
    Location:
    Coral Gables/Ft. Laud., FL
    ...Separated from the foredeck by a (generally) waist-high bulwark.
  4. KCook, Aug 24, 2006
    #4
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    The Portuguese bridge borders on being a legal requirement for expedition yachts and trawlers ;) .

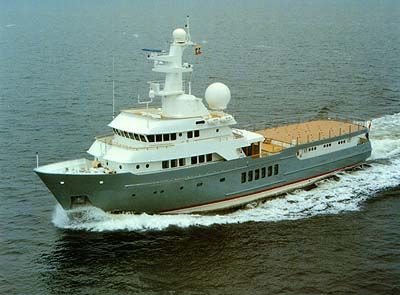

    [​IMG]
    This one is unusually spacious. Typically they are not so deep, front-to-back. May or may not also feature a passageway on the centerline down to the foredeck.

    Any boat big enough for a Portuguese bridge would be big enough for me! :D :D

    Kelly Cook
  5. K1W1, Aug 24, 2006
    #5
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    Hi,

    Where does it state that this is an "almost legal requirement".
  6. KCook, Aug 24, 2006
    #6
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    That was a miss-fired attempt at humor K1W1.

    Kelly
  7. JWY, Aug 24, 2006
    #7
    JWY

    JWY Senior Member

    Joined:
    Feb 22, 2004
    Messages:
    1,567
    Location:
    Ft. Lauderdale
    A Portuguese bridge is a structural component frequently seen on trawlers because trawlers are typically (or more precisely "should be") built for being able to handle heavy seas. The purpose of the bridge is to deflect green water from the foredeck up over the superstructure top rather than slamming against the forward windows of the pilothouse. A secondary benefit is that it provides a "safe area" or handhold when it is necessary to be on the foredeck in inclement weather. And lastly, it provides additional storage space for lines, fire extinguisher, spare anchor, drogue, etc. if the builder has provided access doors and lockers on the inside of the bridge.

    One more useful tidbit: one of the Cape Horn trawlers was built with a small rectangular stainless open "box" on the inside of the bridge. Guess why. Hint: the #1 cause of men falling overboard...
  8. K1W1, Aug 24, 2006
    #8
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    Hi,

    I have never seen a Portugese Bridge arrangement where one could work on the foredeck and hang onto the rail around the outside of the bridge.

    Do you have any pictures of this type of arrangement that you could share with us?
  9. WannabeeYhtsman, Aug 24, 2006
    #9
    WannabeeYhtsman

    WannabeeYhtsman New Member

    Joined:
    Apr 9, 2006
    Messages:
    79
    Location:
    Lake Ontario
    I'll take a stab at it.

    A place to be sea sick so you don't have to lean over the edge during bad weather?
  10. JWY, Aug 24, 2006
    #10
    JWY

    JWY Senior Member

    Joined:
    Feb 22, 2004
    Messages:
    1,567
    Location:
    Ft. Lauderdale
    I am having trouble posting a picture. I will send it by private email and please post for me.

    Thanks!

    Judy
  11. AMG, Aug 24, 2006
    #11
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
  12. Arniev, Aug 24, 2006
    #12
    Arniev

    Arniev Senior Member

    Joined:
    Nov 1, 2005
    Messages:
    418
    Location:
    Monterey, CA, USA
    Hey, Kelly.
    Is that a picture of "Senses"?
    Looks like it.
    Arnie
    :)
  13. Arniev, Aug 24, 2006
    #13
    Arniev

    Arniev Senior Member

    Joined:
    Nov 1, 2005
    Messages:
    418
    Location:
    Monterey, CA, USA
    Hi, Lars.
    Your design for an 84-ft. Long Range Cruiser is truly a classic and timeless design. I like the clean and simple design, which also manages to impart a sense of stability and sturdiness.
    Thanks for sharing it with us.

    BTW ... whatever happened to that -copycat- Australian design?
    Were you able to get in touch with the Australian yard and get a response from them on the similarities between your yacht design and theirs?

    Arnie
    :)
  14. AMG, Aug 24, 2006
    #14
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Hi Arnie,

    This shipyard will be at the Monaco Yacht Show. If they are showing the design there, I think they will get one or two difficult questions from all the Yacht Brokers I know...
  15. KCook, Aug 24, 2006
    #15
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
  16. V65, Aug 24, 2006
    #16
    V65

    V65 Senior Member

    Joined:
    Apr 22, 2006
    Messages:
    196
    Location:
    Austin,Texas & Miami Beach,Florida
    Hi there Arnie, that is the Amels Karima (ex Maupiti):D
  17. Arniev, Aug 25, 2006
    #17
    Arniev

    Arniev Senior Member

    Joined:
    Nov 1, 2005
    Messages:
    418
    Location:
    Monterey, CA, USA
  18. WannabeeYhtsman, Aug 25, 2006
    #18
    WannabeeYhtsman

    WannabeeYhtsman New Member

    Joined:
    Apr 9, 2006
    Messages:
    79
    Location:
    Lake Ontario
    And the answer is?
  19. AMG, Aug 25, 2006
    #19
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Let´s hear your best guess first! :rolleyes:
  20. WannabeeYhtsman, Aug 25, 2006
    #20
    WannabeeYhtsman

    WannabeeYhtsman New Member

    Joined:
    Apr 9, 2006
    Messages:
    79
    Location:
    Lake Ontario
    Here's my best guess. Look forward to hearing others:)
