Polycarbonate vs Acrylic etc

Discussion in 'Technical Discussion' started by kiffa, Jan 16, 2013.

You need to be registered and signed in to view this content.
  1. kiffa

    kiffa New Member

    Joined:
    May 12, 2007
    Messages:
    29
    Location:
    Caribbean
    On my power catamaran I want to replace the plastic curtains on the downstairs windows with a Polycarbonate or Acrylic or any such material that may be recomended.
    The space is 3' high by 6' long and i plan to put the forward section fixed, with the back piece slide able on a track.
    I think 1/4" thickness would be fine for this application.
    Does anyone know of some good suppliers or have any other suggestions.
  2. kiffa

    kiffa New Member

    Joined:
    May 12, 2007
    Messages:
    29
    Location:
    Caribbean

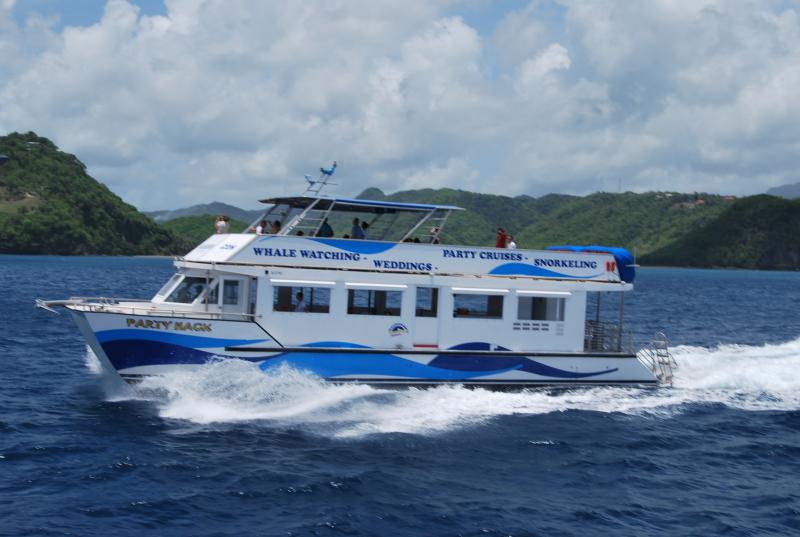

    Here is a look at the boat and the downstairs windows i want to block.

    Attached Files:

  3. karo1776

    karo1776 Senior Member

    Joined:
    Oct 18, 2011
    Messages:
    655
    Location:
    Gone
    Well depends on what you are most concerned about.

    Polycarbonate is very sensitive to UV light degrading it... so you have to be sure it is loaded with UV stabilizers... which many Polycarbonates don't have.
    There are versions designed for use as windows or shades which have the stabilizers and have a special (ultra thin) hard coating for scratch resistance as is is subject to scratching and abrasion which will dull it. Also, polycarbonate is hydroscopic and absorbs moisture... making it hard to form into shapes unless dried. Forming is thermoforming or it can be bent in a press brake mechanically cold.
    But it is incredibly tough stuff.

    Acrylic does not have the UV problem and is more scratch resistant but you should get the scratch barrier protected if you have cosmetic concerns. It does not have the moisture absorbing issue either. But is more fragile and likely to break to breakage so you have to make it thicker. It is easily thermoformed but cannot be mechanically bent or formed as it will break.

    In either case DO NOT EVER expose to Windex or other ammonia based window cleaners as they cause stress cracking. So you have to use special plastic cleaner or soap water and vinegar.
  4. kiffa

    kiffa New Member

    Joined:
    May 12, 2007
    Messages:
    29
    Location:
    Caribbean
    Great advice Karo, I think I will go with the acrylic and make a frame around it to hold it in place. I will take pics of the finished job. Thank you again


    Chris
  5. karo1776

    karo1776 Senior Member

    Joined:
    Oct 18, 2011
    Messages:
    655
    Location:
    Gone
    I think you made a wise choice...
    But get a little thicker as it makes it more durable... go about 50% thicker than the polycarbonate and that will make up the the breakage issue. You can get the special coated scratch coated versions too if you use it as windows... and even tinted.

    I should be clear the scratch coatings on either material are not a film or liquid coating but hi tech vacuum deposited rare earth materials that are very hard but microscopically thin.
  6. kiffa

    kiffa New Member

    Joined:
    May 12, 2007
    Messages:
    29
    Location:
    Caribbean
    Ah ok I understand. I will be sure to specify this in my order.
