Perini Navi C.2098 50M

The yard number C.2098 is a 50M newbuild deepwater ketch underconstruction by Perini Navi. The yacht does not present anything out of context of Perini Navi's design and follows a long line of successful designs.

Features will include a flying bridge, large single tender storage receptable in the foredeck, RIB storage in the transom and spacious wrap-around maindeck.


LOA: 165 ft or 50.16 M
LWL: 140 ft or 42.66 M
BOA 35 ft or 10.52 M
Draught: (keel up) 13 ft or 4 M
Draught: (keel down) 32 ft or 9.79 M
Materials: Hull (Aluminium) ; Superstructure (Aluminum)
Displacement: 430 tonnes
Speed:14.5 knots (maximum)
Range: 4,200 NM @ 12 knots
Fuel: 40,000 L
Fresh water: 13,000 L
Main mast height above DWL 186 ft or 56.754 M
Mizzen mast height above DWL 139 ft or 42.502 M
Total sail area: 15,241.6 ft² or 1,416 M²
Cockpit area: 1,033 ft-² or 96 M²
Saloon and wheelhouse area: 1,238 ft² or 115 M²
Total owner and guest cabin area: 1,442 ft² or 134 M²
Total crew area 850 ft² or 79 M²
Lazarette area 366 ft² or 34 M²
Classification ABS: Malta Cross A1 AMS Yachting Service+MCA
Naval Architecture Ron Holland and Perini Navi
Builder: Perini Navi, Viareggio, Italy

***​

Recent construction pics are available

http://www.perininavi.it/galleria.cfm?IdBarca=43

http://www.perininavi.it

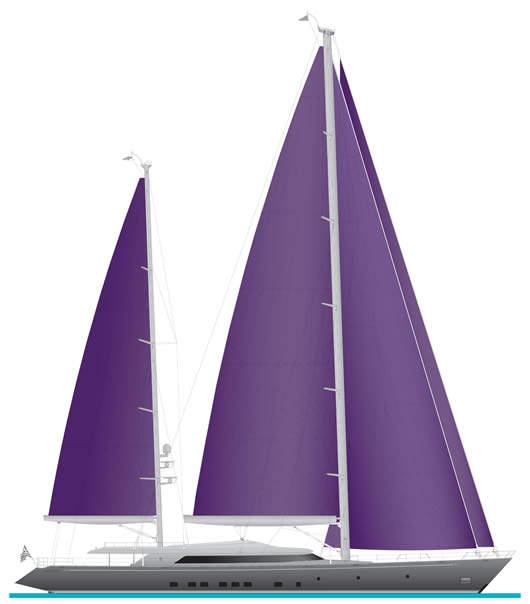

A Perini Navi Picture​
