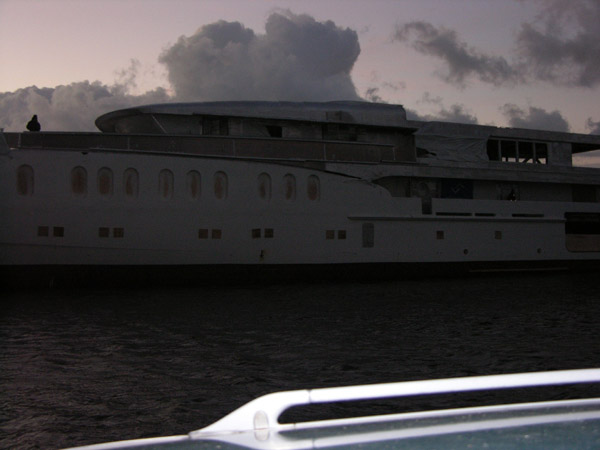

On my way to work

Great scoop Björn!

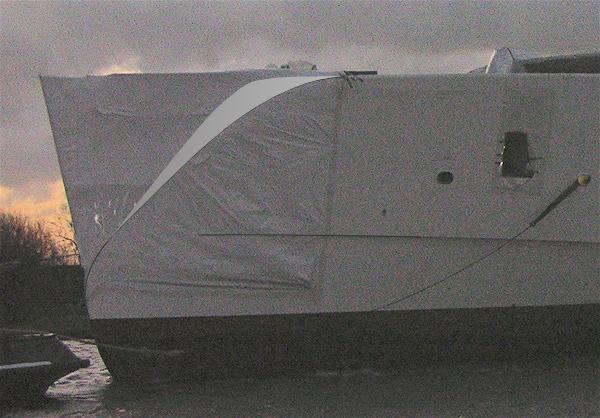

If you don´t mind, I lightened your picture a little since I found the bow interesting. Is it something they want to cover for us to not see? It looks as it could be a similar shape as the Sigma project by Starck at B+V!

I have no info on this particular yacht though...?

i looked even closer at the bow, it seems to have a very interesting construction to it, i zoomed in even closer and played with the contrast some, and see 3 distinct lines that the tarp is being pushed by the hull, in the photo above you can see them, in the photo i attached i have traced them to make them easier to see.

Slob Papendrecht

There are two yards in the neighbourhood of Rotterdam they are buiding yachts that is likely Slob http://www.scheepswerfslob.nl/yachte.html for the Gouwerok shipyard I heard then there was something secret about it I suppose this is it

Since the sun is shining through your "dolphin nose" I think the red curve should just continue down to meet the waterline. If this will be the final shape remains to be seen, maybe another bow is to be fitted at the yard?

I think the Sigma bow is fine on her submarine design, but hope this will not be a new design trend...

as something more like this,
where the red continues down to the waterline, in essence just a very large bulbous bow, the dark blue lines are support beams to attempt to disguise it as to appear as a conventional bow, and the light blue line following the moulding up to meet it.



yeah, you're right, that does seem more accurate.
even with this being a faux bow, it is way too sharp of a point to be her true shape

Thanks Björn, this was good fun!

IF your mystic yacht has this kind of bow, it will probably look something like this under the cover...

Whatever the bow configuration turns out to be, this yacht will no doubt qualify for "The Most Unique Sheerline" award, IMHO.

as welcoming as i am for new innovations. i am afraid i do not like that bow. certainly the yacht will be impressive though.

The yacht your looking at comes from Slob Papendrecht.
It was first transported to the RDM drydock by Smit in Rotterdam on a platform and in the Drydock it was then lowered into the water.
It was then brought to Van Lent by two tows from Broedertrouw/Van der Wees from Dordrecht.

I had a report planned but couldnt make it; bummer(mad:

If that bow stands proud, she'll look like a Huckins Fairform Flyer on steroids. I like the classic sheerline. Looking forward to more pictures.

Any updates on this hull?
It's come up in another discussion and now has piqued my curiosity even more.

http://www.yachtforums.com/forums/t...w-enlarged-ship-study.html?posted=1#post41329

a bow or not a bow????

it could be that the regular shaped bow will be added later, like some missing parts of the superstucture??

true

Maybe it wouldn't fit in trhe shed so had to build it less the bow section???
