No Discharge Shutoff

Discussion in 'Technical Discussion' started by melkal, Feb 11, 2011.

You need to be registered and signed in to view this content.
  1. melkal

    melkal New Member

    Joined:
    Nov 15, 2010
    Messages:
    18
    Location:
    MA.
    I am planning to comply with the no discharge regulations (I always pump out anyway) by closing the discharge seacock from each head at the hull. Much easier to get to than the Y valves which are a bit confusing themselves. I am wondering how to secure it though. They say a wire tie or padlock, but I have Groco Seacocks and when closed the handle is at a right angle to the hose. I guess I could epoxy a wooden block to the hull and add an eye and use that to secure the handle in the closed position. Or, take off the handle which seems to be another way to comply, but I am sure later if I need them, I will be looking for them. Any suggestions?
  2. GFC

    GFC Senior Member

    Joined:
    May 21, 2008
    Messages:
    221
    Location:
    Tri Cities, WA
    Take the handles off and duct tape them (and the attachment scew) to the hose itself. That way, if you need to use them in the future the handle and screw are right there.
  3. Savasa

    Savasa Senior Member

    Joined:
    Jun 4, 2008
    Messages:
    167
    Location:
    Iqaluit, Nunavit, Canada
    Greetings,
    How about Ty-Wraps instead of duct tape? No residue when removed.
    Peter
  4. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    the point is to have the handles off the sea cock... use whatever storage method works for you. in a bind, wisegrips can be used anyway.
  5. 54' Bertram

    54' Bertram Member

    Joined:
    May 4, 2006
    Messages:
    67
    Location:
    New Orleans, Louisiana
    aren't you required by law to have locks on your valves? I was told it was to prevent someone from turning the valve to overboard discharge accidentally, and that the Coast Guard will check for locks if you are inspected.
  6. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,311
    Location:
    9114 S. Central Ave
    Different States have different rules that may or may not be more restrictive than federal law. Some lake jurisdictions may even require complete mechanical blocking of through-hulls. Don't ask a general question here for an answer that may be very specific to your location, ask the local authority.

    For example, here is a quote from Massachusetts:

    When traveling in NDA waters, boaters with Type I or Type II MSDs must do one of the following:

    1. Close the seacock and remove the handle.
    2. Fix the seacock in the closed position with a padlock or non-releasable wire-tie.
    3. Lock the door to the space enclosing the toilet with a padlock or door handle key lock.

    When traveling in NDA waters, a Type III MSD (holding tank) must be secured in one of the following ways:

    1. Close each valve leading to an overboard discharge.
    2. Padlock each valve in the closed position.
    3. Use a non-releasable wire-tie to hold each valve leading to an overboard discharge in the closed position.

    All of these methods of securing MSDs while in NDA waters are approved by the U.S. Coast Guard.
  7. Fireman431

    Fireman431 Senior Member

    Joined:
    Jan 11, 2010
    Messages:
    195
    Location:
    East central Florida

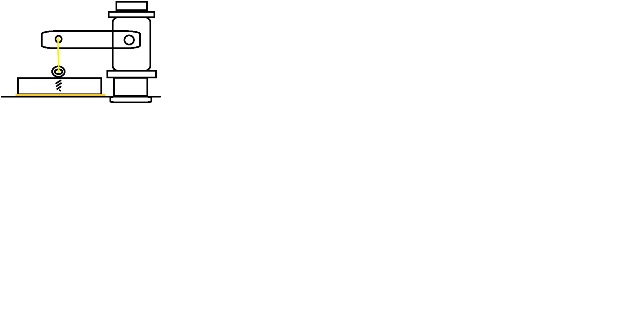

    On my boat, I sank a 1/2" eyebolt into a 4" long piece of 1"x4". I used 3M 5200 to adhere it to the hull. Then you can run a zip tie through the bolt and the handle.

    Attached Files:

  8. 54' Bertram

    54' Bertram Member

    Joined:
    May 4, 2006
    Messages:
    67
    Location:
    New Orleans, Louisiana
    Sorry for not being specific Marmot. I didn't realize different states had different rules, but then, if I had known that I wouldn't have asked the question :)

    I assumed (in error I guess) the Coast Guard used the same rules up and down the coast.
  9. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL

    dont' be sorry... the rules are pretty much the same for all coastal waters and
    the rules Marmot quoted from Ma. apply in other states as well.

    another acceptable way of securing overboard discharge from your holding tank is to use a key switch for the pump and keep the key somewhere else...

    indeed, during a boarding the USCG will check your valves.
  10. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,177
    Location:
    Vancouver BC
    Overboard

    I understood any keys for overboard discharge pumps had to be under the masters control only.
  11. NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,208
    Location:
    Long Island, NY
    The locking of a discharge is largely symbolic. Whether it's a zip tie or a bolt and pad lock nobody is going to throw the Y-valve except for the order of the person in charge (usually the wife:D). If she wants to, she'll be quite capable of getting a key or a scissor. Any reasonable effort should be sufficient. For those areas less trusting, your boat can't have the ability to pump overboard.
  12. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,530
    Location:
    Fort Lauderdale
    I have also seen where someone cut the hose in 2 pieces going from the macerator pump to the seacock and blocked off both ends. In addition to disconnecting the wiring going to the macerator pump and shutting the seacock and taking the handle off. This was a boat in or rather from Canadian waters.
  13. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,177
    Location:
    Vancouver BC
    No Discharge

    had of been Great Lakes...here in BC we are supposed to go on to "no discharge"
    in certain sensitive ares but...sad lack of pump out stations and lots of boats with small holding tanks..will take a while to fully implement no discharge in reality. No enforcement as yet.
  14. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,530
    Location:
    Fort Lauderdale
    Thats where the problem lies. If it's cheap and easy to get a pump out at a marina, I would say most all yachters/boaters would do one instead of pumping overboard. But when pumpout stations are few and far between such as in the Bahamas also, people who would normally prefer to pump out will pump overboard because they have to. The holding tank is jam packed and nothing else to do with it.
  15. Silver Lining

    Silver Lining Member

    Joined:
    Sep 18, 2008
    Messages:
    136
    Location:
    Chesapeake/Florida
    Marmot, I believe you have a typo in #1 above. From the USCG site, it should read as below:

    (c) When operating a vessel on a body of water where the discharge of untreated sewage is prohibited by the Environmental Protection Agency under 40 CFR 140.3, the operator must secure each Type III device in a manner which prevents discharge of sewage. Acceptable methods of securing the device include—

    (1) Closing each valve leading to an overboard discharge and removing the handle;

    (2) Padlocking each valve leading to an overboard discharge in the closed position; or

    (3) Using a non-releasable wire-tie to hold each valve leading to an overboard discharge in the closed position.
