    Builder: Symbol Yacht Co., Ltd.

    Designer: Hull design by Jack Sarin, N.A.

    Construction/Type: Construction: FRP composite using E-glass mat & biaxial roving, framed with molded FRP stiffeners with a polyester resin system. Hull bottom is solid laminate. Hull topside is cored with linear PVC foam, decks & superstructure are cored with cross-linked PVC foam.

    Type: Semi-displacement moderate-V hull with keel, hard chine, transom stern and shallow tunnels (pockets) for propellers.

    Specifications:

    LOA – 88’
    Beam – 21’
    Draft – 6’6”
    Fuel – 2500 US gallons
    Water – 350 US gallons
    Power:Twin Caterpillar 3412E 1400Hp diesel engines

    Layout: Four staterooms / four heads with full captain & mate quarters

    Notable Features: Twin 33kW Northern Lights generators, Wesmar hydraulics package (bow thruster, stabilizers & windlass), 1200GPD water maker, 42” salon plasma TV (drops down from ceiling), Flexiteek (synthetic teak) decking, captain & mate quarters, fully custom deck plans, Furuno electronics package, custom décor, transom boat lift, concealed passarelle, bow sundeck with spa, granite & marble countertops.

    Description: Signature-style flush deck motoryacht, custom designed for upscale family entertainment. Many features including two “al fresco” dining tables (aft deck & flybridge), two wet bars, “game room” (poker table which converts to sleeper) with private head & 30” TV, full beam master stateroom with steam room & walk-in closet, and more. Expanded accommodations allows sleeping quarters for 12 to 15 people easily!

    Competitively Priced – mid 3’s (~$3.5M)!

    Attached Files:

  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida

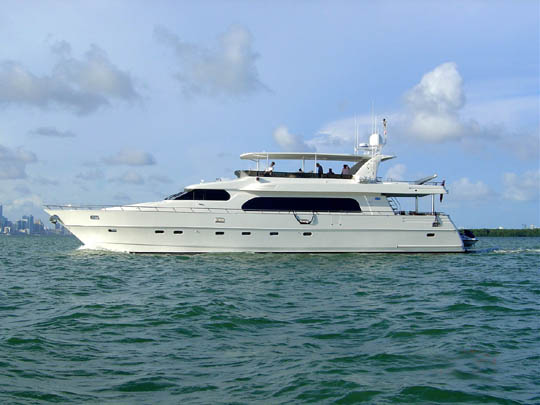

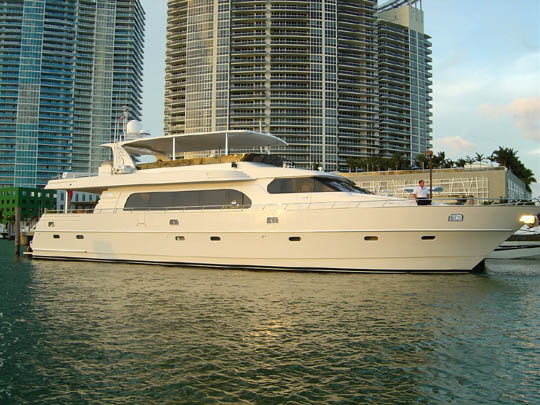

    Symbol 88' MotorYacht...

    For more information, contact:

    Symbol Yacht Co., Ltd.
    No. 8 Ta Yu 1st Street,
    Ta Fa Industrial District
    Kaohsiung Hsien, Taiwan 831
    Tel: 886.7.787.3157
    www.symbolyachts.com
