    New Drive System, IPS from Volvo Penta

    As Diesel Electric propulsion with azipods is getting more popular with larger yachts, Volvo Penta is launching their new drive for inboard diesels.

    Together with the new engines in the D6 series, fantastic machines I have to say since we use them on Aquamatic already, VP are now making history with a pod-like propulsion for powerboats 35-50 feet. (To start with).

    It consists of a steerable house with two propellers facing forward to work in undisturbed water. Steering is 26 degrees for manouvering reduced to 13 in speed since it is very efficient compared to normal rudders. The steering is computer controlled as in recent luxury cars.

    Coupled to the 310 hp D6 they call it IPS 400 since they claim it is getting the same effect as 400 hp on a conventional shaft. With 375 hp D6 the name is IPS 500 of the same reason.

    Exhausts are through the drive under the bottom, reducing noise by 7 dB. Speed gain and fuel efficiency is something like 20-40 percent over shafts!

    Compared to shafts in tunnels they will increase the draft marginally and if worst happens, you hit a rock in full speed, the whole unit will fall off without causing damage or leakage and a new drive can be fitted.

    Good news for all of us still playing with "smaller" boats! World premiere will be at the London Boat Show in January 2005 as I understand it.

    /Lars

    Attached Files:

  2. YachtForums, Nov 27, 2004
    #2
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,610
    Location:
    South Florida
    Way to go Volvo Penta!! Add another "first" to their line of products, in addition to the Duo-Prop system, the first inboard/outboard drive and others! I would be surprised if production will be able to keep up with the demand.

    Thank you for bringing us this information Lars!! :)
  3. AMG, Nov 27, 2004
    #3
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Born Twins...

    As an additional information, at least initially, the new Volvo Penta IPS will only be delivered as a twin package. Included is the electronic shift/throttle and the electronic steering, making this a dream pack for the shipyards. One hole in the bottom for the steerable drive including water intake and exhausts. Only a set of wires to connect to the bridge/flybridge!

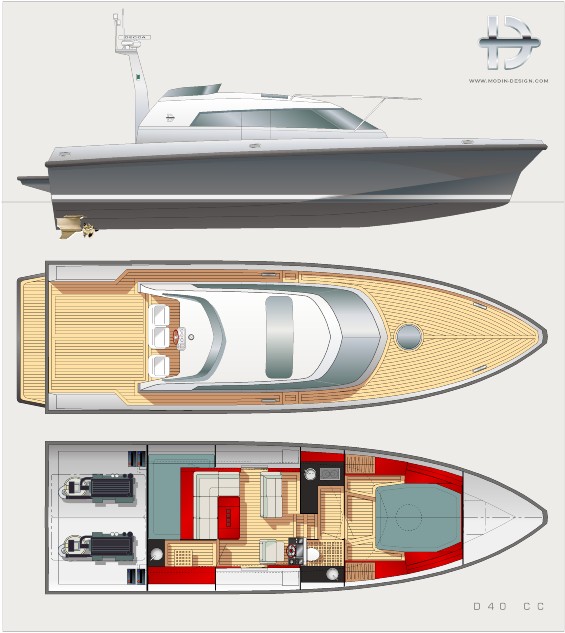

    As an illustration I have put the package with IPS 500 into my 40 feet design which I believe would be an ideal combination for a cruising speed near 40 knots. :)
