Need help on harmonic balancer removal

Discussion in 'Engines' started by cleanslate, Jan 14, 2022.

You need to be registered and signed in to view this content.
  1. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ

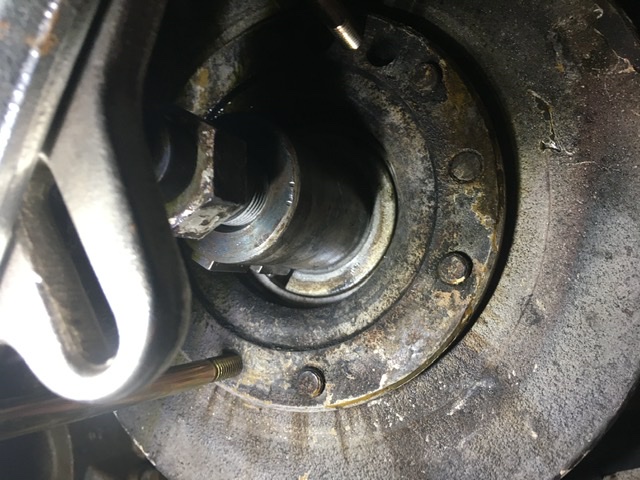

    CDCF2F4C-D075-49E0-985A-9B198A8B4C52.jpeg I need to replace the cracked and leaking harmonic balancer on my Detroit diesels 471s any ideas on how to get this thing off?
    No disrespect CR, just looking for more ideas….
    Including yours.
    It’s been soaking in penetrating oil for three or four weeks.
    I have used a air impact gun on it.
    I’ve tapped the back of the boat on the puller with a hammer.
    No luck yet.
    I also put some heat to it , on the front MAP gas…
    Last edited: Jan 14, 2022
  2. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ
  3. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ
  4. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ
  5. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,510
    Location:
    Satsuma, FL
    Getting time for a hydraulic puller. Start calling part stores or tool rental outfits.
    Give us the serial number and I'll check with my Detroit shop just in case we forgot something.

    I can see the cross bar starting to bow. Now it's acting like a shock absorber/spring board. Any thing heaver to use?
  6. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ
    Look over the drawing again .
    The “cones” are tapered , opposing tappers . Rear and front cone make a tapper sandwich. When the cam bolt is tightened down it pushes the pulley hub against the front cone , tightening down on the entire assembly against the rear cone tapper.

    Reached out to another older J and T guy today, he told me will never come off pulling it like in my photos. That just tightens it more.
    Need to tap the hub around in a circle, firmly directly towards the block , knock-er-loose ! Or loose knockers ! Which ever comes first!

    Then the front cone will come loose. Fish it out with a screwdriver at the split in the cone .
    Then slide everything off.
    Plan to leave the rear cone in and alone.

    That’s tomorrow plan. Will see .
    I’m hopeful.
    Been putting a lot of muscle on it the other way. Something not right .
    Change of direction, giving what I see and hear should work.
    Pulley came right off with a pulley puller , very little muscle…
  7. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ
    And for some reason my stuff is backwards , compared to the drawing.
    Hub bolt heads are facing the block.
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,510
    Location:
    Satsuma, FL
    Well, Look forward to hear/ read what happens.
  9. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ
    What ? That’s it?
    You saw the crack in the **** this 1000 miles way via computer photo!
    Lol
    You were right. I didn’t see it a foot away .
    Any way, both cones have a full length split in them. “I. E. “ Tapper bushing .
    The more you crank down on it . The more it tightens .
    It’s opposing tapper “ cone “ bushings…
  10. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ

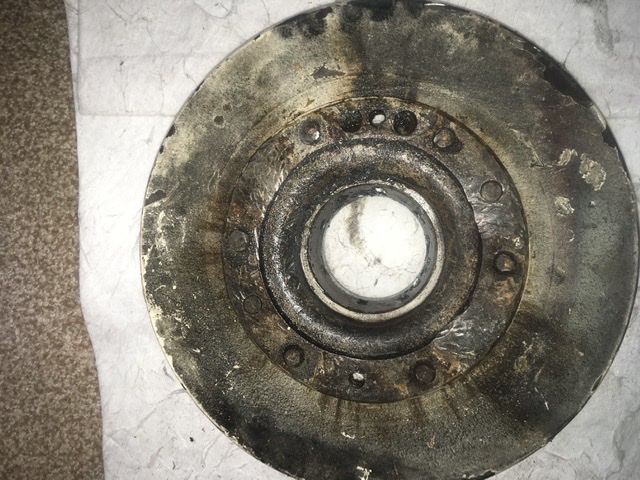

    1C842762-79DB-4299-B22B-0F61C44AE4F4.jpeg 1C842762-79DB-4299-B22B-0F61C44AE4F4.jpeg Got it off.
    I resorted to carefully drilling out in pieces the front cone and tapping them out.
    Then used my puller to get it off.
    CR from all the photos i’ve seen including my Detroit diesel service manual shows the hex bolts facing on the front Hub seems to be installed backwards for some reason ?
    Anyway the hub is tappers both sides with approximately 1/2” flat spot in middle.

    I’m getting all new parts .
    I am not replacing the rear cone…
    Nothing is leaking there, oil seal is good.
    Huge production for me to do that.

    photo of front side;
    chesapeake46 likes this.
  11. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ

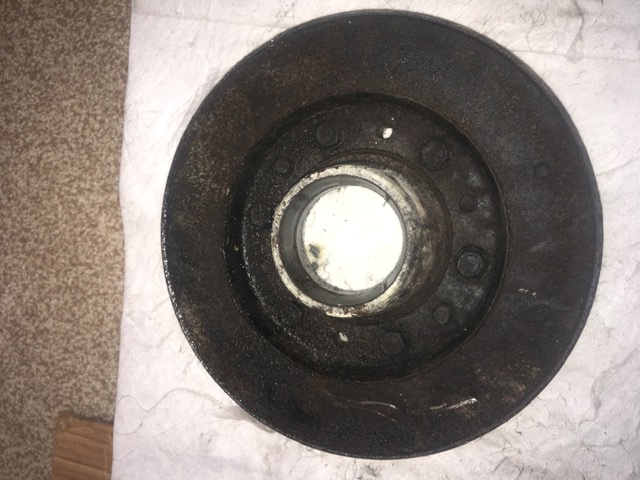

    FCCF6D16-CA1F-4D88-B3A1-12243850F2BA.jpeg Back size;
    chesapeake46 likes this.
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,510
    Location:
    Satsuma, FL
    WOW, What a trip..;);)
  13. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ
    J & T MT. Laurel NJ getting me the parts. Cleaned it up real well with acetone and rags. Found the MFG, model, and DD part numbers stamped on the back side of damper. It's an Original (my guess), 1979( year on my block) Houdaille Torsional Vibration Damper light viscous one piece, DD part no. 5177763 for the 471 only. Now made by Vibratech TVD Springville NY. Looking at the website they make dampers for all the DD motors and many other motor Mfgs.

    My parts drawing above is just a ''generic'' J & T drawing told to me by J & T, BUT, the part numbers are good for my 471. I'm quite sure the cones and hub are the same size for all the 71 series in the drawing.
  14. cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,382
    Location:
    Cherry Hill, NJ

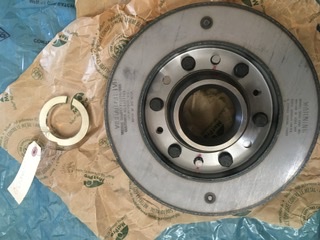

    5AF04508-BC83-4353-BDBA-CD19D9DDF4F9.jpeg Got the new harmonic balancer, new hub assembly, and front cone which was chrome plated ! Lol. The ONLY chrome “jazzy” thing on my motors .
    Now I’m in the big time .
    I’ll be sure to keep it ( cone) clean!

    Painted up the hub and balancer, installed last weekend.
    Ran the boat briefly while I had the belts off to the raw water pump.
    Much improved. Not 100%, around 8o% better. Will work on it further in the spring .
    chesapeake46 likes this.
  15. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,510
    Location:
    Satsuma, FL
    Outstanding good news again.
    I think it's already spring down here.
    Pollen heavy in the air.
