MTU SERIES 60 DIESEL ENGINE

Discussion in 'Engines' started by KRAIGKAV, May 14, 2017.

You need to be registered and signed in to view this content.
  1. KRAIGKAV

    KRAIGKAV New Member

    Joined:
    May 6, 2017
    Messages:
    2
    Location:
    San Diego CA USA
    Looking for opinions / advice on these engines . Getting opposite viewpoints from the Brokers .Year is 2006 understand that MTU had just purchased Detroit Deisel.
  2. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    They're good motors, they run smooth, efficient, and quiet for their size......they are not torquey like equivalent cats but not nearly as noisy either, so weight changes speed a little (full fuel/light on fuel). They had some aftercooler issues in that era but should long be solved by now.......They used them tons in semi's and they've got very good longevity.
  3. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    The 60s are great engines and easily serviced.
    The 60 & 70 series is probably the only MTU labeled packages I want to work on.

    The last 60 I serviced was a single engine install in a fat 55ish' trawler.
    After several years and many hours, the owner was still excited about his engine choice.
  4. KRAIGKAV

    KRAIGKAV New Member

    Joined:
    May 6, 2017
    Messages:
    2
    Location:
    San Diego CA USA
    Thank you for the input, very much appreciated. The other engines in a boat I was going to offer on are MTU 8V 2000 M93. Any input on these ?
  5. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,988
    Location:
    Dana Point, Ca
    The S60 is a 14 liter engine, producing up to 825hp at 2300rpms. The nearest equivalent of the time was a 14 liter 3406 CAT, which came in at 800 hp at 2300 rpm. Both are inline 6 cylinder engines.

    Since Torque (foot - pounds) is calculated as (5252 x hp)/rpm, you can only change hp or rpm so not sure what you mean by not as "torquey"? An apples to apples comparison would have to include the same gear ratio for each vessel, otherwise you are introducing another variable.
  6. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    "they are not torquey like equivalent cats"
    That confused me also. But let it go assuming he meant peppy like a 327 SBC. Vroom- Vroom.

    The 300 horse tune in the Large Cars, pull single and dual trailers up to 22000 lbs per axel, near forever.
    Probably the most popular motor used these last few years (then the series 70).

    I'm a 3406 fan also. Both engines will be supported for a very long time more to come.
    Last edited: May 15, 2017
  7. AdrenalinJunki

    AdrenalinJunki New Member

    Joined:
    Feb 21, 2011
    Messages:
    24
    Location:
    Pensacola, Fl
    My family used to run over-the-road trucks. Our 6-71's were overhauled at 250k miles. When we switched to 60 series overhaul intervals went to 1 million miles. I have no experience with the marinized version, but the truck engine was awesome.
  8. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    i ran 3 identical boats with the exceptions of the power plant, all at the same time and all were 2007's (as well as 45' cabo's with S60 and cats and mans). I ran 3 55' Neptunus cabriolets. 1 had 825hp series 60, 1 had C 15 cats 800 or 825hp, and 1 with 1000hp C18s and ran them all 1000s of NM's. They all had the same gear ratio. For a matter of purpose I won't talk about the c 18 boat. The series 60 boat full of fuel/water and food would only cruise at 23.6 knots at 80% load, then once you burned off 1/2 fuel 80% load would run the boat 25.6-26 knots..... the C15 boat would cruise at 25.6 knots at 80% load full of fuel, 26.5 knots 1/2 full of fuel. The C18 boat loaded......80% load was 2 knots faster than the same HP series 60 boat. The series 60 didn't have the torque to carry the weight. The series 60 boat also took noticably longer to get on plane......boats were sisterships with identical equipment. In larger waves rpms would dip and rise as much as 75 RPMs at the same throttle setting with the series 60, whereas the most the rpm's varied were 20 rpms with the CATS. The series 60's acted the same in the 45' cabo's versus the 800hp cats (cabo used 3196's or later C15/18s).....

    Man's are the same way......they don't have the brute torque of the CATs.....in the 62' Sunseeker predator.......full fuel/water, etc..... 80% load is 1960 rpms and 24.6 knots......as soon as you burn off 160 gallons of fuel (2 hours) rpms at 80% load increase 100 rpms and speed is about 27 knots.....and at 1/2 tank 80% load is 2100rpms and 29 knots........we're talking about 350 gallons of diesel in weight on the same trip on the same day with the same sea state. And, no the boat is not overpropped, with full fuel and water it makes 2360 rpms and rated for 2300rpms or above with full weight.

    Different motors make different torque ratings at different RPM points, pull up the propellor charts for both a series 60 and say 3406 Cat both 800 HP and you'll see the CAT's make more torque and they make more torque early on in the rpm range.......
    Jack P likes this.
  9. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    With all this; What boat are you looking at with the Series 60 in? The M93s in the same model boat?
    I can't tell you about the V8-M93s, maybe some here will get to it.
  10. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,988
    Location:
    Dana Point, Ca

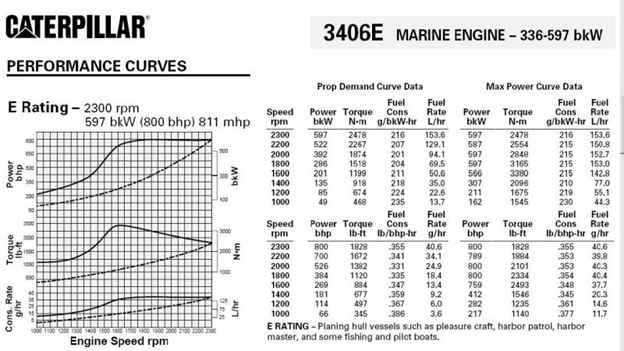

    The CAT 3406 has a torque advantage in the 1600 - 1800 rpm mid-range while the S60 has the torque advantage above and below that 200 rpm mid-range.

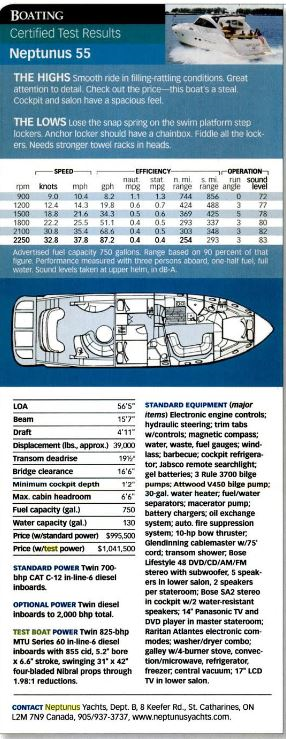

    But how was the Neptunus 55 Cabrio with S60 propped? The only boat test I could find showed a max rpm of 2250, which is about 100 rpm off for a test boat. What rpm where you running at 80%load?

  11. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    I don't remember how either boat was propped. I do remember both barely made it over factory rated full RPM's at full weight. Both made 10-15 rpms over factory rated. Series 60's are 2300 rpm motors.....C15's and C18's are 2350 rpms . Had issues with both engines. The series 60 had a leaking aftercooler on the port engine at 2 years old and 200 hours....they changed both aftercoolers under warranty.......Port V drive also had a leaking lip seal taken care of under warranty. The C15 boat had a head gasket leaking coolant on the port engine and they had to yank the head. The 55' Cabriolet is a very good riding and running boat though.
  12. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    asking again
  13. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    I remember when the Series 60 was first being offered to the general market. They gave a case study using a JB Hunt I think it was from Alabama semi, It was stripped at 1,000,000 miles and found to be in good shape. There was one thing that did get my attention though and that was the mention of the crankshaft of that engine having been replaced as routine maintenance at some much lower mileage.

    That said, I know a few guys who are still in the truck repair business who sing the praises of these and a couple of others.
  14. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    Yes, the series 60s are very well regarded in tractor trailers. However they're also at the 600hp rating or below in tractor trailers. They're a good motor longevity wise in yachts.
  15. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,988
    Location:
    Dana Point, Ca
    All manufacturers on-highway ratings are exceeded by their off-highway marine applications across the board.
  16. Robertoman

    Robertoman Member

    Joined:
    Dec 15, 2010
    Messages:
    71
    Location:
    San Diego
    If you want to see these engines in a dyno pull. Check them out on u tube.
    The 1000hp C 18 Cat had brute torque, the 1000hp man not so much. Impressive watching these brutes under load, with numbers.
    I think the big difference between marine and on-highway ratings is that it is a lot easier to keep the coolant temperature where it needs to be with seawater as the cooling medium.
  17. bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    1,149
    Location:
    Florida
    Saw a couple of nice RPH's with those engines. How available are parts and service for the Series 60?
  18. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,988
    Location:
    Dana Point, Ca
  19. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    The DDC engine parts are everywhere (ie valve cover gasket, main bearings).
    The marinized parts (ie water cooled manifold, heat exchanger) may only be thru MTU or any FL/DD-A_MTU shop.
  20. bayoubud

    bayoubud Senior Member

    Joined:
    Feb 19, 2017
    Messages:
    1,149
    Location:
    Florida
    Thanks , good info.
