MS de Vries Lentsch, 14,85 m, stern tube sealing

Discussion in 'Props, Shafts & Seals' started by Pit, Feb 9, 2024.

You need to be registered and signed in to view this content.
  1. Pit, Feb 9, 2024
    #1
    Pit

    Pit New Member

    Joined:
    Feb 9, 2024
    Messages:
    2
    Location:
    Cologne

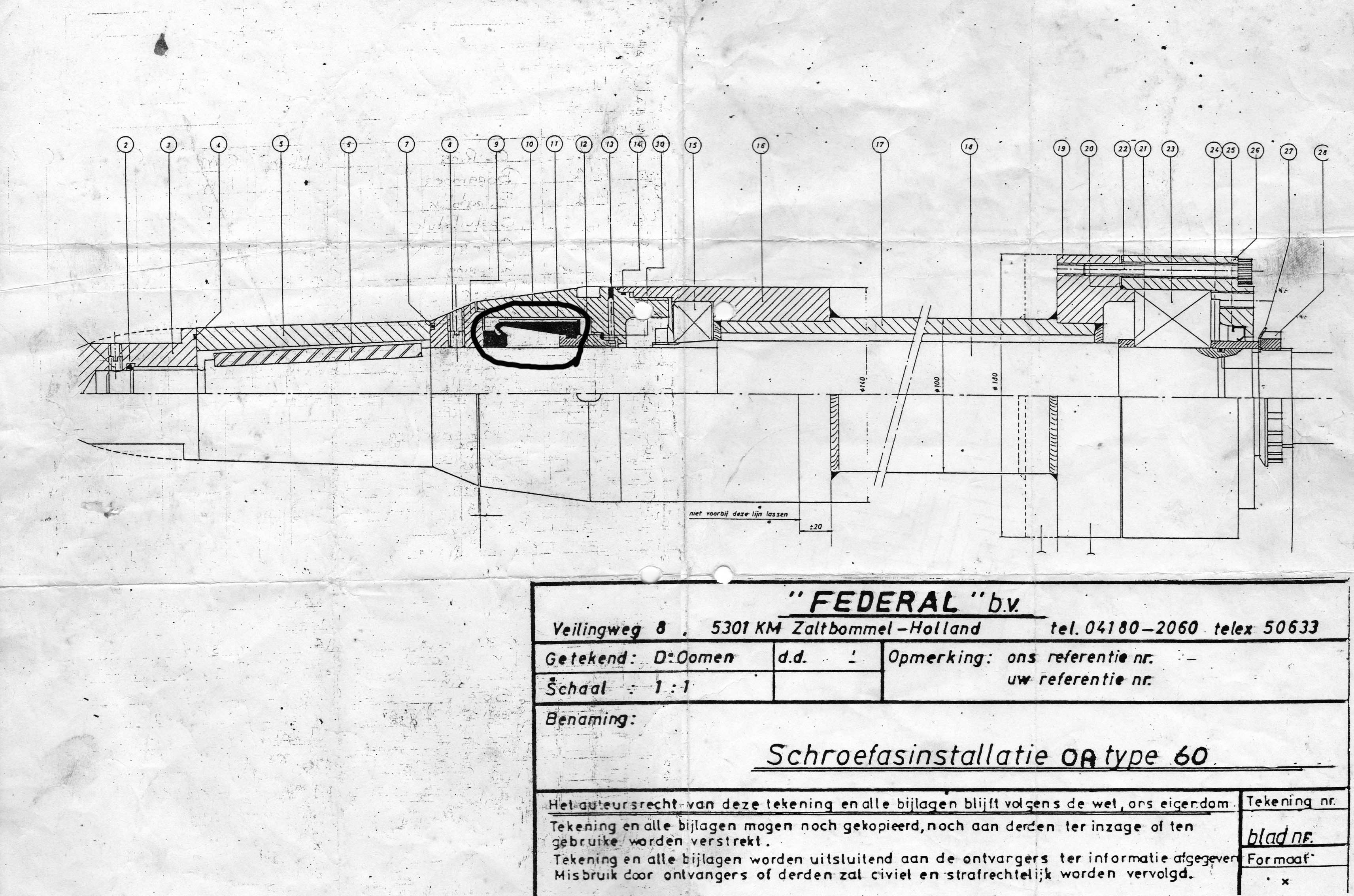

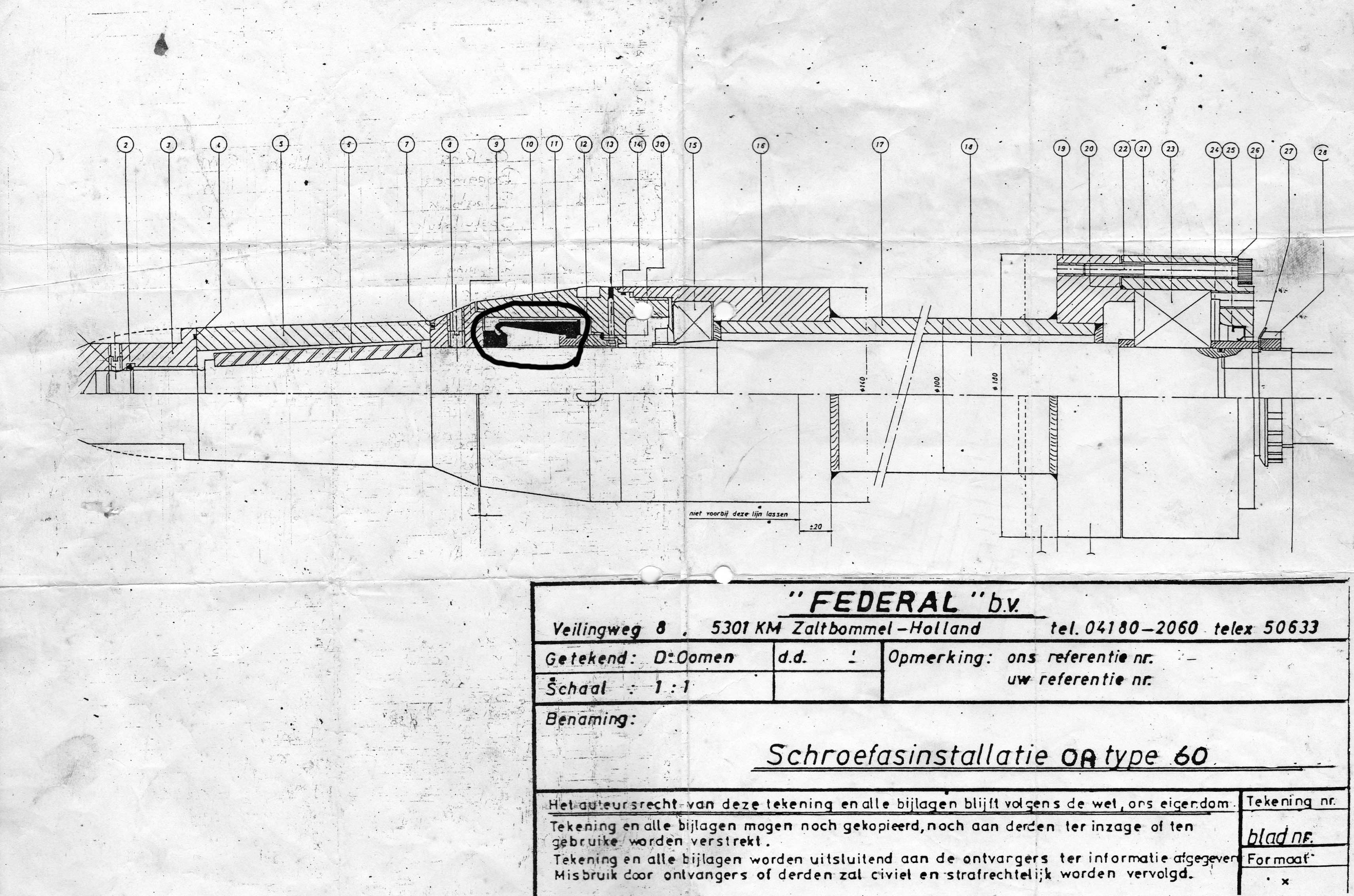

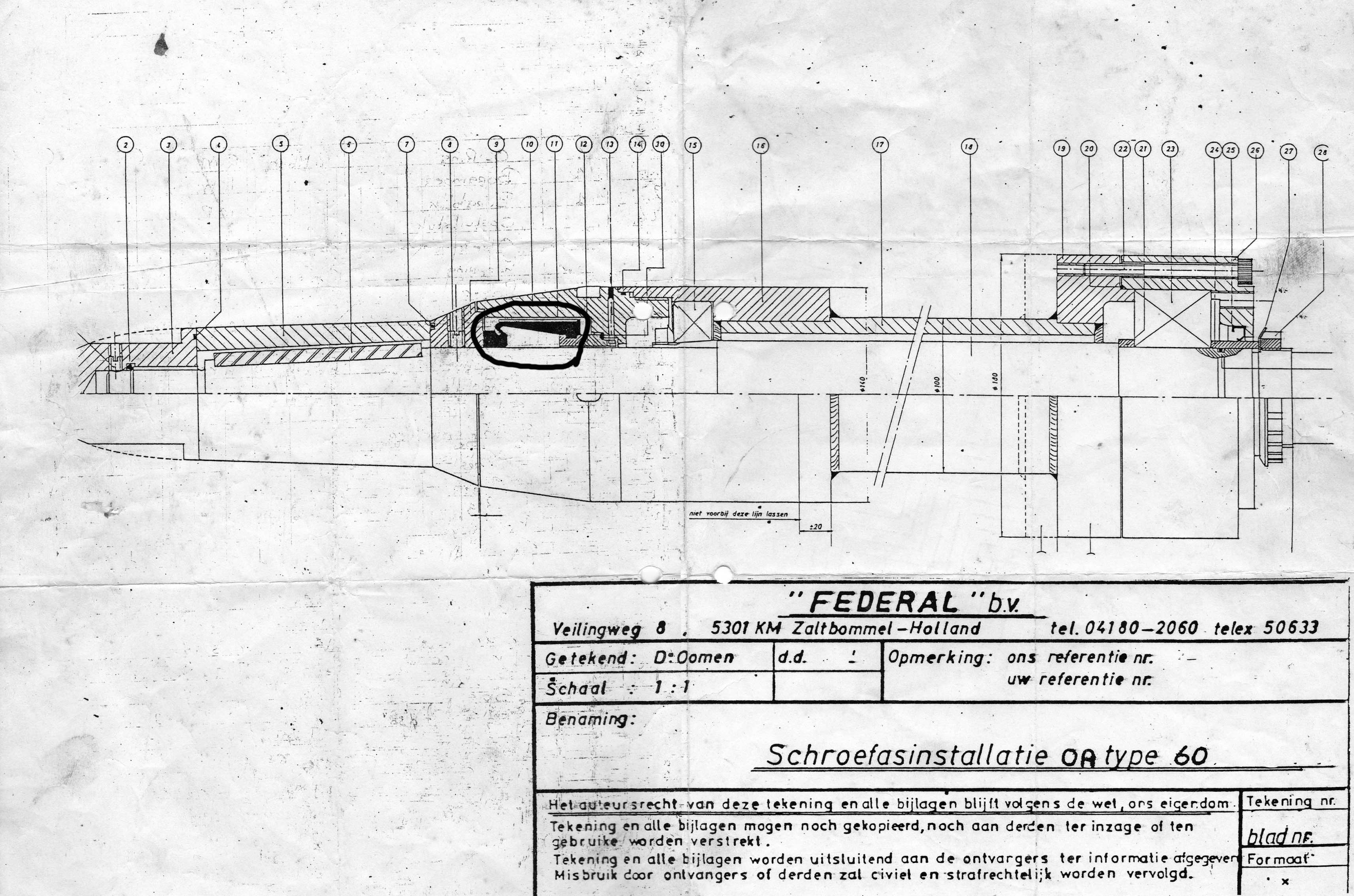

    I wonder if there is anyone who has an experience/advice regarding refurbishing of the aft seal of stern tube. The technical drawing is attached and the seal marked. Thank you in advance, Pit

    Attached Files:

  2. K1W1, Feb 9, 2024
    #2
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,426
    Location:
    My Office
    The seal on an oil filled stern tube is easy enough, getting the hub nut off is going to be the tricky bit
  3. Pit, Feb 10, 2024
    #3
    Pit

    Pit New Member

    Joined:
    Feb 9, 2024
    Messages:
    2
    Location:
    Cologne

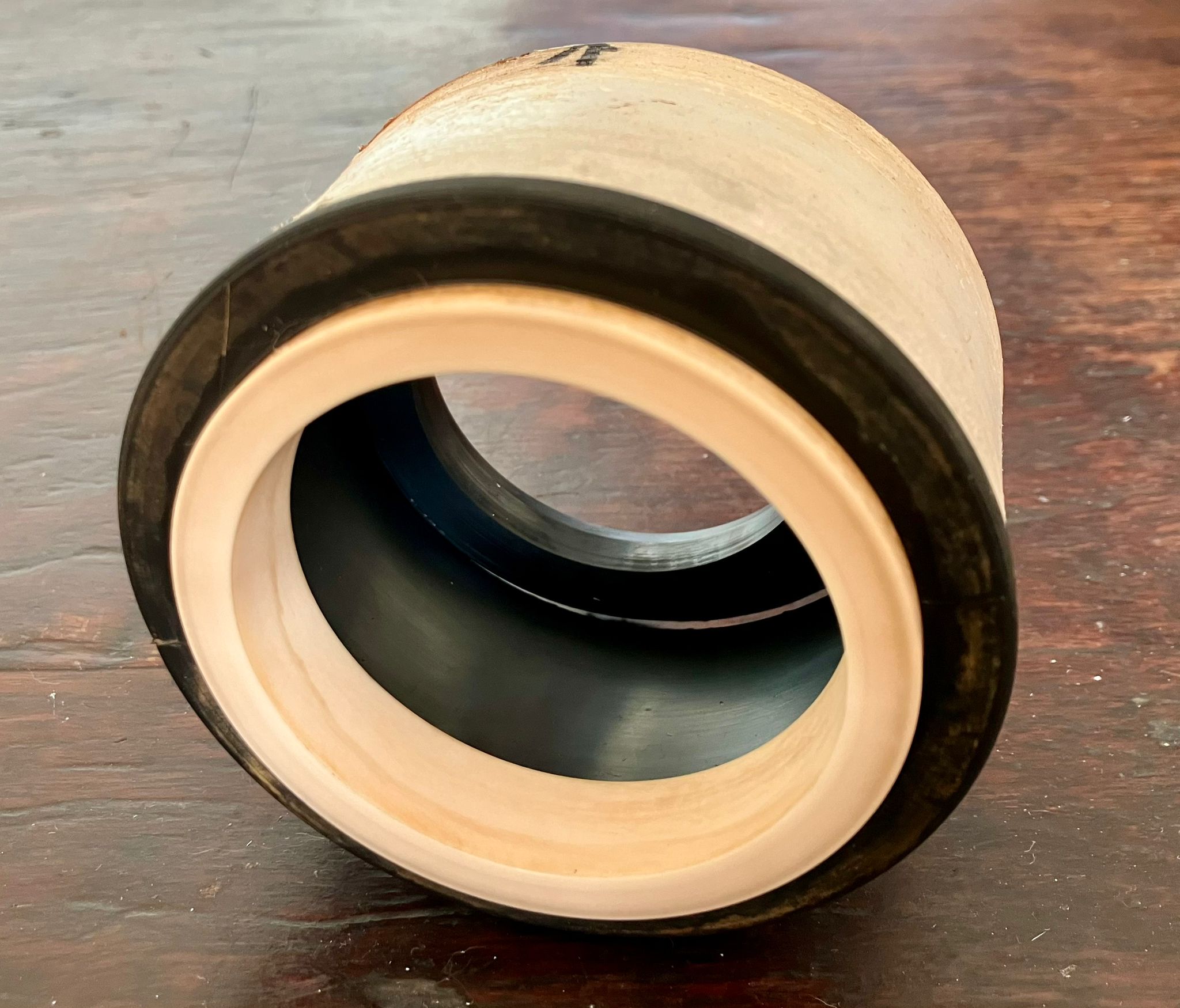

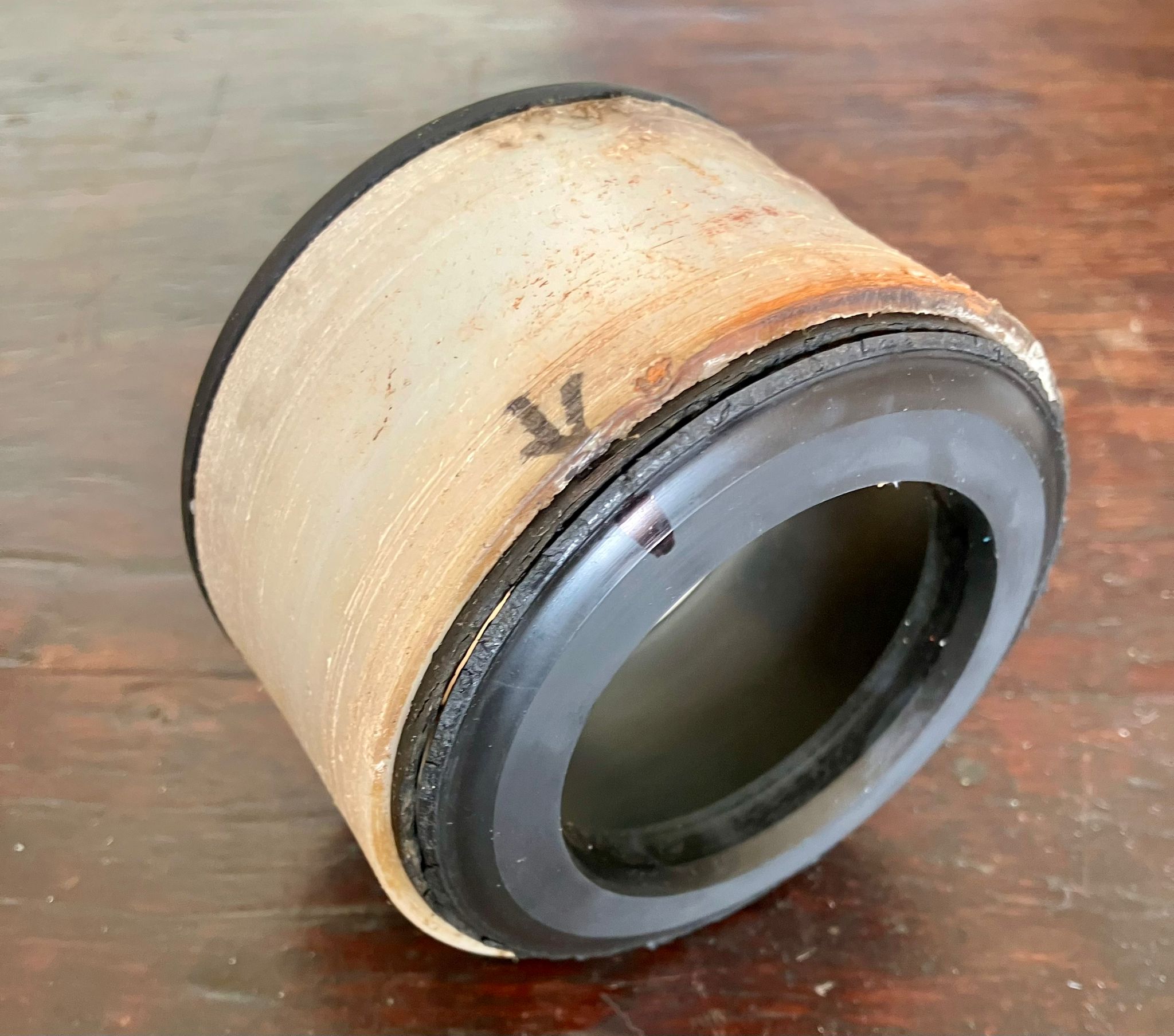

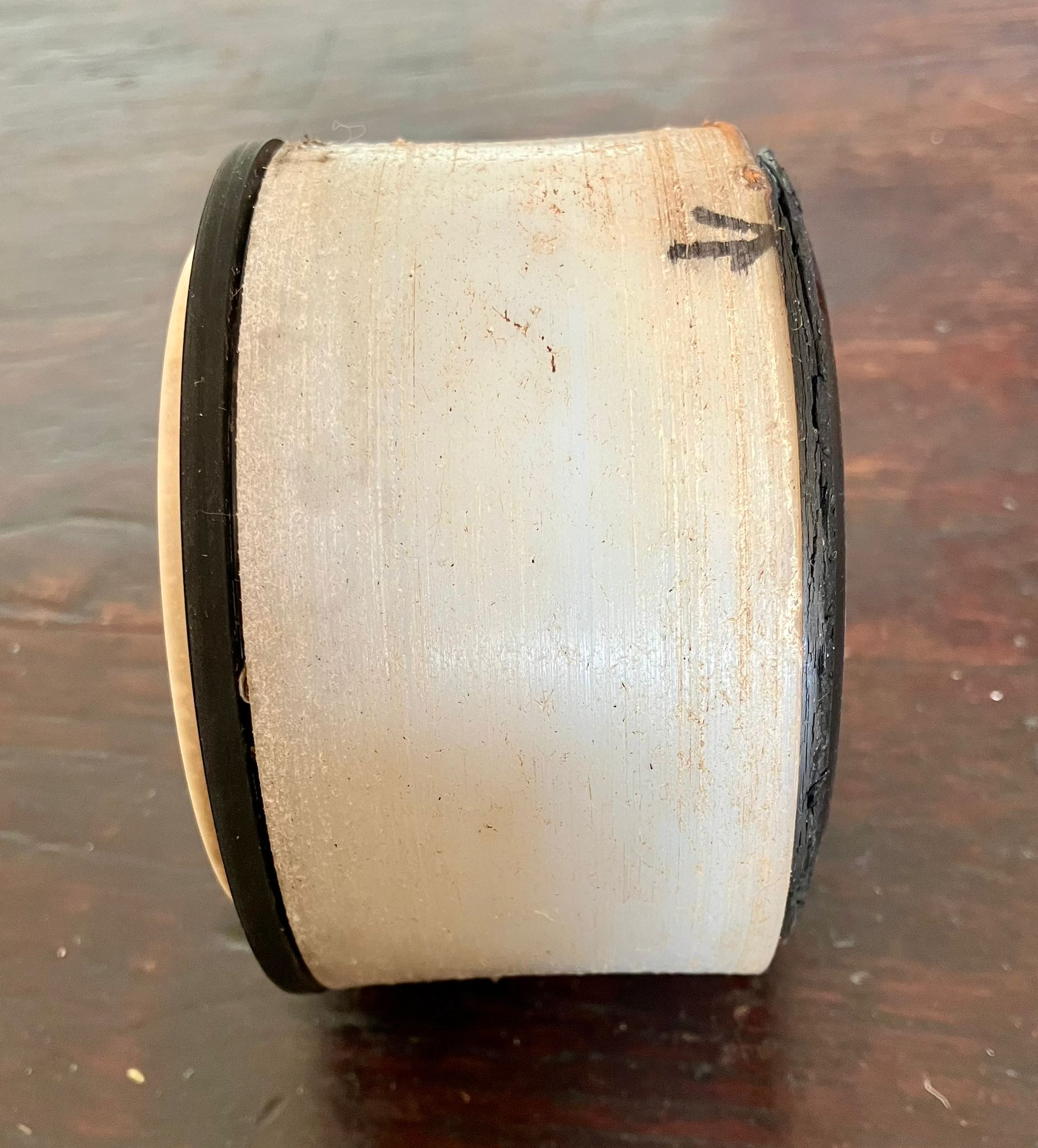

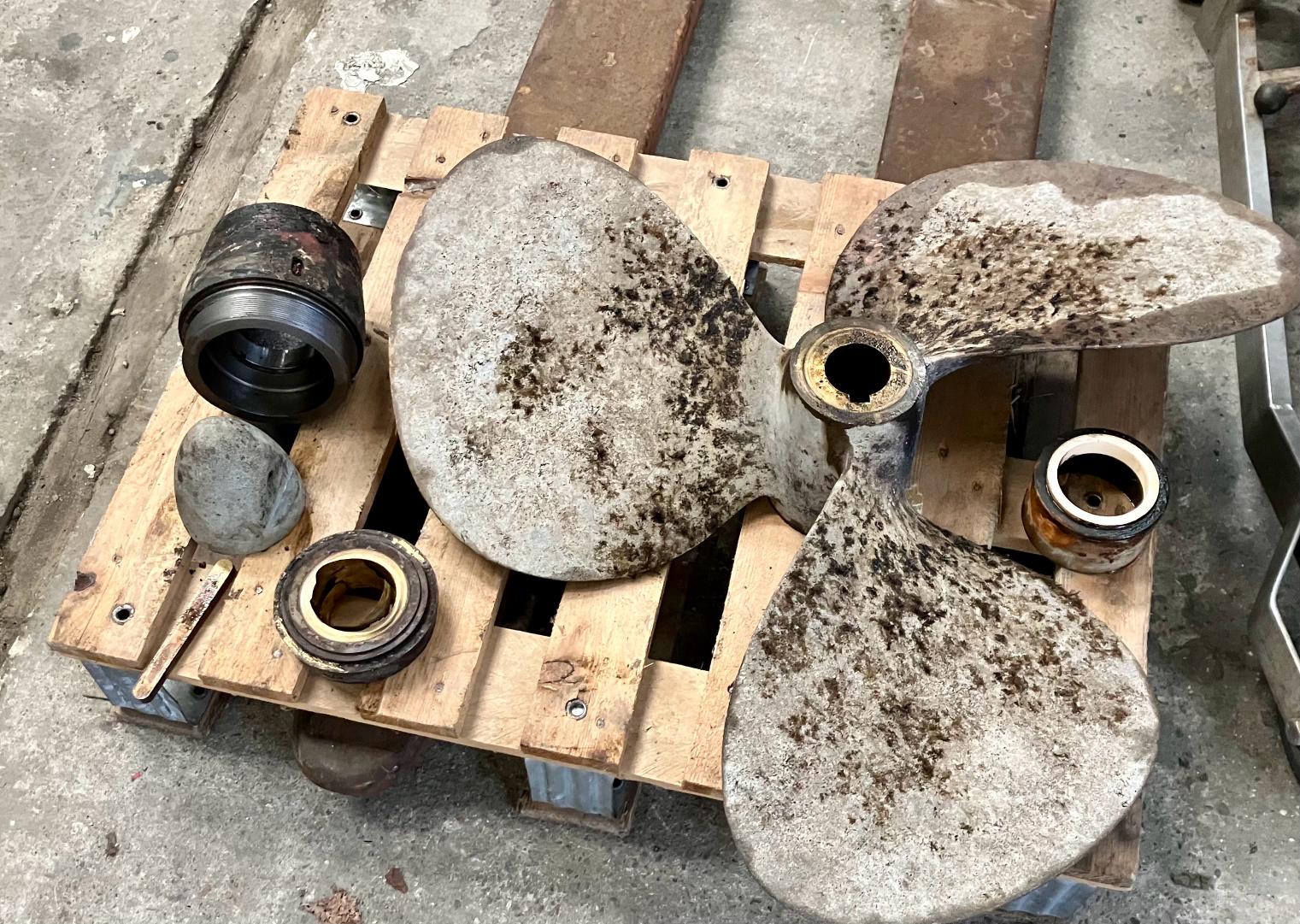

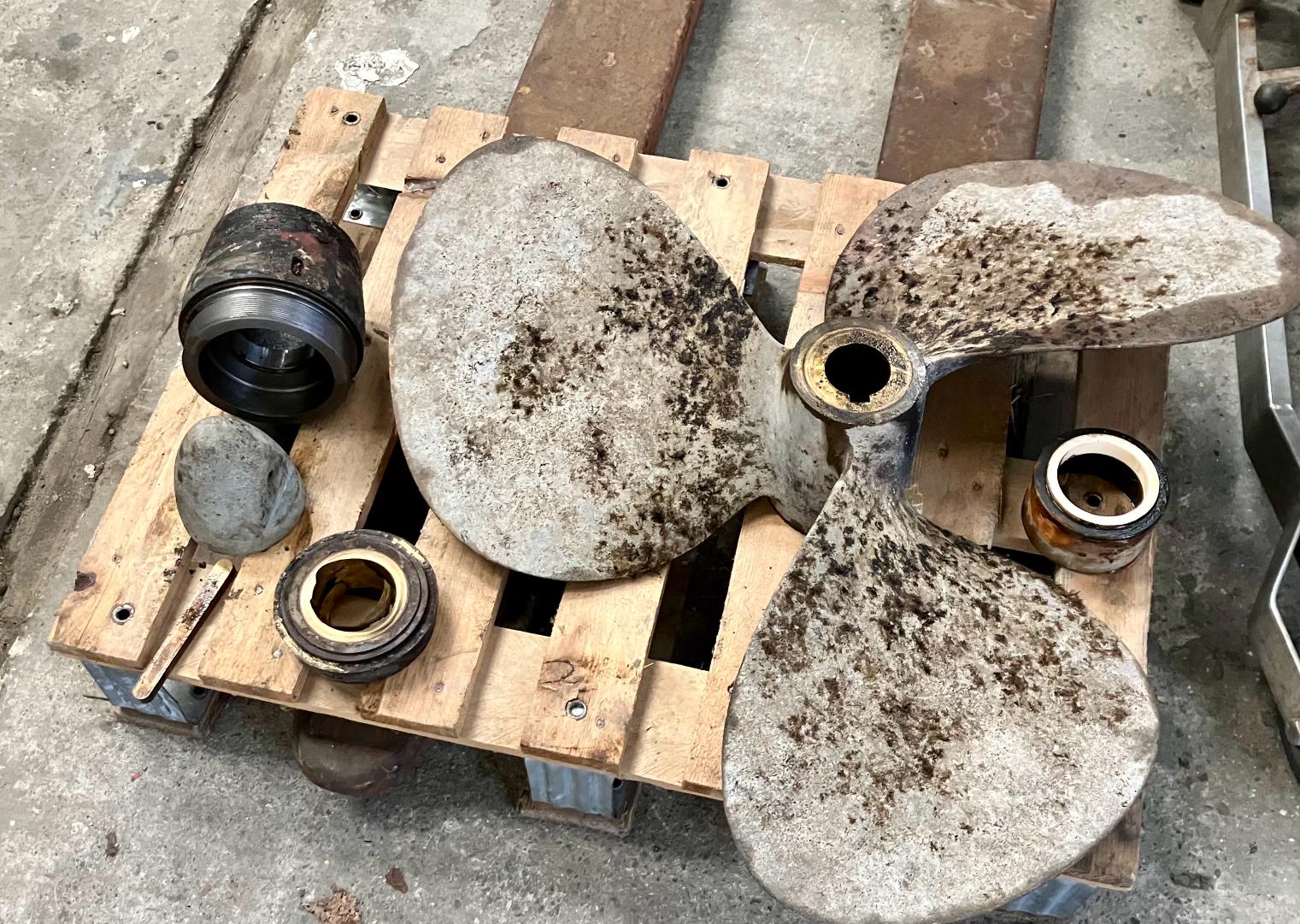

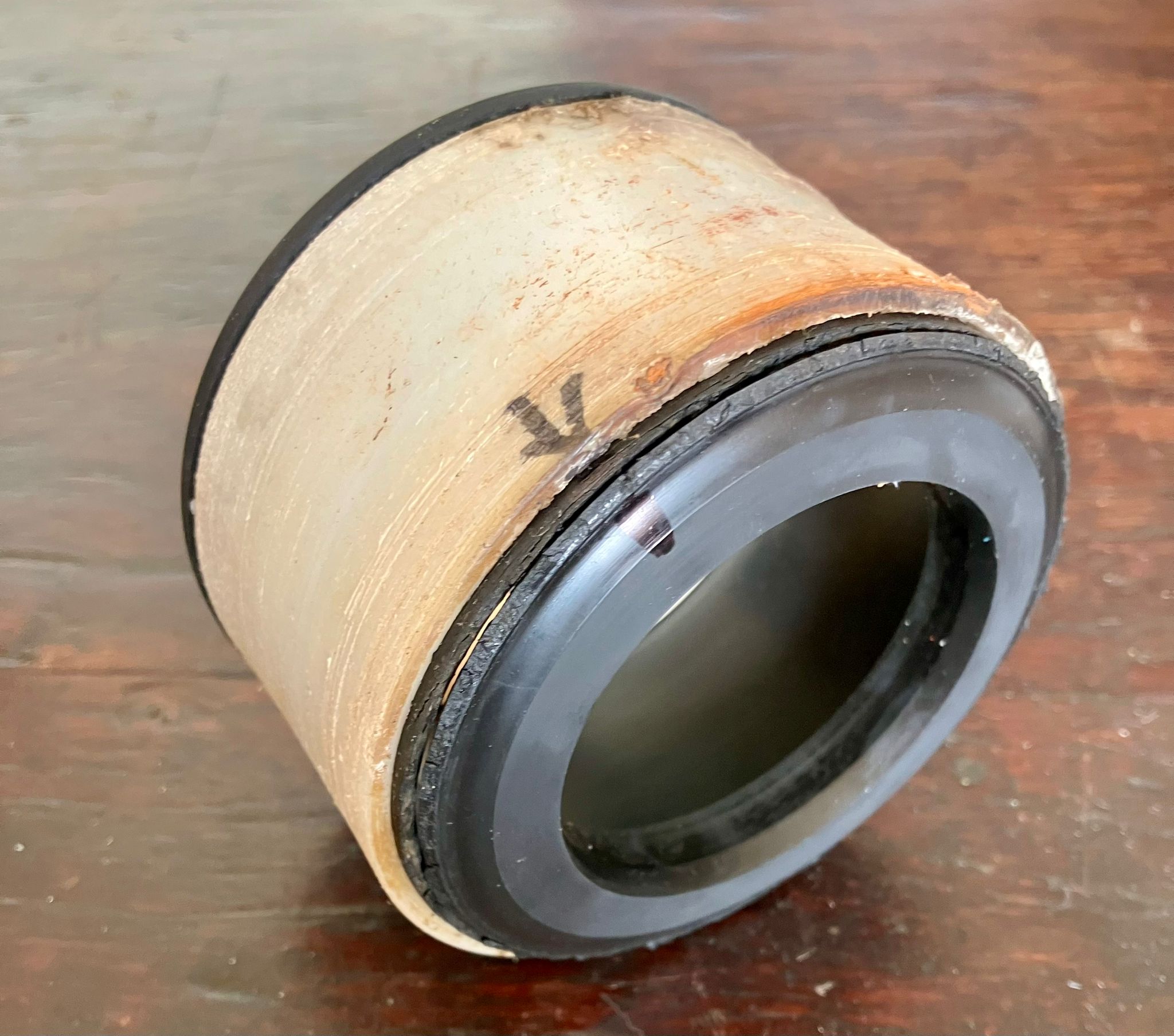

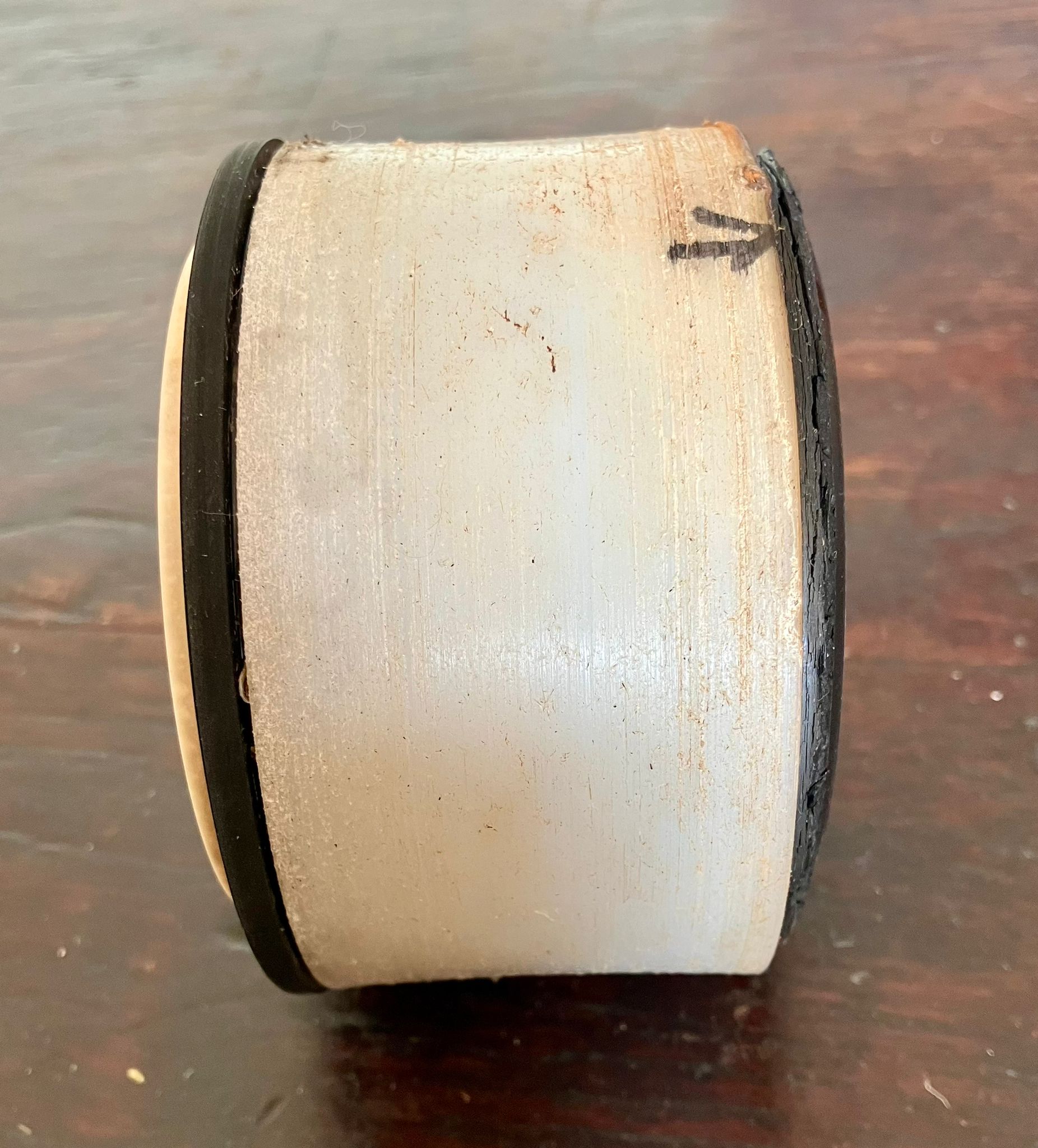

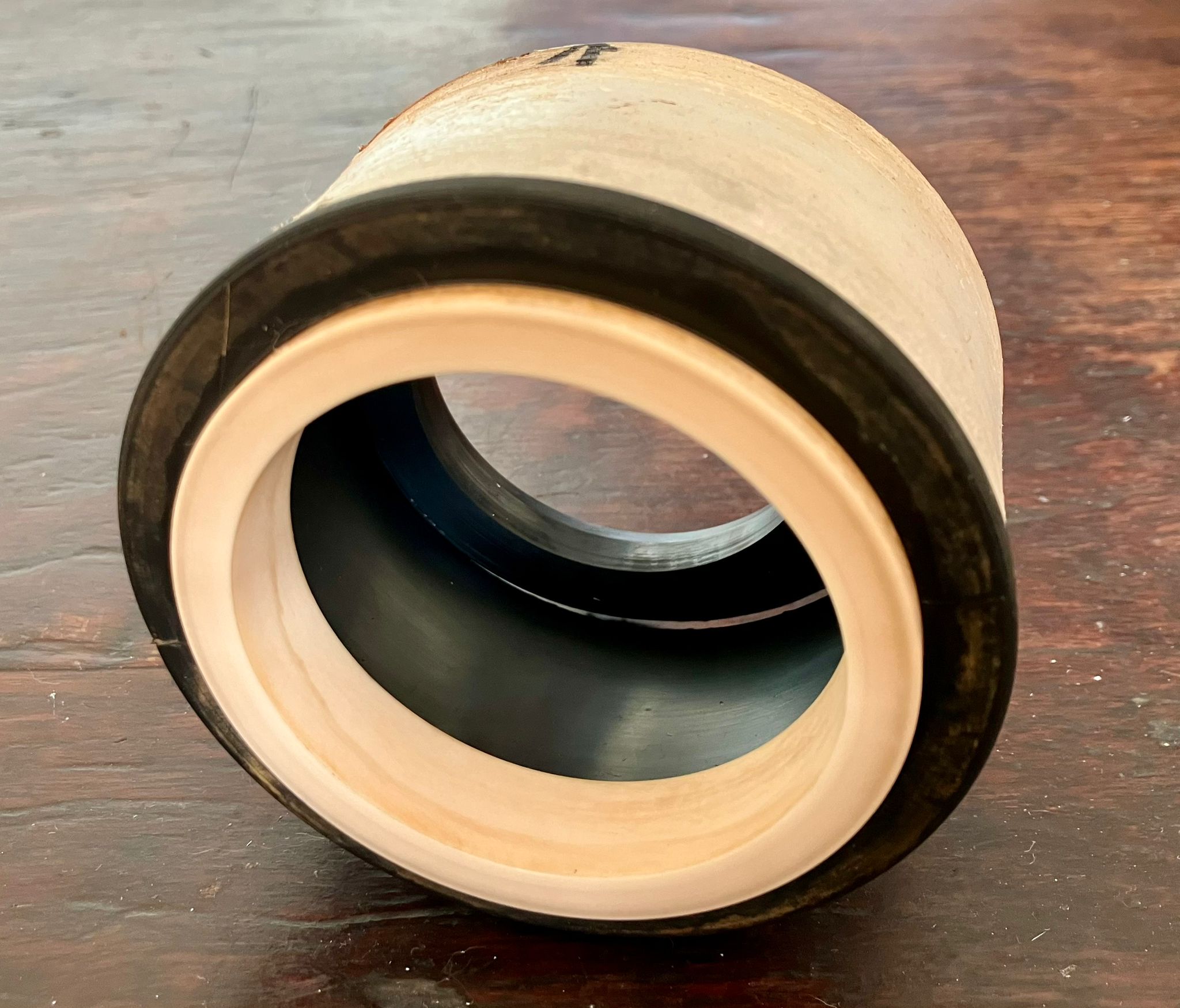

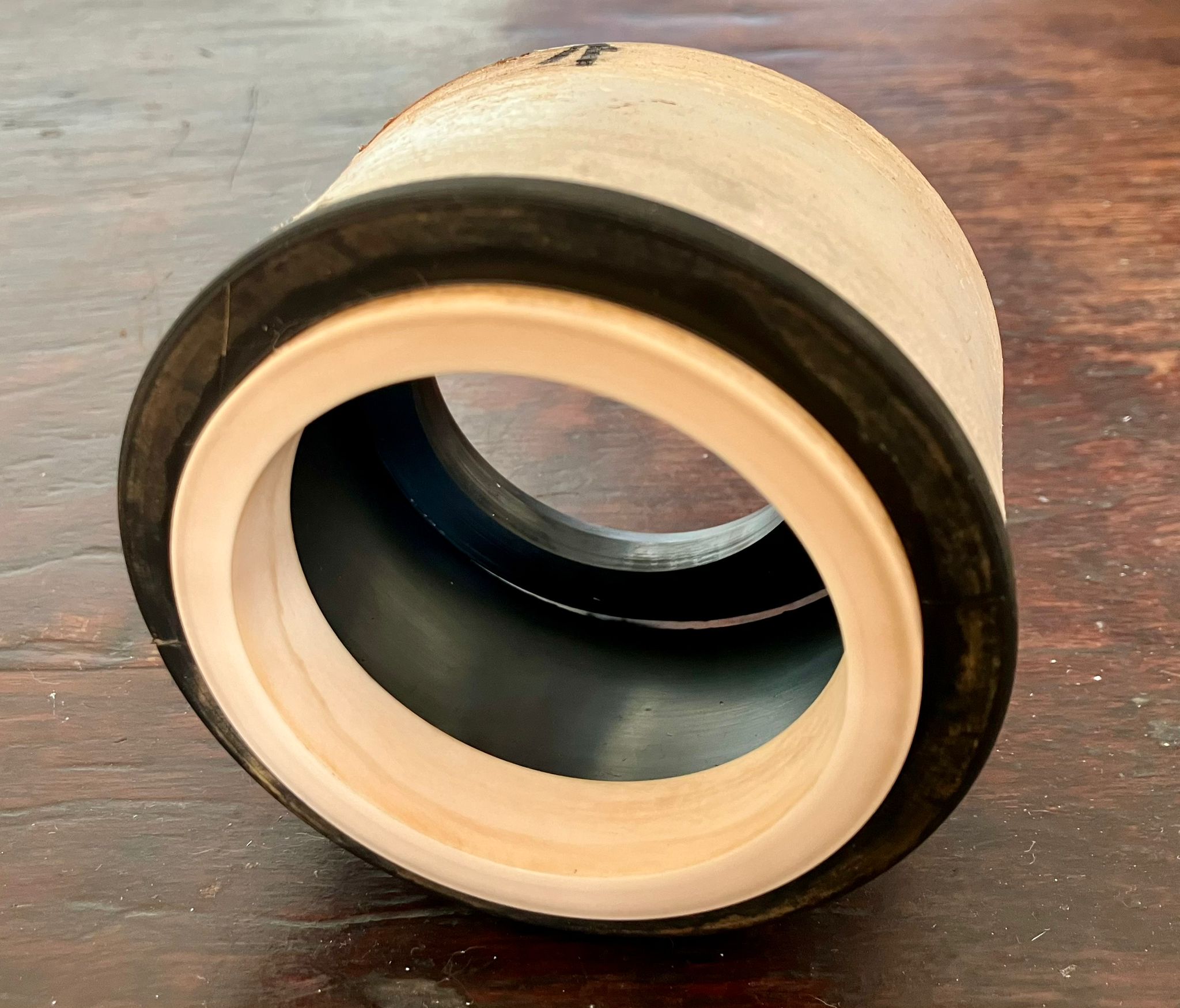

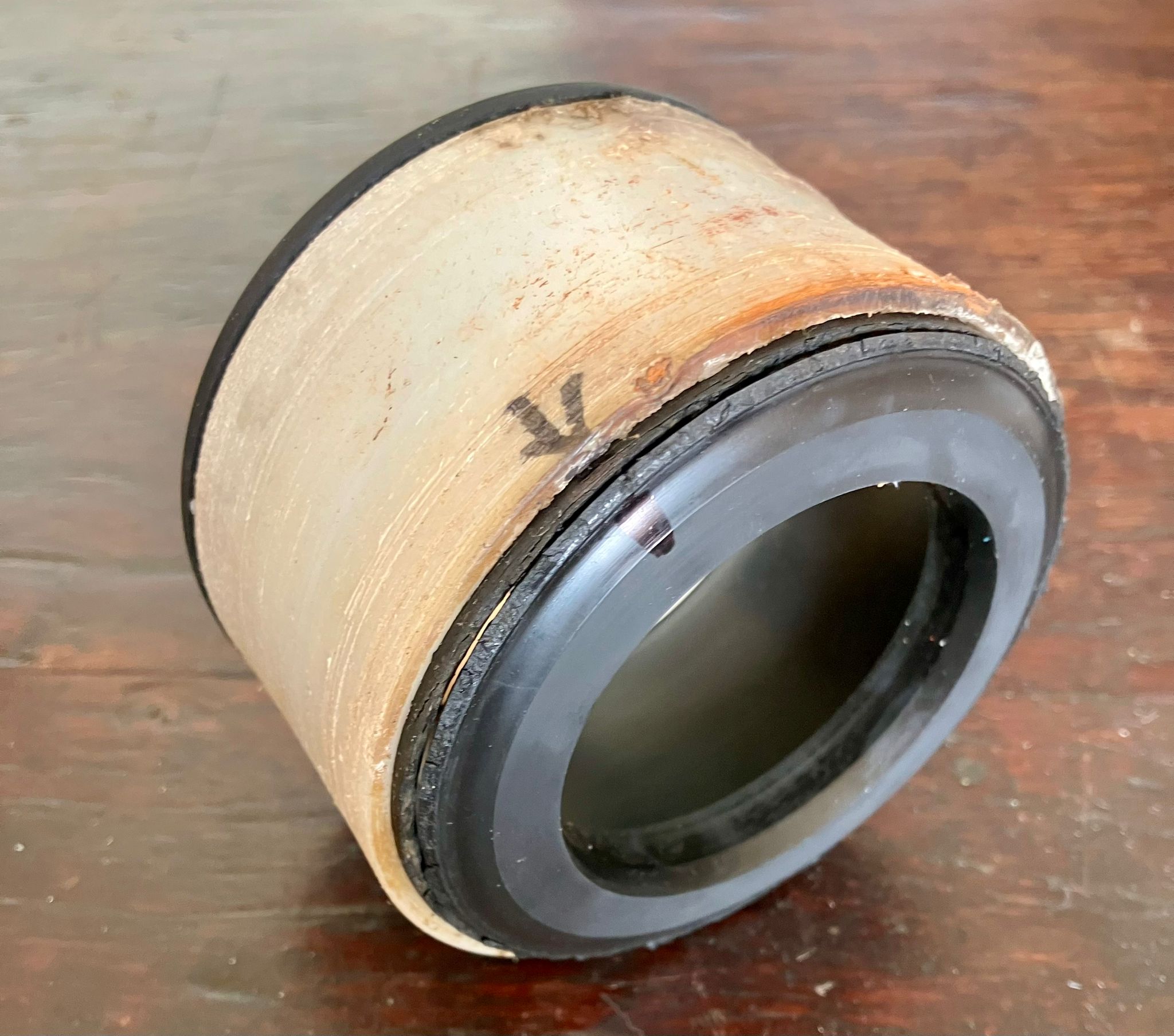

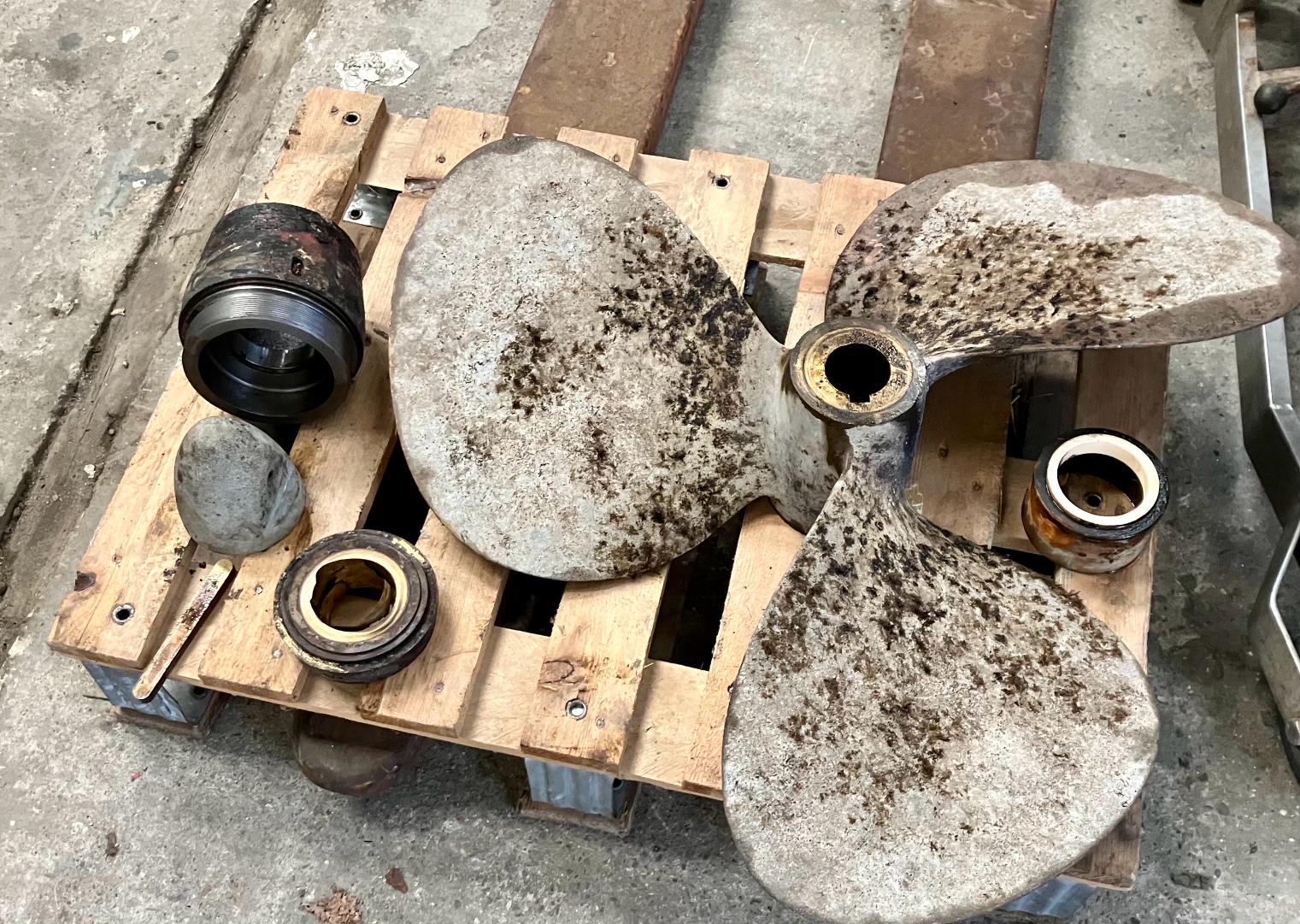

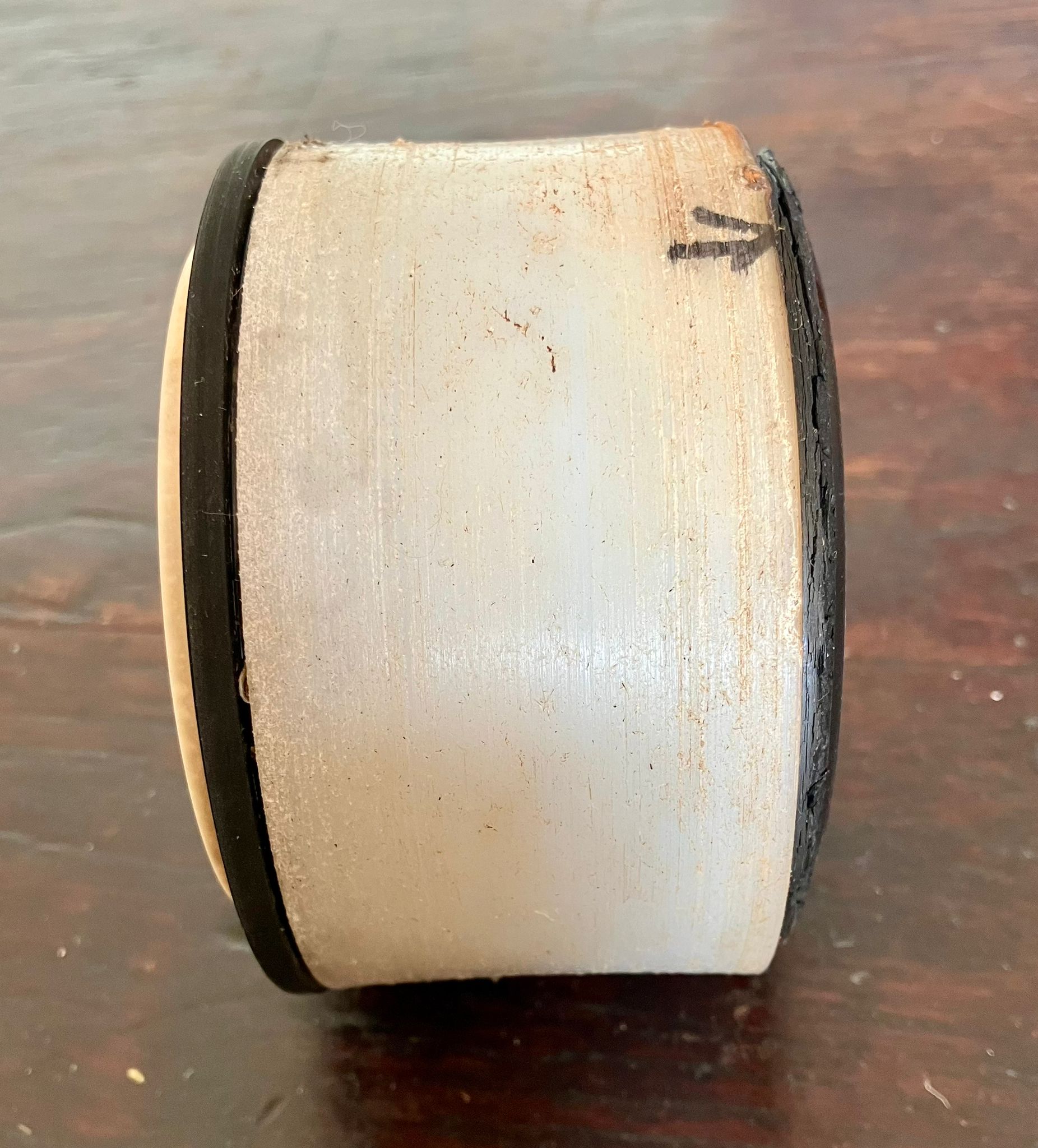

    thank you, exactly as you said, after 40 years in service, disassembly was not easy. The seal itself is fixed within plastic tube and secured by another plastic ring. Up to now I was not able to find any similar so I assume it will end up with some modification to accomodate a contemporary seal.

    b4e7a605-9e39-464e-94bf-09f392233faf.jpeg 061a5c01-f641-474b-b43d-2b6185d118b4.jpeg 36bfa071-cb8b-44f9-9e8c-a8c13223db23.jpeg 0716089d-e796-4238-97c6-48230322da11.jpeg b4e7a605-9e39-464e-94bf-09f392233faf.jpeg 061a5c01-f641-474b-b43d-2b6185d118b4.jpeg 36bfa071-cb8b-44f9-9e8c-a8c13223db23.jpeg 0716089d-e796-4238-97c6-48230322da11.jpeg
  4. K1W1, Feb 10, 2024
    #4
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,426
    Location:
    My Office
    Contact Akerboom in Holland, they used to make all the stern tubes and seals for De Vries
    Akerboom Yacht Equipment
    Hoge Morsweg 113a
    2332 HJ Leiden
    Netherlands

    +31 71 576 1600
    akerboom@ayeholland.nl
