MAN V12-1550 cranking amps

Discussion in 'Engines' started by xF_PP, Mar 27, 2016.

You need to be registered and signed in to view this content.
  1. xF_PP, Mar 27, 2016
    #1
    xF_PP

    xF_PP New Member

    Joined:
    Aug 3, 2013
    Messages:
    37
    Location:
    Moon
    Non of my manuals recommend the 24V Amps needed for cold cranking my twin V12-1550's.
    What is the max 5sec discharge current or MCA I have to plan for?

    The starters do have a 6.5kW rating.
    Last edited: Mar 27, 2016
  2. Capt Ralph, Mar 27, 2016
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,427
    Location:
    Satsuma, FL
    My short library does not give a battery Amp spec either.
    The math proves 271 amps (w/v=a).

    Are you battery shopping or chasing down a problem?

    After the parasitic drops and losses thru the systems, a pair of 4Ds should do it, maybe a pair of good 31s @ 650CCAs. Just for starting with no problems.

    Usually the starting batteries are tied to the house or electronics that would require a bit more reserve.

    My observed history on the V-10s show in line 8Ds @ 1100CCA each.
    One customer had a pair of those square Odyssey batteries (1250CCA) turning the MANs over with no problems and the electronics usually stayed up.

    Good 4/0 cables make a difference also.
  3. BoulderGT3, Apr 3, 2016
    #3
    BoulderGT3

    BoulderGT3 Senior Member

    Joined:
    Jun 19, 2014
    Messages:
    168
    Location:
    Ftl
    FWIW, my 1550's have 3 dedicated group 31's for each motor.
  4. K1W1, Apr 4, 2016
    #4
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    How are the 3 per engine connected?
  5. BoulderGT3, Apr 4, 2016
    #5
    BoulderGT3

    BoulderGT3 Senior Member

    Joined:
    Jun 19, 2014
    Messages:
    168
    Location:
    Ftl

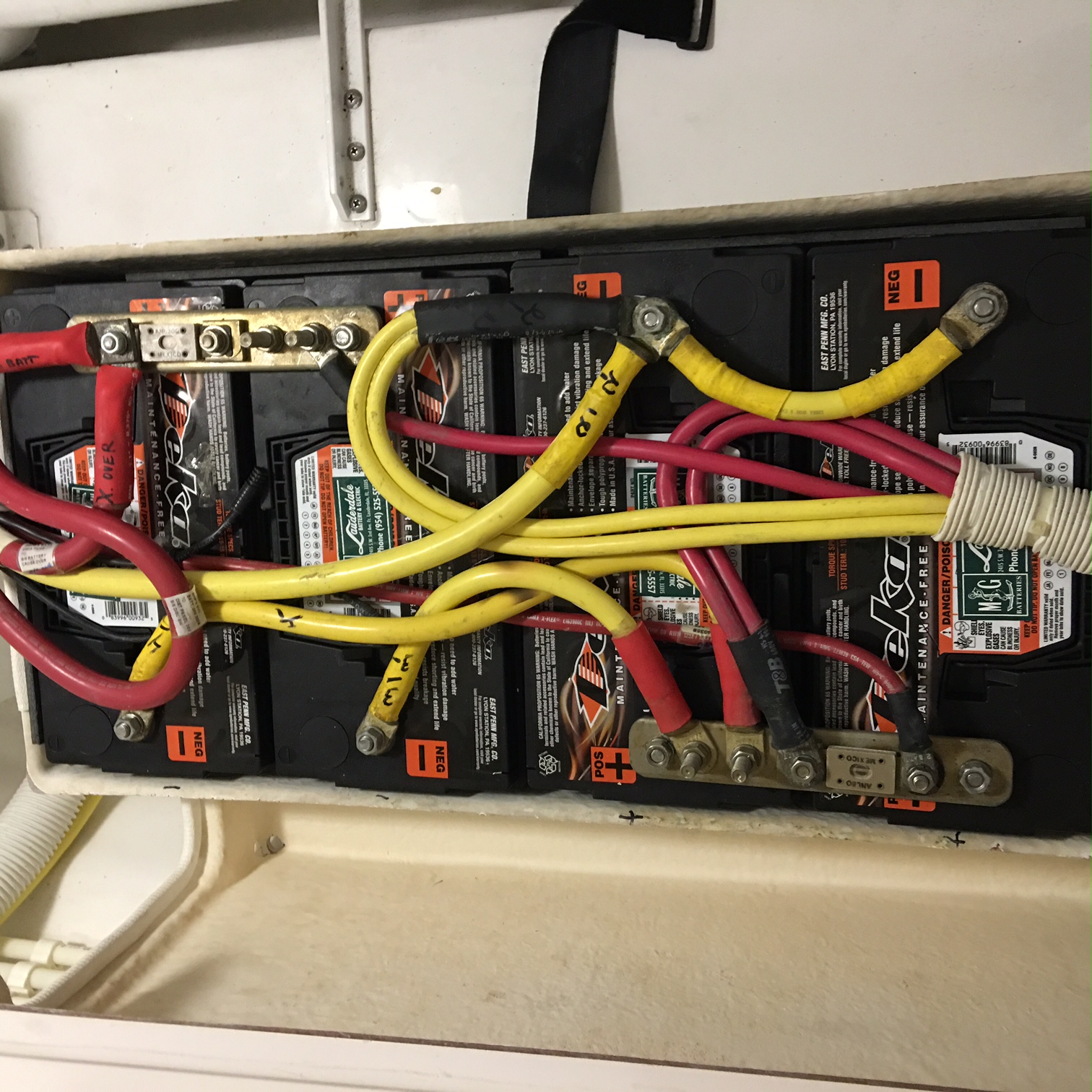

    K1W1- Apologies for the typo on my end, typing on a small screen.... 4 batteries on each side paired up to get 24v. I just replaced them a month ago. It came from the viking factory with this configuration instead of 8d's. I've not computed CCA comparisons as it's always worked well and they are easier to handle. I've never had to go to dual even when the other batteries were end of life. IMG_0215.JPG
  6. Capt J, Apr 5, 2016
    #6
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,524
    Location:
    Fort Lauderdale
    4 Group 31's should have plenty of CCA's to roll them over. Call a MAN dealer, but I run a boat with 1100 common rails and 2 group 31's fire it off and was how it was set up from the factory.
