Largest diesel engine in the world!

Discussion in 'General Yachting Discussion' started by YachtForums, Jan 9, 2004.

You need to be registered and signed in to view this content.
  1. YachtForums, Jan 9, 2004
    #1
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    Largest diesel engine in the world...

    Check out this link...

    http://www.bath.ac.uk/~ccsshb/12cyl/

    Some facts on the 14 cylinder version:

    Total engine weight: 2300 tons
    (The crankshaft alone weighs 300 tons.)

    Length: 89 feet
    Height: 44 feet
    Maximum power: 108,920 hp at 102 rpm
    Maximum torque: 5,608,312 lb/ft at 102rpm

    This is the crankshaft...

    Attached Files:

  2. YachtForums, Jan 9, 2004
    #2
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida

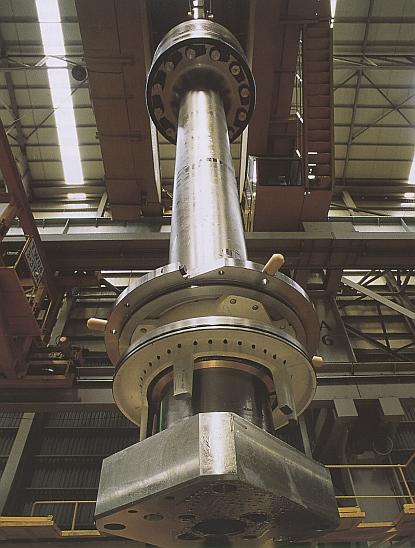

    This is the piston and connecting rod...

    Attached Files:

  3. YachtForums, Jan 9, 2004
    #3
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,611
    Location:
    South Florida
    These are the cylinders...

    Attached Files:

  4. CTdave, May 12, 2004
    #4
    CTdave

    CTdave Senior Member

    Joined:
    Mar 21, 2004
    Messages:
    876
    Location:
    Greenwich CT/ Stuart FL
    I bet that would make my 42 Post go a little faster
  5. John B, May 12, 2004
    #5
    John B

    John B Senior Member

    Joined:
    Jan 28, 2004
    Messages:
    94
    Location:
    New York
    This isn't an engine for a ship. It's really the power plant for a robot to stop Godzilla before he attacks Tokyo again.

    Why else would you need 5 million ft/lbs of torque!

    That thing is insane. I love the ladders integrated into the block to climb down into the crankcase. What kind of warranty does it come with?
  6. JHA, May 13, 2004
    #6
    JHA

    JHA Senior Member

    Joined:
    Apr 5, 2004
    Messages:
    75
    Location:
    Ft. Lauderdale
    fuel economy??

    With petrol prices on the rise I must ask... how many gallons to the mile? I can't imagine the injectors on that beast...
  7. fish, May 16, 2004
    #7
    fish

    fish New Member

    Joined:
    Dec 16, 2003
    Messages:
    43
    Location:
    St. Pete Bch, FL
    :D :D :D
  8. chrismlewis, May 24, 2004
    #8
    chrismlewis

    chrismlewis New Member

    Joined:
    May 18, 2004
    Messages:
    18
    Location:
    Ft lauderdale
    Fuel economy

    A VLCC (very large crude carrier) that I worked on in the distant past burnt 150 tonnes of fuel per day at an operating speed of 14 kts (around 135 US Gal/ mile very roughly). We had a fuel capacity of 10,000 tonnes I think! She was around 300,000 dwt and a draft of 72'.

    I sure enjoy driving yachts!! :D :D
    Last edited: May 24, 2004
  9. Henrik, May 26, 2004
    #9
    Henrik

    Henrik New Member

    Joined:
    May 6, 2004
    Messages:
    20
    Location:
    Hamburg / Germany
    around 15 years ago (from 1986 to 1990) i worked as a sailor on containerships at Hapag Lloyd.

    on "Frankfurt Express" (297m) we burned at 24knots around 200tons of fuel every day. but it was a twin screw vessel with 2 smaller engines, each with 9 cylinder and 35.000 HP

    on "Hamburg Express" (297m) we have had a steam-turbine which also had burned around 180 tons of fuel every day at around 24knots on a single propeller.
    but this ship was first build in the 1970's as a 2 screw (and 2 turbine) and has burned with this configuration around 400 tons a day with 29knots every day.
    they changed this 2 turbine configuration in the beginning of the 1980's ... because the fuel was getting more expensive.
    but it was great on that ship, because we had no vibration in the ship.... and on deck no sound.... it was like sailing with 24knots :D
    on the other side, the bad thing was going through the red sea... the temperature in the engine room was at around 65° Celsius ... :eek: , not a nice place to work on.
  10. archnav.de, May 28, 2004
    #10
    archnav.de

    archnav.de Senior Member

    Joined:
    Nov 18, 2003
    Messages:
    275
    Location:
    Germany
    Frankfurt Express

    Here are some more Information about the Frankfurt Express:

    Frankfurt Express built by HDW

    Yard No.168, Owner:Hapag-Lloyd, Port: Hamburg, Country: Germany


    Delivery 1981

    TEU 3.045 TEU

    Measuring 58.385 BRT

    Power 2*20.000 kW

    Length 271,00 m (Lpp)

    Width 32,20 m

    Height 24,00 m

    Attached Files:
