Hynautic Engine Controls

Discussion in 'Engines' started by Geobsum, Jun 14, 2022.

You need to be registered and signed in to view this content.
  1. Geobsum, Jun 14, 2022
    #1
    Geobsum

    Geobsum Member

    Joined:
    Jul 28, 2014
    Messages:
    47
    Location:
    Ohio
    Had to replace a tee and now need to bleed the system. Manual says to use a 50/50 ethylene glycol and distilled water “do not use stop leak type antifreeze”!
    Can’t find Hynautic fluid as company is out of business! Have ordered pure ethylene glycol but may take several weeks to receive and the fluid in the tank is green tint so I’m not sure what it is and what to use!
    Any advice would greatly be appreciated since I can’t run my boat as is!
  2. Pascal, Jun 14, 2022
    #2
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    Water based fluid in hydraulics? That seems odd. I ve never had to work on hynautic engine controls but I would have thought it uses the same hydraulic fluid used in their steering system
  3. Geobsum, Jun 14, 2022
    #3
    Geobsum

    Geobsum Member

    Joined:
    Jul 28, 2014
    Messages:
    47
    Location:
    Ohio
    No definitely water based. Found the Hynautic fluid they changed mfg and sku number to HA5455
  4. mapism, Jun 15, 2022
    #4
    mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,166
    Location:
    Sardinia
    Hynautic controls are actually hydropneumatic, sort of.
    In fact, they use air inside the reservoir to keep the circuit pressure constant regardless of liquid expansion with temperature.

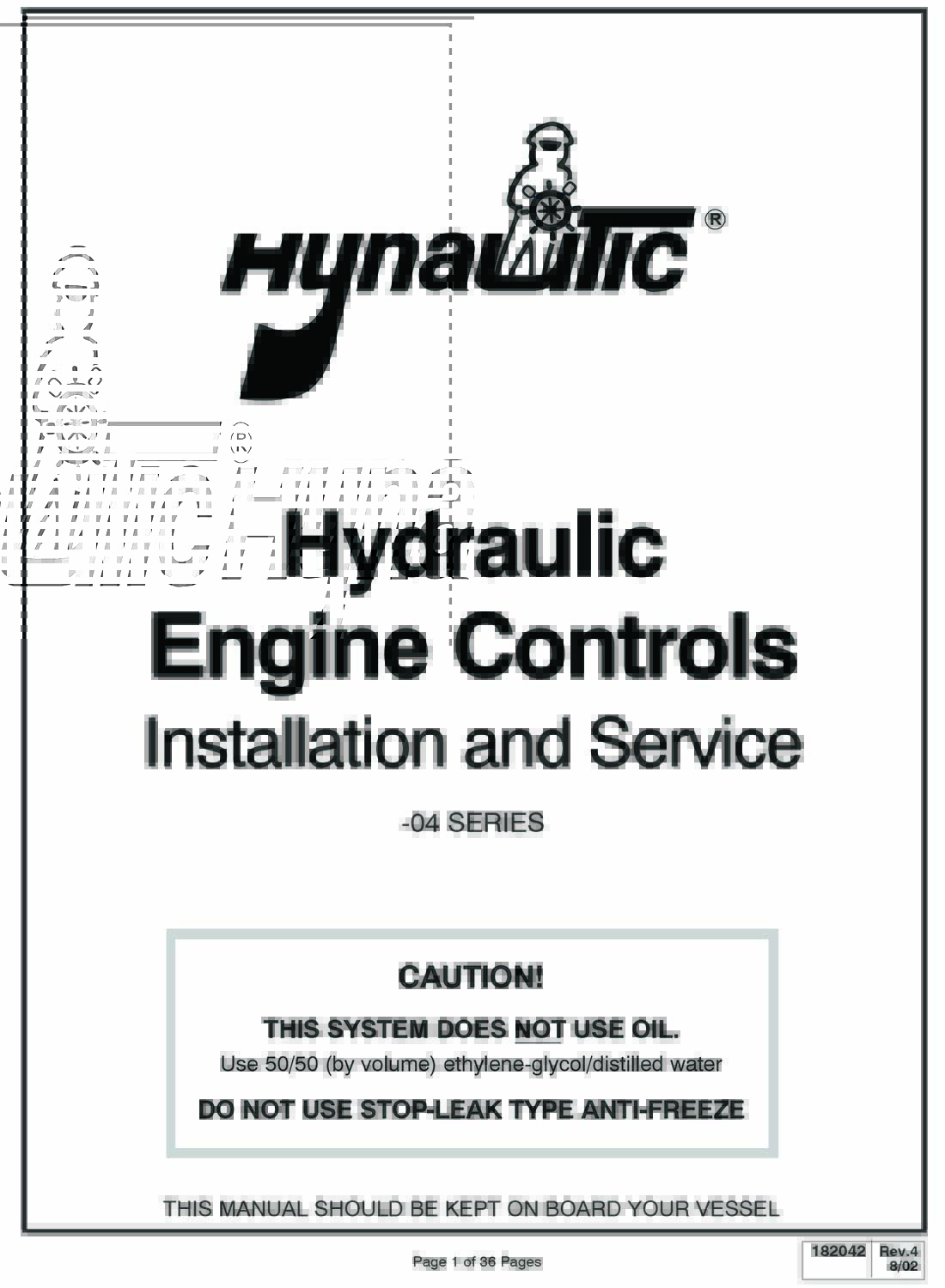

    Anyway, already in the cover, the manual leaves no doubt that they don't use oil! :) Cover.jpg
  5. Pascal, Jun 15, 2022
    #5
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,546
    Location:
    Miami, FL
    Interesting. As I said I v used them but never had to fix them or even pull the manual! You learn something new everyday…
  6. mapism, Jun 15, 2022
    #6
    mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,166
    Location:
    Sardinia
    You were lucky if you never had to fiddle with them.
    A boating mate of mine has them on his early 90s boat, and they still work pretty well, but he treats them with constant TLC.
    To the point of having rebuilt some small bits that were not available anymore!
    But they are very smooth and pleasant to use, I must say.
  7. Capt Ralph, Jun 15, 2022
    #7
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,436
    Location:
    Satsuma, FL
    Hynautic support and parts is available. Just not on the top list of conversations or web pages.
    Sea-Star corp found it was easier to purchase their small and medium boat engine and steering controls competition than compete.
    They purchases up Hynautic and Capilano quickly.

    And for a very long while all was good for them until the king of all marine products looked down to find another profitable company.
    Dometic corp, the king of purchasing up competition and profitable companies bought Sea Star.

    For the DIYr, it is hard to find Hynautic support, you just have to look deeper down the many layers of company names.

    Part Number HA5455
    West Marine, Amazon and others carry it.
    https://www.westmarine.com/buy/seas...ngine-controls-1-gallon--14660948?recordNum=4

    http://www.seastarsolutions.com/support-2/authorized-hydraulic-service-centers/
    http://www.seastarsolutions.com/support-2/service-parts/service-parts-hynautic-helms/
    http://www.seastarsolutions.com/sup...ion-manuals-mechanical-dual-action/#hydraulic
    http://www.seastarsolutions.com/support-2/technical-support/hydraulic-steering/
    Last edited: Jun 15, 2022
  8. Capt Ralph, Jun 15, 2022
    #8
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,436
    Location:
    Satsuma, FL
    On further notes;
    A Hatteras I help support had some hynautic control issues last year. I went to start shopping for seal kits.

    Not a lot left on the vendors shelves and the prices had over tripled within a couple of years of previous purchases.
    I ordered seal kits for every Hynautic component on that Hatt. These spares are sleeping in better storage than Sleeping Beauty.

    It was hard to pay $50 for a plastic bag with 4 different O rings but we did.
    One day, I'll have to pull out my electronic micrometer and size these seals out.
    Publish a O ring inventory per kit and just go purchase the needed 25 cent O rings when required.

    Unless, somebody, somewhere has already done so??? :):)
