hull-keel join

Discussion in 'Technical Discussion' started by tirekicker11, Nov 16, 2011.

You need to be registered and signed in to view this content.
  1. tirekicker11, Nov 16, 2011
    #1
    tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia

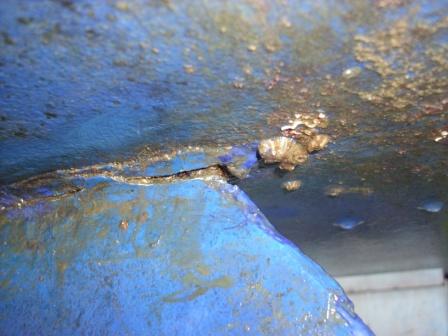

    "A small gap was seen in the trailing edge at the joint between the hull and keel. This gap disappeared when the vessel was set on her keel and no sign of loose bolts were noted. This gap appears as a result of the hull flexing longitudinally. This is a normal phenomenon with a Beneteau and has been observed in many other similar vessels."

    Can anybody here confirm this 'phenomenon'?

    Attached Files:

  2. Ozzie, Nov 16, 2011
    #2
    Ozzie

    Ozzie Member

    Joined:
    Jul 17, 2011
    Messages:
    39
    Location:
    Cul-de-Sac
    I've heard of the Catalina Smile, sounds like it could be similar.
  3. tirekicker11, Nov 16, 2011
    #3
    tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia
    What I'm realy after is to find out whether this 'smile' should be considered a 'normal phenomenon' or structural damage that needs repairing.
  4. Yachtjocky, Nov 16, 2011
    #4
    Yachtjocky

    Yachtjocky Senior Member

    Joined:
    Oct 17, 2010
    Messages:
    365
    Location:
    Fort Lauderdale
    smile

    Alot of people stopped making that a "hard" joint and instead cleaned it out and used a soft mastic like sealant to allow it to move
  5. Ozzie, Nov 16, 2011
    #5
    Ozzie

    Ozzie Member

    Joined:
    Jul 17, 2011
    Messages:
    39
    Location:
    Cul-de-Sac
    google Catalina Smile for the indepth discussion on this
  6. tirekicker11, Nov 16, 2011
    #6
    tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia
    I read that the 'Catalina Smile' is caused by plywood reinforcement in the hull. I don't know whether plywood has been used in this Beneteau. This Beneteau has an internal glued in GRP stiffening grid that may have been compromised by a possible grounding. Though I have reason to believe that this smile has been witnessed before the damaging of the grid.
  7. Jason Ge, Nov 22, 2011
    #7
    Jason Ge

    Jason Ge New Member

    Joined:
    Nov 18, 2011
    Messages:
    11
    Location:
    Shanghai, China
    At first, I think all the keel bolts and nuts are needed to be checked whether they are rusted or not, and the cored woods between the fiberglass surface of the bilge and the bottom hull fiberglass are also needed to checked whether they are rotten or not. Then, you could take the proper solutions accordingly. Hope it works.
  8. kligon, Nov 23, 2011
    #8
    kligon

    kligon New Member

    Joined:
    May 21, 2008
    Messages:
    11
    Location:
    Far East, Singapore, Indonesia
    I helped an owner of GRP 62ft sloop with simular problem, he was sailing Aegean, noticed a minor leaking around the keel bolts. He slipped at Icmeler we dropped the keel replaced the bolts and epoxied the keel seat.
    Reason is the keel has massive amount of energy that if not attached as firmly as possible to the hull it will if given a flexible mastic type seating glue begin to move as the bolts stretch
  9. tirekicker11, Nov 23, 2011
    #9
    tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia
    Good thinking but:
    All keel bolts have been replaced recently and appear to be tight,
    The hull is build in solid laminate, not cored, the glued in top hat stringer stiffening grid is also solid GRP
  10. Ozzie, Nov 23, 2011
    #10
    Ozzie

    Ozzie Member

    Joined:
    Jul 17, 2011
    Messages:
    39
    Location:
    Cul-de-Sac
    Tirekicker,
    what/who is the source of the quote in your o.p.?
  11. tirekicker11, Nov 23, 2011
    #11
    tirekicker11

    tirekicker11 Senior Member

    Joined:
    Jul 29, 2010
    Messages:
    322
    Location:
    SE Asia
    Sorry Ozzie, can't disclose. It's an 'authority' in the business.
