Grounding bar on prop shafts

Discussion in 'Technical Discussion' started by CSkipR, Dec 28, 2014.

You need to be registered and signed in to view this content.
  1. CSkipR, Dec 28, 2014
    #1
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    Does the grounding piece that rubs on the shaft ever need to be replaced? Originally it rubbed about a 1/2 -3/4" spot on shaft and now seems to be less.
  2. Capt J, Dec 28, 2014
    #2
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,530
    Location:
    Fort Lauderdale
    Yes, it's called a shaft wiper and I've seen them wear and break the mounting bolt off of them. If it's worn down, I'd replace it. The proper term for the part is a "shaft wiper".
  3. CSkipR, Dec 28, 2014
    #3
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    Thanks Capt J. Will google and see who sells them.
  4. CSkipR, Dec 28, 2014
    #4
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    Capt J found some from ProMariner Shaft Brushes although I am not sure how the green grounding wire connects to the actual brush. On mine (Cabo) it appears the two green grounding wires are made into the brush. Will try to post a picture.
  5. CSkipR, Dec 28, 2014
    #5
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    Capt J,

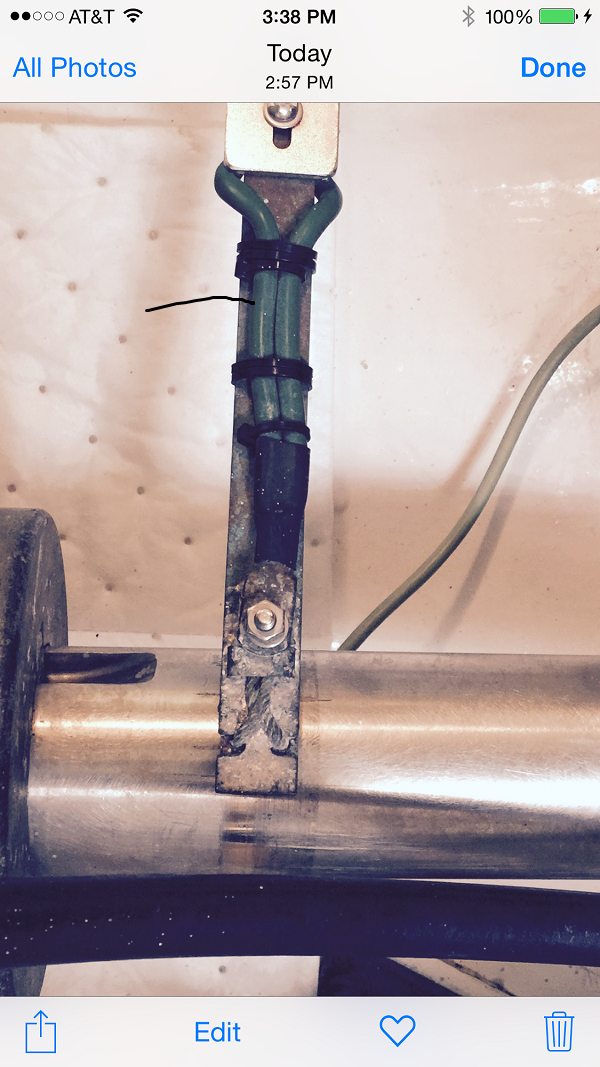

    Here is a picture. Best I could do. You an see the wires that appear to attach to the brush.

    Attached Files:

  6. Capt J, Dec 28, 2014
    #6
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,530
    Location:
    Fort Lauderdale
    Ward's marine electric in Fort Lauderdale stocks a lot of the different ones. You might want to email them with the picture as they'll be able to I.D. it probably instantly. Most of the ones I've seen are a bar or chunk of bronze and the bolt that goes through the arm is what the wires attach to. Some of them you have to buy the entire arm, most you can just buy the end......can you take a picture from the side of it?
