Gauges for Volts/Amps

Discussion in 'Post Yacht' started by Stainless45, Oct 5, 2022.

You need to be registered and signed in to view this content.
  1. Stainless45, Oct 5, 2022
    #1
    Stainless45

    Stainless45 Active Member

    Joined:
    Jul 19, 2019
    Messages:
    167
    Location:
    Post 46 Long Island NY

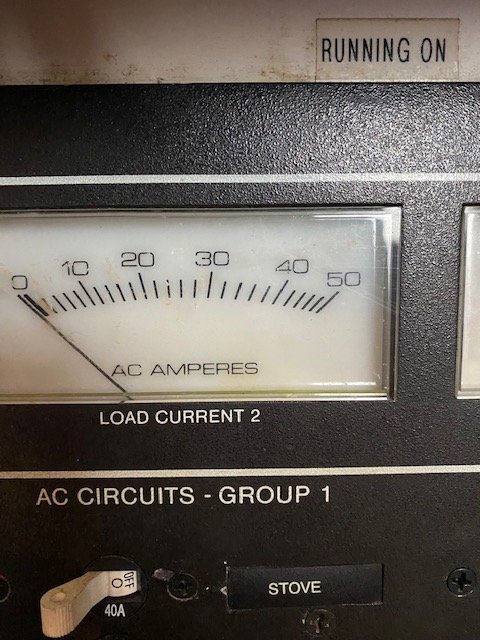

    Has anyone replaced the analog panel meters in the breaker panel? I'm not looking to upgrade to digital or anything, just replacing the dead ones with identical. Thanks

    Attached Files:

  2. captholli, Oct 6, 2022
    #2
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge
    Do you know for a fact that the meter in question is actually bad? You're showing a photo of an amperage gauge that may be fine but has a bad current transformer rendering it useless. Have you disconnected the meters and tested the resistance across the terminals to ascertain if the meter was indeed "open"?
  3. Stainless45, Oct 6, 2022
    #3
    Stainless45

    Stainless45 Active Member

    Joined:
    Jul 19, 2019
    Messages:
    167
    Location:
    Post 46 Long Island NY
    I have not. That's a good point. 3 of the 4 gauges don't work, 2 amperage and 1 voltage. I removed one to try and locate a replacement. The boat was partially sunk in 2010 and I'm guessing these were among the things not replaced by the previous owner
  4. Pascal, Oct 6, 2022
    #4
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,162
    Location:
    Miami, FL
    Check out the digital meters from blue seas system. The often fit in the same holes and cycle between V A and Hz in big red LEDs. You can read them from distance.
  5. Greg Page, Oct 6, 2022
    #5
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    If you can read a model number on the back google can usually locate. Sources for all sizes and styles of meters are DigiKey and Mouser.
    Stainless45 likes this.
  6. Stainless45, Oct 6, 2022
    #6
    Stainless45

    Stainless45 Active Member

    Joined:
    Jul 19, 2019
    Messages:
    167
    Location:
    Post 46 Long Island NY

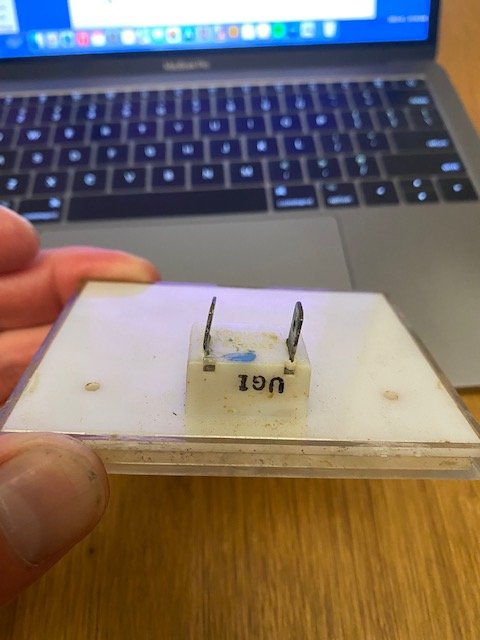

    The only inscription on the back is 'UG1" No brand or model #. There is juice running to the dead gauge I removed because I got a little shock taking it out o_O
  7. Greg Page, Oct 6, 2022
    #7
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Looked on mine, there once was a label but now only where glue was. Could browse DigiKey or Mouser for one the correct size, not sure if size is a parameter that comes up in search table.
  8. chesapeake46, Oct 6, 2022
    #8
    chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,781
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Had one voltage meter for the house electric that would hang up and finally refused to read anything.

    Replaced both meters on 06/10/18 with new Simpson meters

    From Modtronic instruments

    Invoice in file Part # TV2RVV150
    Stainless45 likes this.
  9. Capt Ralph, Oct 6, 2022
    #9
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,735
    Location:
    Satsuma, FL
  10. Stainless45, Oct 6, 2022
    #10
    Stainless45

    Stainless45 Active Member

    Joined:
    Jul 19, 2019
    Messages:
    167
    Location:
    Post 46 Long Island NY

    Attached Files:
