Galley overhaul

Discussion in 'Post Yacht' started by Greg Page, Sep 24, 2021.

You need to be registered and signed in to view this content.
Page 1 of 2
  1. Greg Page, Sep 24, 2021
    #1
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD

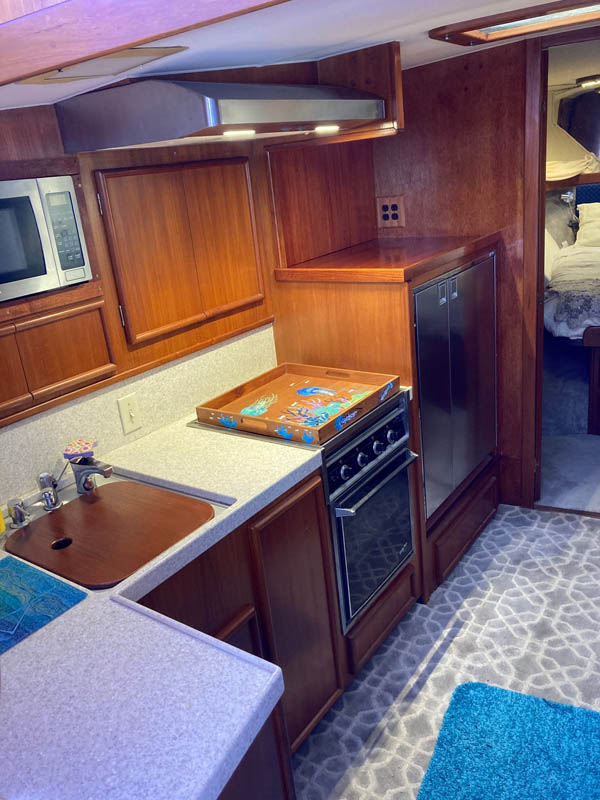

    First step, new refrigerator configuration, is done. Next is wood floor (bamboo), then new microwave/oven combination in the wall above the refrigerator and convert the old microwave location to more storage.

    Attached Files:

    Last edited by a moderator: Nov 3, 2022
    Strypes, Kafue and chesapeake46 like this.
  2. gr8trn, Sep 25, 2021
    #2
    gr8trn

    gr8trn Senior Member

    Joined:
    Dec 3, 2012
    Messages:
    737
    Location:
    OR/CA
    Brilliant. Is the plan for a micro/convection unit above the fridge? If so, will you still require the original oven below the cooktop? Depending on your crew size and preference, you may be able to get even more storage there if you can get away with the convection microwave. Being only two onboard we do fine with the Convection unit, but I don't have LPG on board, you may have?
  3. Greg Page, Sep 26, 2021
    #3
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Yes planning a micro/convection set into the wall above the fridge. The old cooktop/oven will go. A new radient cooktop will go into counter. The oven space will be opened up for storage and probably a place for the cat's food and water bowls so we stop tripping over them.
    Strypes likes this.
  4. gr8trn, Sep 26, 2021
    #4
    gr8trn

    gr8trn Senior Member

    Joined:
    Dec 3, 2012
    Messages:
    737
    Location:
    OR/CA
    That sounds about perfect, she already looks great this will be a wonderful refit for sure.
    Strypes likes this.
  5. Tight Lines, Sep 26, 2021
    #5
    Tight Lines

    Tight Lines Member

    Joined:
    Jul 17, 2021
    Messages:
    42
    Location:
    Grand Rapids, MI
    Looks great. What hood did you go with to replace the original?
  6. Greg Page, Sep 26, 2021
    #6
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    The hood was installed when we got the boat. I don't have a reference for it in my manuals box. I can look for a name or model next time I'm down on the boat.
  7. chesapeake46, Sep 27, 2021
    #7
    chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,780
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    I replaced my hood with a Nutone model many years ago and it fit perfectly in every respect.
  8. Tight Lines, Sep 27, 2021
    #8
    Tight Lines

    Tight Lines Member

    Joined:
    Jul 17, 2021
    Messages:
    42
    Location:
    Grand Rapids, MI
    The hood runs on the same AC circuit as the stove?
  9. Greg Page, Sep 27, 2021
    #9
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    My hood runs on the galley and stateroom 120V light circuit (as does the refrigerator when on 120V). Range/oven has it's own.
  10. Tight Lines, Sep 27, 2021
    #10
    Tight Lines

    Tight Lines Member

    Joined:
    Jul 17, 2021
    Messages:
    42
    Location:
    Grand Rapids, MI
    Got it. So most Harry Homeowner specials with the same size footprint will work.

    Any difficulty matching the stain/varnish with the new lumber? Did you follow the instructions in the owners manual or use something different? How about lumber selection?

    We’re planning to do a similar kitchen makeover as well as replace the forward bulkhead mirror with the same paneling. Hoping to have everything look OEM.
    Rerm likes this.
  11. Greg Page, Sep 27, 2021
    #11
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD

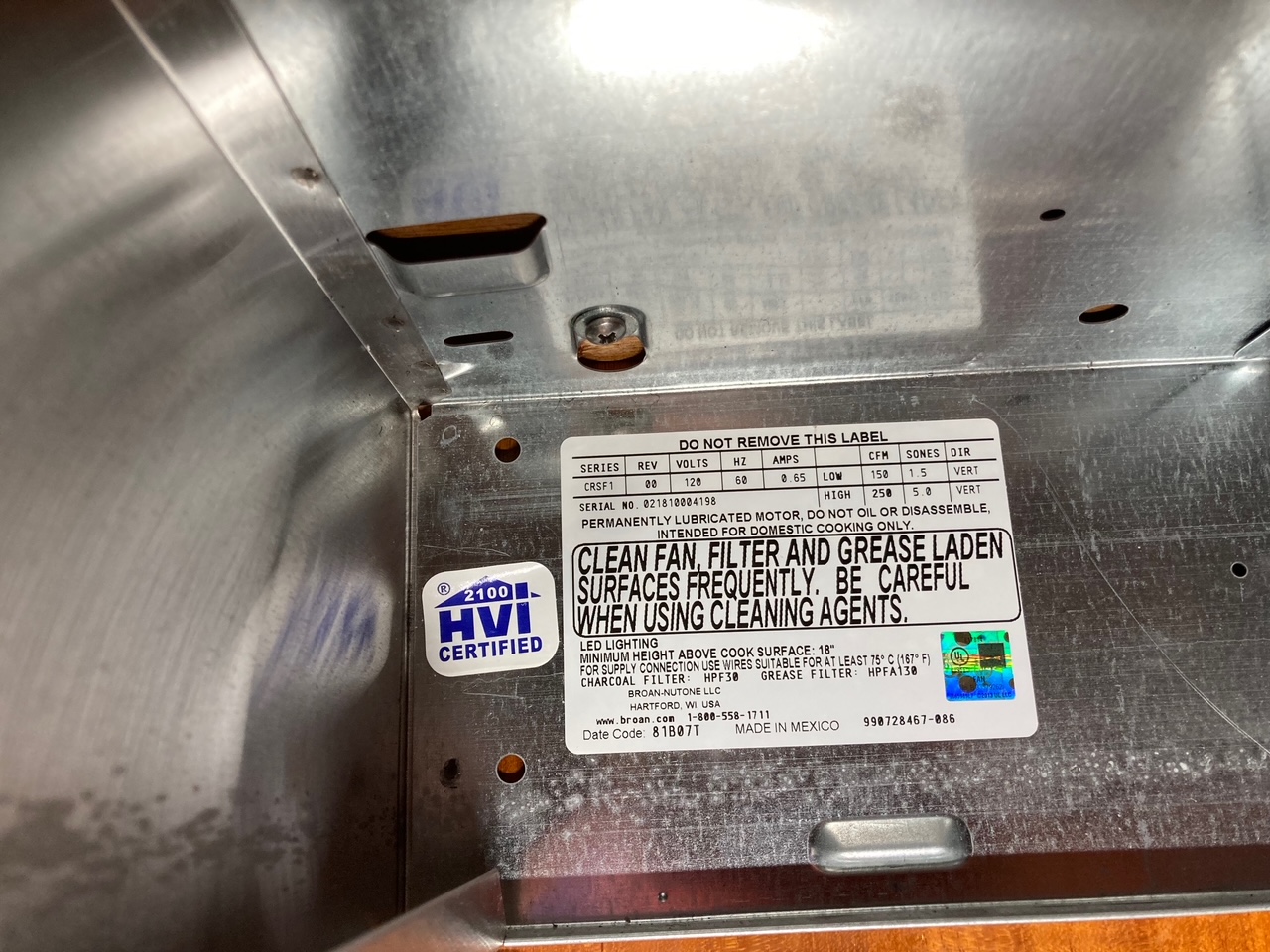

    Range hood is a Broan CRSF1 Here is model data plate info.
    Tight Lines likes this.
  12. Greg Page, Sep 27, 2021
    #12
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    The new wood is mahogany panels and teak trim. We used a "Gunstock" color stain. It is a little more red than the original (even on the side walls which are original mahogony that was under the wall paper). Can't really match 30+ years of sun effects. It is pretty close in bright light, notice the red more in low light. Still need to decide how to put a light above the new counter space.
    Strypes likes this.
  13. Stainless45, Sep 30, 2021
    #13
    Stainless45

    Stainless45 Active Member

    Joined:
    Jul 19, 2019
    Messages:
    167
    Location:
    Post 46 Long Island NY
    Nice work!
  14. Greg Page, Oct 8, 2021
    #14
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Galley floor done in Bamboo. I've done other wood flooring, this was the most challanging with NO 90 degree corners. Good to get the old and ugly carpet out.

    This is probably as far as will get this season, the next steps will have to wait for spring.

    Attached Files:

    Last edited by a moderator: Nov 3, 2022
    Strypes likes this.
  15. Aaron McCann, Nov 26, 2021
    #15
    Aaron McCann

    Aaron McCann Member

    Joined:
    Nov 4, 2021
    Messages:
    32
    Location:
    Oregon
    This looks great, I'm in the middle of a purchase of an early Ocean, but I'm new to Yachtforums and love just looking at what other people have done, no matter the make. I love the counter top and backsplash. Your fridge cabinet looks amazing, what make fridge is that? The original subzero in the boat we are looking at has been replaced with a dorm type fridge and I would like it to look as good as yours.
  16. Greg Page, Nov 27, 2021
    #16
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    The refrigerator is an Isothem Cruise 200, I got it from Defender Industries online. It has both 12 VDC and 120 VAC power inputs. If both have power it selects the 120 VAC automatically, although I only turn on one supply breaker at a time for whichever power I want to use. It is nice to not need to run the GenSet for just the refrigerator underway.
    Aaron McCann and Strypes like this.
  17. cleanslate, Nov 27, 2021
    #17
    cleanslate

    cleanslate Senior Member

    Joined:
    May 29, 2018
    Messages:
    1,648
    Location:
    Cherry Hill, NJ
    What finish did you apply over the stain ?
  18. Greg Page, Nov 27, 2021
    #18
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    The counter top is semi-gloss polyurethane, the walls we switched to satin poly.
    Strypes likes this.
  19. Greg Page, Nov 27, 2021
    #19
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Finished the two stateroom floors before putting up for the winter. Will do the head floor in the spring.

    Attached Files:

    Last edited by a moderator: Nov 3, 2022
    Strypes likes this.
  20. Greg Page, Nov 27, 2021
    #20
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD

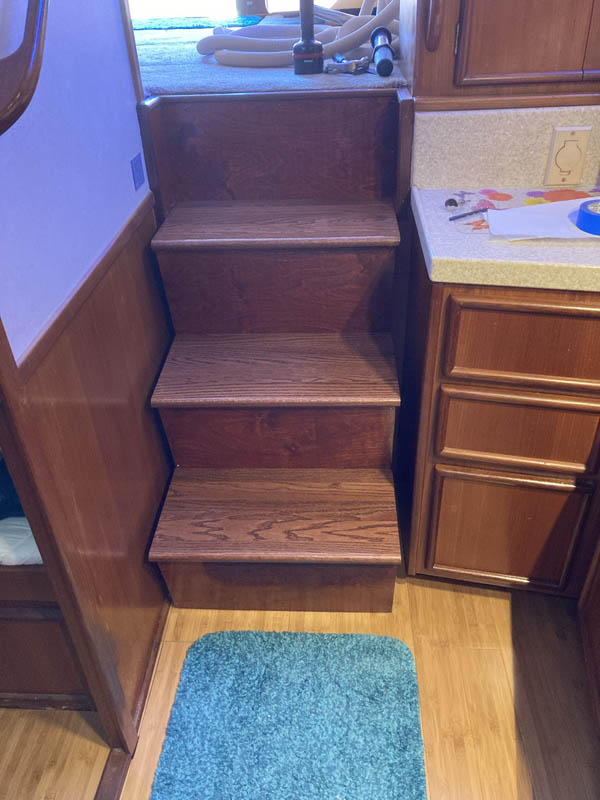

    And covered the stair with 1/16 vaneer and red oak tread covers.

    Attached Files:

    Last edited by a moderator: Nov 3, 2022
    Strypes likes this.
