Floor joist question

Discussion in 'Technical Discussion' started by Richard702, Mar 30, 2022.

You need to be registered and signed in to view this content.
  1. Richard702, Mar 30, 2022
    #1
    Richard702

    Richard702 New Member

    Joined:
    Oct 20, 2021
    Messages:
    2
    Location:
    las vegas
    Hello friends I have a question that I for some reason can't find on the internet. The 2x4s joists holding up my floor are rotting away and in some spots can't support my own weight. I was wondering if I can replace my rotting wooden joist with a thick gage metal joist? And if so does anyone have tips on how to approach this.

    Thank you,
    First time yacht owner
  2. Capt Ralph, Mar 30, 2022
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,436
    Location:
    Satsuma, FL
    We rebuilt a deck using fiberglass angle and fiberglass box tubing many years ago. Still going strong.
    I would stay away from steel components if you could.
    Rebuilding with wood sealed in epoxy worked for us on another project also.
  3. rtrafford, Mar 30, 2022
    #3
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,732
    Location:
    Vero Beach
    I built my salon floor in a 53c using aluminum box channel. I welded hangers into place to receive cross members so that it could all be disassembled for major mechanical access. I used a center beam of light gauge 2x6, and from it used light gauge 2x4's running fore-aft on 16" centers. Really worked out well.

    Stop the leaks that are rotting the wood...
  4. Richard702, Mar 30, 2022
    #4
    Richard702

    Richard702 New Member

    Joined:
    Oct 20, 2021
    Messages:
    2
    Location:
    las vegas
    Can you send me a link or pic of what you mean by fiberglass box tubing and angle. Im still new to all this so I don't know what that is.
  5. Capt Ralph, Mar 30, 2022
    #5
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,436
    Location:
    Satsuma, FL
  6. rtrafford, Mar 30, 2022
    #6
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,732
    Location:
    Vero Beach

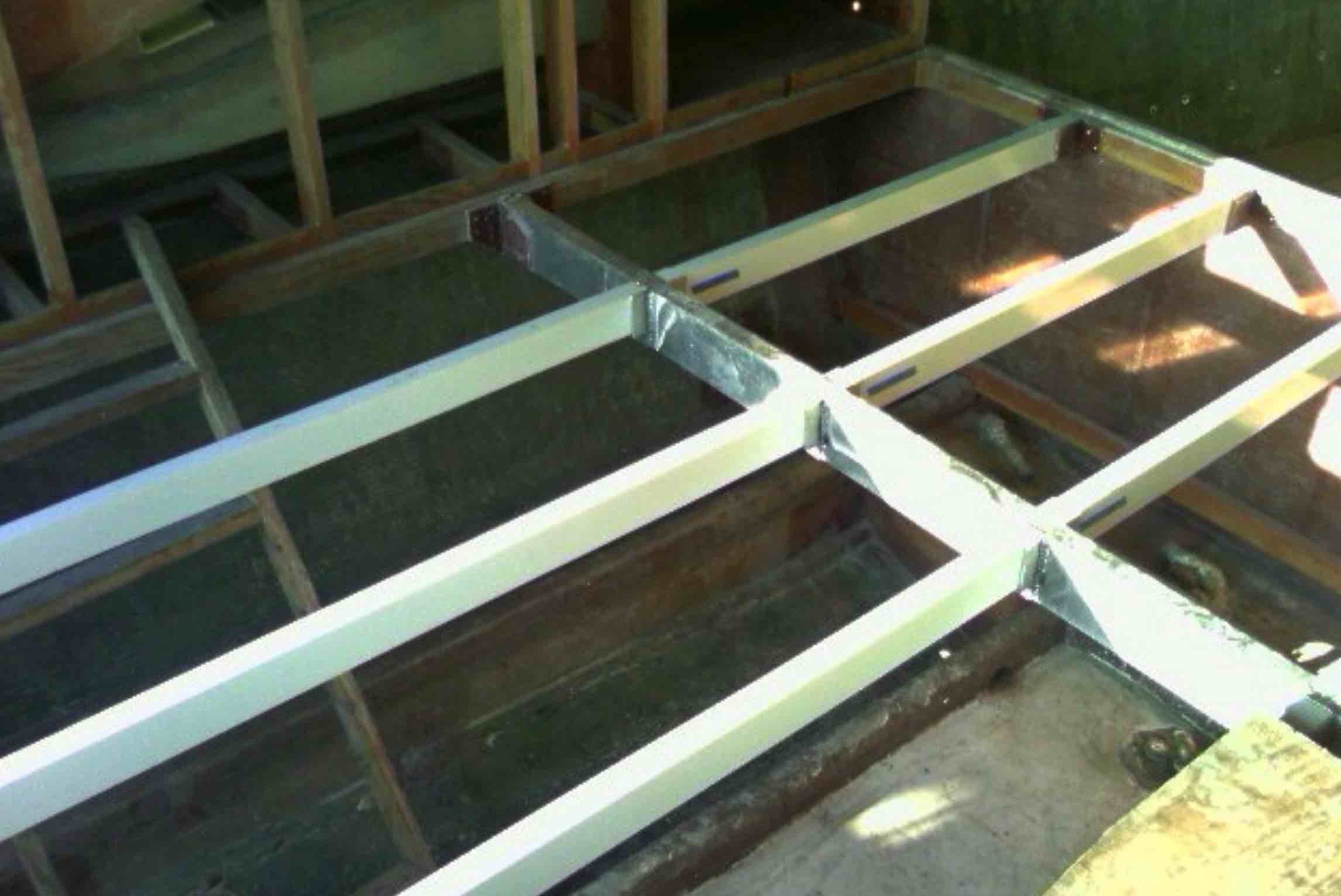

    Screen Shot 2022-03-30 at WednesdayMar 30, 20222.10.08 PM.jpg
  7. captholli, Mar 30, 2022
    #7
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,184
    Location:
    In The Bilge
    Bedford reinforced plastics supplied all of the FRP structural shapes on a total gut machinery space refit a few years ago. I checked multiple suppliers at that time and found Bedford to be the most reasonable price wise, delivery schedule and OTG shipping expense. I used FRP products from Bedford for the engine bulkhead furring, engine room decking sub frames 2 x 2 x 1/4 pro-form L angle and 4 x 4 x 1/2 wide flange beam for the ER overhead beams /main saloon sole soft patch. FRP pricing is or was similar $$ to aluminum in 2018 with three times the load strength. Photo is of the ER decking sub frames. Google Bedford Reinforced plastics and look at their "Pro Form Shapes" section for product info, sizing and price.
