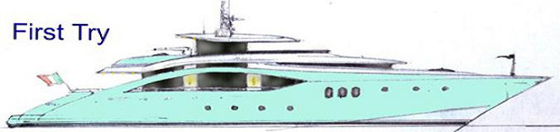

    This is my first try of designing a yacht, just for fun. :D
    Its about 50 meter.
    Please give some coments on the design, good or bad ?

    Attached Files:

  2. AMG, Sep 22, 2005
    #2
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Let me say, not bad! :)

    If you mark lines representing each deck/floor to ceiling on top of the drawing, it will be easier for both you and us to understand if it is "buildable"... ;)

    /Lars
  3. orion, Sep 22, 2005
    #3
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Something like this, I think. The maindeck have a raised ceiling , rounded side windows go trough decks up to the air tower ;)

    Attached Files:

  4. JonS, Sep 22, 2005
    #4
    JonS

    JonS Senior Member

    Joined:
    Feb 7, 2005
    Messages:
    362
    Location:
    -
    Nice look Orion.

    In that last post tho, can u upload a jpg of the psd file as the forum cannot display psd files.

    Thanks. :)
  5. KCook, Sep 22, 2005
    #5
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Certainly a distinctive style. Think I like the front half better than the back half. Not sure about the practicalilty of the back half.

    Kelly Cook
  6. orion, Sep 23, 2005
    #6
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

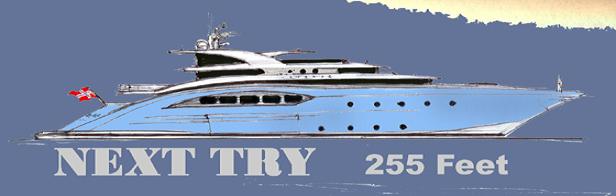

    Next Try

    This was pretty fun.... :rolleyes:

    NEXT TRY

    Attached Files:

  7. orion, Sep 23, 2005
    #7
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

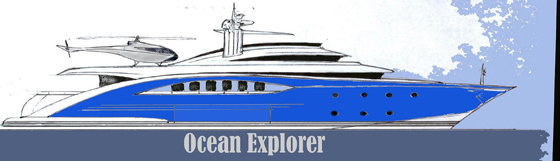

    Another...

    275´Ocean Explorer............?

    Attached Files:

  8. AMG, Sep 23, 2005
    #8
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Hi, after looking at the heights versus the length, your yachts are about 36, 54 and 68 m. But there are still decks that are too low (or others too high)...

    It is necessary to make a grid of lines first so you get a somewhat realistic profile. Deck height should be between 2.3 and 2.6 m on yachts this size.

    The boring reality... ;)
  9. Ricardo Barroso, Sep 23, 2005
    #9
    Ricardo Barroso

    Ricardo Barroso New Member

    Joined:
    Jun 8, 2005
    Messages:
    144
    Location:
    Lisbon
    I like it

    I like it and the chimney promises ... :cool:
  10. orion, Sep 23, 2005
    #10
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    These are just freehand imaginations, I was more thinking about finding some new lines and shapes for yachts.
    Take about 20 minuts to make these drawings but I have to buy something to measure with so it also have the right dimensions.
    Anyway its very fun and easy to design a yacht, functionality be the next try;)

    Are deckheights from floor to ceiling 230-260cm or is floor to floor?
    I think that at some floors there could be hights about 320cm and at crew floors it could be 220cm ?
    How thick is ceiling/floor for the construction and installations?
  11. tantetruus, Sep 23, 2005
    #11
    tantetruus

    tantetruus New Member

    Joined:
    Jul 4, 2005
    Messages:
    443
    Location:
    Dordrecht
    you should be able to set some kind of grid in freehand as well.
  12. orion, Sep 23, 2005
    #12
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA

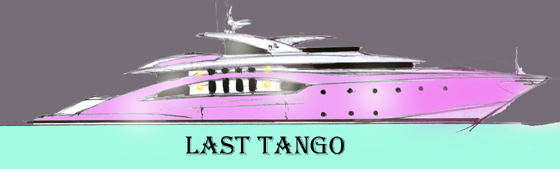

    LAST TANGO

    I think this is about 50 meters.... :D

    Attached Files:

  13. orion, Sep 24, 2005
    #13
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Here I tried to also include right dimensions and proportions :eek:

    Attached Files:

  14. AMG, Sep 24, 2005
    #14
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    You might want to see the yacht Time which is mentioned in another thread.
    She has somewhat similar lines to your creations. Pretty avant garde in 1987, with two Citroens CV2 on the top deck. She also had a jacuzzi, positioned low at the transom where at least some of the water could remain inside... http://www.tomfexas.com/projects/1024/MY_Time.html
  15. yachtbroker007, Sep 25, 2005
    #15
    yachtbroker007

    yachtbroker007 New Member

    Joined:
    Sep 24, 2005
    Messages:
    20
    Location:
    Florida
    wow

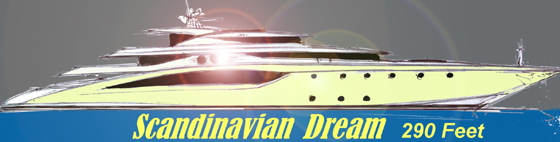

    that scandanavian dream one is sweet as heck :D even i'd buy that :p
  16. yachtbroker007, Sep 25, 2005
    #16
    yachtbroker007

    yachtbroker007 New Member

    Joined:
    Sep 24, 2005
    Messages:
    20
    Location:
    Florida
    lol

    if thats 275' that one big chopper on the rear deck :p
  17. orion, Sep 25, 2005
    #17
    orion

    orion Senior Member

    Joined:
    Feb 19, 2005
    Messages:
    399
    Location:
    Newport Beach, CA, USA
    Yes its very big, Actually it looks that there are two Sikorsky S-76C+.... :confused:

    Attached Files:

    Last edited: Sep 25, 2005
  18. KCook, Sep 25, 2005
    #18
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Kinda scary to see a chopper operating that close to another one :eek:
  19. Ricardo Barroso, Sep 25, 2005
    #19
    Ricardo Barroso

    Ricardo Barroso New Member

    Joined:
    Jun 8, 2005
    Messages:
    144
    Location:
    Lisbon
    Lines

    I think this design have I light beat female in it's lines ... :)
  20. KCook, Sep 25, 2005
    #20
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    Ricardo, your last statement could have interesting interpretations in some corners of the english speaking world ;) :)
