Does anyone know where I can get something like this

Discussion in 'YachtForums Yacht Club' started by K1W1, Mar 16, 2012.

  1. K1W1, Mar 16, 2012
    #1
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    Hi,

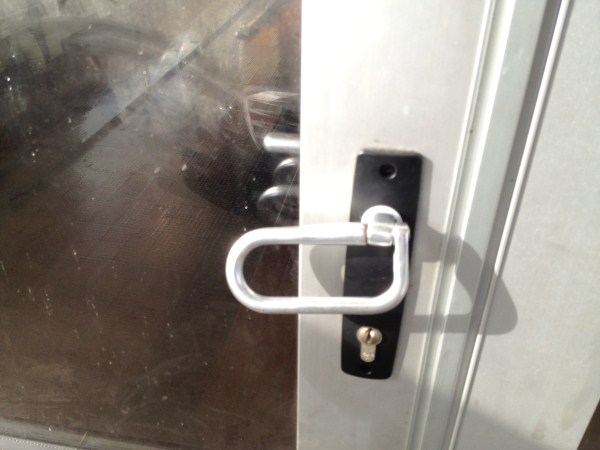

    I am looking for a door handle like the one shown in the photo.

    It is to be used on an outside door and to allow a screen door to close over the frame around it which is why it needs to be low profile.

    Has anyone seen something like this or can put me in touch with a company that has them?

    Attached Files:

  2. AlfredZ, Mar 16, 2012
    #2
    AlfredZ

    AlfredZ Senior Member

    Joined:
    Oct 29, 2009
    Messages:
    561
    Location:
    Landlocked in Europe
    Hi there,

    Check this site and search for "Low profile, offset, recessed or pocket latches" they will do the trick. (Sometimes the pictures fool the eye, so check the dimensions for better results).

    Door Levers - The Hardware Hut

    Hope it would be of good use.

    Cheers,

    Alfred
  3. Ken Bracewell, Mar 16, 2012
    #3
    Ken Bracewell

    Ken Bracewell Senior Member

    Joined:
    Feb 9, 2006
    Messages:
    1,758
    Location:
    Somewhere Sunny
    Izerwaren

    I would try Izerwaren Inc first. If they don't have it, they will probably be able to guide you.
  4. Old Phart, Mar 16, 2012
    #4
    Old Phart

    Old Phart Senior Member

    Joined:
    Mar 14, 2011
    Messages:
    1,329
    Location:
    I dunno
    This looks close to your pic, handle-wise, from Ken's suggestion:

    http://www.izerwaren.com/assets/images/db_images/db_5-3-1_FLUSH_LEVERS_FULL_SIZE2.jpg
  5. K1W1, Mar 16, 2012
    #5
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    Hi,

    Thanks guys, I have actually measured the amount of clearance I have and to my horror have found that I only have 11mm(7/16") to play with.

    With this in mind I think I will buy another handle and cut down the bit that sticks out and drill and tap for a bolt in the side to clamp it to the shaft, making use of the bolt itself as the handle.

    I have also looked at glueing some type of spacer of 2 or 3mm to the whole door frame to give a bit more space. Just have to find the right material.

    This is for the back door leading to the garden at home, we had all the windows and doors replaced late last year and were not aware that fitting the screen door was going to pose such huge problems.

    In summer we like to leave the door itself open when we are home and the cats can come and go as they please if it is just the screen to deal with.

    My other half did not want a cat flap as she is worried about two legged cats getting in when I am away.
  6. AMG, Mar 16, 2012
    #6
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    Then this little folding handle from Schwepper would do?

    Attached Files:

  7. K1W1, Mar 16, 2012
    #7
    K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,427
    Location:
    My Office
    Hi,

    Lars, Could you please send me that image by E Mail. I can't read the dimensions on the one posted.
  8. AMG, Mar 16, 2012
    #8
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,380
    Location:
    Sweden
    You will find it in this PDF, (it is only 750 Kb); http://www.schwepper.com/images/pdf/02.pdf
  9. AlfredZ, Mar 16, 2012
    #9
    AlfredZ

    AlfredZ Senior Member

    Joined:
    Oct 29, 2009
    Messages:
    561
    Location:
    Landlocked in Europe
    I guess you have to go with the flush stuff like Lars sent you, useful but not fun in time! Had one on the back door of my office (Hidden Latch), it worked very fine but I did'nt like it!

    Good luck with your choice.

    Cheers.
    Alfred
  10. weto, Mar 16, 2012
    #10
    weto

    weto Senior Member

    Joined:
    Jan 1, 2012
    Messages:
    163
    Location:
    NOR CAL
    I've been waiting for someone else to ask but I'll toss it out there, whats the door on K1W1 if you dont mind me asking ?
  11. ScotL, Mar 17, 2012
    #11
    ScotL

    ScotL Senior Member

    Joined:
    Jun 29, 2009
    Messages:
    510
    Location:
    Green Bay/Milwaukee,WI
    I'm guessing the house based on:

  12. weto, Mar 17, 2012
    #12
    weto

    weto Senior Member

    Joined:
    Jan 1, 2012
    Messages:
    163
    Location:
    NOR CAL
    Yep, probably should have read the whole post eh ? :rolleyes:
