Davits

Discussion in 'Technical Discussion' started by DOCKMASTER, May 5, 2021.

You need to be registered and signed in to view this content.
Page 1 of 2
  1. DOCKMASTER, May 5, 2021
    #1
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,410
    Location:
    Ketchikan, Alaska
    I'm having some issues with the davit on my bow for loading and unloading my 14' RIB. It appears the wire has fouled inside somehow. We are still working to assess the problem and a fix. In the meantime, I'm wondering if I shouldn't just replace the whole thing? Who makes a good davit? I don't know what brand mine is, there is no info on it we can find. I do know it is a 1,000 lbs capacity. It is a fixed boom and has the hydraulic boom up/down and wire in/out. It's a manual rotation which isn't a big deal. What brands have you had good reliability from? Where do you even buy one from?
  2. motoryachtlover, May 5, 2021
    #2
    motoryachtlover

    motoryachtlover Senior Member

    Joined:
    Jan 29, 2007
    Messages:
    651
    Location:
    smithfield, VA
    I replaced my manual UMT with a Steelhead (made in Canada, i think) about 2 years ago and love it. mud daubers got in there and made it where my dyneema rope would not lift the dinghy but I had a chain hoist on board for that purpose. It is fully hydraulic and i very much like it and recommend it. 2 years ago I paid 25,000 installed in Florida. It is 1000 lb davit.
  3. Pascal, May 5, 2021
    #3
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,162
    Location:
    Miami, FL
    I ve had excellent service from QuickLift. Well built.
  4. DOCKMASTER, May 5, 2021
    #4
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,410
    Location:
    Ketchikan, Alaska
    According to Quicklift website they no longer manufacture new units. They are only providing parts and service. Bummer!
  5. Capt Ralph, May 5, 2021
    #5
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,735
    Location:
    Satsuma, FL
    SteelHead is the closest vendor to you.
    There phone support to Florida was good when I had issues on some customers boats.
    Part support was expensive.
    It is an expensive product.
    IMO, over fancy that was not required for basic operation.
    Then, They do make basic systems. Just not for Hatteras or other big names that I have worked on.
    The structures and frames were bomb proof. All welds were the best I have ever seen in these products. Heavy plates trimmed and fared very well.
    Just by exposure, the rotation gear (stainless) seemed to rust very quickly at the teeth and drop rust every ware. Lots of grease did not help but make the deck stains worse. The drive motors drive (regular H steel) held up very well. Hydraulic (mag op) valves are not forgiving at all.
    So, I still do recommend this product because of the robust frames. Just order a KISS model.
    Last edited: May 5, 2021
  6. DOCKMASTER, May 6, 2021
    #6
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,410
    Location:
    Ketchikan, Alaska
    Thanks all. We will do a bit of troubleshooting then go from there. If I end up replacing I would prefer to find something similar to what I have so I don't have to fuss with the deck mounting and penetration too much. Most of what I'm finding and recommended here seem to have a larger deck footprint. I'll get some pictures of the existing to see if anyone can help I.D. it.
  7. RER, May 7, 2021
    #7
    RER

    RER Senior Member

    Joined:
    Jan 20, 2009
    Messages:
    1,542
    Location:
    Newport Beach CA

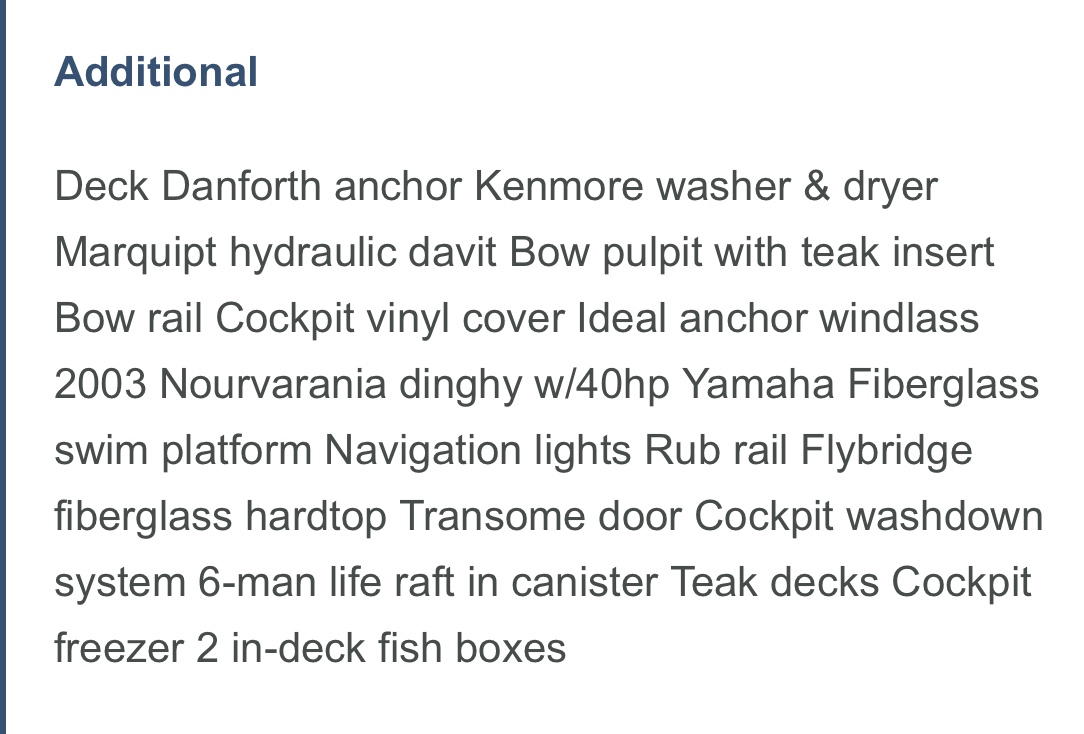

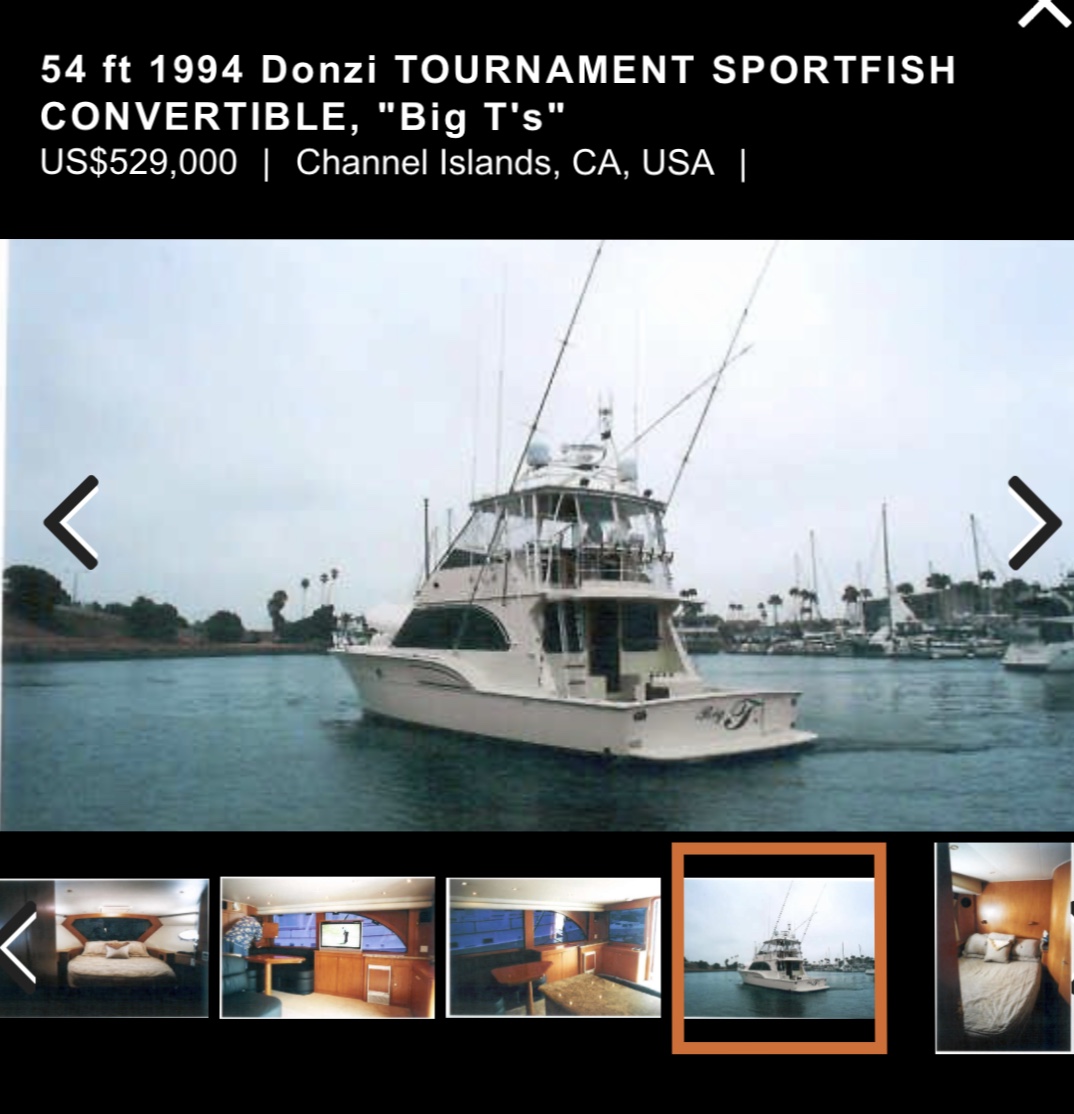

    Specs for BIG T’S on Sold Boats says you have a Marquipt davit.
  8. MBevins, May 7, 2021
    #8
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,172
    Location:
    Windsor On. Canada
    I've had great success with Brower. There out of California, I believe they're still in business.
  9. NYCAP123, May 7, 2021
    #9
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    I'm surprised to see this as the first mention of Marquipt. They used to be considered the gold standard. Have they slipped?
    Also Dockmaster, if your cable is fouled but the davit is working why not just replace the cable? Cables rust, jam, kink and fray all the time. Replacing the whole davit seems to be an expensive fix.
  10. rtrafford, May 7, 2021
    #10
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,586
    Location:
    Vero Beach
  11. rtrafford, May 7, 2021
    #11
    rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,586
    Location:
    Vero Beach
    Then again, if the rest is in good condition, and it is a Marquipt, why not just rebuild it?
  12. Pascal, May 7, 2021
    #12
    Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,162
    Location:
    Miami, FL
    We had our Nautical Structure davit serviced a couple of years ago and they replaced the SS cable with Dynema (I think... or one of the new high tech lines). What an improvement.
  13. DOCKMASTER, May 7, 2021
    #13
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,410
    Location:
    Ketchikan, Alaska
    I’m not familiar with Big T’s. Can you send me a link to what you found please? Thank you!
  14. DOCKMASTER, May 7, 2021
    #14
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,410
    Location:
    Ketchikan, Alaska
    We will look to repair first if possible. I didn’t know if parts were available so just looking at all options. I’ll contact Marquipt to see if I can get a service manual or other info to help. Thanks all!
  15. MBevins, May 7, 2021
    #15
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,172
    Location:
    Windsor On. Canada
    Whatever your solution, move away from the stainless wire. Dyneema is now the way to go.
  16. RER, May 7, 2021
    #16
    RER

    RER Senior Member

    Joined:
    Jan 20, 2009
    Messages:
    1,542
    Location:
    Newport Beach CA
    That was the name of your boat back in 2008 before it was sold and became TIGER SHARK II. Can’t send a link. Sold Boats is a member-only password protected site.
  17. DOCKMASTER, May 7, 2021
    #17
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,410
    Location:
    Ketchikan, Alaska
    Thanks for the info. I knew the boat was originally delivered as the Century Star and was Tiger Shark II when I bought it. I vaguely recall something about Big T's now that you mention it but don't recall seeing the info you just provided. Thank you!
  18. Danvilletim, May 8, 2021
    #18
    Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    I made some calls to all brands mentioned here and more. 9-12 weeks lead time due to Covid. Yikes.
  19. NYCAP123, May 8, 2021
    #19
    NYCAP123

    NYCAP123 Senior Member

    Joined:
    Mar 14, 2008
    Messages:
    11,205
    Location:
    Long Island, NY
    Repair sounds better and better.
  20. Capt Cole, May 8, 2021
    #20
    Capt Cole

    Capt Cole Member

    Joined:
    Jan 24, 2017
    Messages:
    122
    Location:
    Pittsburg CA
    Brower is no longer n business. Some parts still available from former distributors, but that's it.
