Bottom Thickness

Discussion in 'Post Yacht' started by Greg Page, Dec 16, 2024.

You need to be registered and signed in to view this content.
  1. Greg Page, Dec 16, 2024
    #1
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    439
    Location:
    Annapolis MD
    Does anyone know the bottom thickness for th 43 Post or other? I didn't think to measure it when the thru hulls were being replaced a couple years ago.

    Thanks
  2. SeaEric, Dec 16, 2024
    #2
    SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,376
    Location:
    out on the dock
    IIRC when I drilled my 1981 Post 42 for a transducer, it was about a 3/4" thick core.
    Greg Page likes this.
  3. boatpoor, Dec 16, 2024
    #3
    boatpoor

    boatpoor Active Member

    Joined:
    May 4, 2016
    Messages:
    251
    Location:
    32407
    Mine has measured from 3/4-7/8 at 4 different places from aft of the engines to midship.
    Greg Page likes this.
  4. Greg Page, Dec 16, 2024
    #4
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    439
    Location:
    Annapolis MD
    Thanks. I've been using my CAD model to check planned internal component clearances. Around 1" is good.
  5. Treads, Jan 9, 2025
    #5
    Treads

    Treads New Member

    Joined:
    Feb 14, 2017
    Messages:
    24
    Location:
    Chesapeake Bay
    CAD model of your 43 huh? please share some screen shots please, did I say please? ;)
  6. Greg Page, Jan 9, 2025
    #6
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    439
    Location:
    Annapolis MD

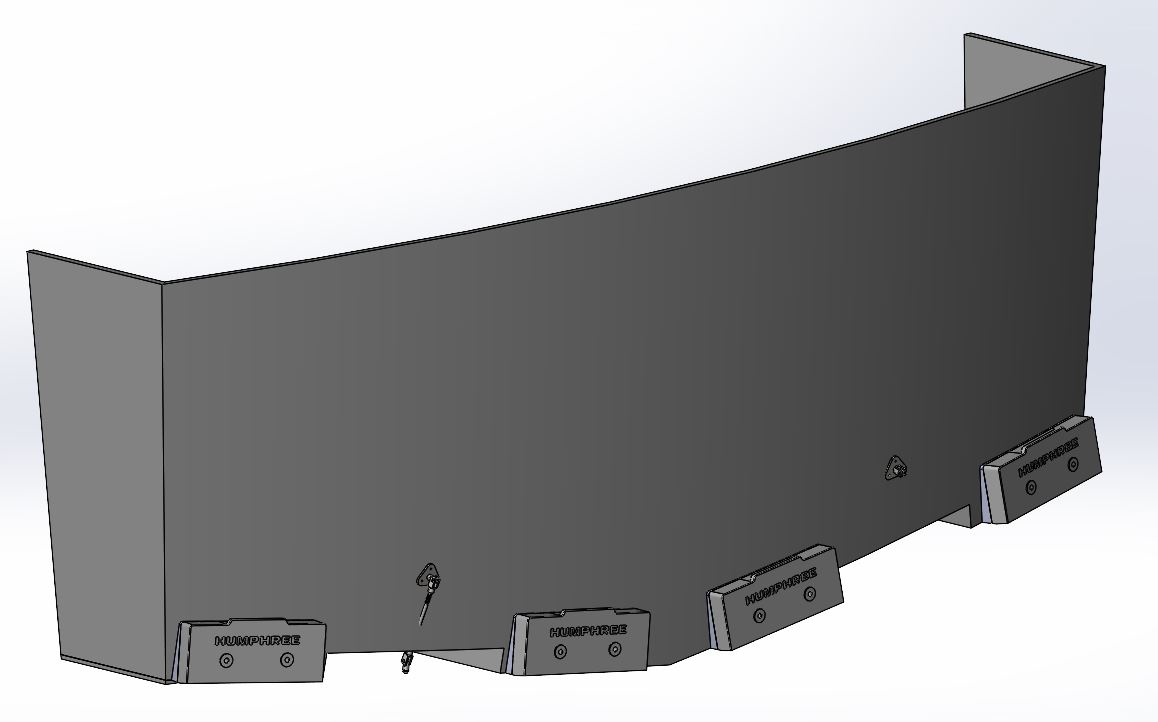

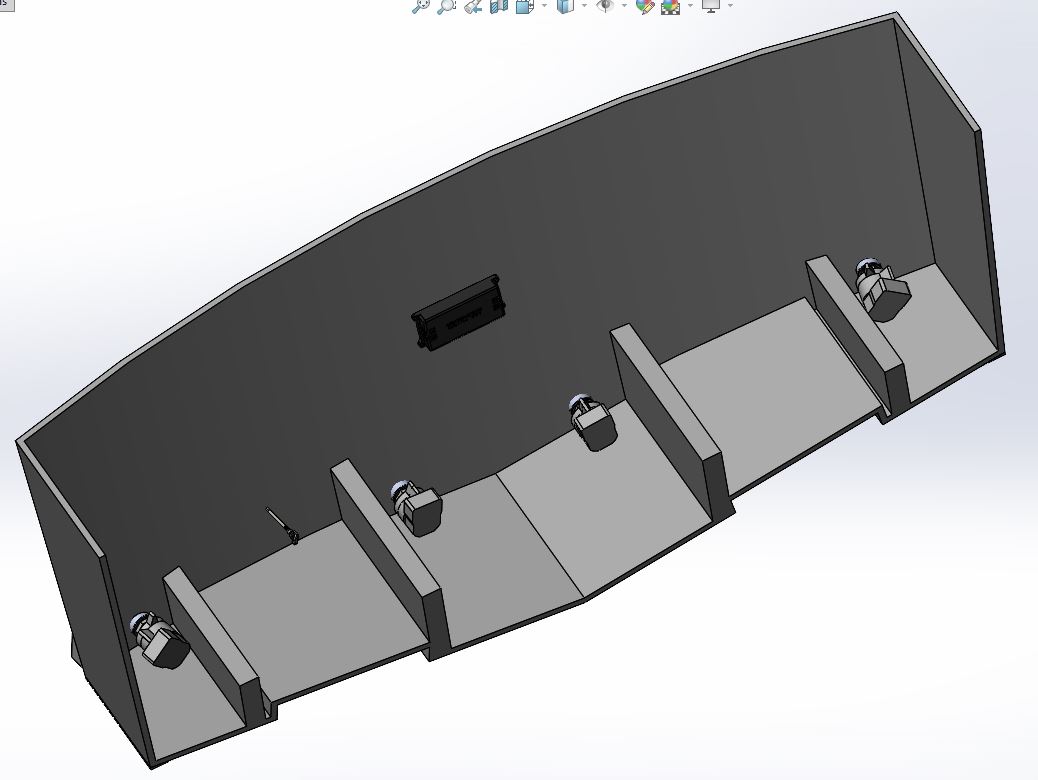

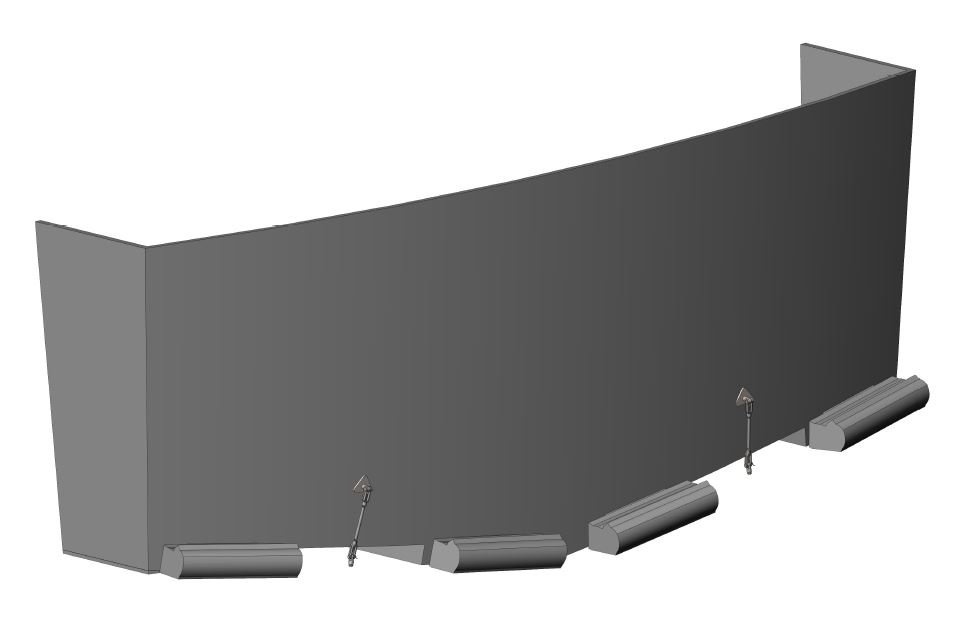

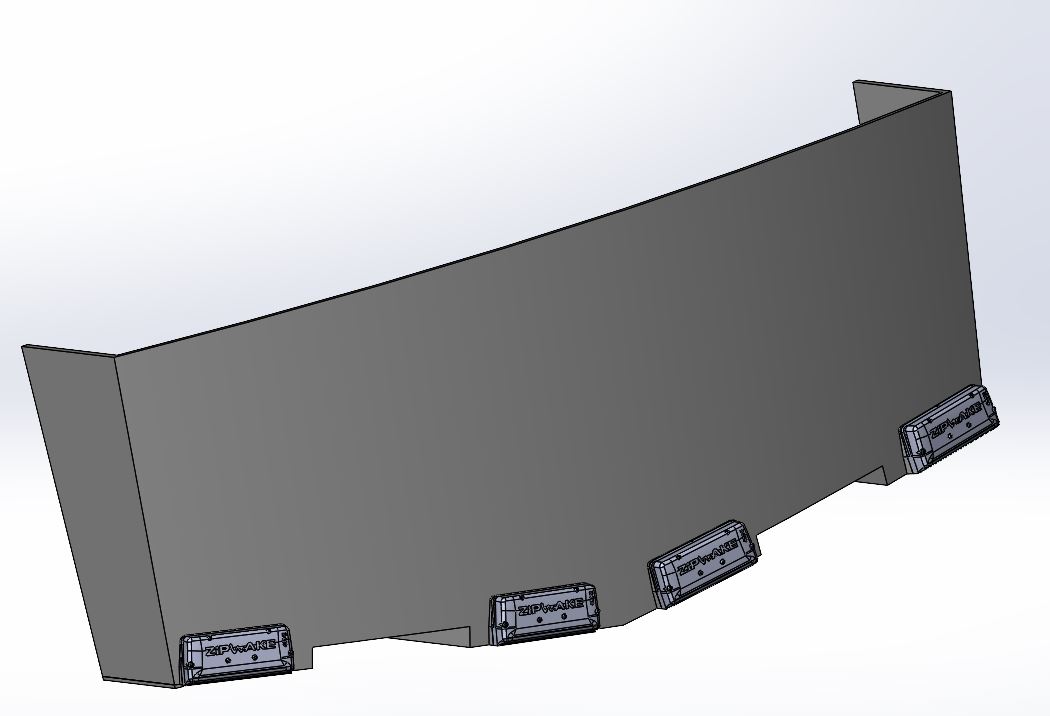

    It's only the transom, tab pockets and main stringers to look at clearances and curvatures for various interceptor options. I don't have the measurements or ambition to do the full hull.

    X-450 Installation - Stern.JPG X-450 Installation - Interior.JPG Zipwakes-E - Stern.JPG Ride 450 - Stern.JPG
    Last edited: Jan 9, 2025
  7. Treads, Jan 9, 2025
    #7
    Treads

    Treads New Member

    Joined:
    Feb 14, 2017
    Messages:
    24
    Location:
    Chesapeake Bay
    Interceptors on a Post, that's interesting. Winter project?
  8. mapism, Jan 10, 2025
    #8
    mapism

    mapism Senior Member

    Joined:
    Aug 9, 2008
    Messages:
    2,182
    Location:
    Sardinia
    Very interesting.
    Are you thinking to keep also traditional flaps?
    If yes, I think that the two interceptors outboard of the props might be enough.
    Also because they are the ones more effective for roll control anyway.
  9. Greg Page, Jan 10, 2025
    #9
    Greg Page

    Greg Page Senior Member

    Joined:
    Mar 4, 2017
    Messages:
    439
    Location:
    Annapolis MD
    Interested, roll bothers the cat (she rides on helm chart table). Started looking a year ago. Cost to remove tab pockets is prohibitive. I have a personal SolidWorks license so ... Made a model to see what might be physically possible. Clearance of actuator to bottom and main stringers (non-structural filler for tab pocket would require offset actuator to clear stringer to use the space), thru-bolt clearance (Zipwakes couldn't thru-bolt, interfere with stringer), spacers to accommadate flat actuators with curved/raked transom (fastener length/bending, CNC costs) etc.
